Niuli 10-Tonne Full-Size Steel Forklift Dock Ramp / Yard Ramp

$24,20000 $26,57200
Niuli  |  SKU: DR10

This product is made to order.

Made to order. Shipped out within 6-10 weeks.

Need this before Christmas?
See delivery estimate details here.

Description

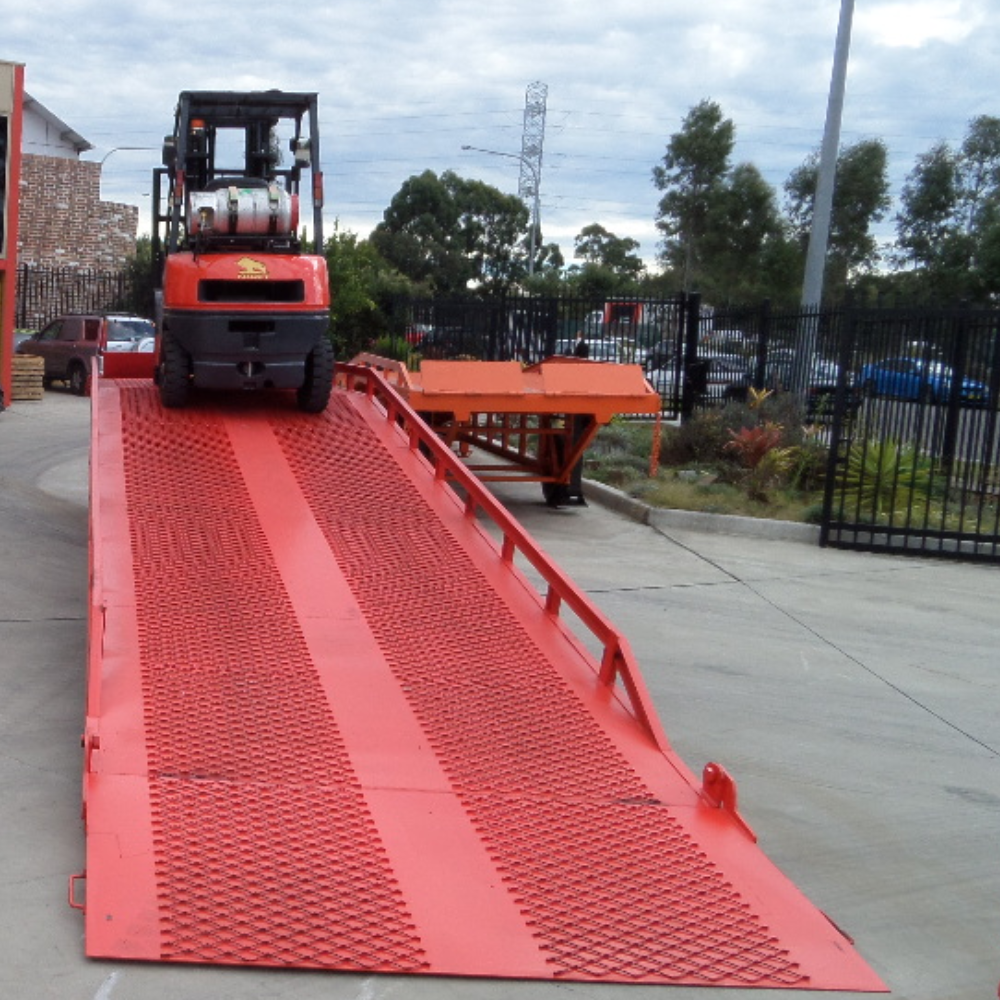

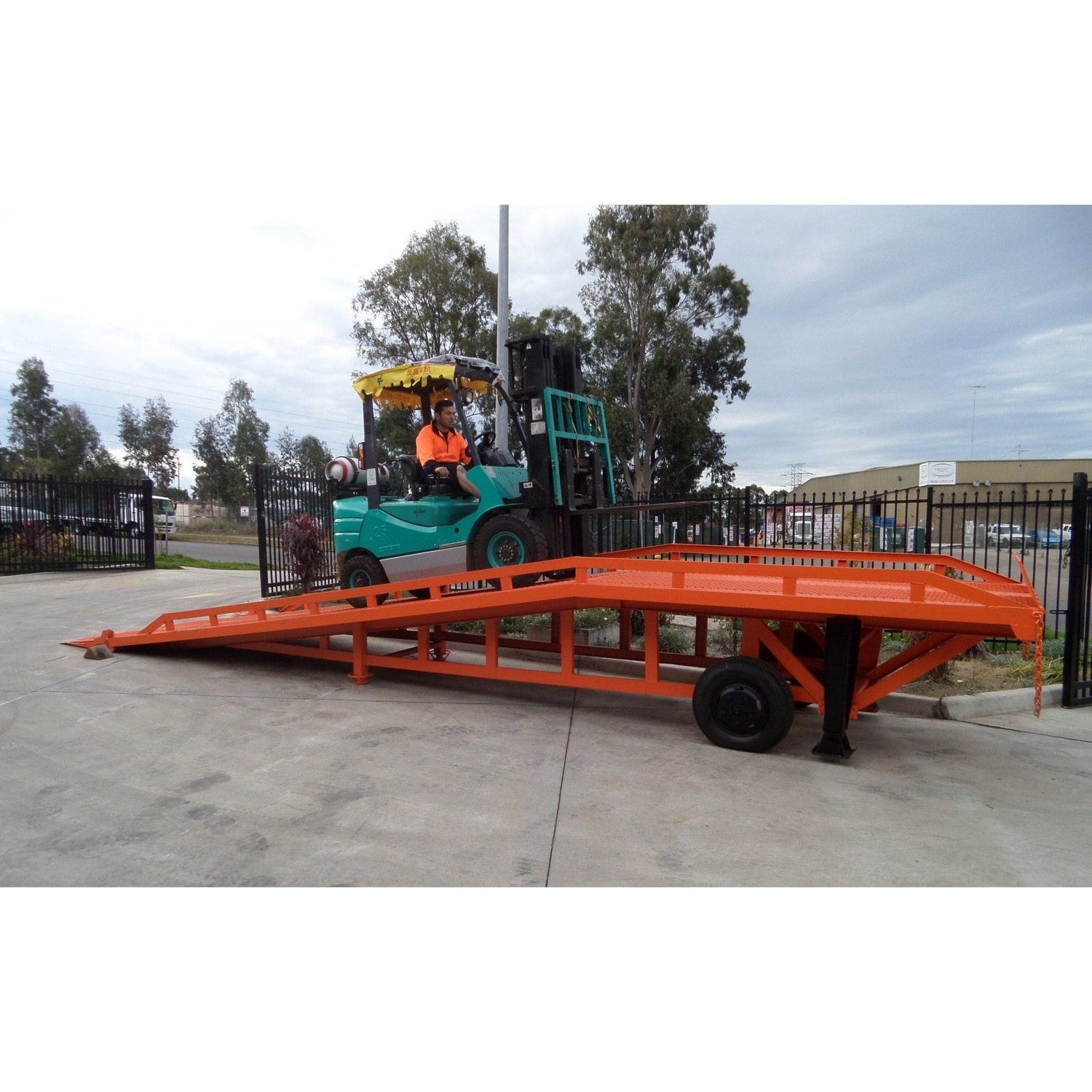

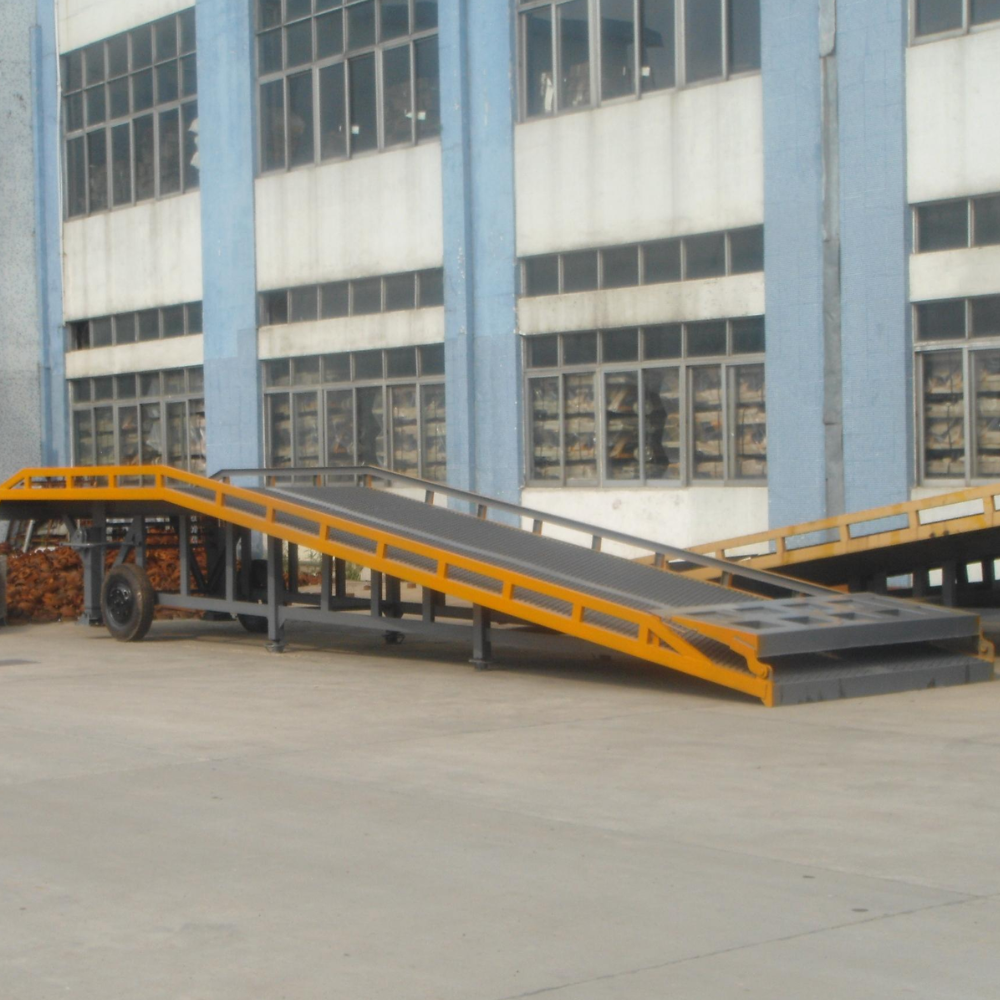

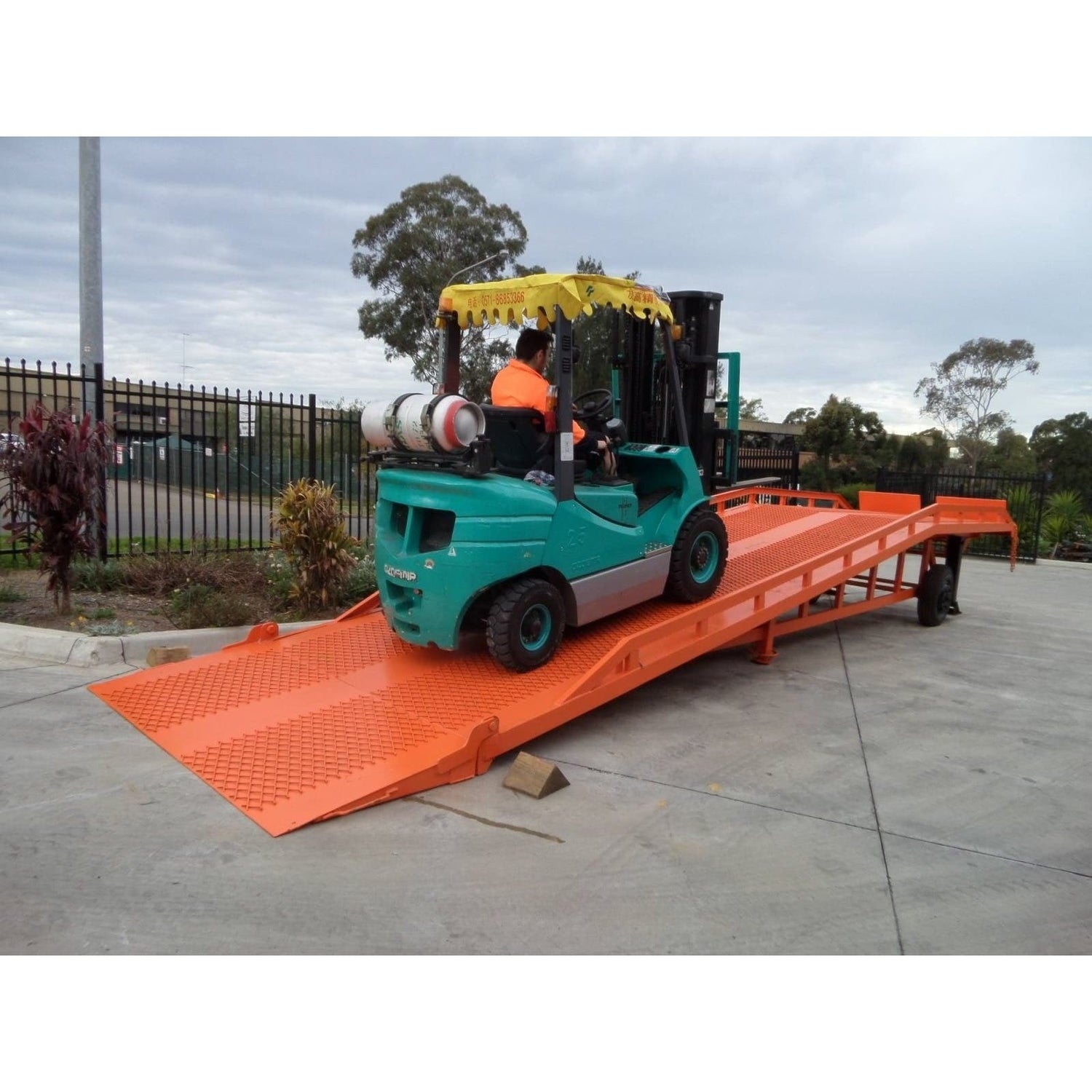

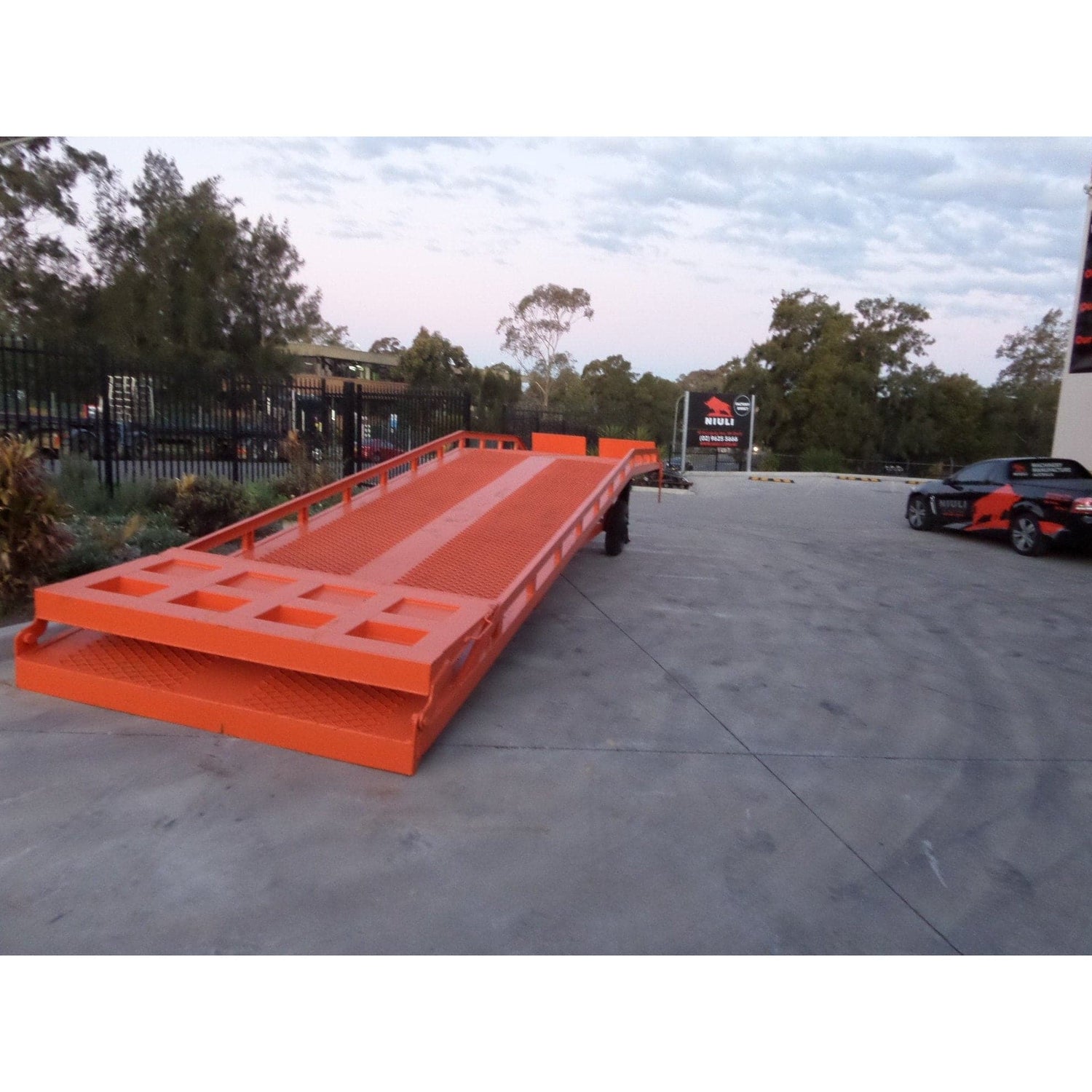

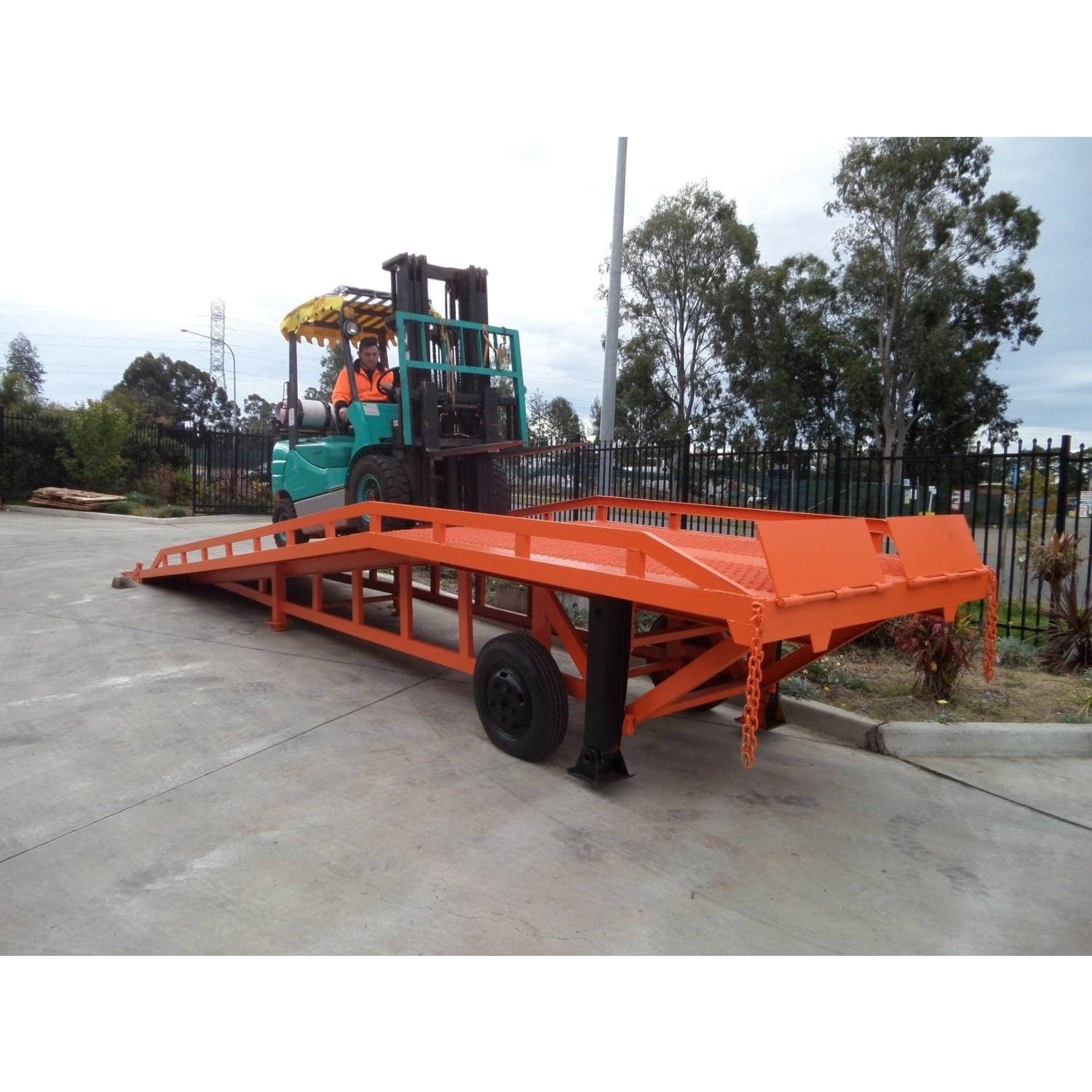

Movable 10-Tonne Full-Size Steel Forklift Dock Ramp / Yard Ramp

No loading dock? No problems! The Heavy Duty Niuli 10-Tonne Full-Size Steel Forklift Container Yard Ramp is the perfect answer to convenient and efficient loading and unloading of containers, trucks & trailers by forklift, especially when no loading dock is available.

This versatile ramp promises an untroubled transition from the ground surface to the surface of a carrier. With a vertical height of 1200mm, it allows the forklift to level on the top deck area so that it can be used as a loading dock for first row of pallets in truck/container.

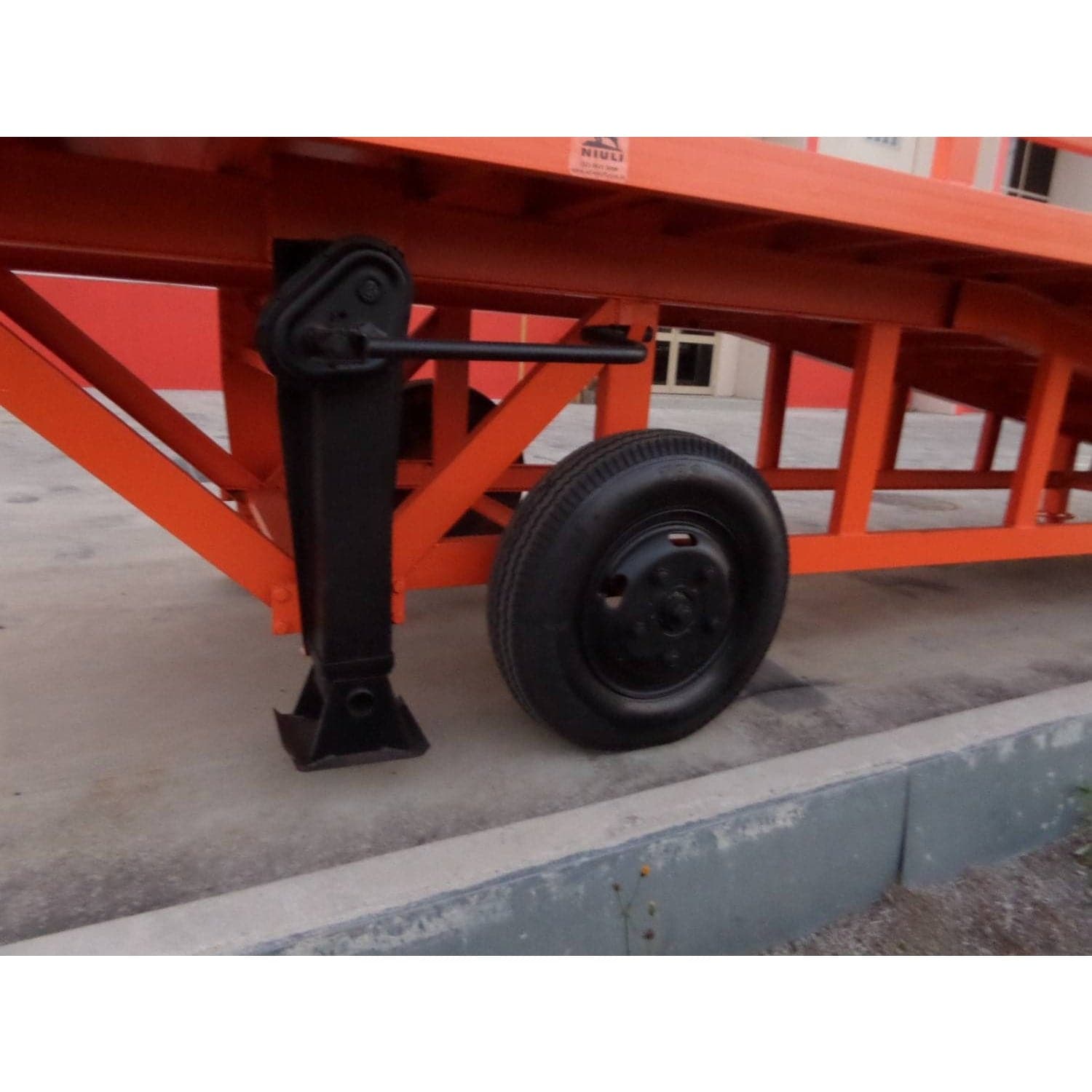

A simple system of moving the ramp around your yard is achieved by lifting the tail flap and using the pneumatic tyres to push around easily. Once set up, simply hook up your 4 wheel forklift (forklift truck ) to the lift system and use the ramp as a loading dock by resting forklift forks onto top surface, counter balancing with rear wheel drive and activating lift assist.

The transportable ramp fits easily inside any size shipping container making covering distances for freighting or shipping units a breeze!

Features and Benefits

  • Movable Dock Ramp - Also called Yard Ramp, Truck Ramp, etc
  • 10,000Kgs Capacity
  • Pneumatic (Air) Tyres
  • Dual-speed multi-gear lift system
  • A great solution to loading/unloading trucks or shipping containers while still on the truck.
  • Ideal-sized top flat deck area so a forklift can level to load/unload the first row of pallets in a truck/ container.
  • Move around the yard by safely lifting the tail flap and pushing to move around on the tyres.
  • Fits easily into 40Ft Shipping containers - makes freighting/shipping unit hassle-free
  • Contact us for a quotation!



      Specifications

      • Capacity: 10,000kg
      • Dimensions: 11.3m (L) x 2.1m (W) x 1.2m (H)
      • Clearance Width Between Rails: 1.99m (W)
      • Adjustable Height Range: 1.1m to 1.6m
      • Top Flat Surface Length: 3.0m
      • Unit Weight: 2800kgs

      Freight

      Shipping is available Australia-wide. The displayed shipping price is indicative only. We recommend contacting us prior to placing an order.

      Understanding Yard Ramp Dynamic Load

      Before selecting a yard ramp, you must first understand the dynamic load calculation required to determine the capacity of the yard ramp for your specific application. Read our Yard Ramp Dynamic Capacity Guide or speak to our team today.
