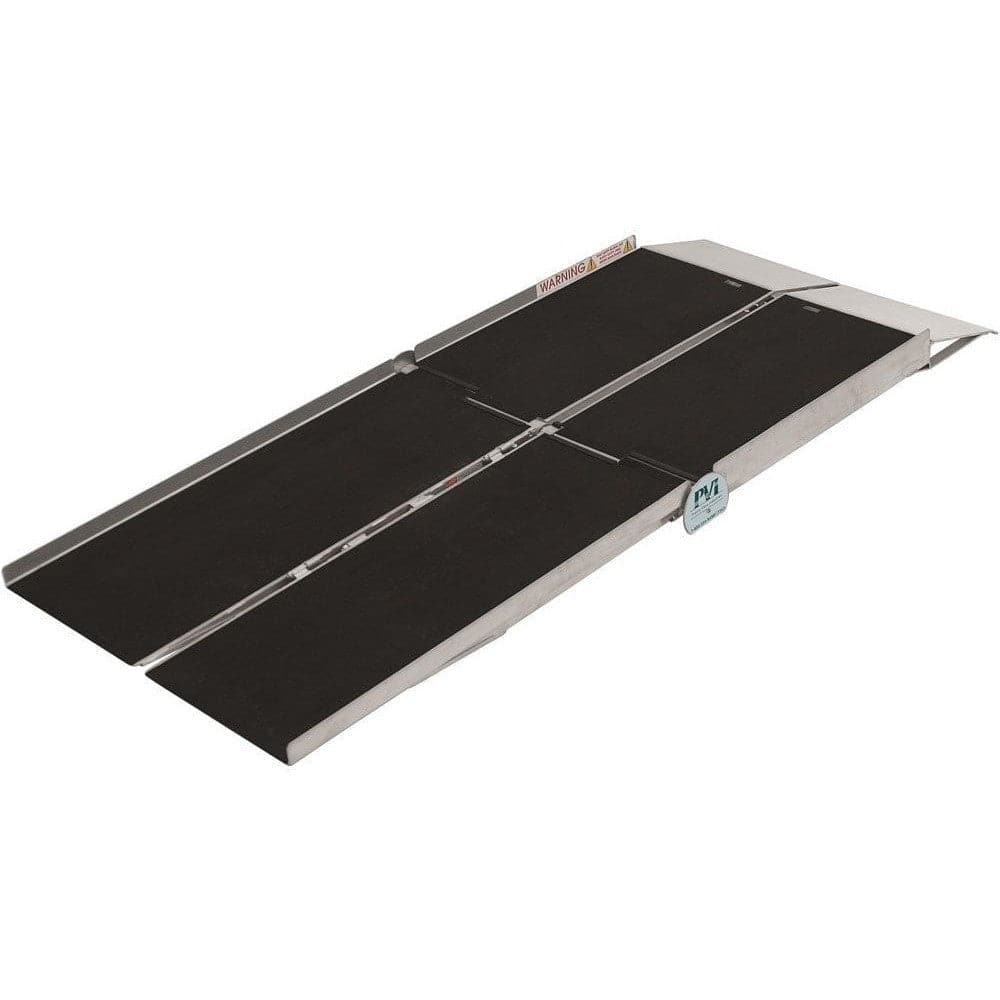

PVI Aluminium Multi-Fold Rear Door Wheelchair Van Ramp
Authorised dealerSKU: UTW630$1,050.91 ex GST
- Length1829mm - 2438mm
- Holds360kg
- Weight18.6kg - 23.6kg
- Made ofAluminium
- Made from high-quality lightweight aluminium
- Friction tape on-ramp for maximum traction
- A specially designed hook reaches over rear bumpers and door sills
Will it reach your step? 170 mm on your own, more with help. Check yours›
On your own, it suits a step up to 170 mm (1:14, the slope public buildings use).
With someone pushing (about 1:10): up to 240 mm. Most homes use a ramp this way.
Open the ramp calculatorNot sure which size? Type your step height›
Available to order, ships in 1-3 business days
Authorised dealeri
1,000+ soldi
2-year warrantyi
100-day free returnsi
Goes well with
Delivery & Pickup
Delivery details
Shipping charges apply per shipment and can vary by warehouse or supplier. Shipping policy
Estimate delivery to your door
An estimate for this item to that suburb, from the same rates checkout uses. You choose the delivery method at checkout.
Pickup details
PVI Aluminium Multi-Fold Rear Door Wheelchair Van Ramp
Reviews
Specifications
Specifications
Sizes and Prices
| Length | SKU | Price | Stock |
|---|---|---|---|
| 1830mm | UTW630 | $1,156 | Available to order |
| 2130mm | UTW730 | $1,301 | Available to order |
| 2440mm | UTW830 | $1,610 | Available to order |
Product Specs
| Sold as | Single ramp |
|---|---|
| Holds | 360kg |
| Made of | Lightweight Aluminium |
| Colour | Black & Silver |
| Brand | PVI |
| Width | UTW630: 760mm UTW730: 760mm UTW830: 760mm |
| Weight | 18.6kg - 23.6kg |
| Folded size | UTW630: 970 x 410 x 274mm UTW730: 1125 x 410 x 274mm UTW830: 1290 x 410 x 280mm |
Key Benefits
Key Benefits
- Made from high-quality lightweight aluminium
- Friction tape on-ramp for maximum traction
- The patented centre joint hinge eliminates pinch points and adds strength
- A specially designed hook reaches over rear bumpers and door sills
- Available in a wide range of lengths
- Up to 360kg capacity

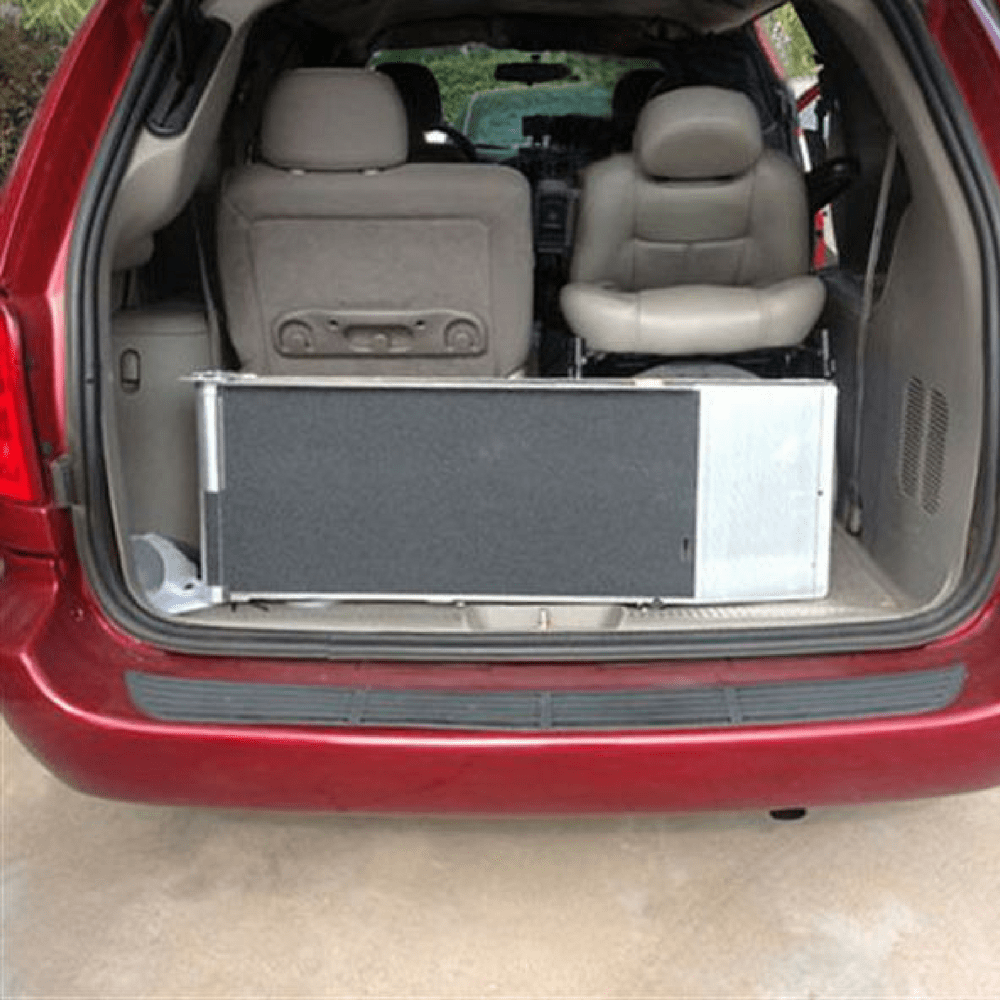

- Folds into a quarter of its size for compact storage
- 24-month warranty

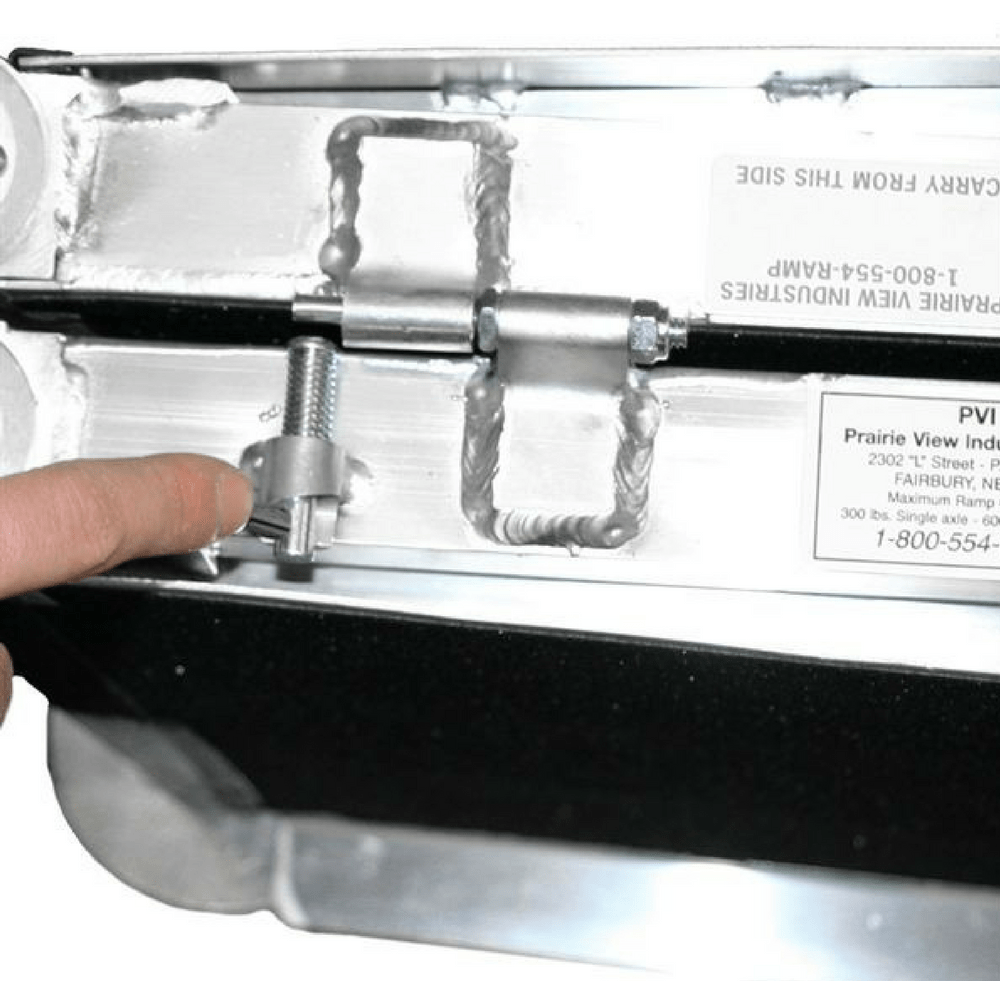

- Complete with 2 x locking pins to ensure your ramp won't move when loading
- PVI Ramps are registered in Australia with the TGA Therapeutic Goods Administration
About This Product
About This Product
Safe, easy van access with a lightweight ramp

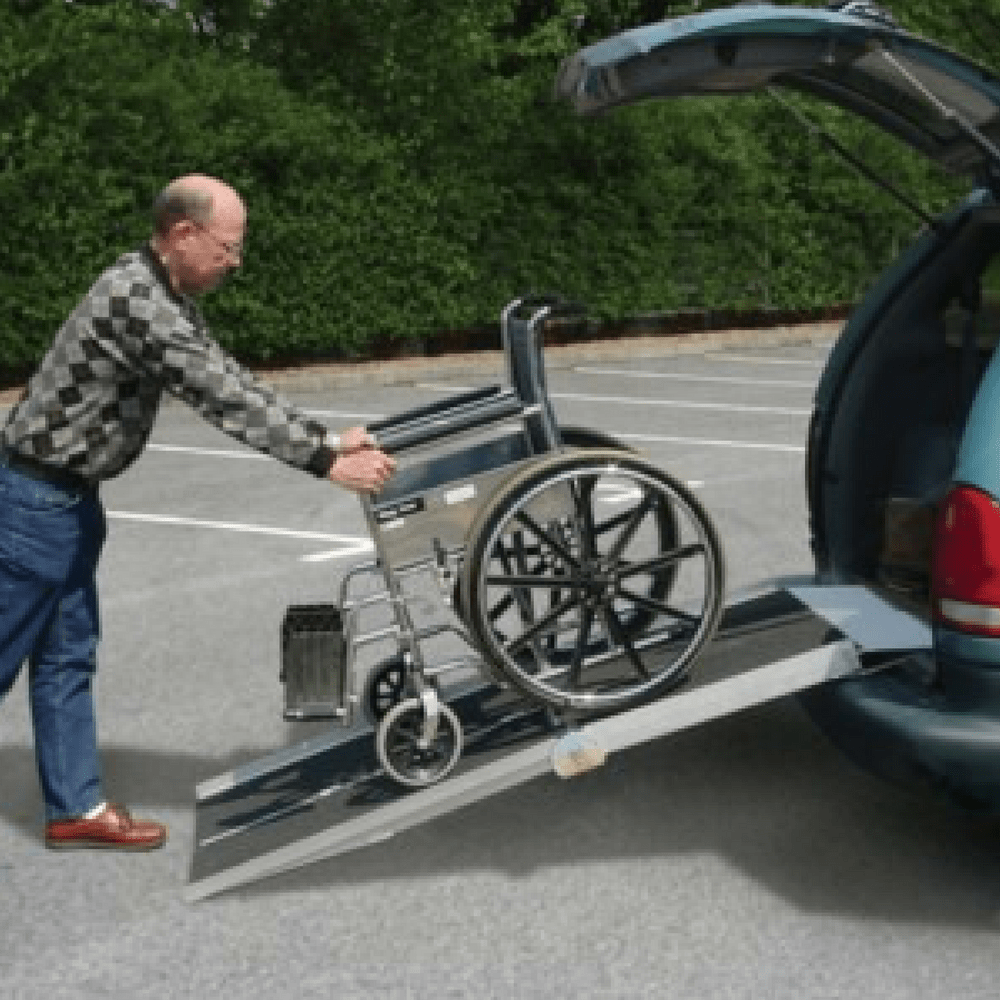

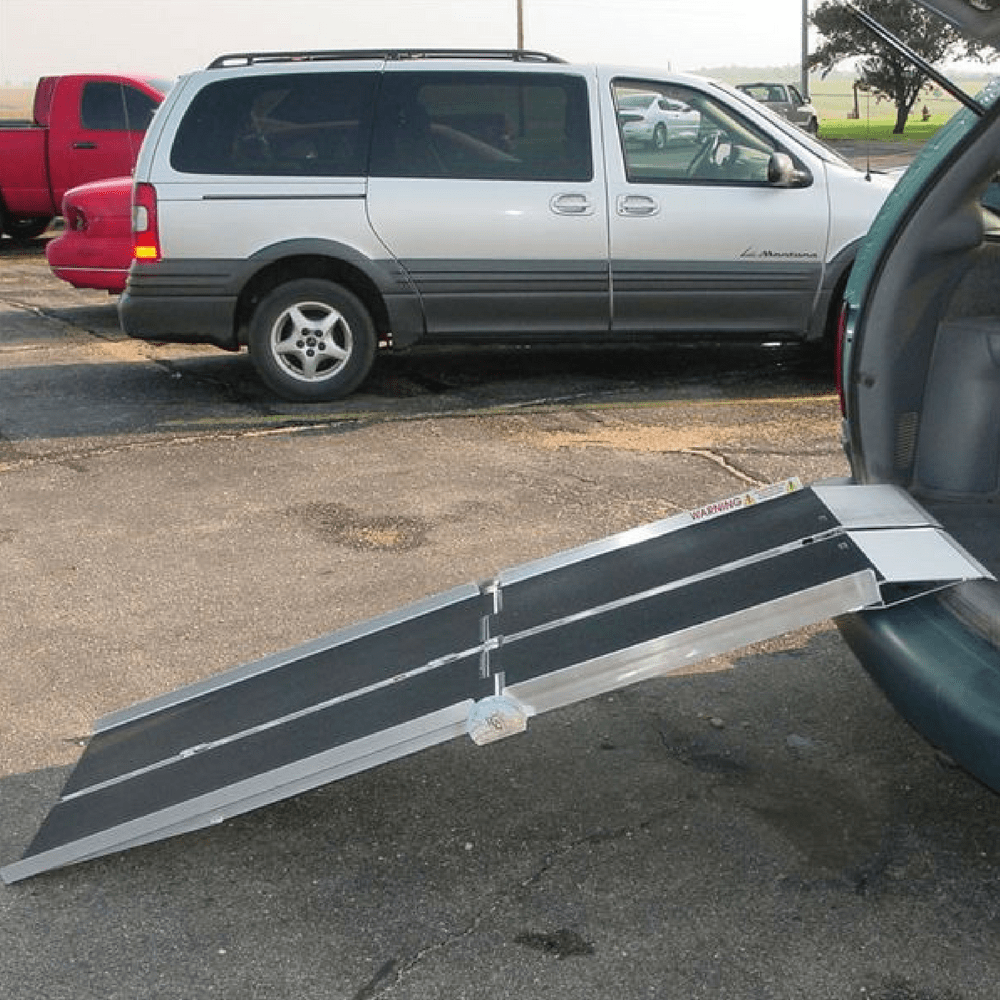

The Utility Multifold Wheelchair Suitcase Ramp by PVI is specially designed to be used in the rear doors or hatches of vans and SUVs.

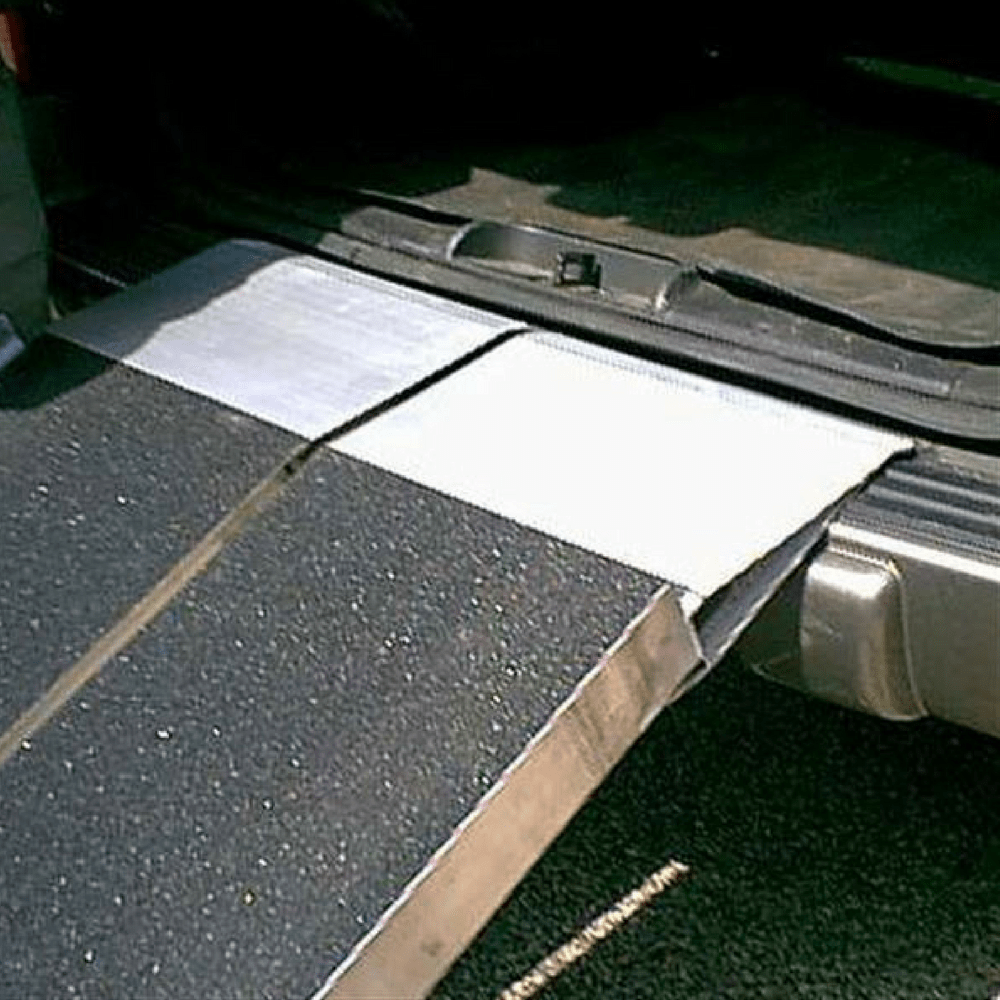

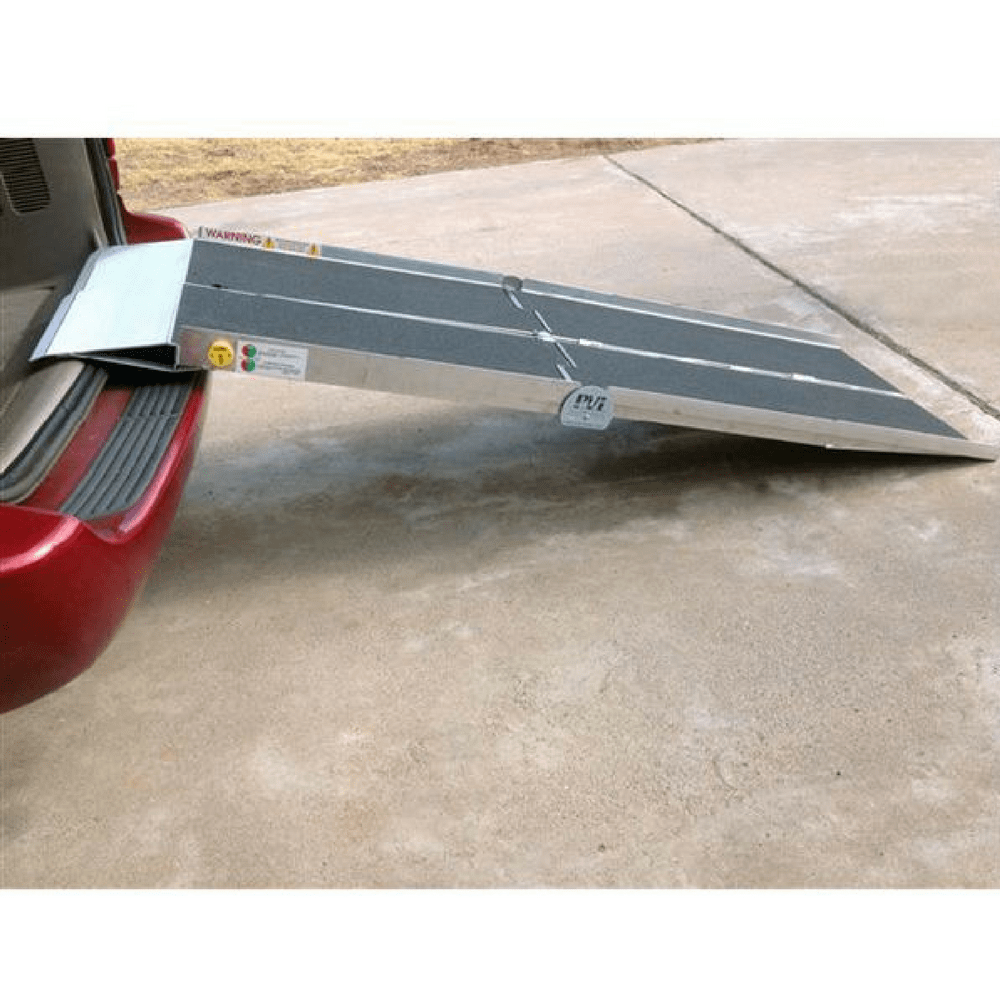

An extended hook allows the ramp to clear the bumper and rear door seal of your van or SUV for smooth and safe loading without damaging your vehicle.
Featuring lightweight aluminium construction with high traction tape on the surface the Utility Multifold Wheelchair Suitcase Ramp folds for easy storage.
Also available in four lengths.
Warranty details
For additional warranty information on our PVI ramps and accessories, click here.
FAQs
What's the difference between this and the standard Multi-Fold?
What's the difference between this and the standard Multi-Fold?
The extended top hook. It reaches over a rear bumper or door sill, so the ramp sits securely on the back of an SUV, van, wagon or ute.
Does anything hold it to the car?
Does anything hold it to the car?
Yes, a nylon safety strap with a quick release metal buckle comes with it, plus steel security pins.
Which length do I need?
Which length do I need?
Measure from the ground to your vehicle floor first. It comes in 1.83m, 2.13m and 2.44m, and longer means a gentler slope for the same height.
Can it split for carrying?
Can it split for carrying?

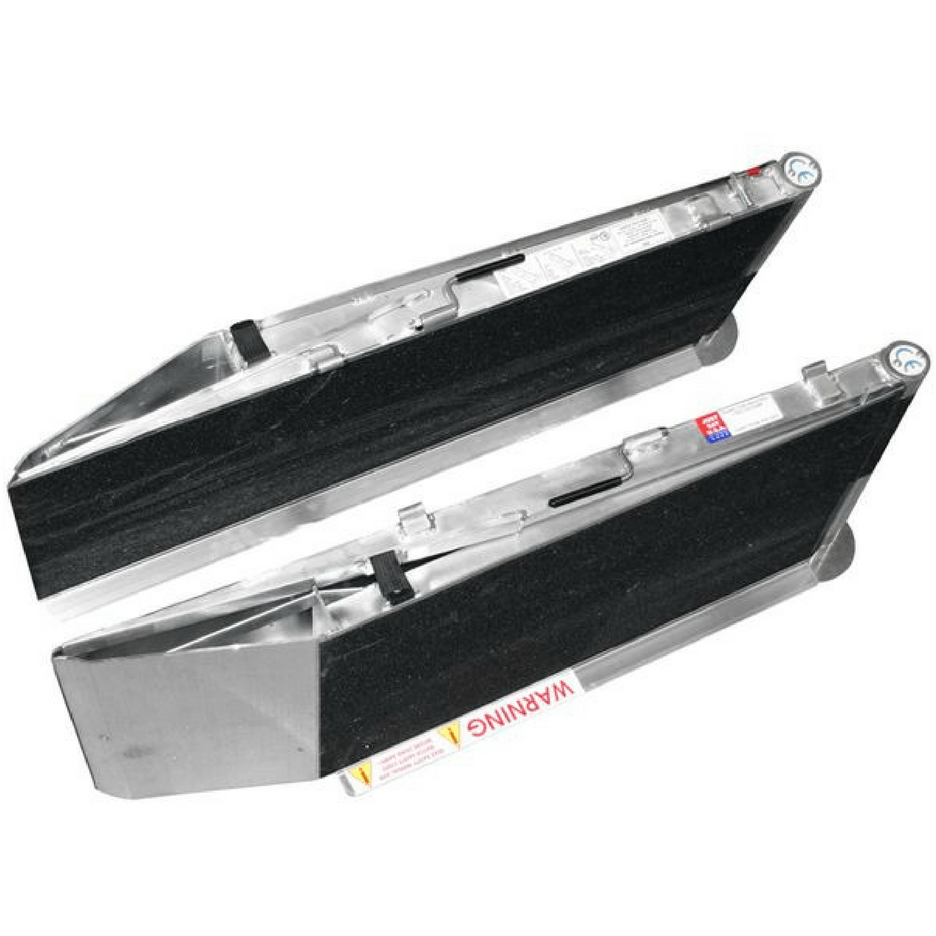

Yes, it separates into two halves and folds like a suitcase, about 1m long folded for the 1.83m.
