Sureweld 11.5-Tonne 3.7m x 660mm Track Series Aluminium Loading Ramps

$5,04900 $5,54400
Sureweld  |  SKU: 7/11537T

fast box Orders processed and shipped out in 5-7 business days. warranty icon Covered by the full 12-month Sureweld warranty returns icon Eligible for 100-day free returns quote request icon Request a free  quotation

Description

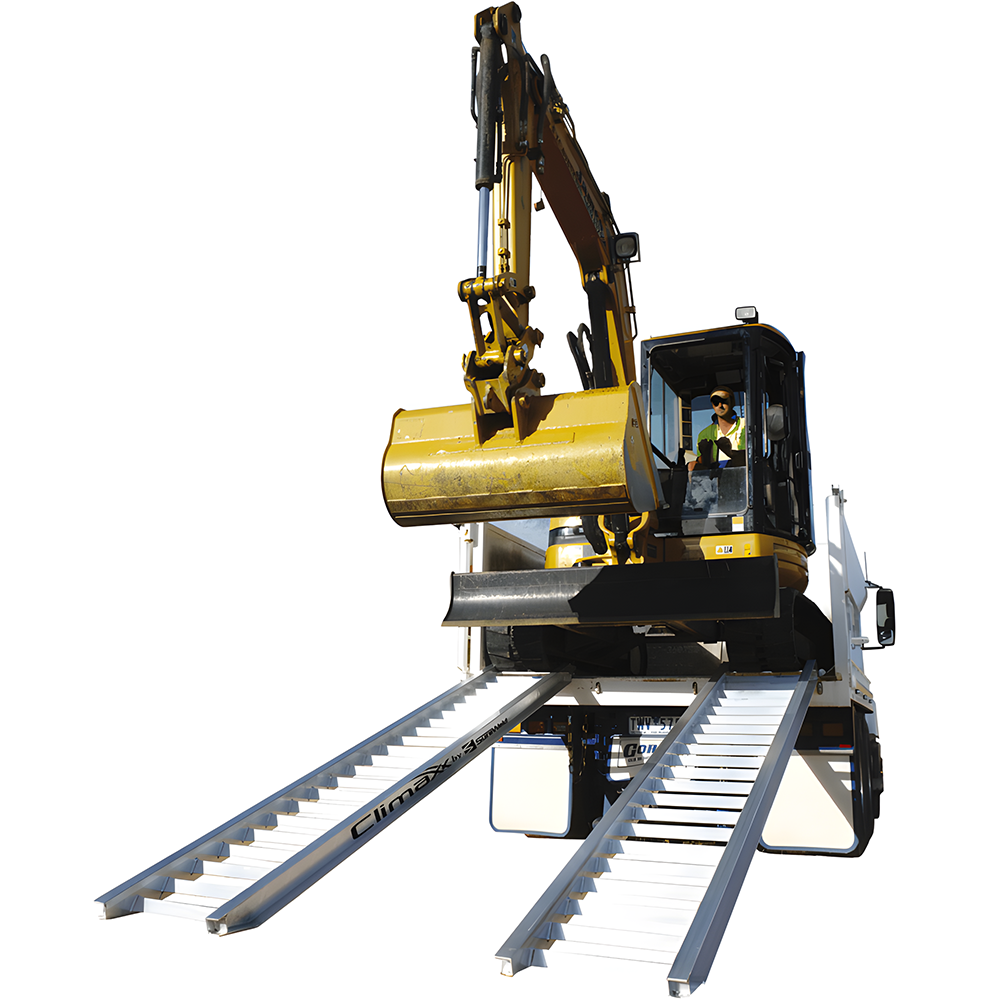

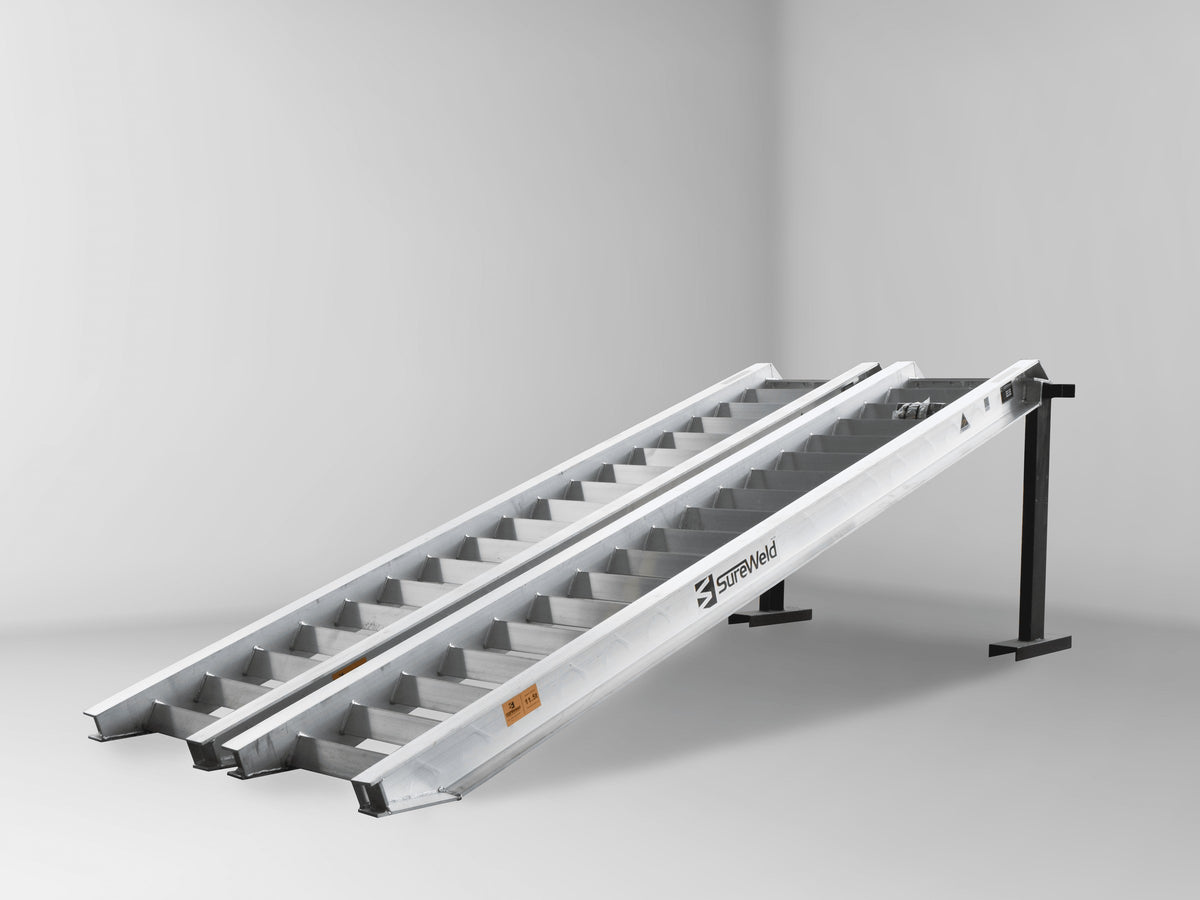

Sureweld 11.5 Tonne 3.7m x 660mm Track Series Aluminium Machinery Loading Ramps, Pair

The Sureweld 11.5 Tonne 3.7m x 660mm Track Series Aluminium Machinery Loading Ramps are designed for use with Steel Tracks (including Steel Tracks with Rubber Pads), and Rubber Tracks. The tread surfaces in this range are highly robust and are configured to resist damage from tracks. Featuring the greatest versatility of the Sureweld range, these models can be used with tyres as well as with tracks. Select from this range where machinery with tracks as well as machinery with pneumatic (air) tyres are to be loaded.

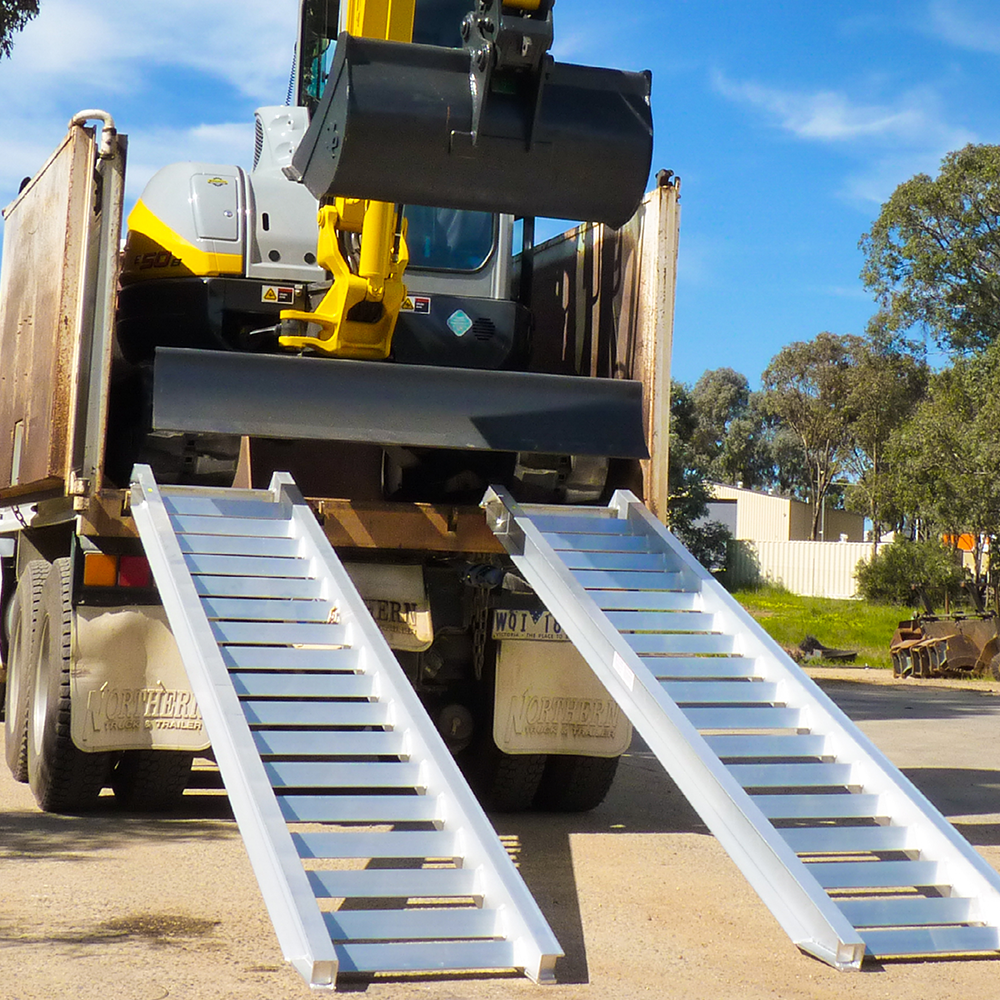

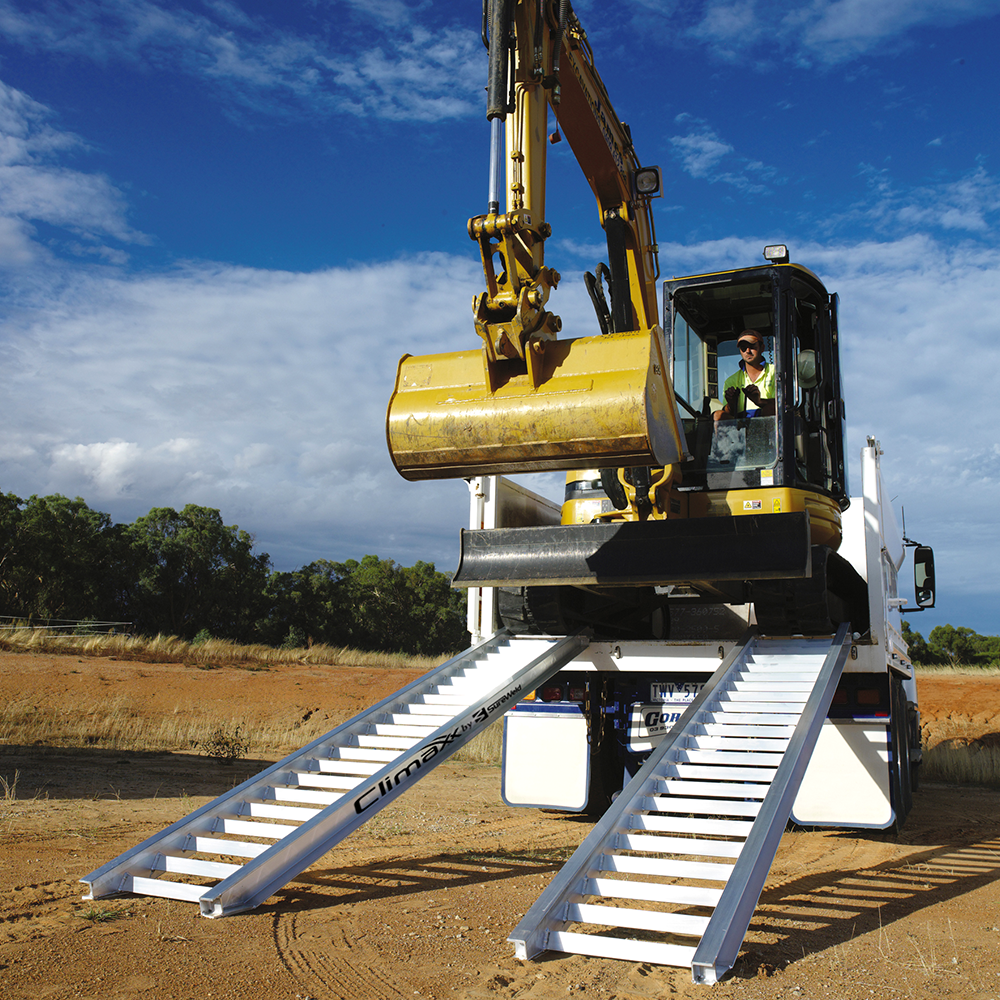

Complete with connection plates and zinc coated, steel pins these aluminium loading ramps are perfect for loading onto tipper body trucks, flatbed trucks or trailers.

Features and Benefits

  • Ideal for machinery with tracks and rubber tyres
  • Australian designed and manufactured
  • Manufactured from structural-grade alloys to ensure the maximum strength available

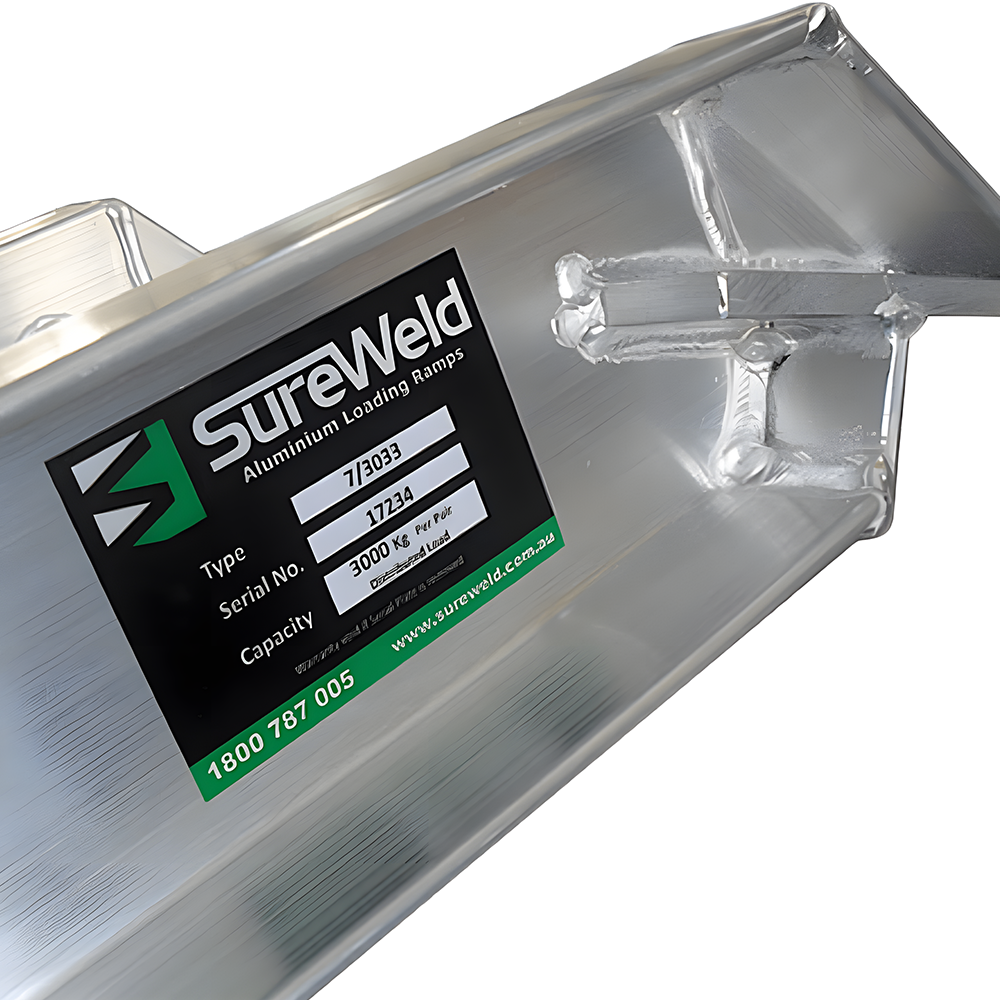

  • Compliance Plates recording the model number, load capacity and serial number ensure traceability and safe work practice
  • Connecting plate and pin ensures maximum stability and safety
  • All ramps are built to take a reasonable variation around typical truck body heights
  • 12-month warranty
  • Made from high-grade structural alloy
  • NATA certified and tested
  • Ramps sold in pairs

    For loading machinery where tracks are not used on ramps, the Sureweld Rubber Series Ramps provide a more lightweight and economical option over these Track Series Ramps.

    Track Series Ramp Specifications

    Product

    Code

    Rated

    Capacity

    Ramp

    Mass

    Ramp

    Length

    Track

    Width

    (internal)

    Ramp

    Width

    Ramp

    Depth

    Rung

    Recess

    7/3033T 3000kg 32kg 3.3m 350mm 450mm 110mm 40mm
    7/3635T 3600kg 39kg 3.5m 400mm 500mm 120mm 40mm
    7/4040T  4000kg 47kg 4.0m 400mm 510mm 125mm 45mm
    7/4536T  4500kg 41kg 3.6m 400mm 510mm 125mm 45mm
    7/4536TW 4500kg 43kg 3.6m 450mm 560mm 125mm 45mm
    7/4833T  4800kg 37kg 3.3m 400mm 510mm 125mm 45mm
    7/4833TW 4800kg 39kg 3.3m 450mm 560mm 125mm 45mm
    7/6036T 6000kg 53kg 3.6m 500mm 600mm 160mm 52mm
    7/7536T 7500kg 58kg 3.6m 500mm 600mm 184mm 60mm
    7/9037(T) 9000kg 71kg 3.7m 500mm 640mm 200mm 60mm
    7/11537(T) 11500kg 85kg 3.7m 500mm 660mm 180mm 55mm



    Can't find the ramp you're looking for? Use the chat function in the corner of the window or Contact us for advice if you're unsure what ramps are suitable for you.


      Sureweld Authorised DealerAustralian Made Ramps

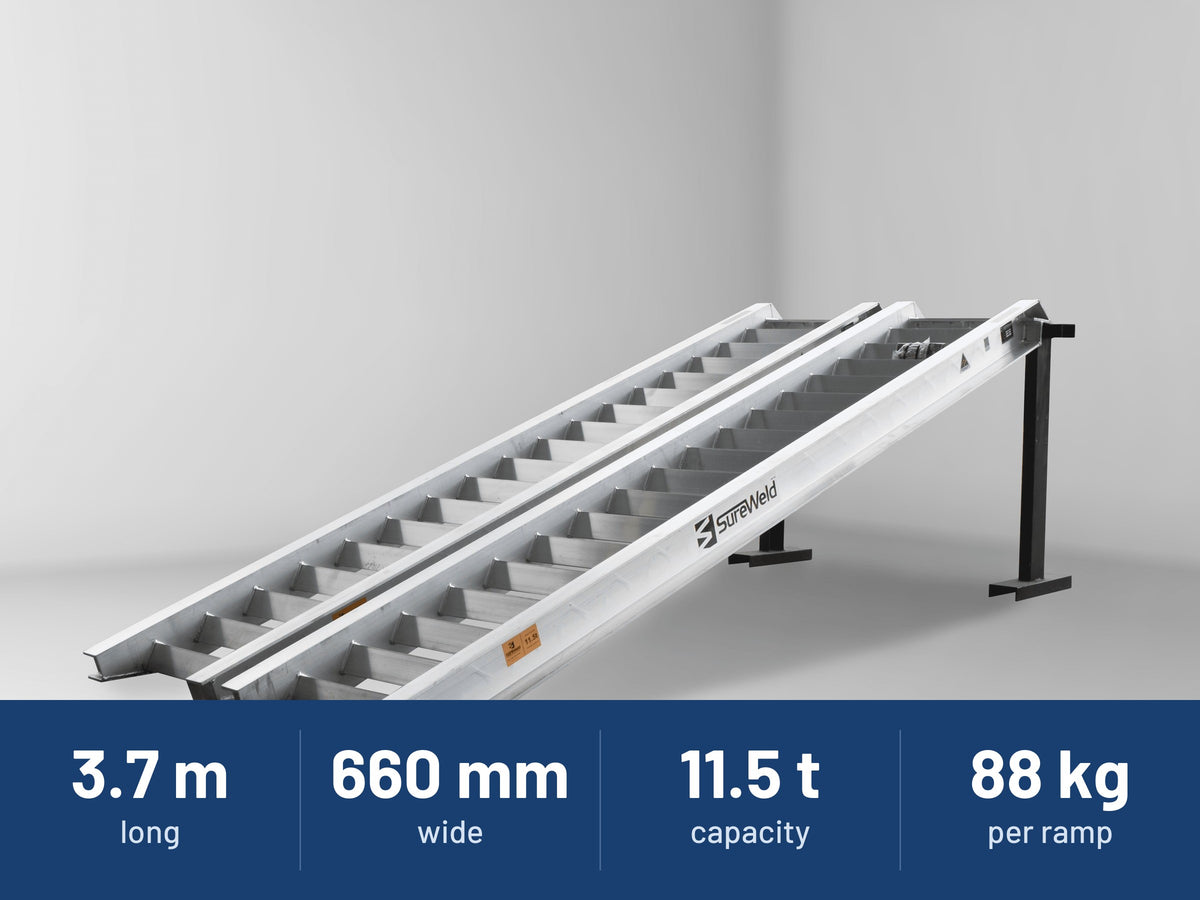

      Specifications

      • Capacity
        11500kg
      • Weight
        85kg (per ramp)
      • Length
        3700mm
      • Width
        660mm
      • Internal Width
        500mm
      • Depth
        180mm
      • Rung
        Rung Recess: 55mm

      Delivery

      All orders are shipped from Australia with fast shipping from trusted couriers & order tracking notifications sent via SMS and email.

      Orders processed and shipped out in 5-7 business days.

      View our shipping policy for full delivery details.

      Our customer support team is here to help with any delivery concerns.

      Finance Options

      Request a Quote

      Your Details Are Safe

      • Apple Pay
      • Google Pay
      • Mastercard
      • PayPal
      • Shop Pay
      • Union Pay
      • Visa

      We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

      Lifetime Support

      Ramp Champ customers get free lifetime product support from our ramp experts.

      Need help? Call us anytime 1300 913 047

      Sureweld 11.5-Tonne 3.7m x 660mm Track Series Aluminium Loading Ramps Reviews

      Frequently Asked Questions

      What is the warranty on Sureweld items?

      Ramp Champ only works with well-known, industry-leading manufacturers such as Sureweld. All products come with a minimum 12-month warranty. For further information see the Sureweld Warranty page.

      Minor scratches and blemishes may be visible upon receipt of your item. However, if the item is delivered damaged please contact us immediately.

      What is your returns policy?

      We know how crucial it is to find the perfect products for your access needs. To ensure you shop confidently, we proudly offer 100-day Free Returns on eligible products.

      If you need to return your product, we'll organise and cover the return shipping costs across Australia without any restocking fees or hidden costs.

      You'll have the option for a store credit, a full refund, or an exchange when the returned products meet the return criteria:

      •  The products cannot be used, damaged or modified and must be returned in the original packaging materials.
      •  Some products, such as almost new, made-to-order, installed, and custom-made products, aren't eligible for return.
      •  The 100-Day period begins from the day that your order is delivered or picked up.
      •  Only valid for the original purchaser.
      •  Only valid for online sales via rampchamp.com.au.
      •  Refunds, store credits or item swaps apply only to the cost of the products. Installation fees and original shipping costs will not be refunded.

      Find our more by visiting our Refund Policy page.

      How can I place an order?

      How to order online: Find a product you'd like to buy on our website and click on the add to cart button. Then, simply follow the instructions on the checkout page. If there were any options or upgrades that you may have missed, one of our customer service staff members will contact you either by email or phone before we process your order.

      How to order by phone: Call us on 1300 913 047. Our expert staff will help you select your product based on your individual requirements. We only stock the best brands and have the most competitive prices to ensure that you'll be completely satisfied with every RampChamp.com.au purchase you make. If you feel comfortable, go ahead and place your order online.

      How to order by email: Send us an email at sales@rampchamp.com.au and one of our staff members will get back to you as soon as possible with an invoice for your order. Please include the product, any options or upgrades that you might require and your full address for delivery.

      Do you have a physical store?

      We do not have a storefront. All items are available for purchase online and are shipped directly from our warehouse or from our partner warehouses directly to our customers Australia wide. If you are within close proximity of any of our partner warehouses, we can arrange for you to pick up the goods by appointment.

      Are you an authorised dealer?

      Yes, we are. Ramp Champ is 100% authorised to sell the products we advertise on our website. This means that you get the full manufacturer warranty when you buy from RampChamp.com.au.

      Do you offer custom ramps?

      Yes, we do. Depending on what type of ramp you’re looking for and what state you’re located in, we can offer custom ramps that are built to your specifications. All we need is a few photos, measurements and a sketch of what you want to be made. We offer free quotations so you know exactly what your custom ramp will cost before you decide to buy. Click here to get a custom ramp quotation today.

      When will my order ship out?

      We pride ourselves on giving you the best possible service. So, we work hard to get your order shipped within 24 hours. As soon as your product is shipped, we send you an email with tracking details so you can log in and see when your product is due to arrive.

      How long does the delivery take?

      We send all items via registered courier with tracking details so you can see just where your order is at any point in time. This ensures your item is safe and secure from us to you.

      Products are sent during normal business hours, Monday to Friday and from dispatch date, we expect most orders to be delivered between 2 and 10 business days, depending on your location and the location of the warehouse. Some brands are shipped directly from our suppliers' warehouses throughout Australia.

      See our full shipping policy here.

      Can I pick up my order?

      Some items can be picked up directly from us or from the manufacturer's warehouse. If available when purchasing, on the cart page select "Store Pickup" as an option.

      Or, contact our team to see if there's a warehouse near you.

      All pickups are by appointment only.

      How can I learn more?

      Here are some hand selected articles we think you'll find useful:

      The Ramp Champ Story

      Or, if you have further questions, check out our FAQ Page.

      Need Help Finding A Product?

      Getting the right product for your needs the first time is important. No one wants the hassle of ordering a product only to realise it's not suitable. For expert help choosing the most suitable product for your needs, click the button below.

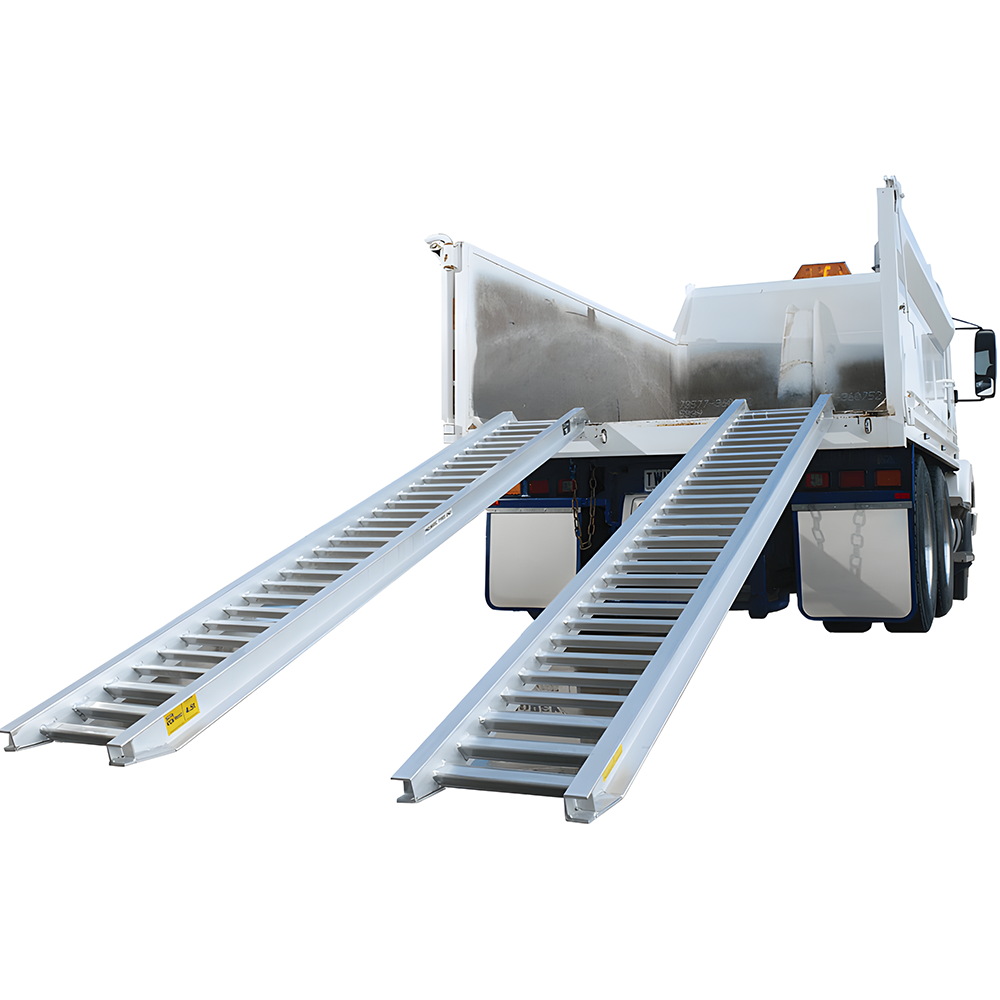

      ramp on the truck Sureweld 11.5-Tonne 3.7m x 660mm Track Series Aluminium Loading Ramps
