Sureweld 1.9 Tonne 2.9m x 390mm Rubber Series Aluminium Loading Ramps

1
$1,199.00
SKU 7/1929R

✓ Fast Shipping + Order Tracking
✓ Pickup In-Store Available
✓ Questions? Call Us: 1300 913 047



Estimated Arrival: Between and .



Need A Quotation? Request a free quote today

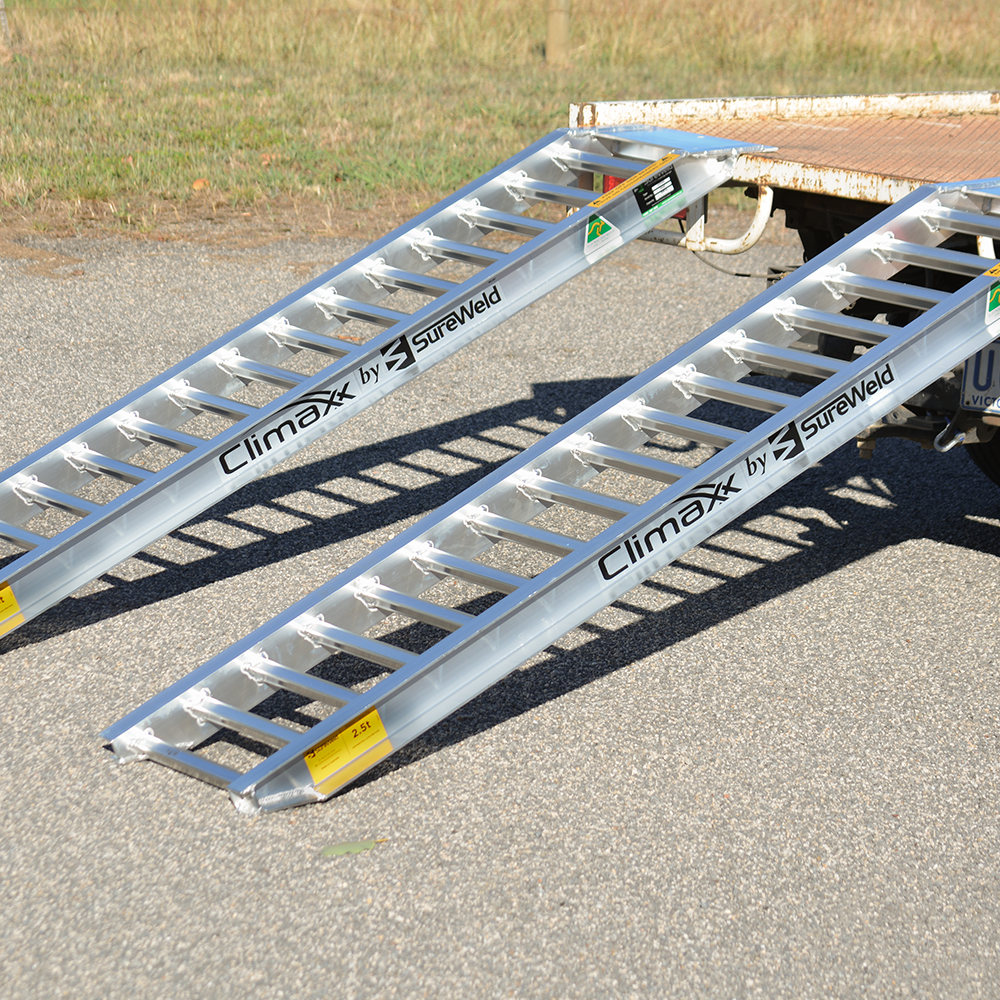

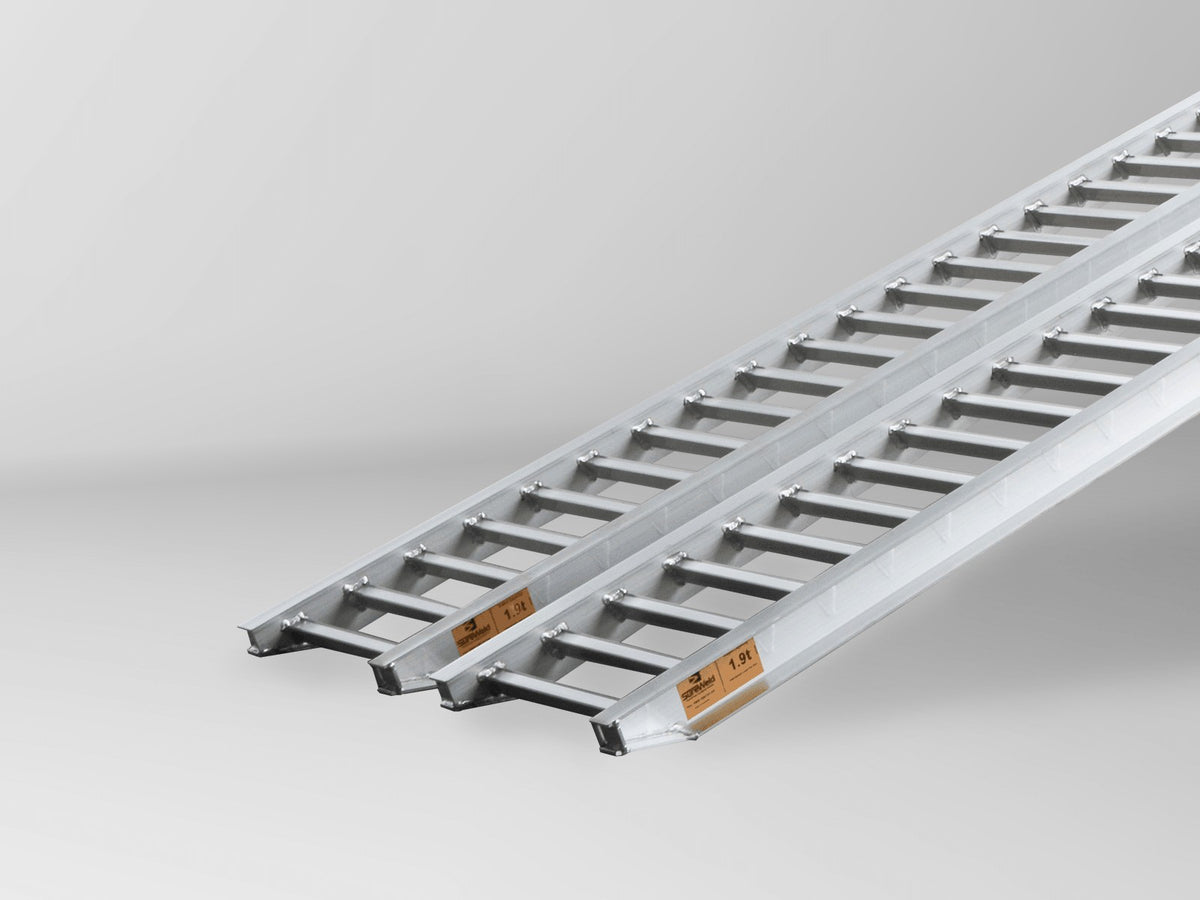

Sureweld 1.9 Tonne 2.9m x 390mm Rubber Series Aluminium Machinery Loading Ramps, Pair

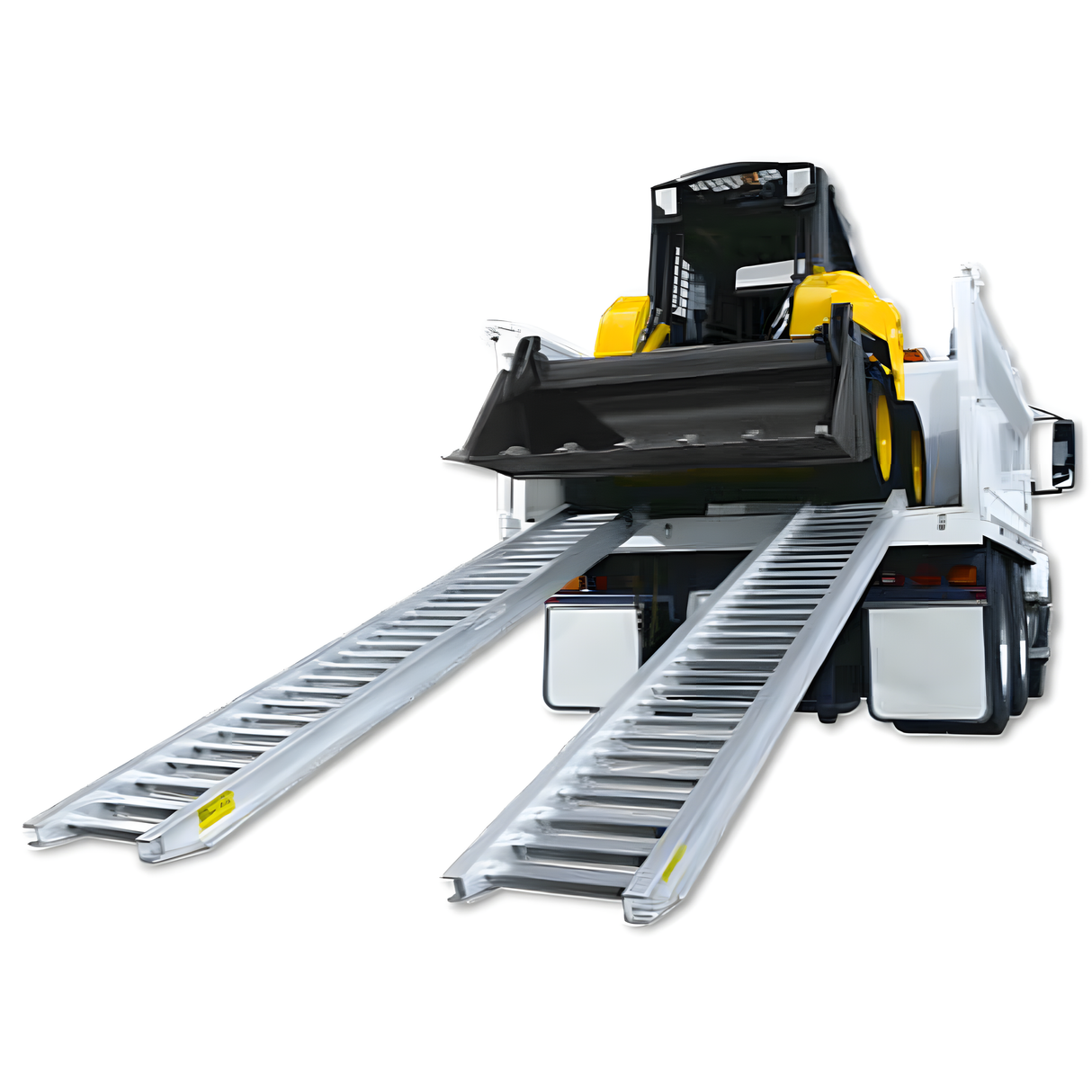

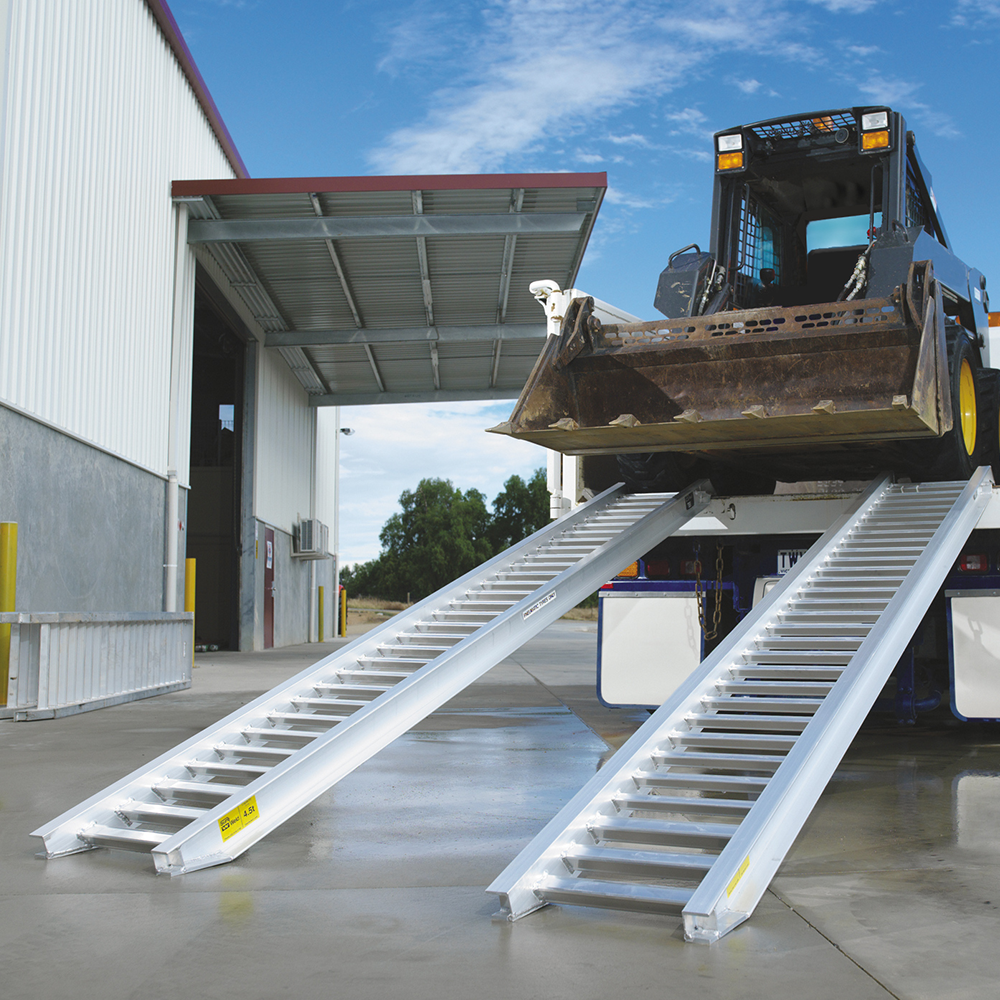

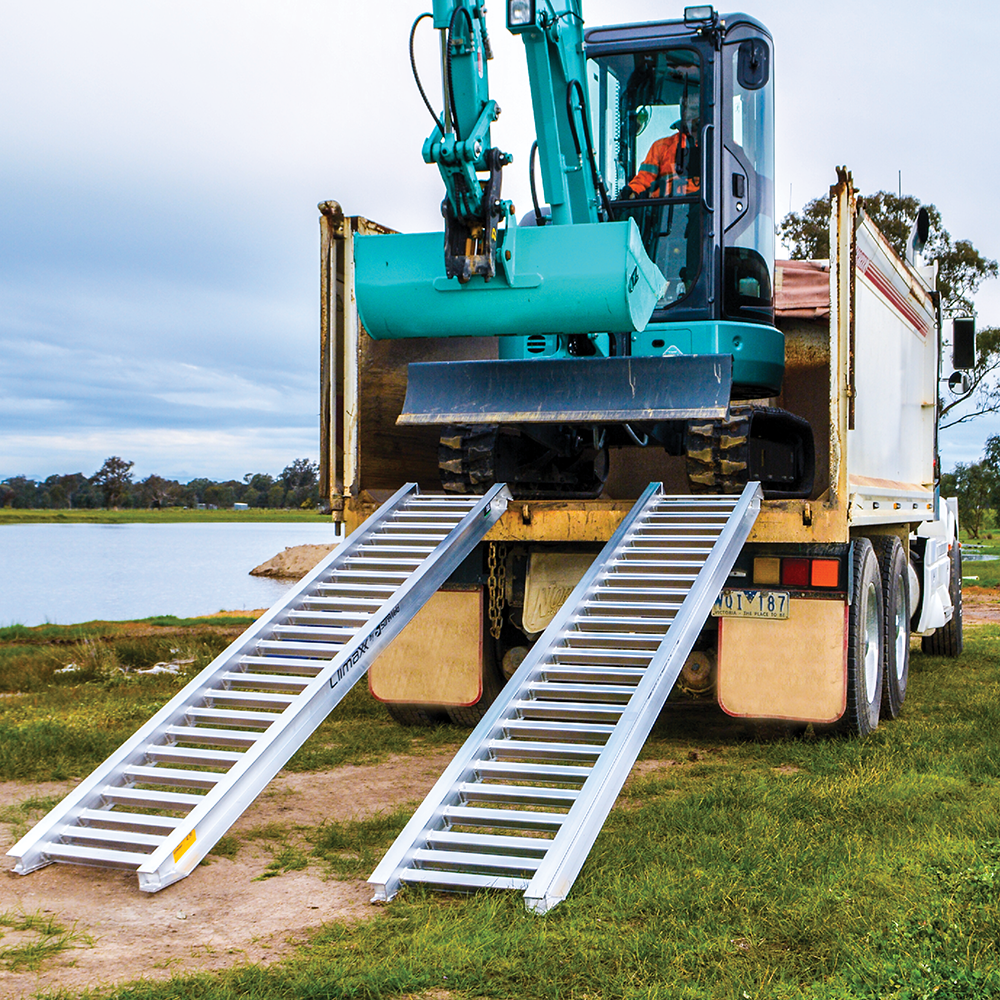

The Sureweld 1.9 Tonne 2.9m x 390mm Rubber Series Aluminium Machinery Loading Ramps are designed specifically for pneumatic (air) tyres, and rubber track machinery. At a capacity rating of 1.9 tonne per pair, the lightweight aluminium ramps are ideal for loading skid steers, Ditch Witches, loaders and excavators.

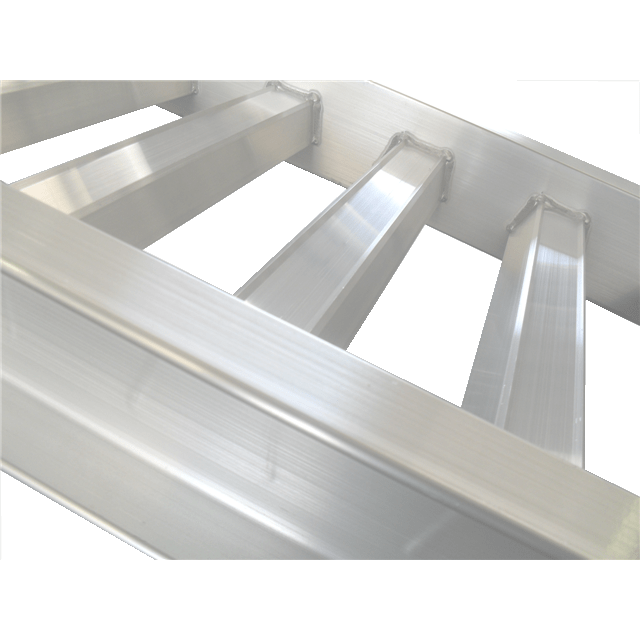

The unique tread surface of the Rubber Series range has been designed to obtain the highest possible strength and the lightest possible weight, together with a smooth, safe ride.

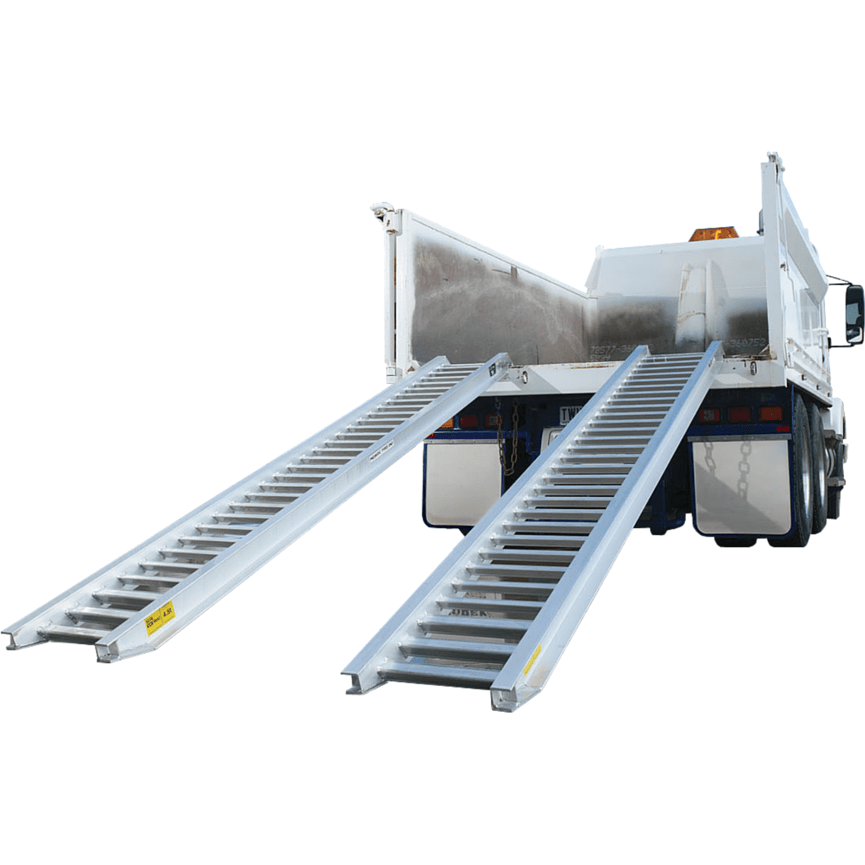

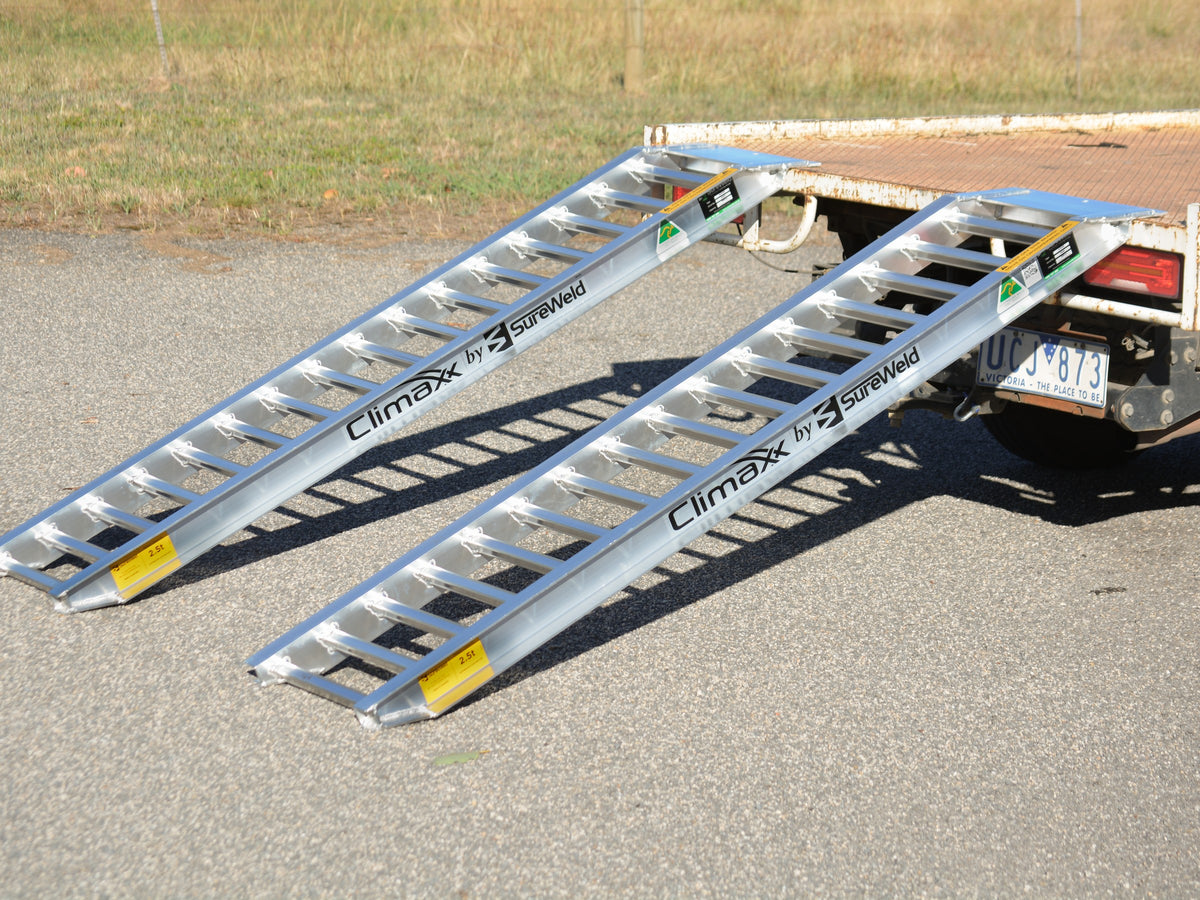

Complete with connection plate and zinc coated, steel pins these aluminium loading ramps are perfect for loading onto tipper body trucks, flatbed trucks or trailers.

Features and Benefits

  • Ideal for pneumatic (air) tyres
  • Australian designed and manufactured
  • Manufactured from structural-grade alloys to ensure the maximum strength available

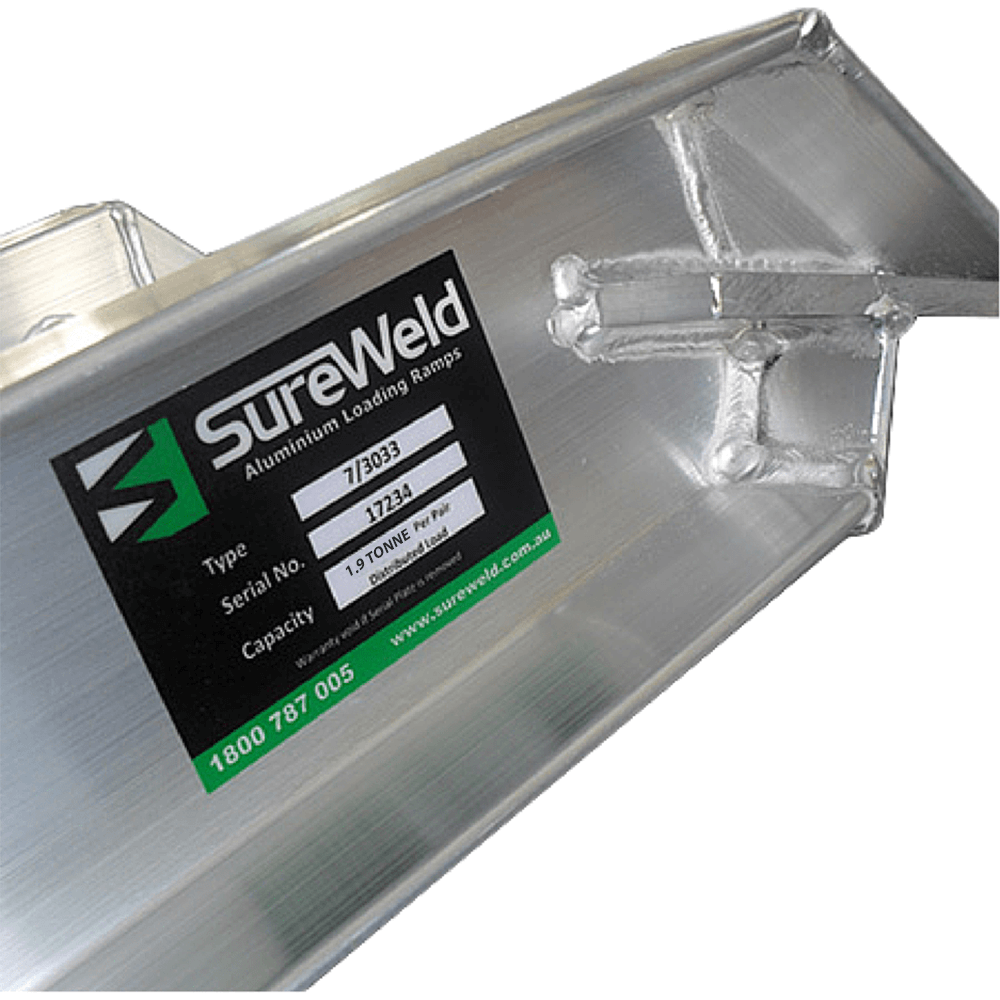

  • Compliance Plates recording the model number, load capacity and serial number ensure traceability and safe work practice.
  • Connecting plate and pin ensures maximum stability and safety
  • All ramps are built to take a reasonable variation around typical truck body heights
  • 12-month warranty
  • Made from high-grade structural alloy
  • NATA certified and tested
  • Sold in pairs

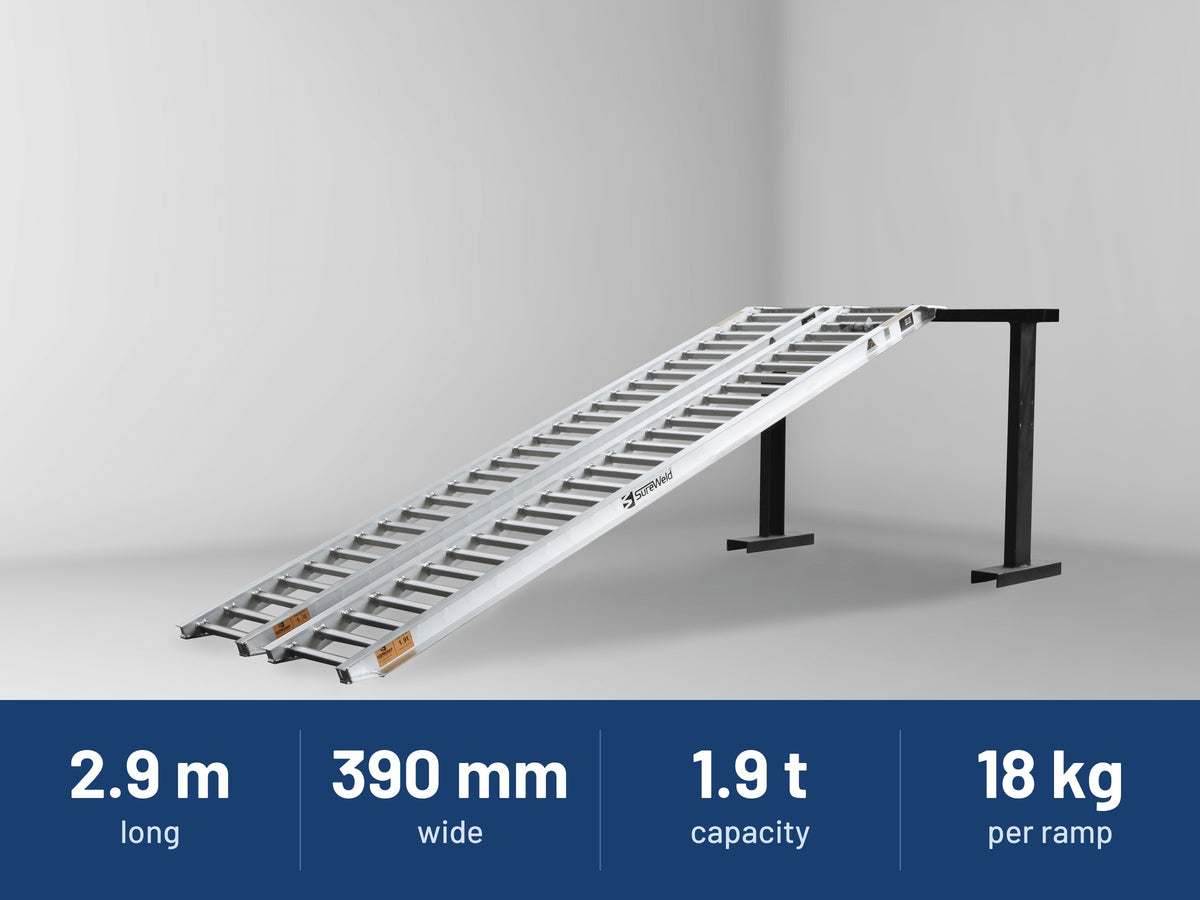

Specifications

  • Rated Load Capacity Per Pair: 1.9 tonne
  • Ramp Weight: 18kg
  • Ramp Length: 2.9m
  • Internal Track Width: 300mm
  • Ramp Width: 390mm
  • Ramp Depth: 90mm
  • Rung Recess: 25mm

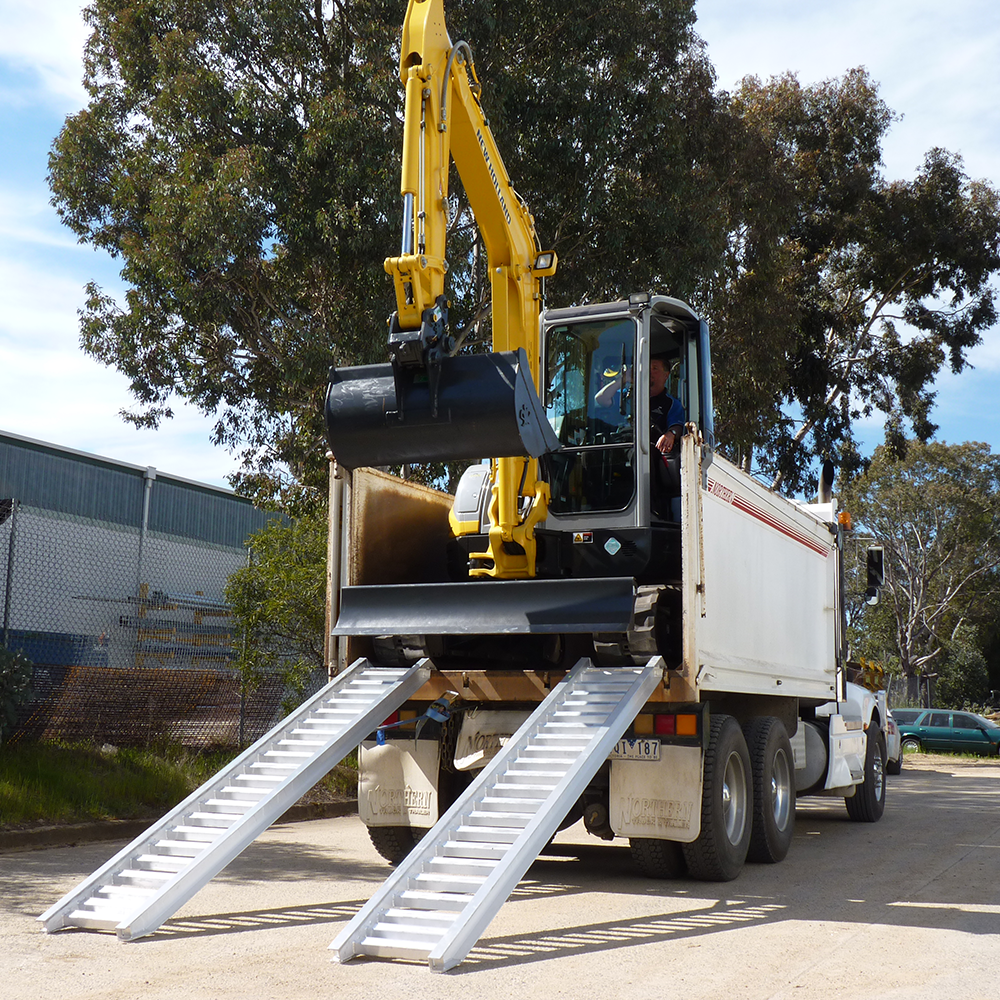

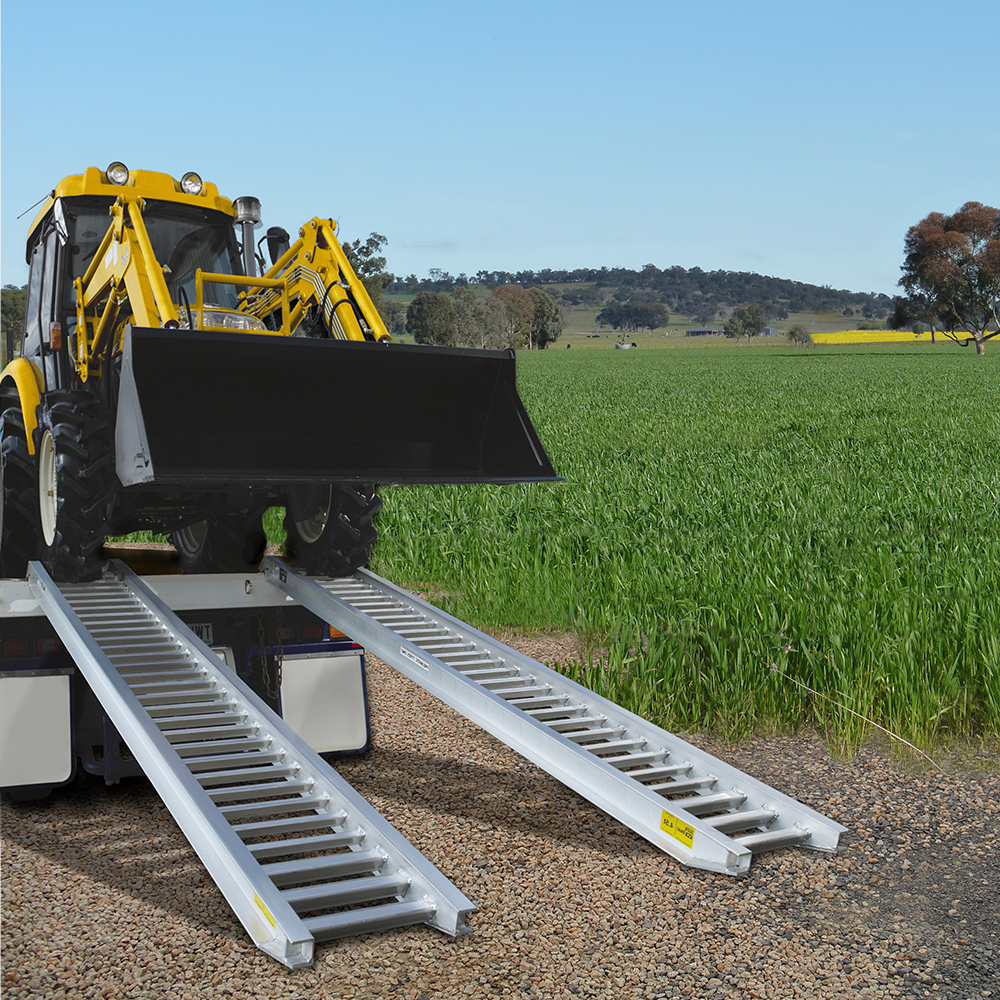

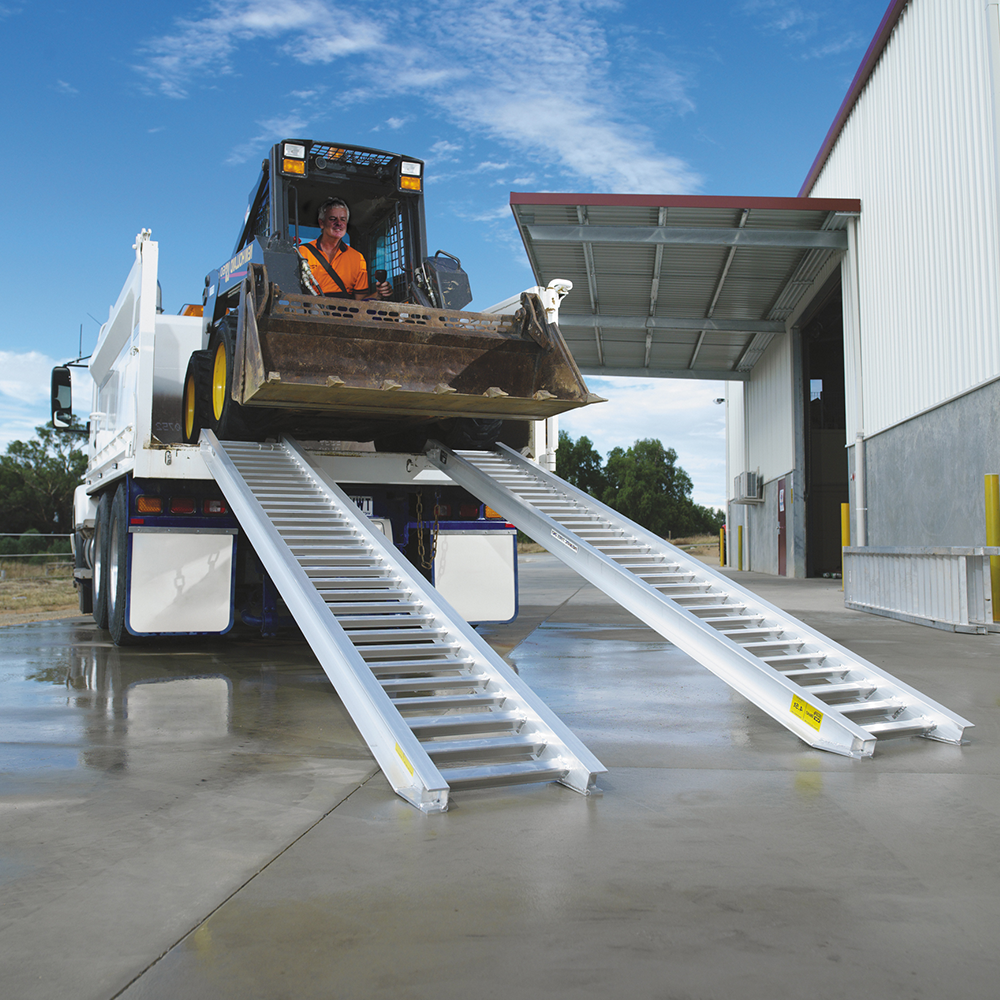

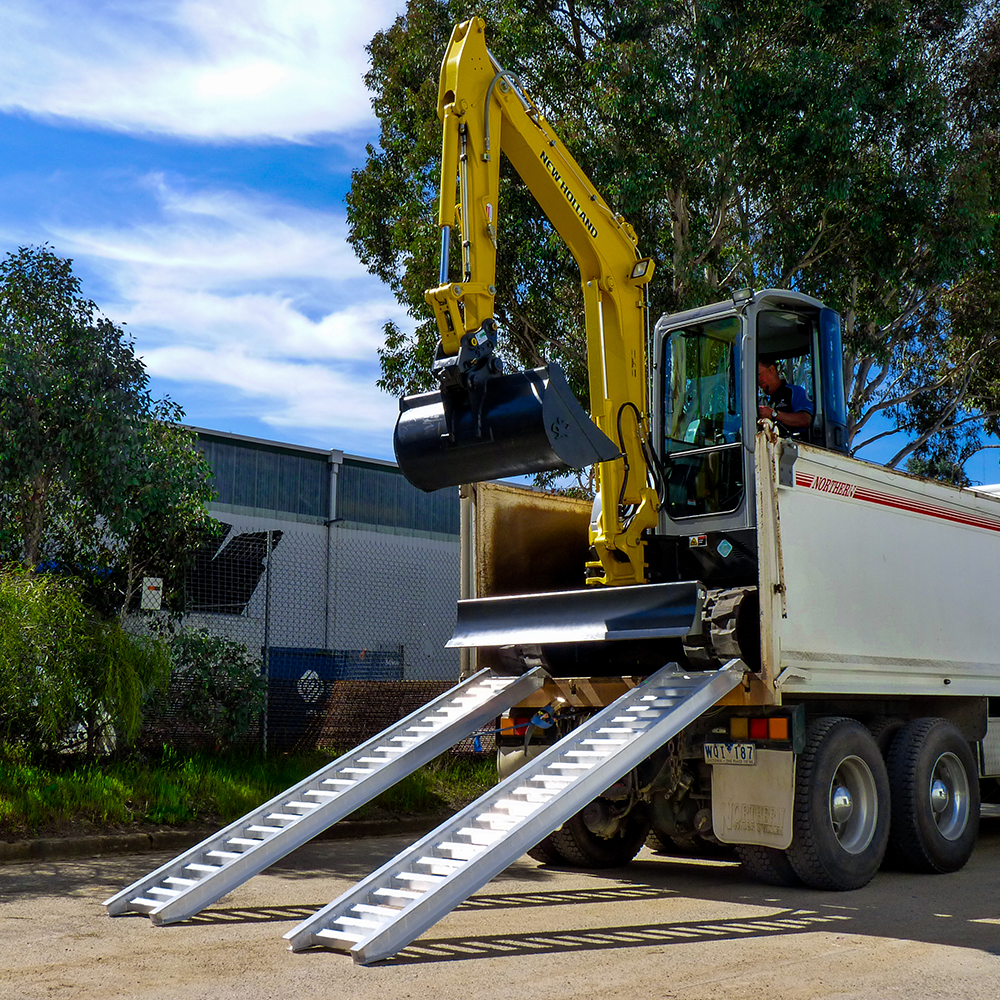

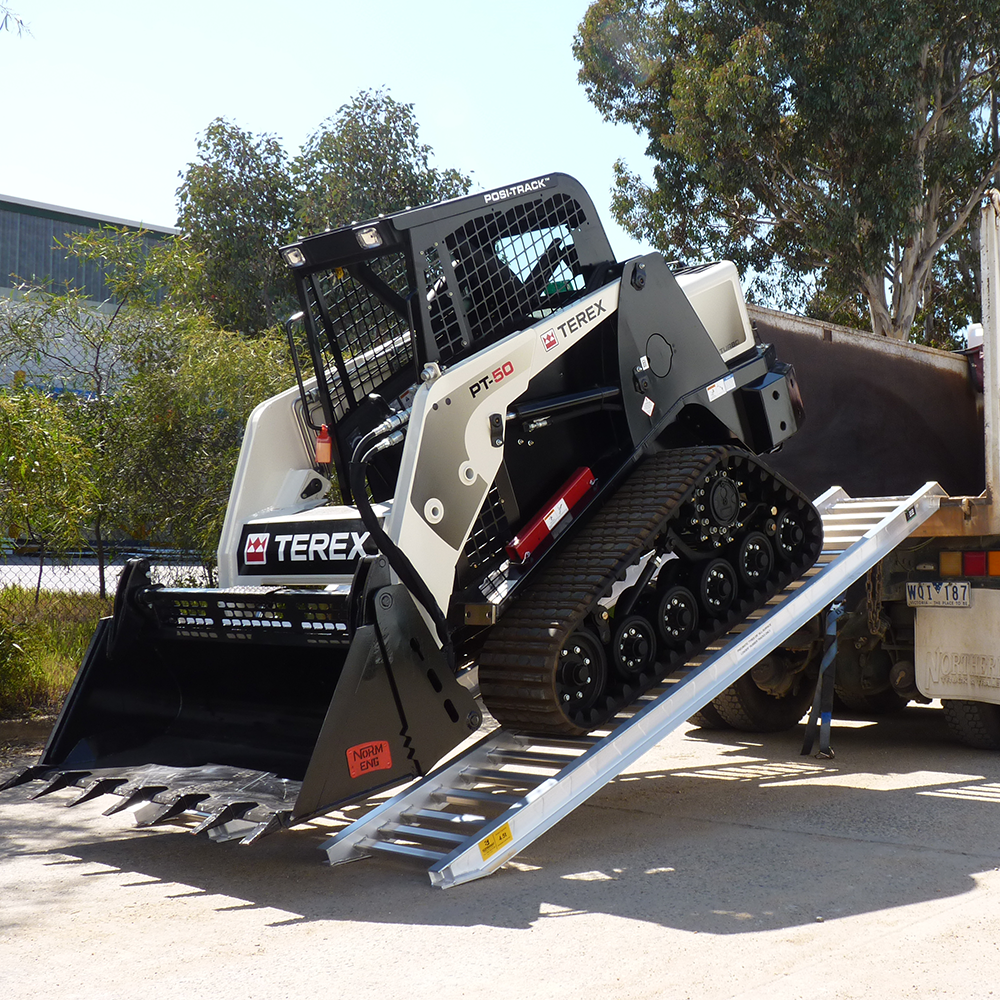

Skid steers, excavators, Ditch Witches, and other small machinery with 1.9-tonne ratings can now be loaded onto trailers and truck beds these aluminium machinery loading ramps. The ramps have raised sides to allow safe, worry-free loading.

Where steel tracks are to be used on ramps, please refer to the 'Track Series' which have a different tread surface to the Rubber Series. Please see the table below, for Sureweld’s full range of Rubber Series Ramps.

Rubber Series Ramp Specifications

Product

Code

Rated

Capacity

Ramp

Mass

Ramp

Length

Track

Width

(internal)

Ramp

Width

Ramp

Depth

Rung

Recess

6/1524R 1500kg 16kg 2.4m 300mm 390mm 90mm 25mm
6/1533R 1500kg 22kg 3.3m 350mm 440mm 90mm 25mm
7/1929R 1900kg 18kg 2.9m 300mm 390mm 90mm 25mm
7/3029R 3000kg 24kg 2.9m 300mm 400mm 110mm 40mm
7/3033R 3000kg 27kg 3.3m 300mm 400mm 110mm 40mm
7/3635R 3600kg 33kg 3.5m 350mm 450mm 120mm 40mm
7/4040R 4000kg 35kg 4.0m 400mm 510mm 125mm 45mm
7/4536R 4500kg 36kg 3.6m 400mm 510mm 125mm 45mm
7/4833R 4800kg 33kg 3.3m 400mm 510mm 125mm 45mm
7/6036R 6000kg 49kg 3.6m 500mm 600mm 160mm 60mm



Can't find the ramp you're looking for? Use the chat function in the corner of the window or Contact us for advice if you're unsure what ramps are suitable for you.

Important Shipping and Delivery Information

These ramps are large and bulky therefore we have specific delivery requirements.

  • Deliveries can only be made to business addresses

  • There must be at least one person present at the delivery address to receive the ramp delivery, preferably multiple persons to assist the delivery driver in unloading the ramps.

  • Additional charge of $99.00 if a forklift if required for unloading
Sureweld Authorised Dealer
