Sureweld 3-Tonne 3.3m x 550mm PT Series Aluminium Loading Ramps

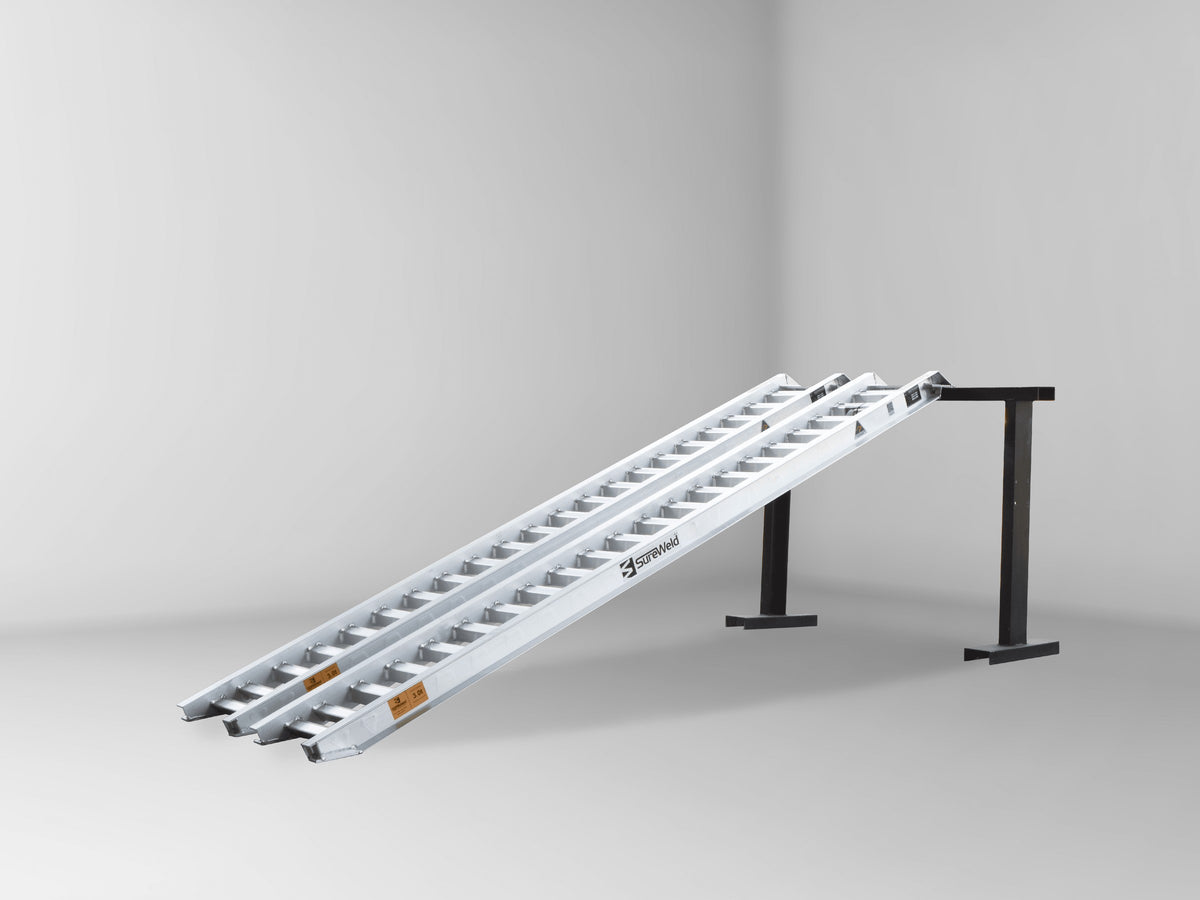

Sureweld 3 Tonne 3.3m x 550mm PT Series Aluminium Machinery Loading Ramps, Pair

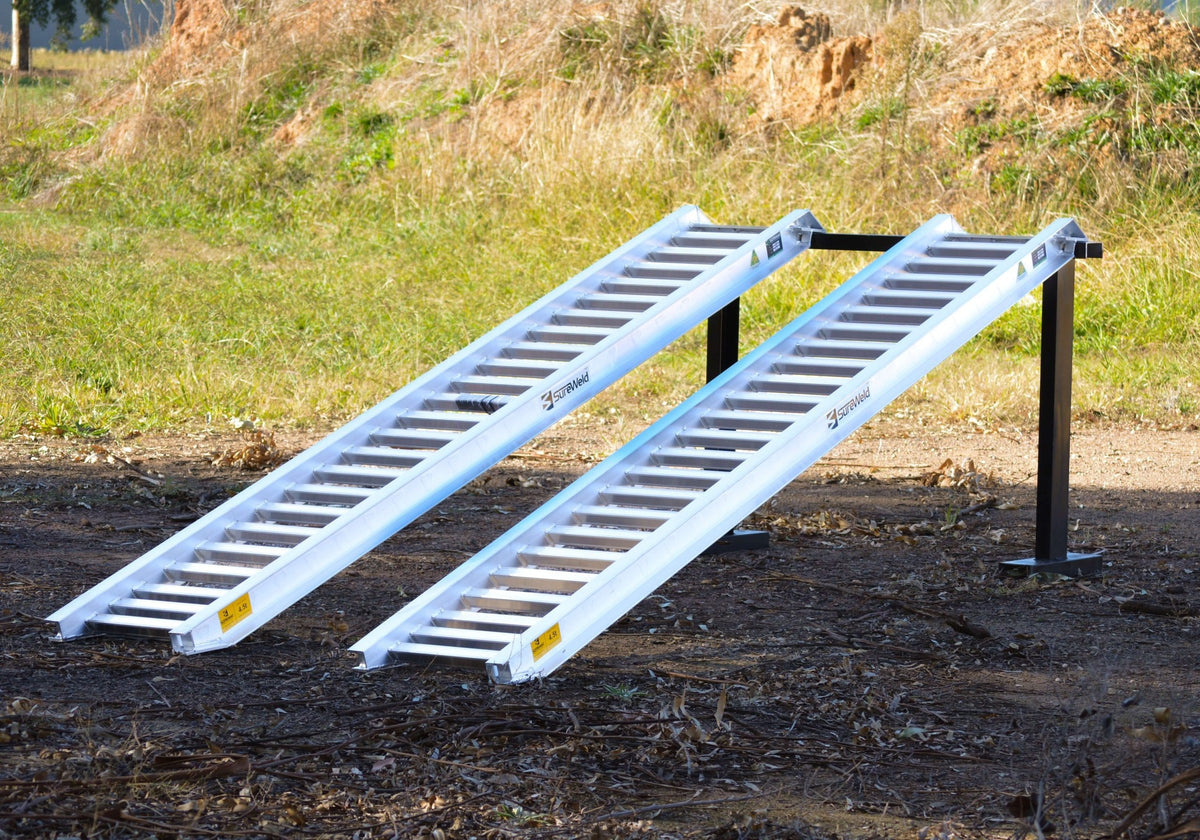

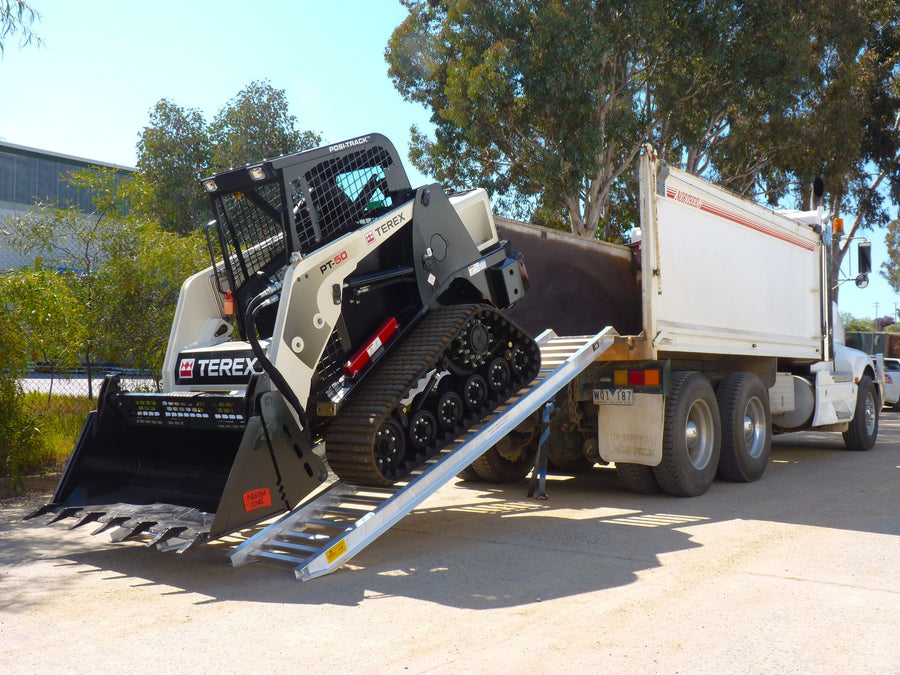

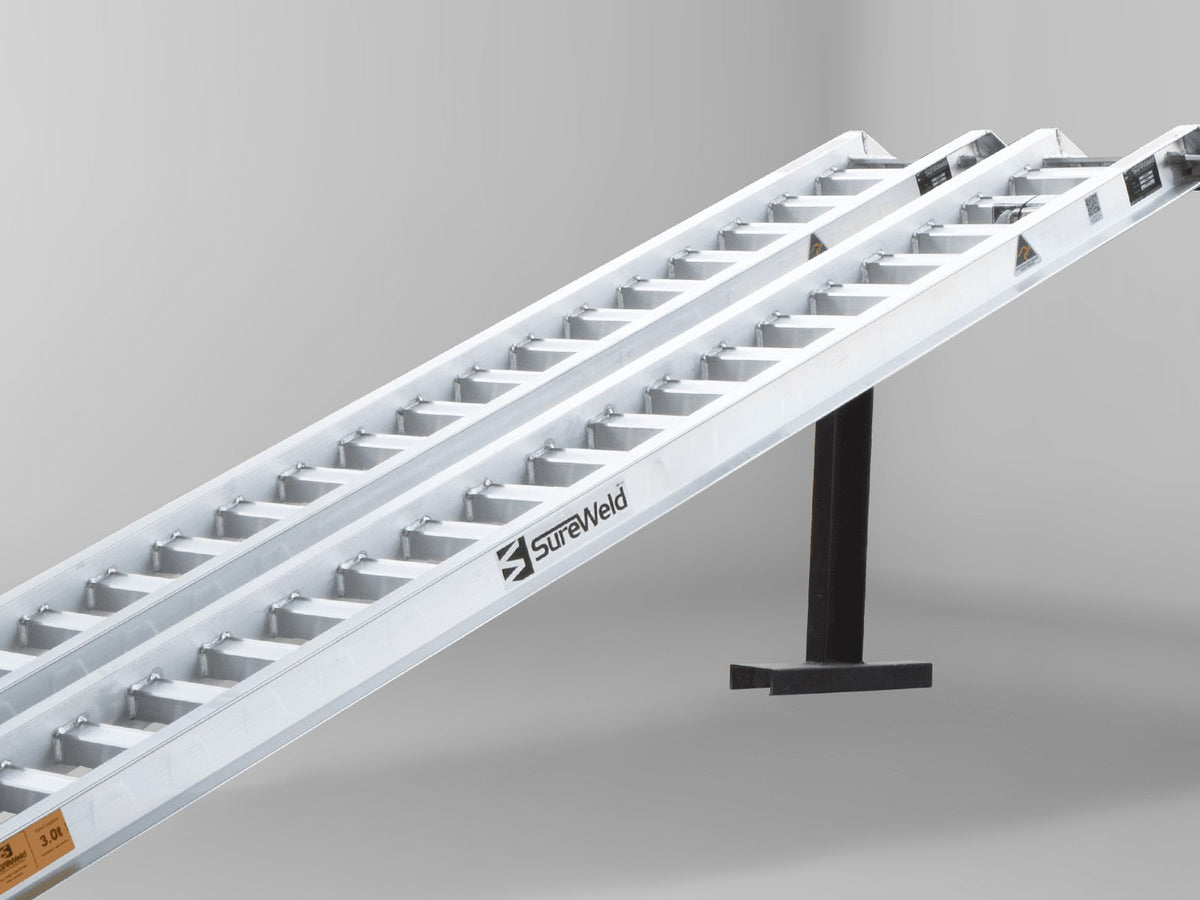

The Sureweld 3 Tonne 3.3m x 550mm PT Series Aluminium Machinery Loading Ramps are the specialised range of Sureweld Ramps designed for use with All Surface Loader Rubber Tracks. The tread surfaces in this range are configured to reduce the possibility of damage to these types of tracks and are generally wider than Rubber Series and Track Series ramps. At a capacity rating of 3 tonne per pair, these lightweight aluminium loading ramps are ideal for owners and operators who need to safely and effectively transport machinery fitted with All Surface Loader Rubber Tracks.

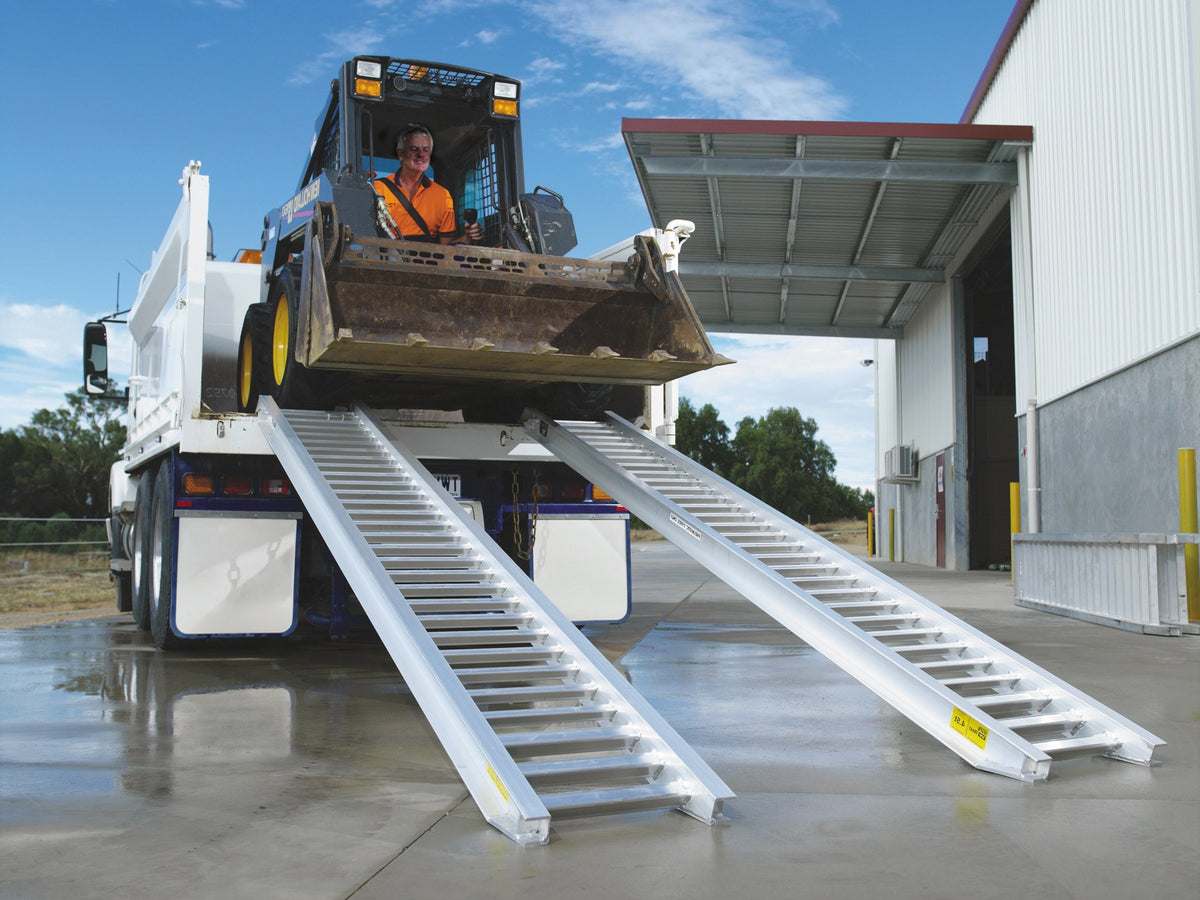

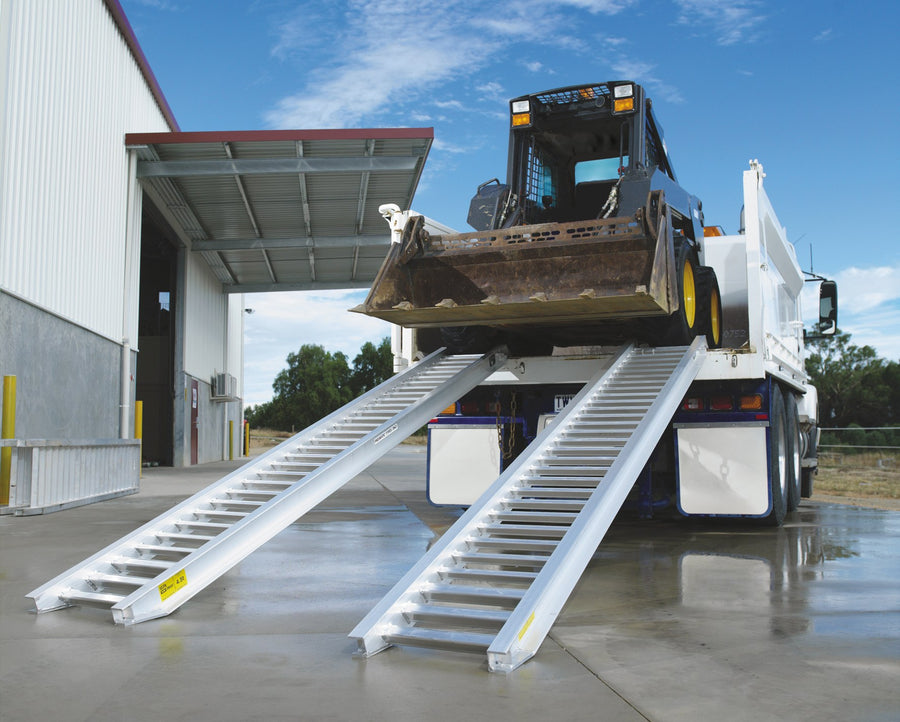

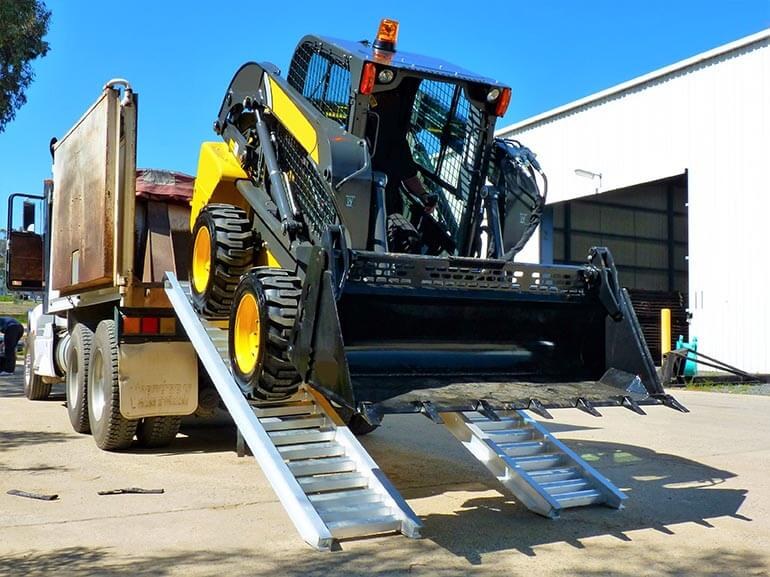

Complete with connection plate and zinc coated, steel pins these aluminium loading ramps are perfect for loading onto tipper body trucks, flatbed trucks or trailers.

Features and Benefits

• Ideal for All Surface Loader Rubber Tracks
• Australian designed and manufactured
• Manufactured from structural-grade alloys to ensure the maximum strength available
• Compliance Plates recording the model number, load capacity and serial number ensure traceability and safe work practice
• Connecting plate and pin ensures maximum stability and safety
• All ramps are built to take a reasonable variation around typical truck body heights
• 12-month warranty
• Made from high-grade structural alloy
• NATA certified and tested
• Ramps sold in pairs

Specifications

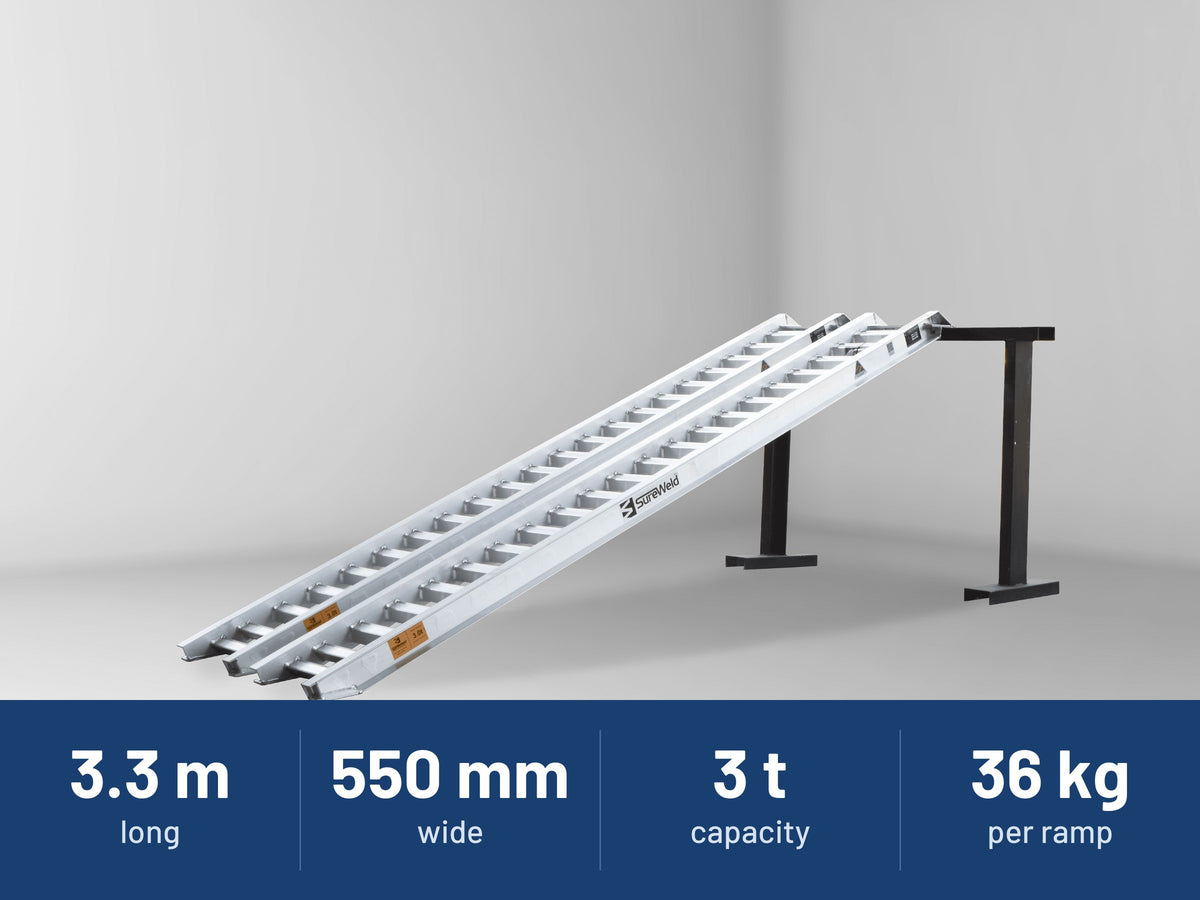

• Rated Load Capacity Per Pair: 3 tonne
• Ramp Weight Per Ramp: 36kg
• Ramp Length: 3.3m
• Internal Track Width: 450mm
• Ramp Width: 550mm
• Height Up To: 1.3m
• Ramp Depth: 110mm

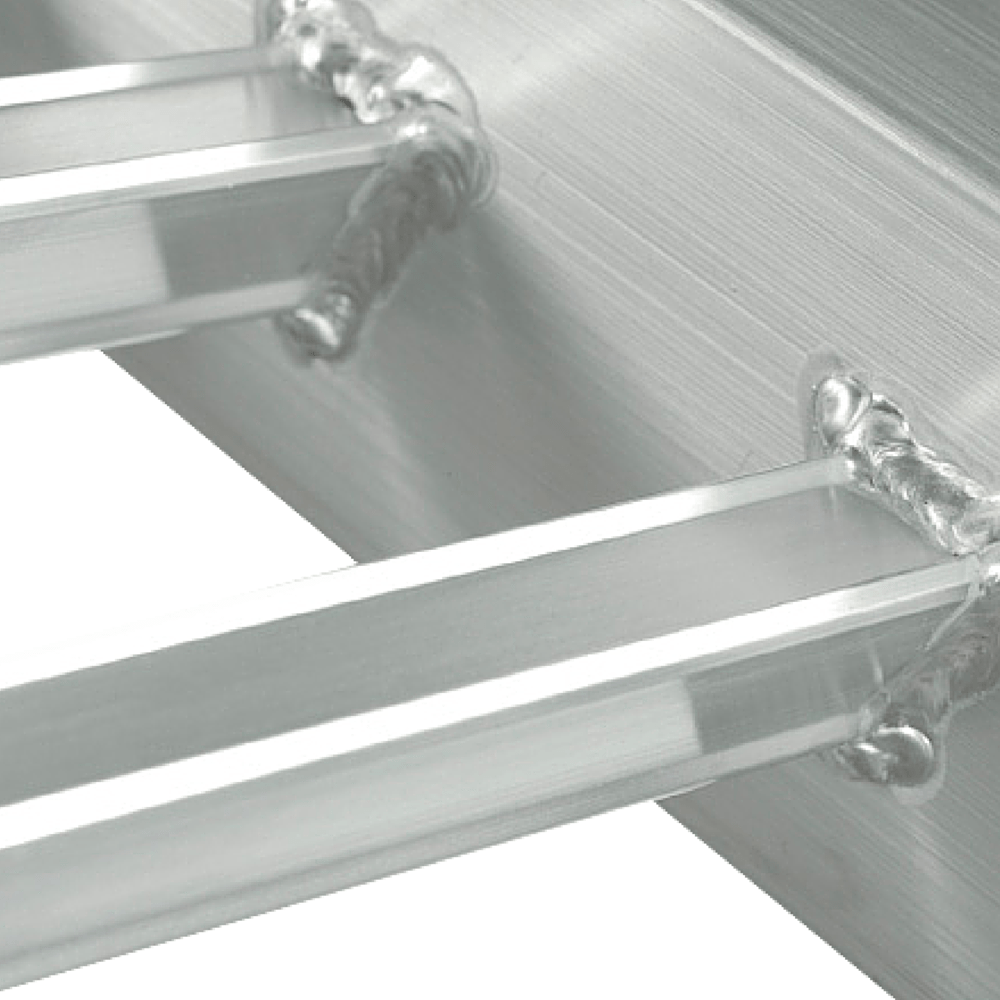

• Rung Recess: 35mm

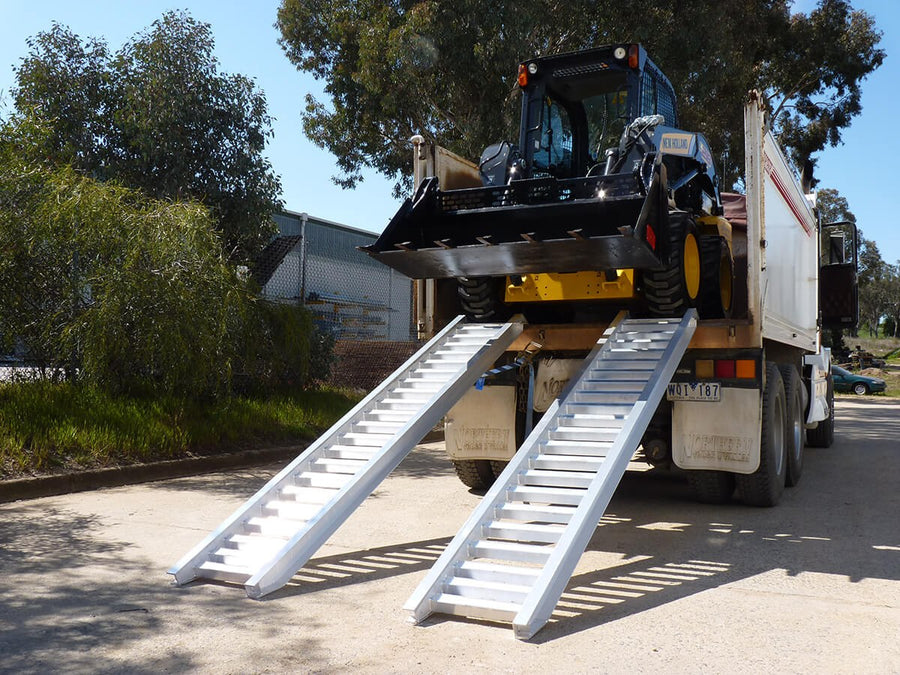

Whilst these ramps cater for the distinctive features of All Surface Loader Rubber Tracks, these models can also be used with pneumatic (air) tyres. Select from this range where machinery fitted with All Surface Loader Rubber Tracks as well as machinery with pneumatic tyres are to be loaded.

For loading machinery with Steel Tracks including tracks with Rubber Pads, the Sureweld Track Series Ramps must be used. Where machinery with pneumatic (air) tyres, or rubber tracks is to be loaded, the Sureweld  Rubber Series offer a more lightweight and economical alternative.

PT Series Ramp Specifications

Product Code	Rated Capacity	Ramp Mass	Ramp Length	Track Width (internal)	Ramp Width	Ramp Depth	Rung Recess
7/3033PT	3000kg	36kg	3.3m	450mm	550mm	110mm	35mm
7/3033PTW	3000kg	41kg	3.3m	500mm	600mm	110mm	35mm
7/3635PT	3600kg	41kg	3.5m	450mm	550mm	120mm	35mm
7/4536PT	4500kg	44kg	3.6m	500mm	610mm	125mm	40mm
7/4536PTW	4500kg	46kg	3.6m	550mm	660mm	125mm	40mm
7/4833PT	4800kg	42kg	3.3m	500mm	610mm	125mm	45mm
7/6036PT	6000kg	49kg	3.6m	500mm	600mm	160mm	60mm
