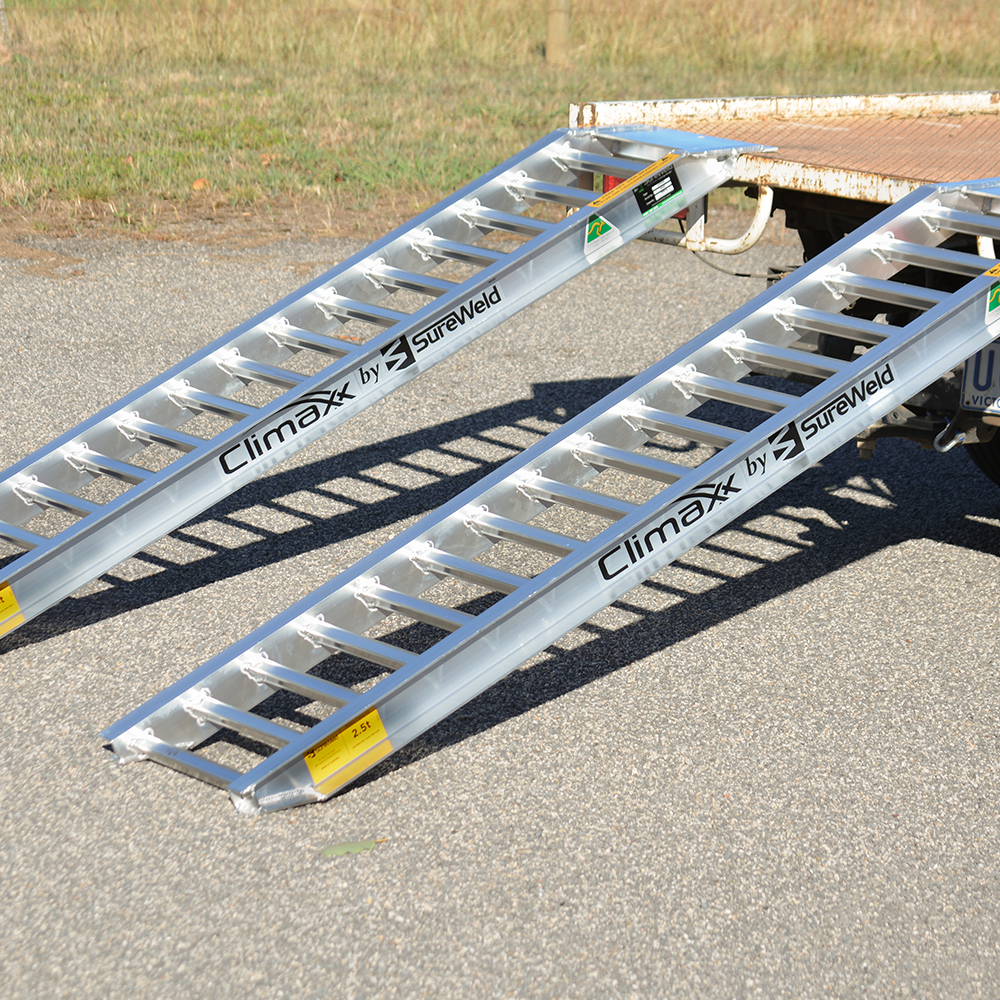

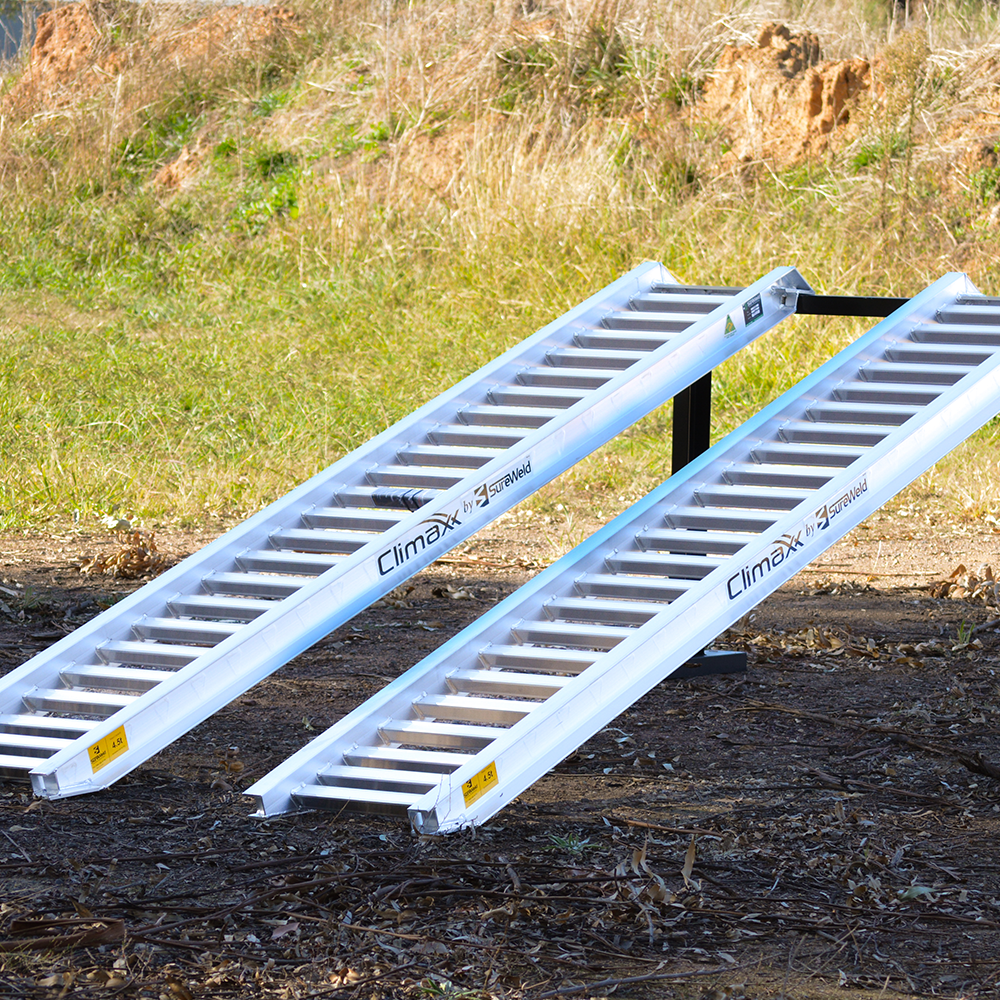

Sureweld 3 Tonne 3.3m x 600mm PT Series Aluminium Loading Ramps

$1,771.00
SKU 7/3033PTW

✓ Fast Shipping + Order Tracking
✓ Pickup In-Store Available
✓ Questions? Call Us: 1300 913 047



Estimated Arrival: Between and .



Need A Quotation? Request a free quote today


3 Tonne Capacity 3.3m Long x 600mm Wide PT Series Aluminium Machinery Loading Ramps from Sureweld

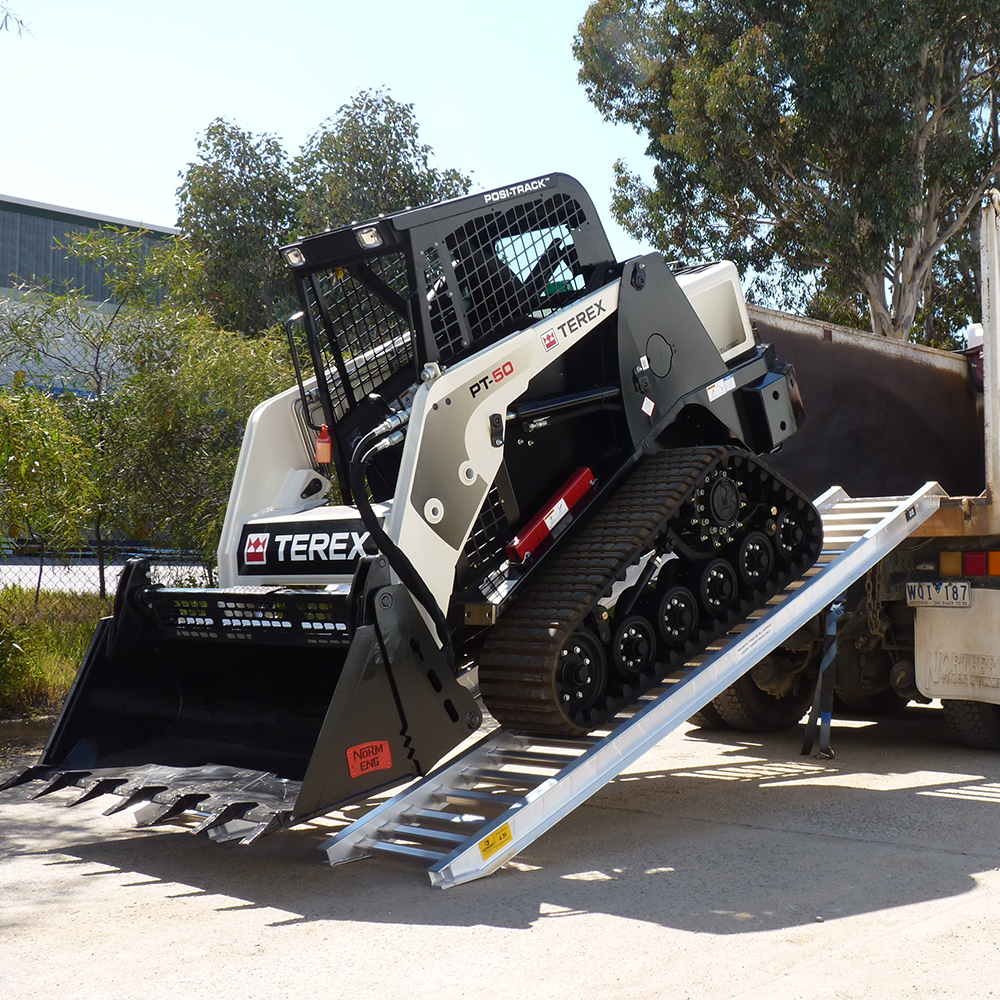

Sureweld 3 Tonne 3.3m x 600mm PT Series Aluminium Machinery Loading Ramps are the specialised range of Sureweld Ramps designed for use with All Surface Loader Rubber Tracks. The tread surfaces in this range are configured to reduce the possibility of damage to these types of tracks and are generally wider than Rubber Series and Track Series ramps. At a capacity rating of 3 tonne per pair, these lightweight aluminium loading ramps are ideal for owners and operators who need to safely and effectively transport machinery fitted with All Surface Loader Rubber Tracks.

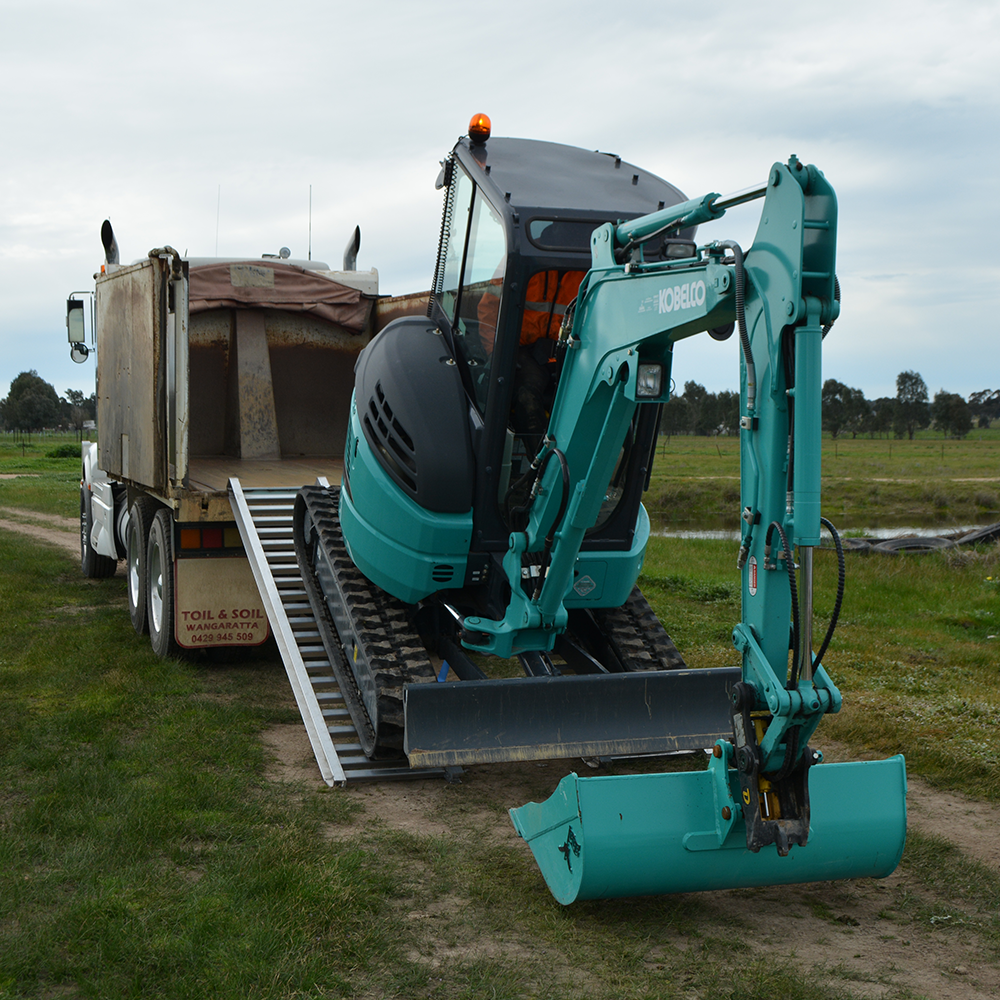

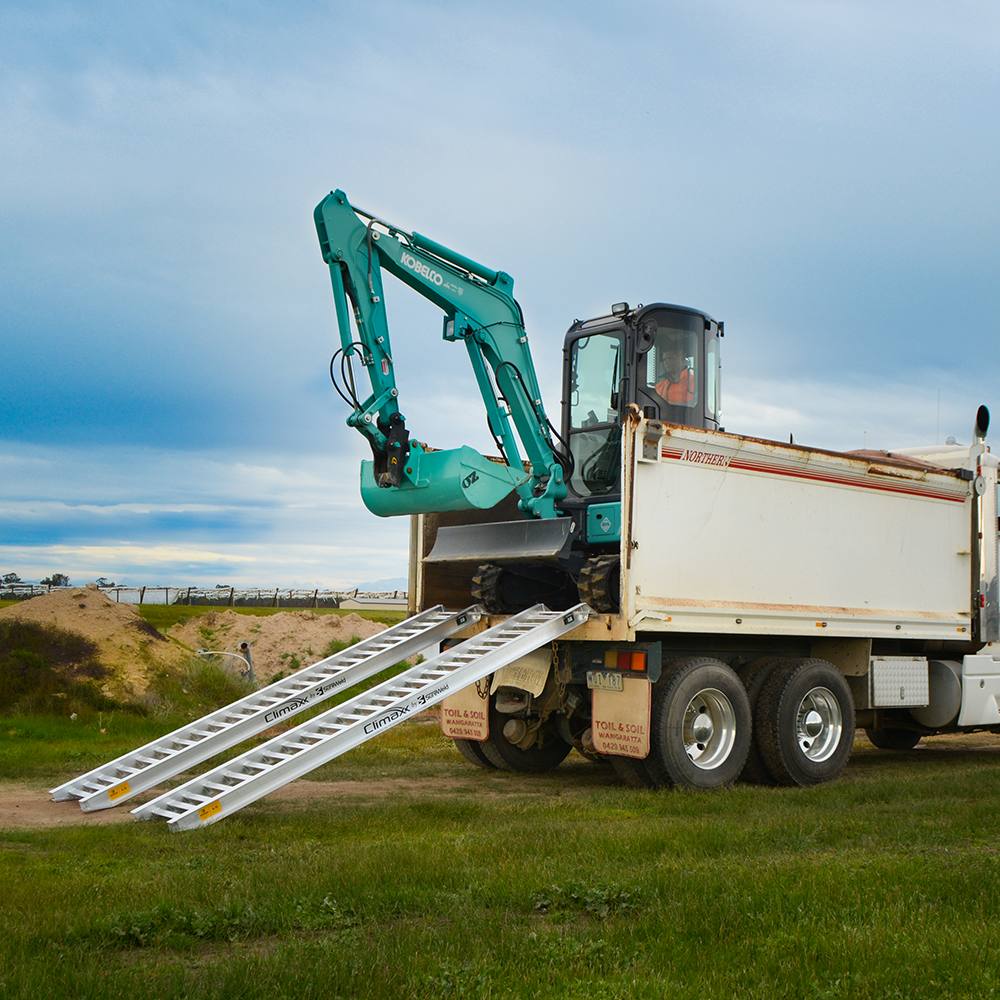

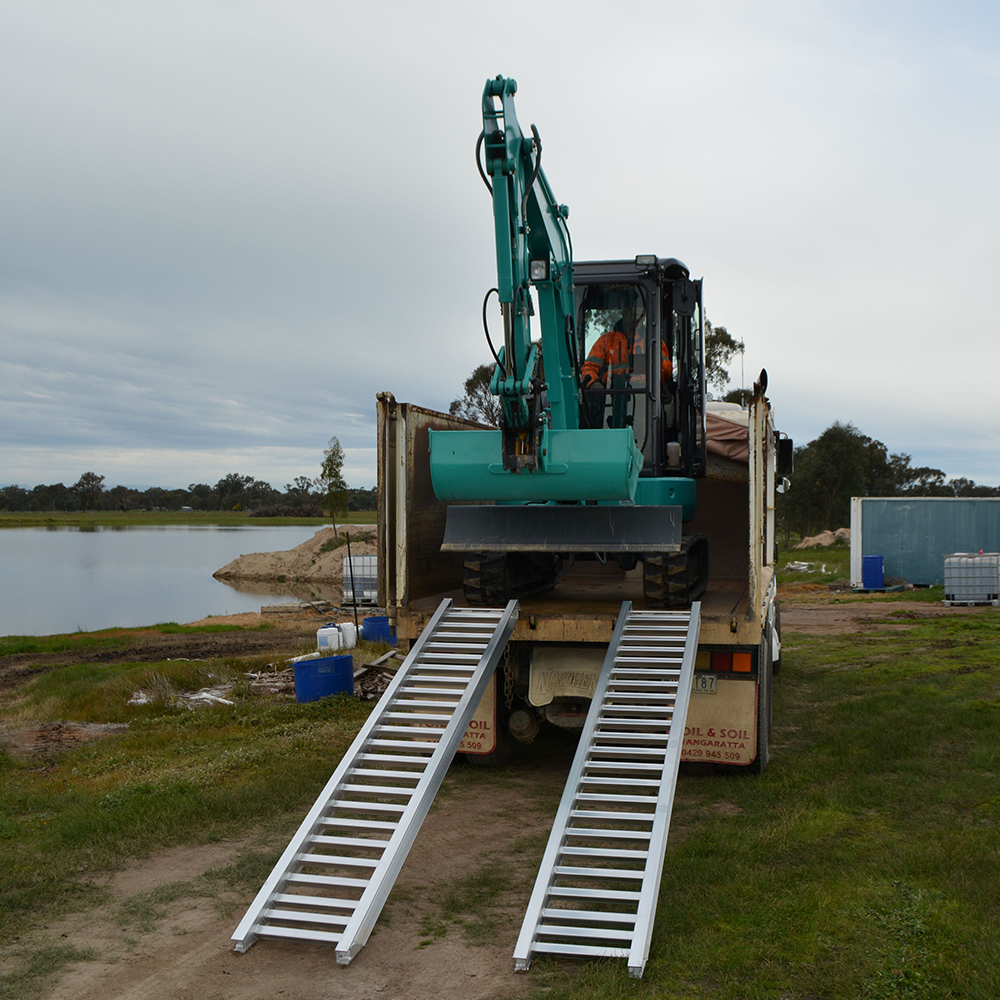

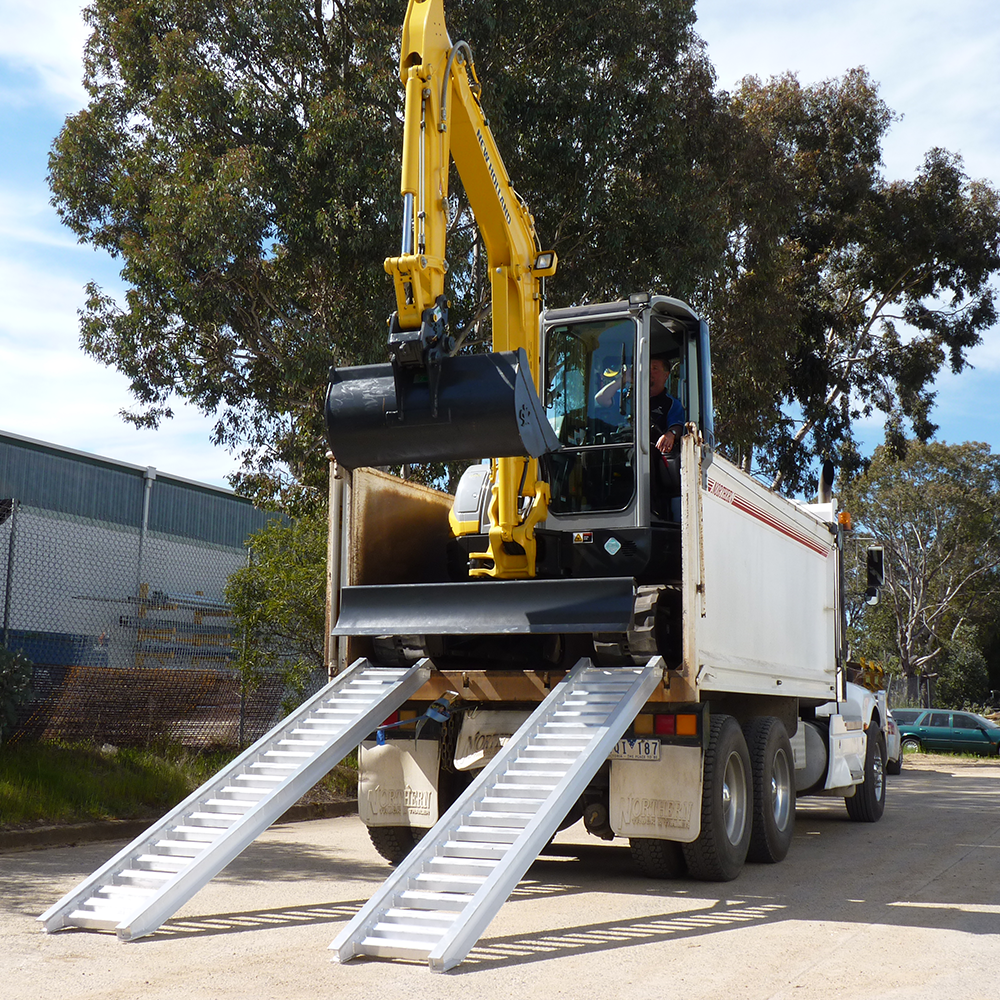

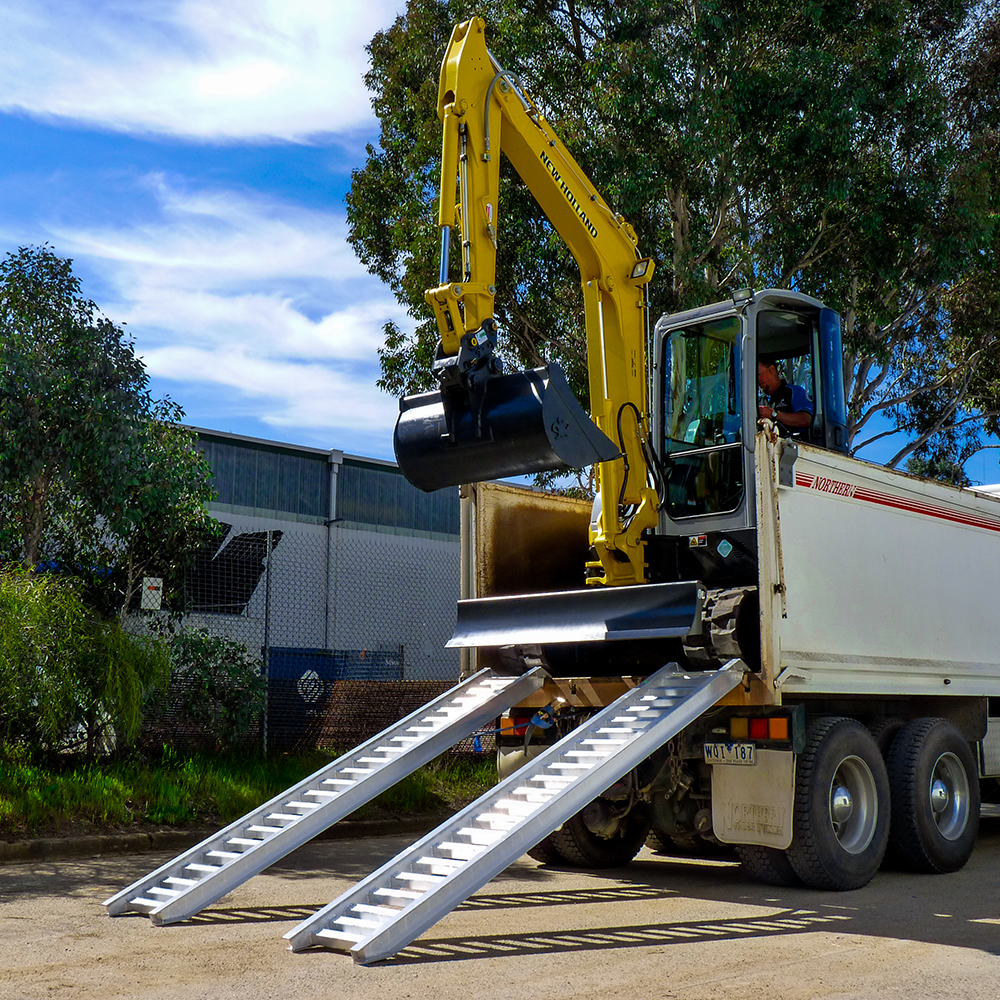

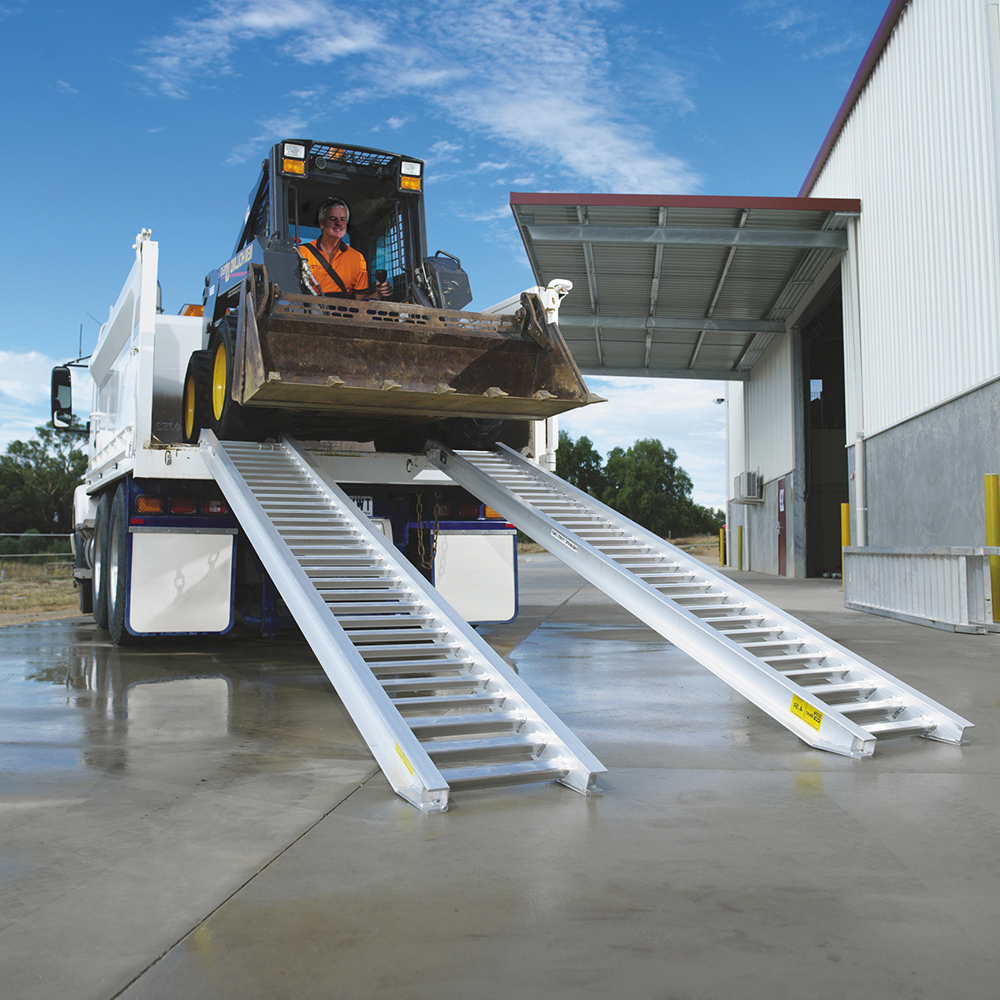

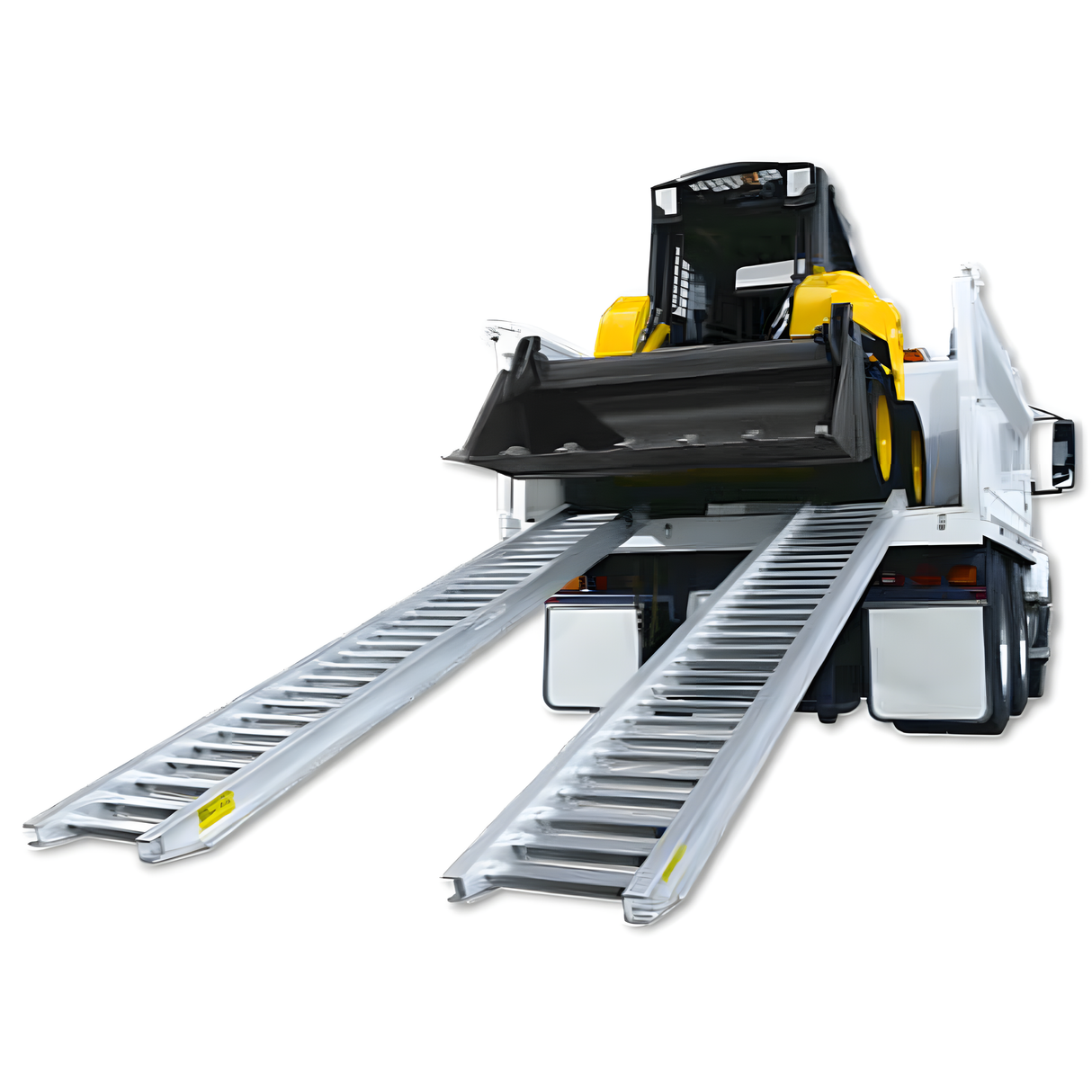

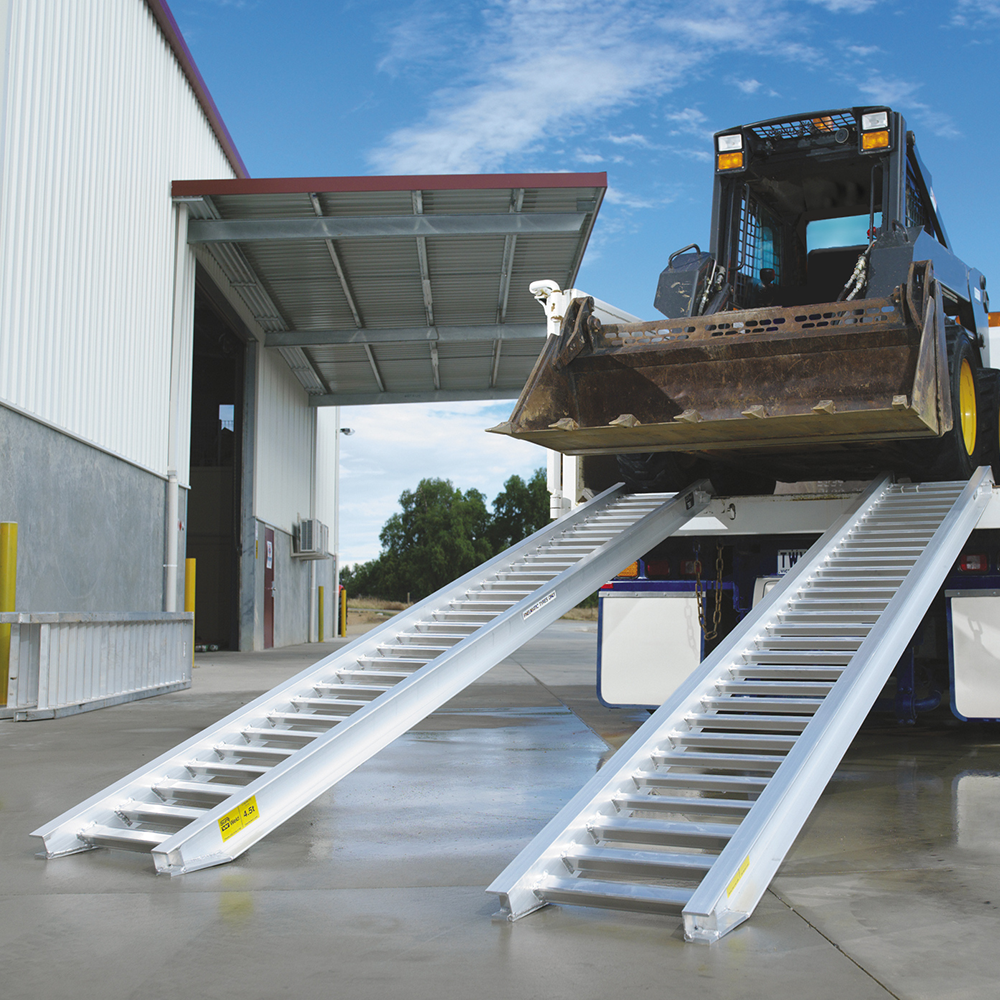

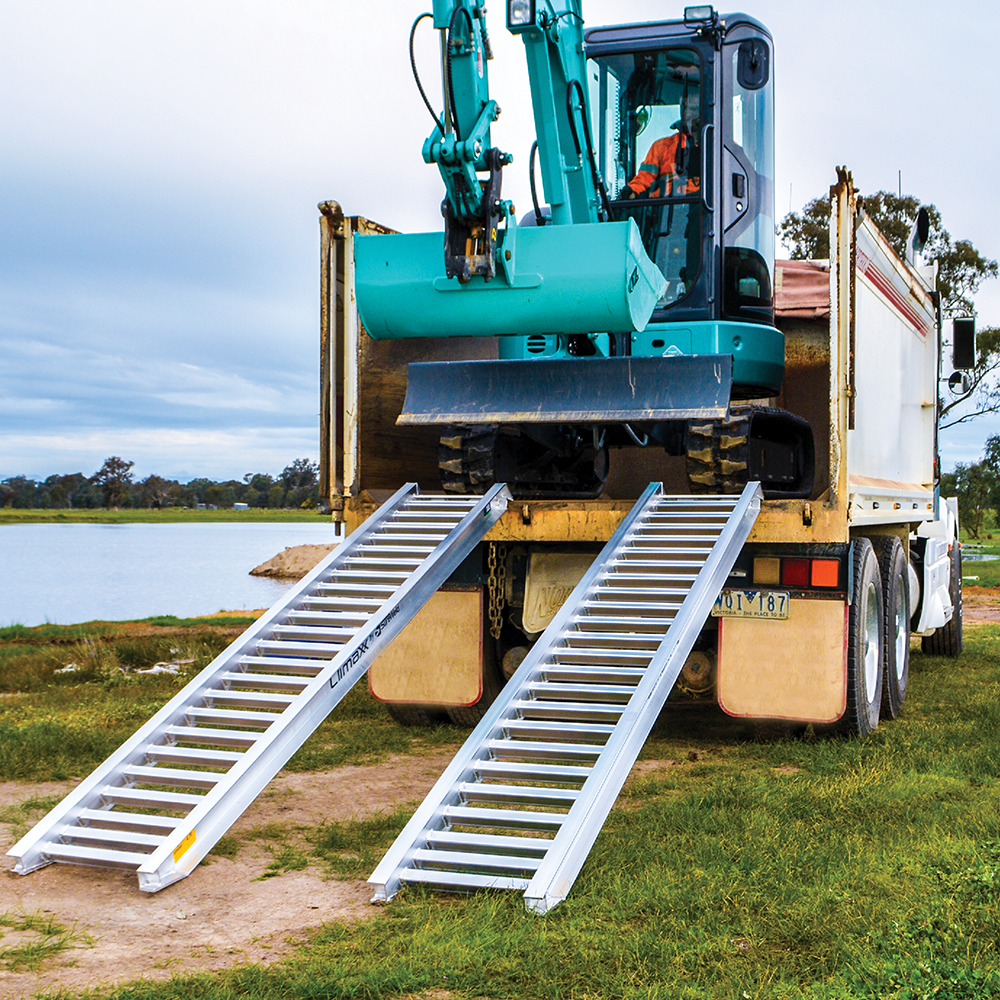

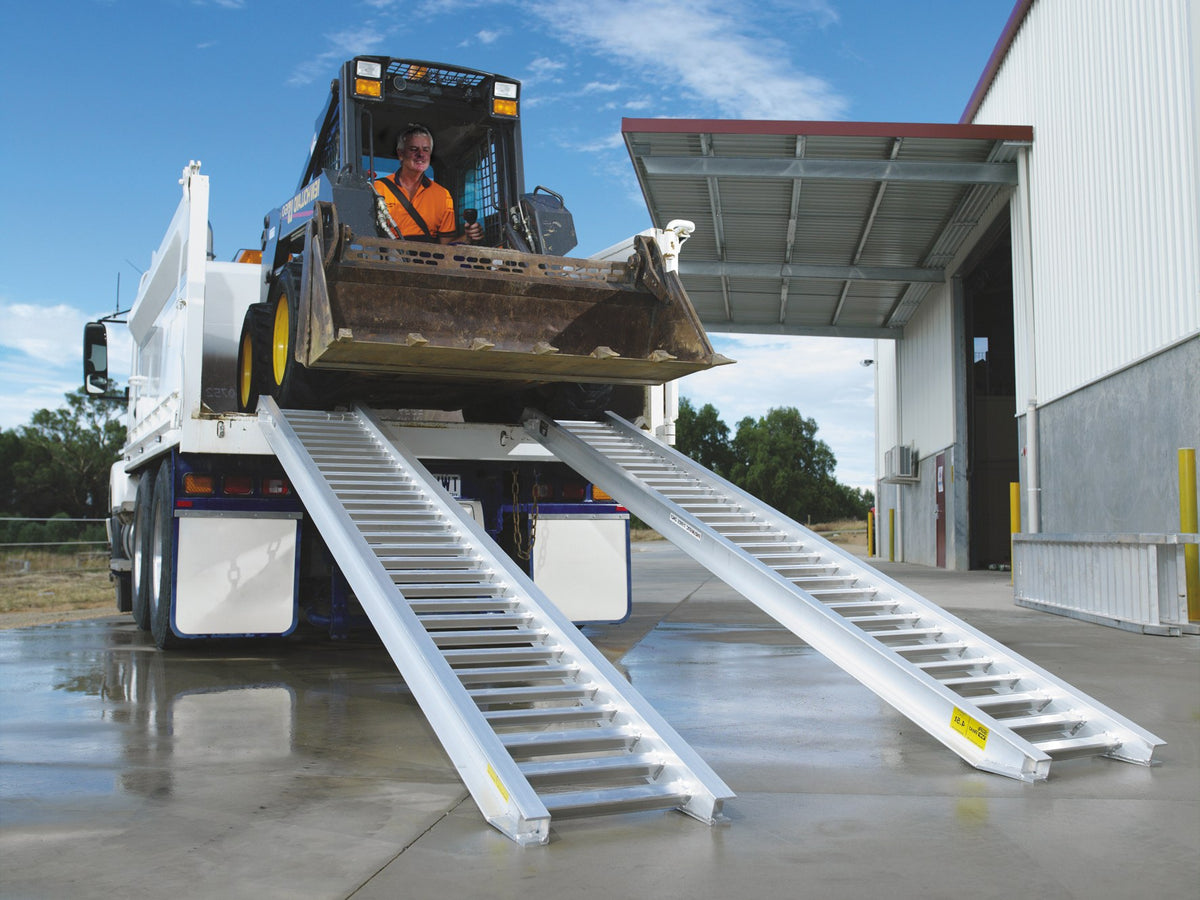

Complete with connection plate and zinc coated, steel pins these aluminium loading ramps are perfect for loading onto tipper body trucks, flatbed trucks or trailers.

Features and Benefits

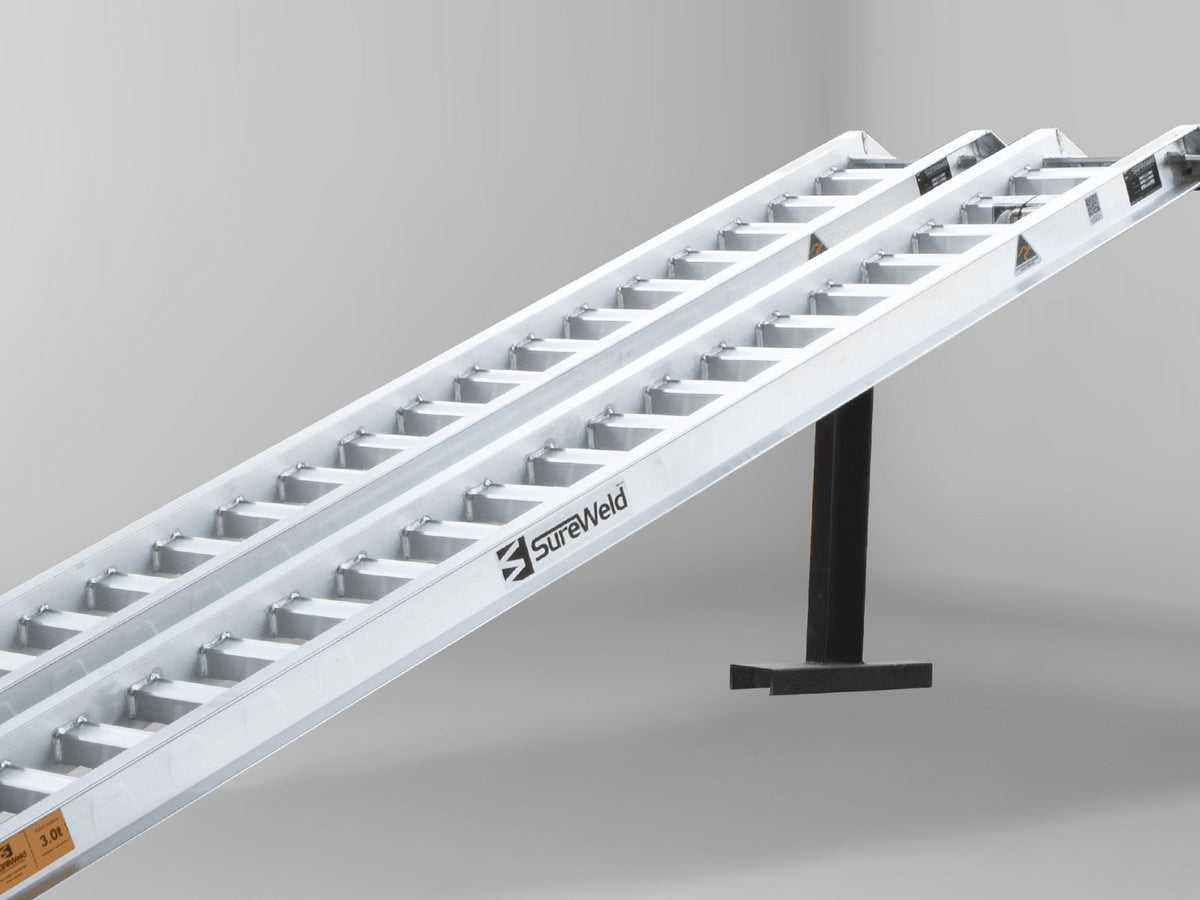

  • Ideal for All Surface Loader Rubber Tracks
  • Australian designed and manufactured
  • Manufactured from structural-grade alloys to ensure the maximum strength available

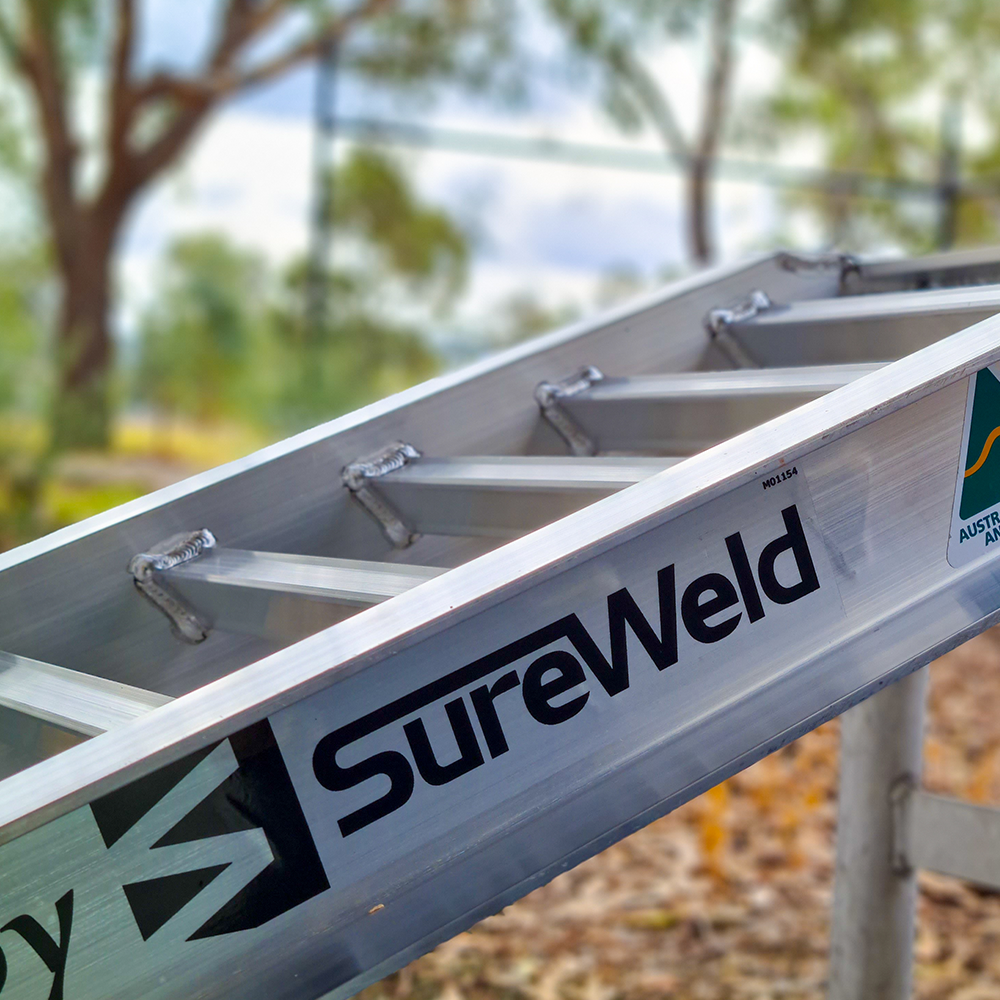

  • Compliance Plates recording the model number, load capacity and serial number ensure traceability and safe work practice
  • Connecting plate and pin ensures maximum stability and safety
  • All ramps are built to take a reasonable variation around typical truck body heights
  • 12-month warranty
  • Made from high-grade structural alloy
  • NATA certified and tested

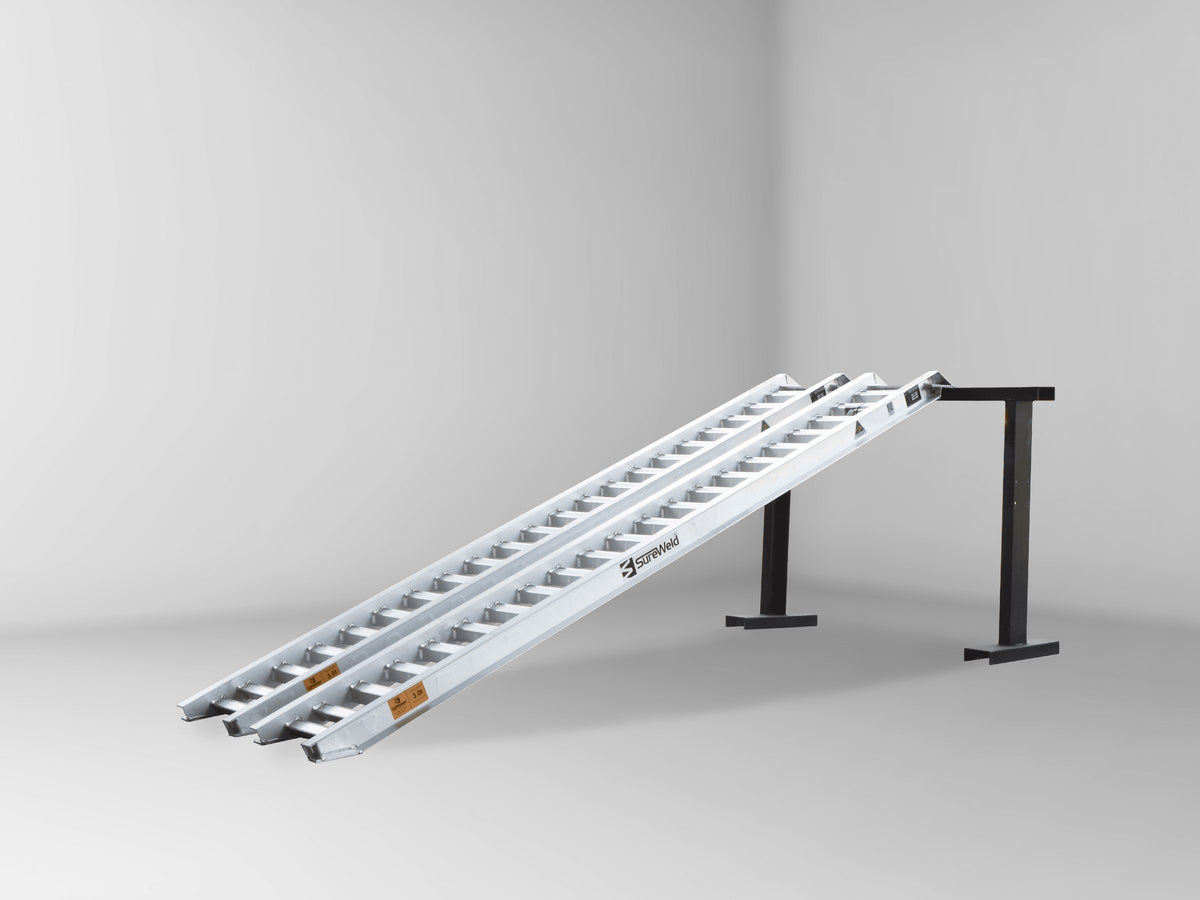

  • Ramps sold in pairs

Specifications

  • Rated Load Capacity Per Pair: 3 tonne
  • Ramp Weight: 41kg
  • Ramp Length: 3.3m
  • Internal Track Width: 500mm
  • Ramp Width: 600mm
  • Ramp Depth: 110mm

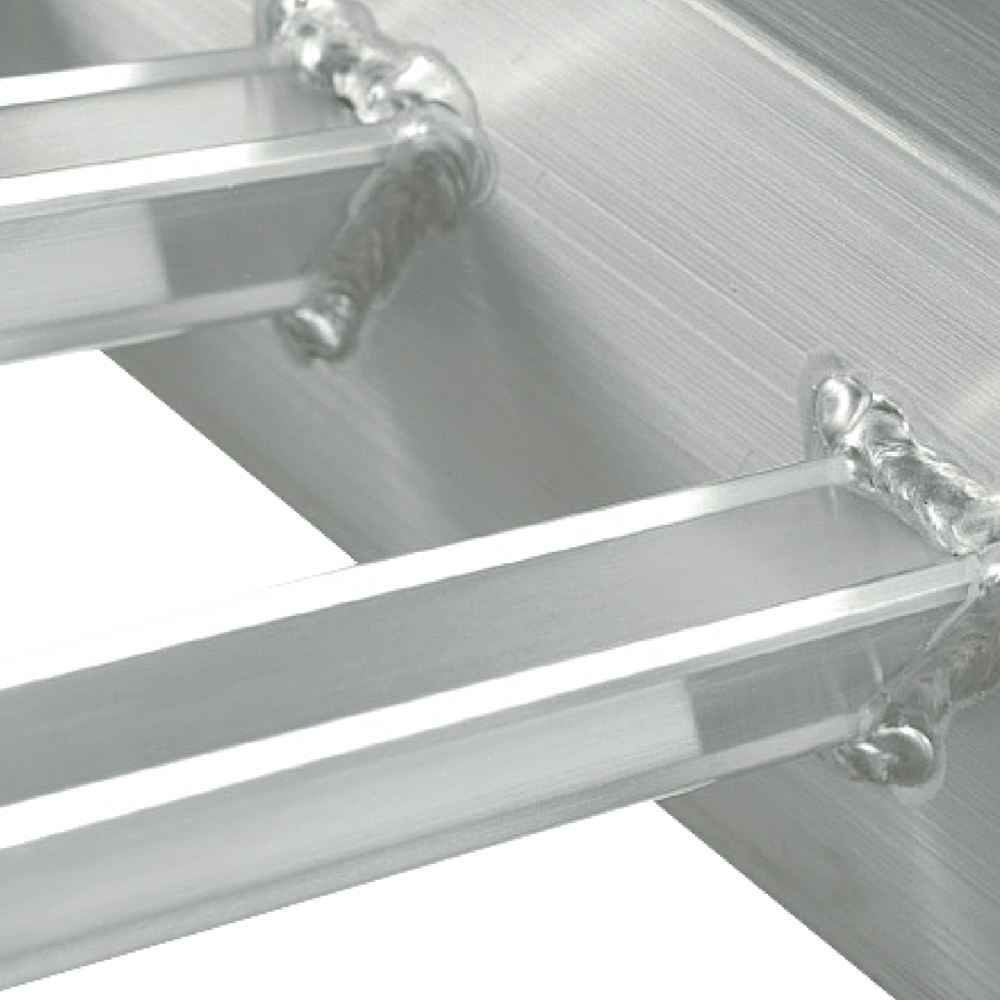

  • Rung Recess: 35mm

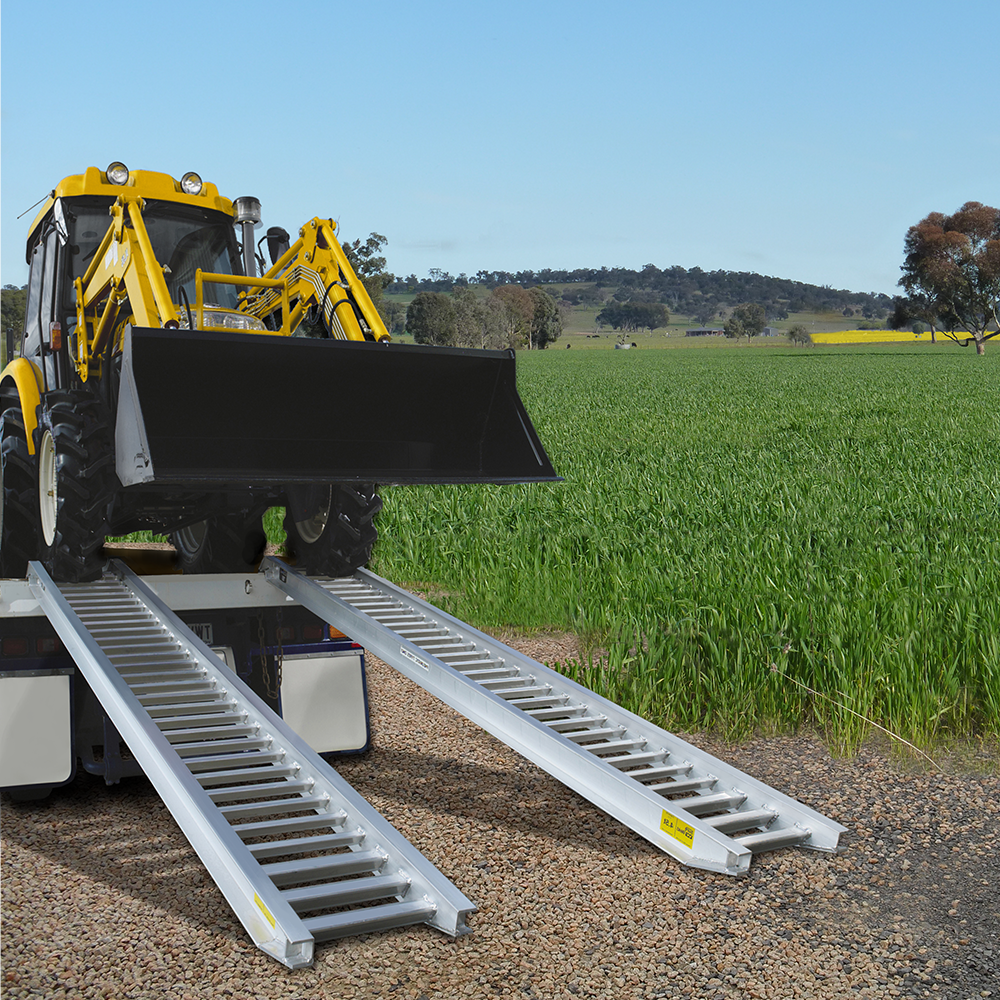

Whilst these ramps cater for the distinctive features of All Surface Loader Rubber Tracks, these models can also be used with pneumatic (air) tyres. Select from this range where machinery fitted with All Surface Loader Rubber Tracks as well as machinery with pneumatic tyres are to be loaded.

For loading machinery with Steel Tracks including tracks with Rubber Pads, the Sureweld Track Series Ramps must be used. Where machinery with pneumatic (air) tyres, or rubber tracks is to be loaded, the Sureweld  Rubber Series offer a more lightweight and economical alternative.

PT Series Ramp Specifications

Product

Code

Rated

Capacity

Ramp

Mass

Ramp

Length

Track

Width

(internal)

Ramp

Width

Ramp

Depth

Rung

Recess

7/3033PT 3000kg 36kg 3.3m 450mm 550mm 110mm 35mm
7/3033PTW 3000kg 41kg 3.3m 500mm 600mm 110mm 35mm
7/3635PT 3600kg 41kg 3.5m 450mm 550mm 120mm 35mm
7/4536PT 4500kg 44kg 3.6m 500mm 610mm 125mm 40mm
7/4536PTW 4500kg 46kg 3.6m 550mm 660mm 125mm 40mm
7/4833PT 4800kg 42kg 3.3m 500mm 610mm 125mm 45mm
7/6036PT 6000kg 49kg 3.6m 500mm 600mm 160mm 60mm



Can't find the ramp you're looking for? Use the chat function in the corner of the window or Contact us for advice if you're unsure what ramps are suitable for you.

Important Shipping and Delivery Information

These ramps are large and bulky therefore we have specific delivery requirements.
  • Deliveries can only be made to business addresses

  • There must be at least one person present at the delivery address to receive the ramp delivery, preferably multiple persons to assist the delivery driver in unloading the ramps.

  • Additional charge of $99.00 if a forklift if required for unloading
Sureweld Authorised Dealer

Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.
