Sureweld 4.5-Tonne 3.6m x 560mm Track Series Aluminium Loading Ramps

$2,50800 $2,75400
Sureweld  |  SKU: 7/4536TW

Description

4.5 Tonne Capacity 3.6m Long x 560mm Wide Track Series Aluminium Machinery Loading Ramps from Sureweld

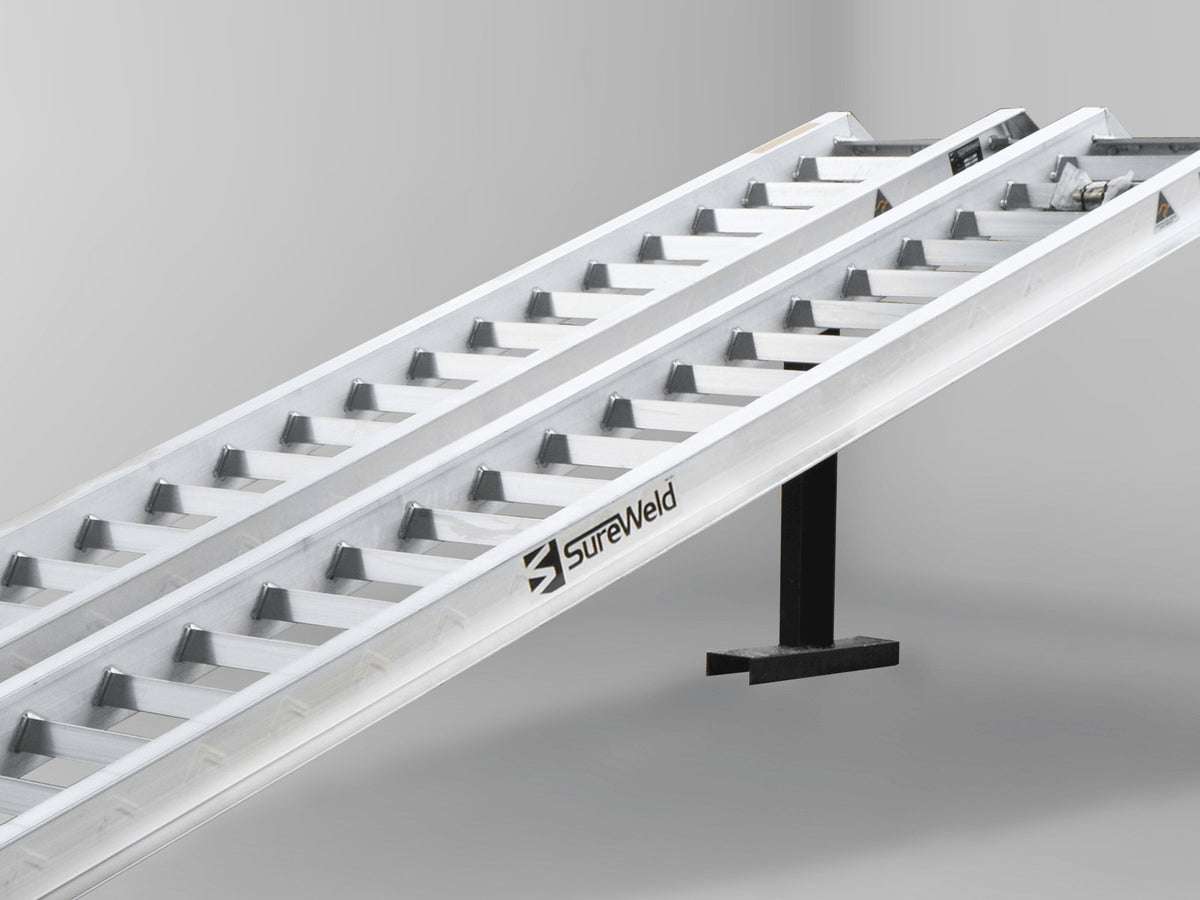

Sureweld 4.5 Tonne 3.6m x 560mm Track Series Aluminium Machinery Loading Ramps are designed for use with Steel Tracks (including Steel Tracks with Rubber Pads), and Rubber Tracks. The tread surfaces in this range are highly robust and are configured to resist damage from tracks. Featuring the greatest versatility of the Sureweld range, these models can be used with tyres as well as with tracks. Select from this range where machinery with tracks as well as machinery with pneumatic (air) tyres are to be loaded.

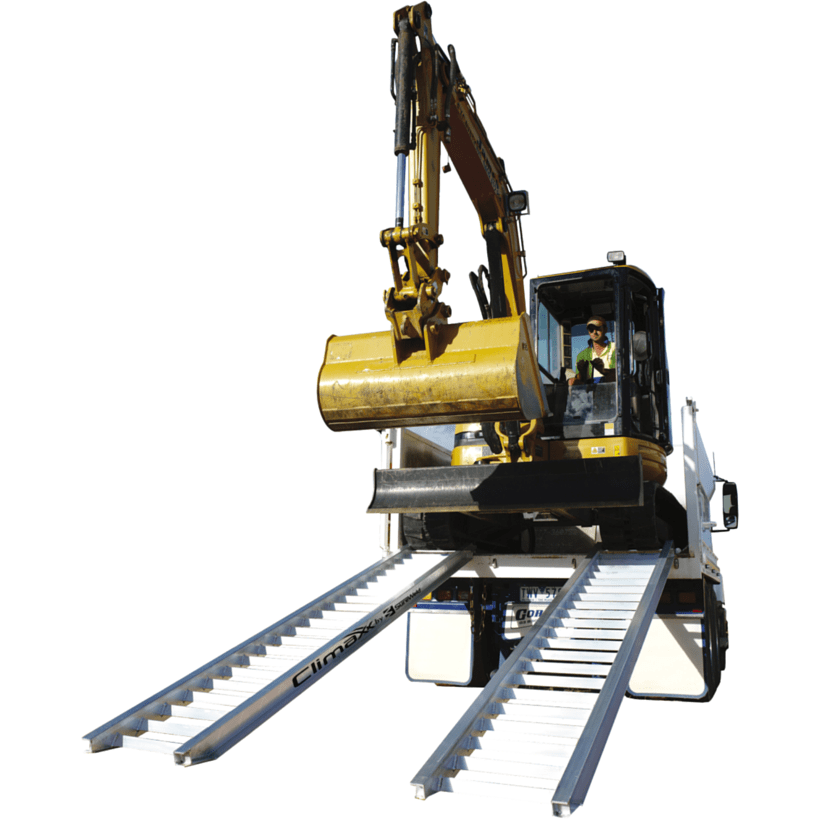

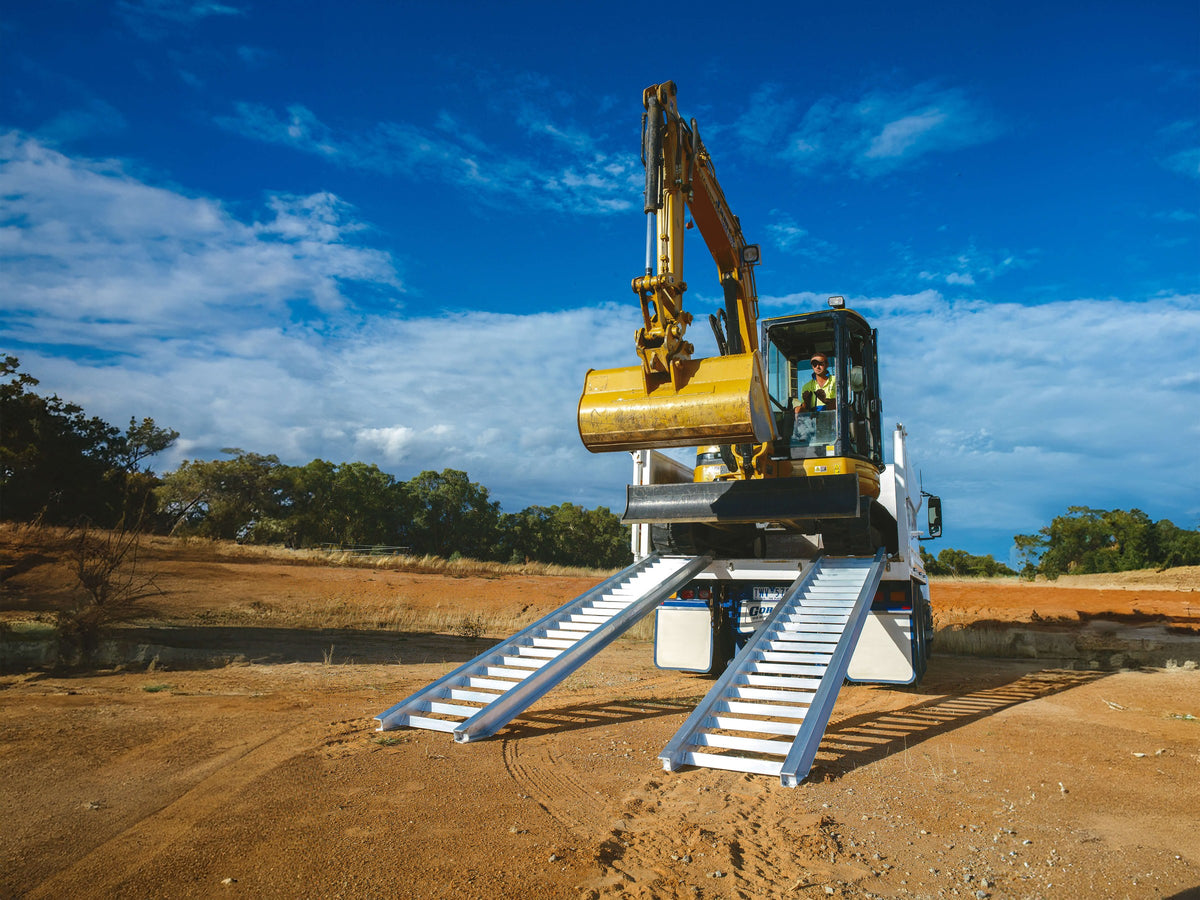

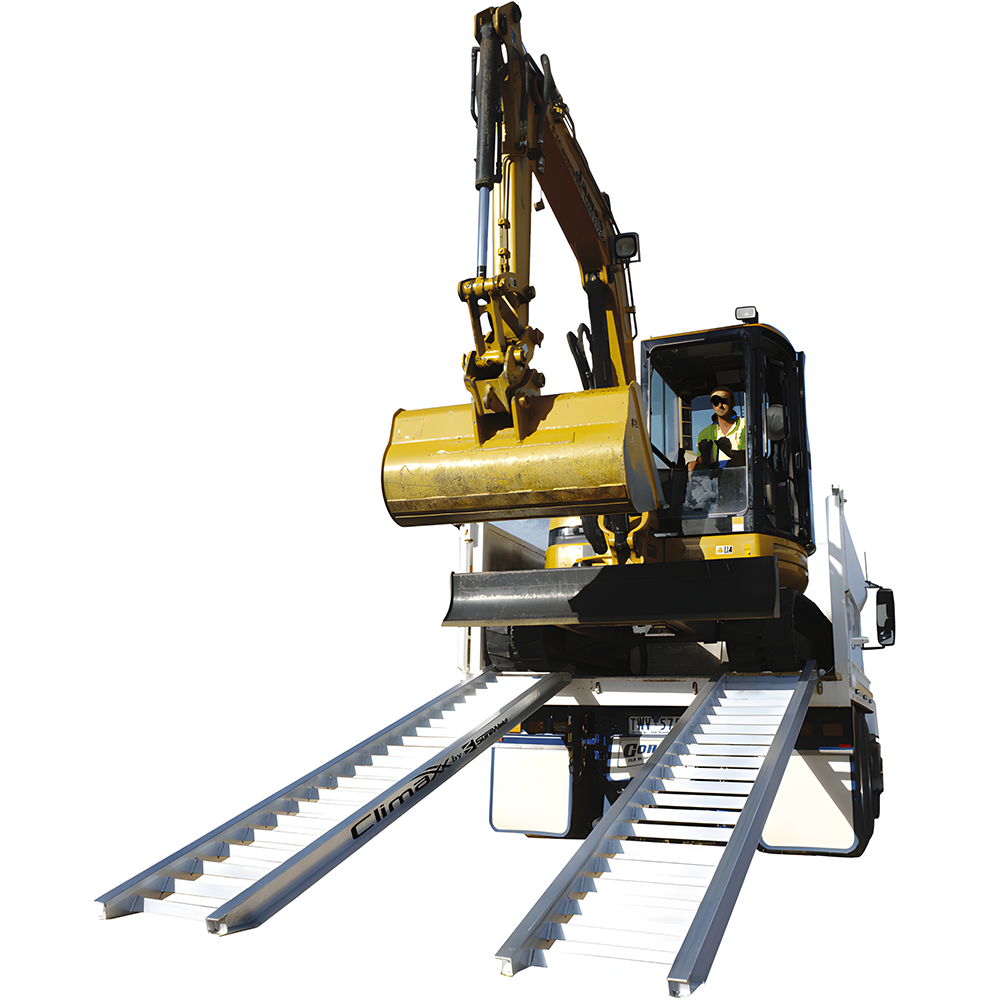

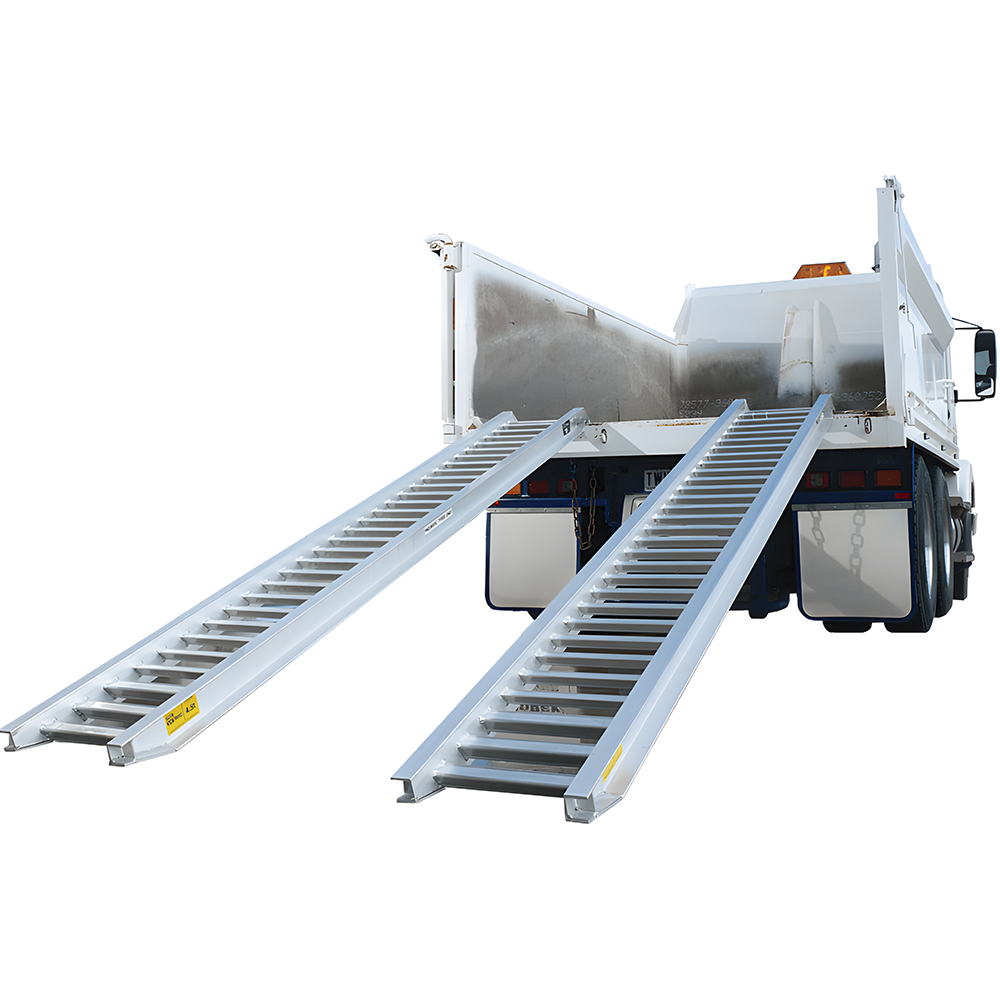

Complete with connection plate and zinc coated, steel pins these aluminium loading ramps are perfect for loading onto tipper body trucks, flatbed trucks or trailers.

Features and Benefits

  • Ideal for machinery with tracks and rubber tyres
  • Australian designed and manufactured
  • Manufactured from structural-grade alloys to ensure the maximum strength available

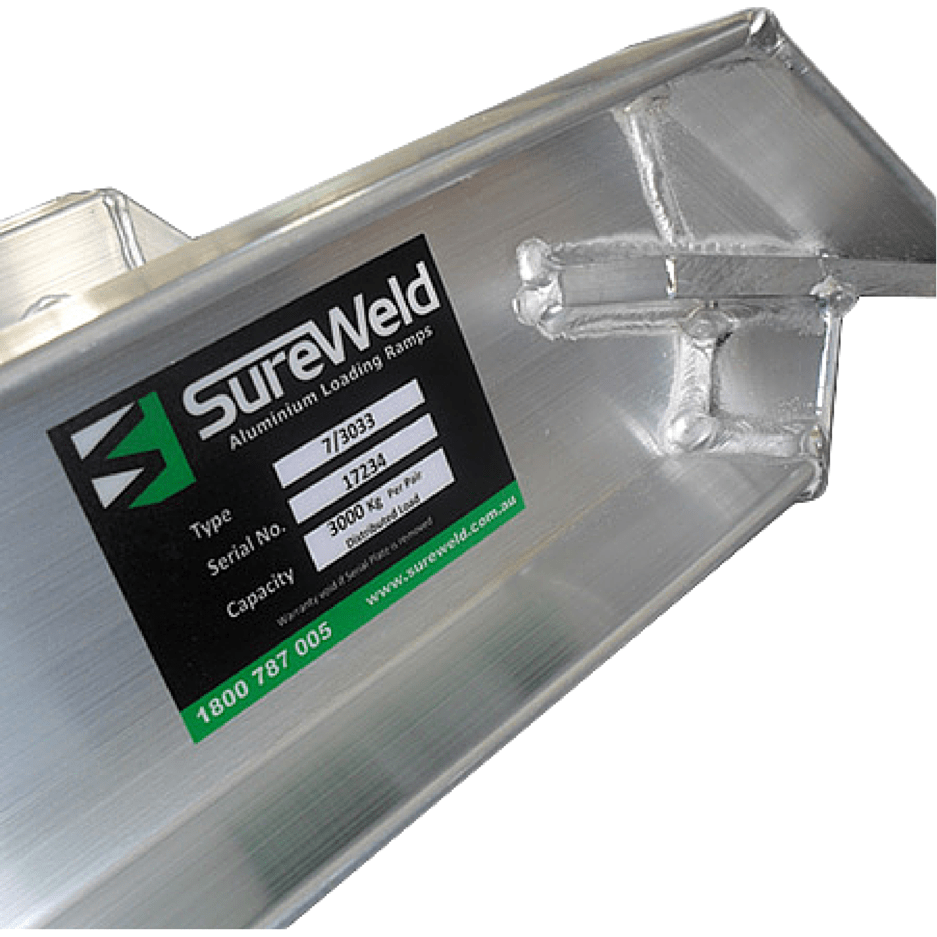

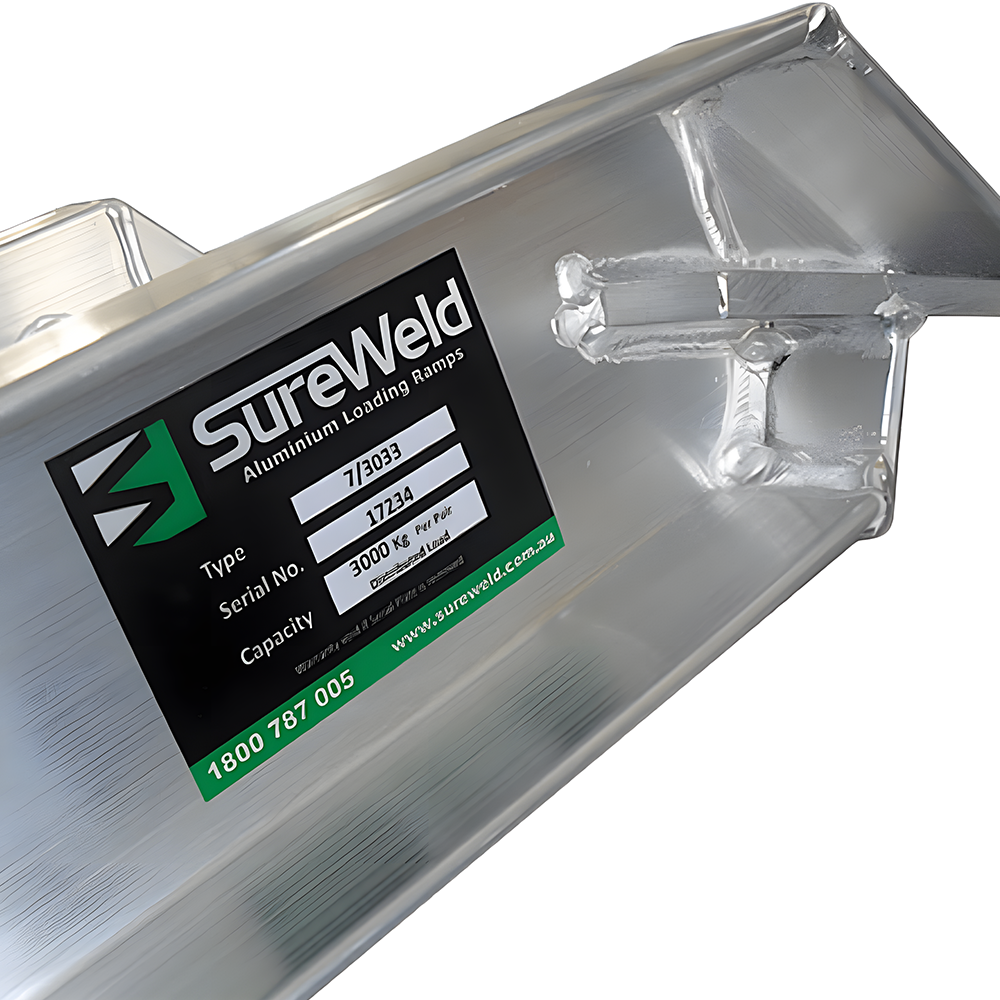

  • Compliance Plates recording the model number, load capacity and serial number ensure traceability and safe work practice
  • Connecting plate and pin ensures maximum stability and safety
  • All ramps are built to take a reasonable variation around typical truck body heights
  • 12-month warranty
  • Made from high-grade structural alloy
  • NATA certified and tested
  • Ramps sold in pairs

    For loading machinery where tracks are not used on ramps, the Sureweld Rubber Series Ramps provide a more lightweight and economical option over these Track Series Ramp.

    Track Series Ramp Specifications

    Product

    Code

    Rated

    Capacity

    Ramp

    Mass

    Ramp

    Length

    Track

    Width

    (internal)

    Ramp

    Width

    Ramp

    Depth

    Rung

    Recess

    7/3033T 3000kg 32kg 3.3m 350mm 450mm 110mm 40mm
    7/3635T 3600kg 39kg 3.5m 400mm 500mm 120mm 40mm
    7/4040T  4000kg 47kg 4.0m 400mm 510mm 125mm 45mm
    7/4536T  4500kg 41kg 3.6m 400mm 510mm 125mm 45mm
    7/4536TW 4500kg 43kg 3.6m 450mm 560mm 125mm 45mm
    7/4833T  4800kg 37kg 3.3m 400mm 510mm 125mm 45mm
    7/4833TW 4800kg 39kg 3.3m 450mm 560mm 125mm 45mm
    7/6036T 6000kg 53kg 3.6m 500mm 600mm 160mm 52mm
    7/7536T 7500kg 58kg 3.6m 500mm 600mm 184mm 60mm
    7/9037(T) 9000kg 71kg 3.7m 500mm 640mm 200mm 60mm
    7/11537(T) 11500kg 85kg 3.7m 500mm 660mm 180mm 55mm



    Can't find the ramp you're looking for? Use the chat function in the corner of the window or Contact us for advice if you're unsure what ramps are suitable for you.


      Sureweld Authorised Dealer

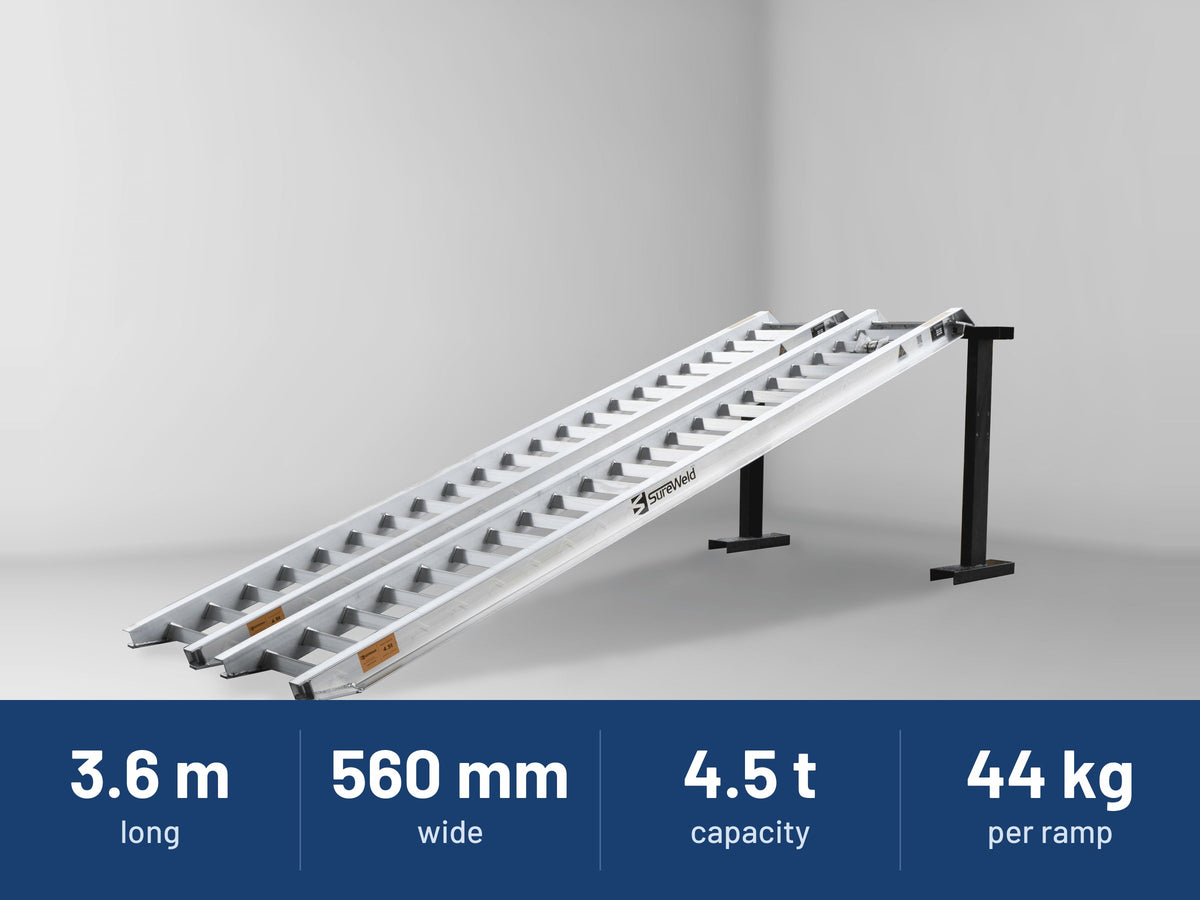

      Specifications

      • Capacity
        4500kg (pair)
      • Weight
        43kg (per pair)
      • Length
        3600mmm
      • Width
        560mm
      • Internal Width
        450mm
      • Depth
        125mm
      • Rung
        Rung Recess: 45mm
