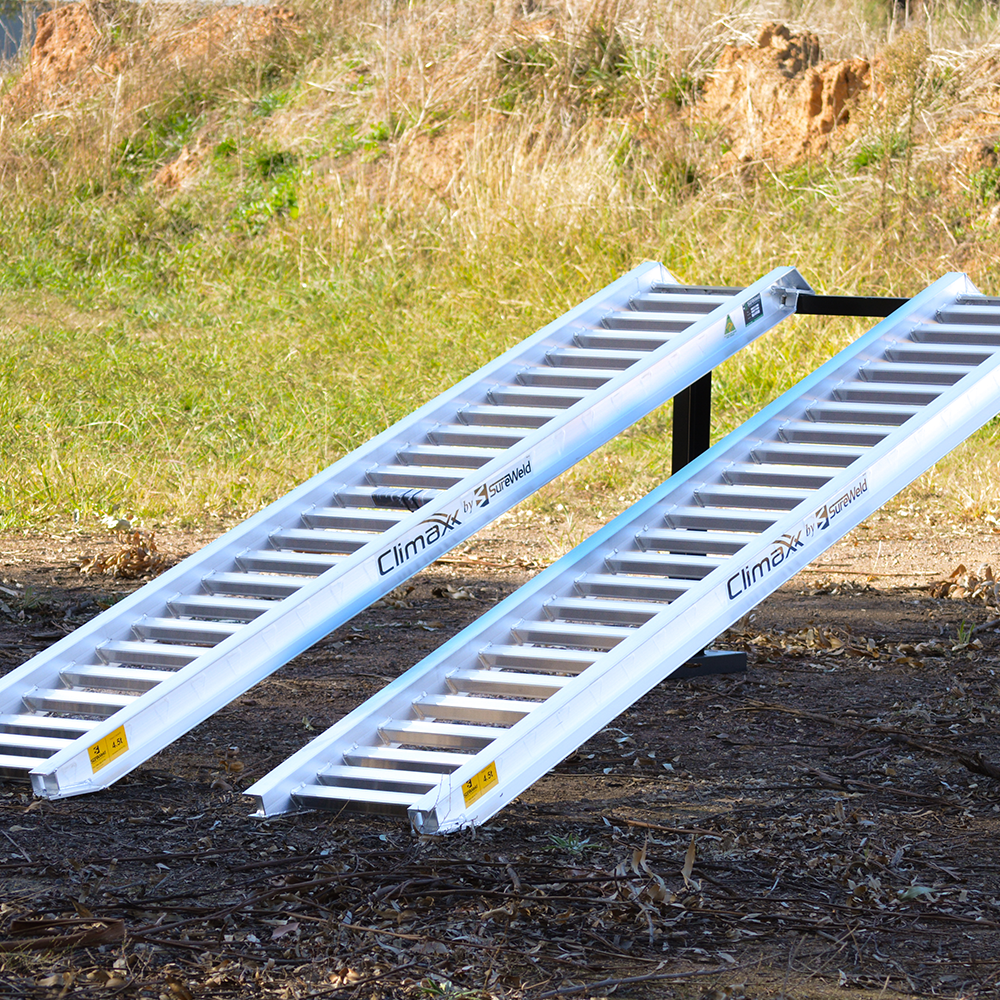

Sureweld 4-Tonne 4m x 510mm Rubber Series Aluminium Loading Ramps

$2,73900 $3,00700
Sureweld  |  SKU: 7/4040R

“delivery Pickup available. Select at checkout.

“fast Orders processed and shipped out in 2-4 business days.

“delivery Delivered via courier: VIC, ACT & NSW 2-4 days, QLD & SA, 3-5 days, WA & NT 6-8 days

“warranty Covered by the full 12-month Sureweld Warranty

Description

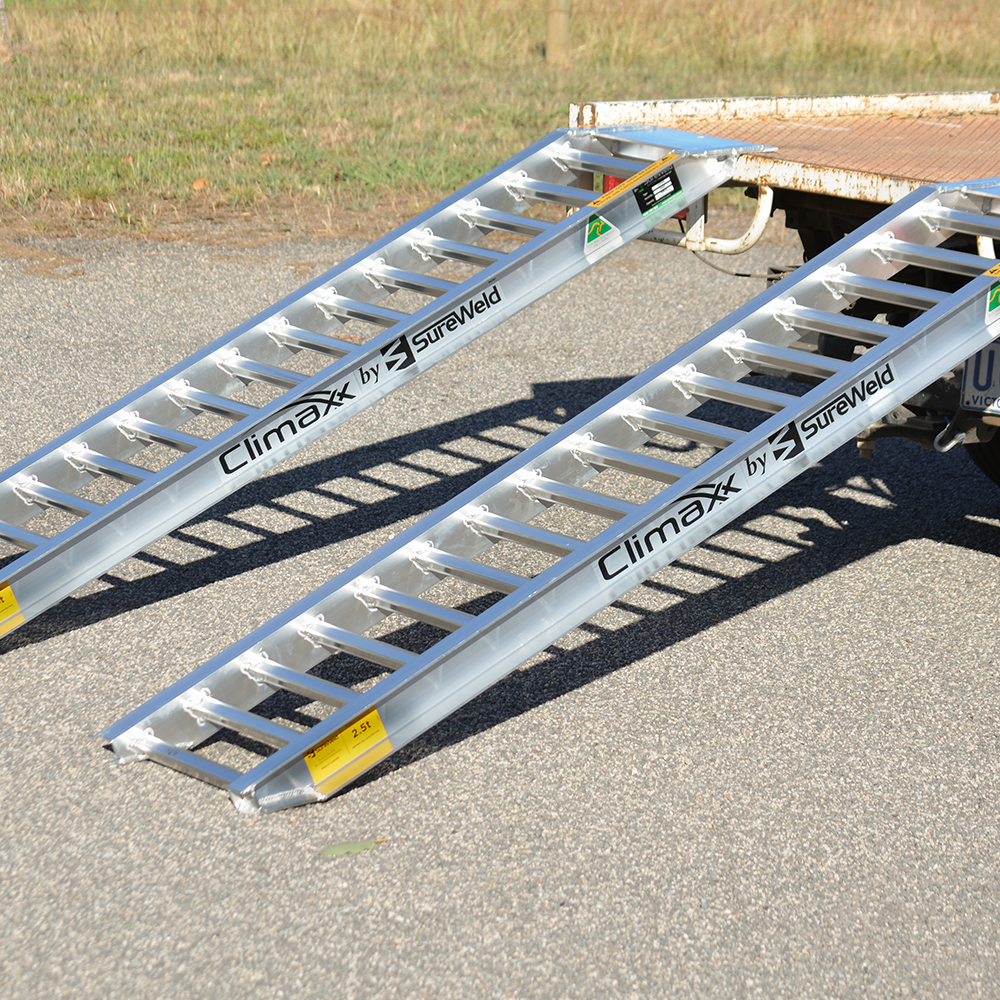

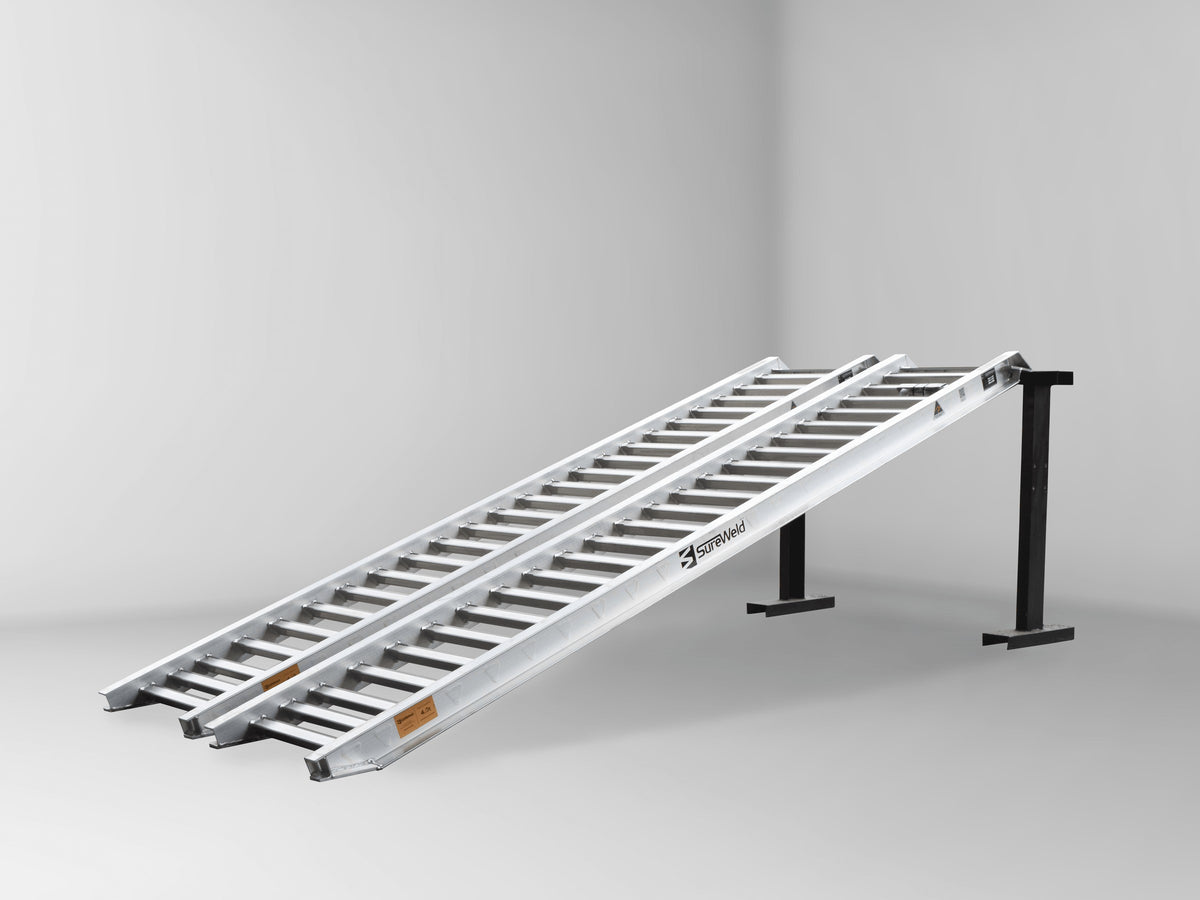

Australian-Made 4 Tonne Capacity 4m Long x 510mm Wide Rubber Series Aluminium Machinery Loading Ramps from Sureweld

The Sureweld 4-Tonne Rubber Series Aluminium Loading Ramps, measuring 4 meters by 510 millimeters, are specifically engineered for machinery with pneumatic (air) tyres and rubber tracks.

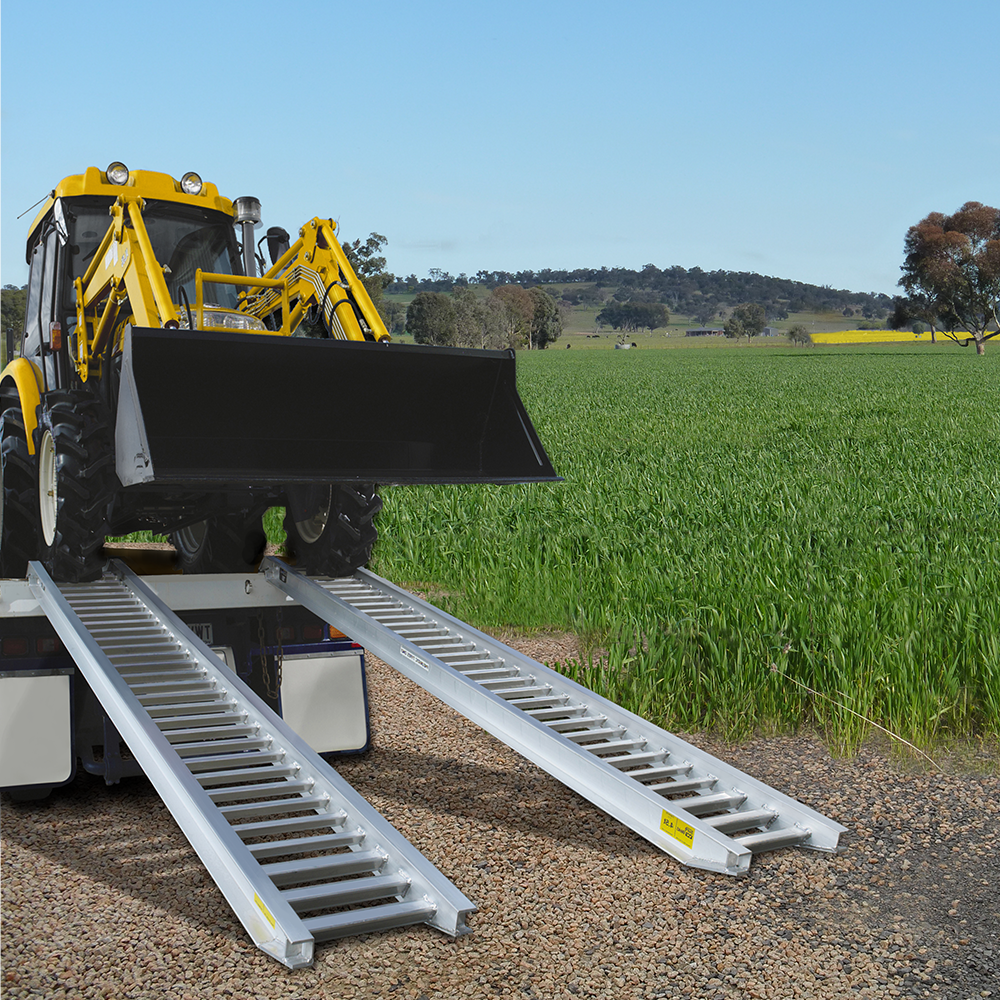

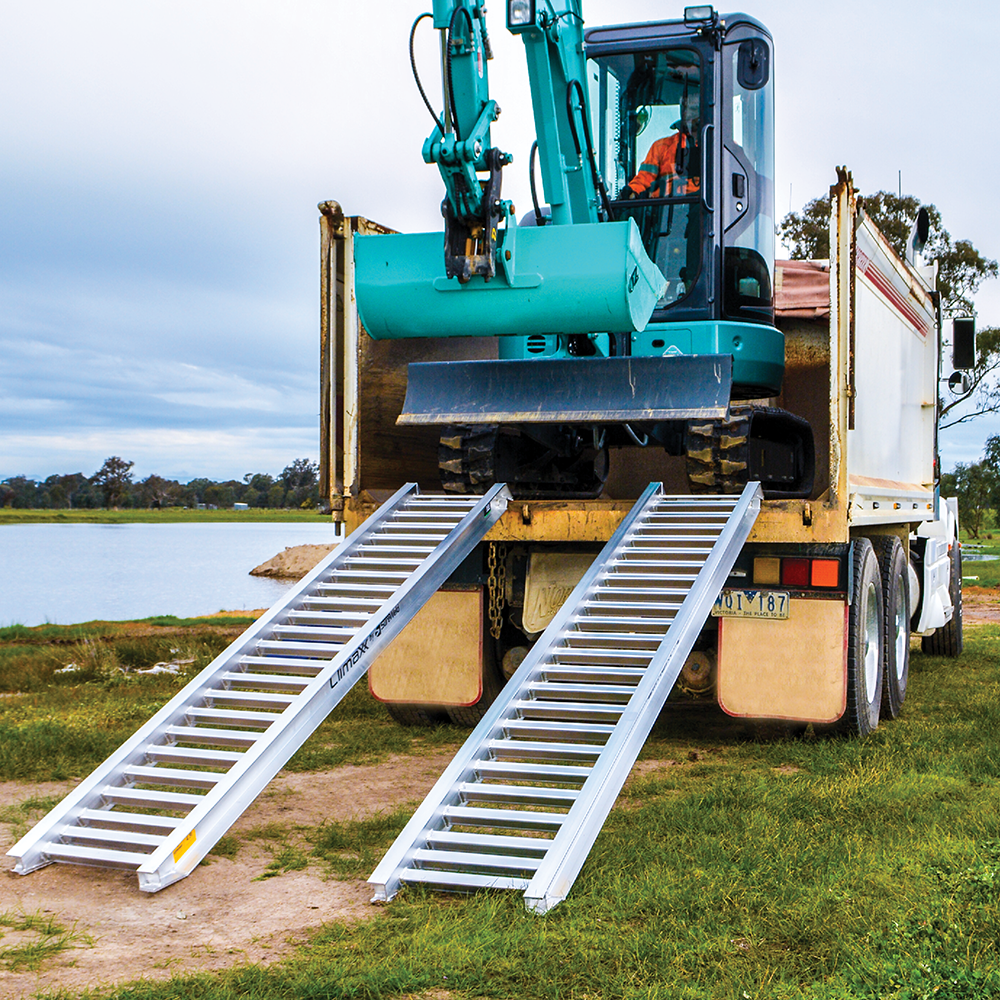

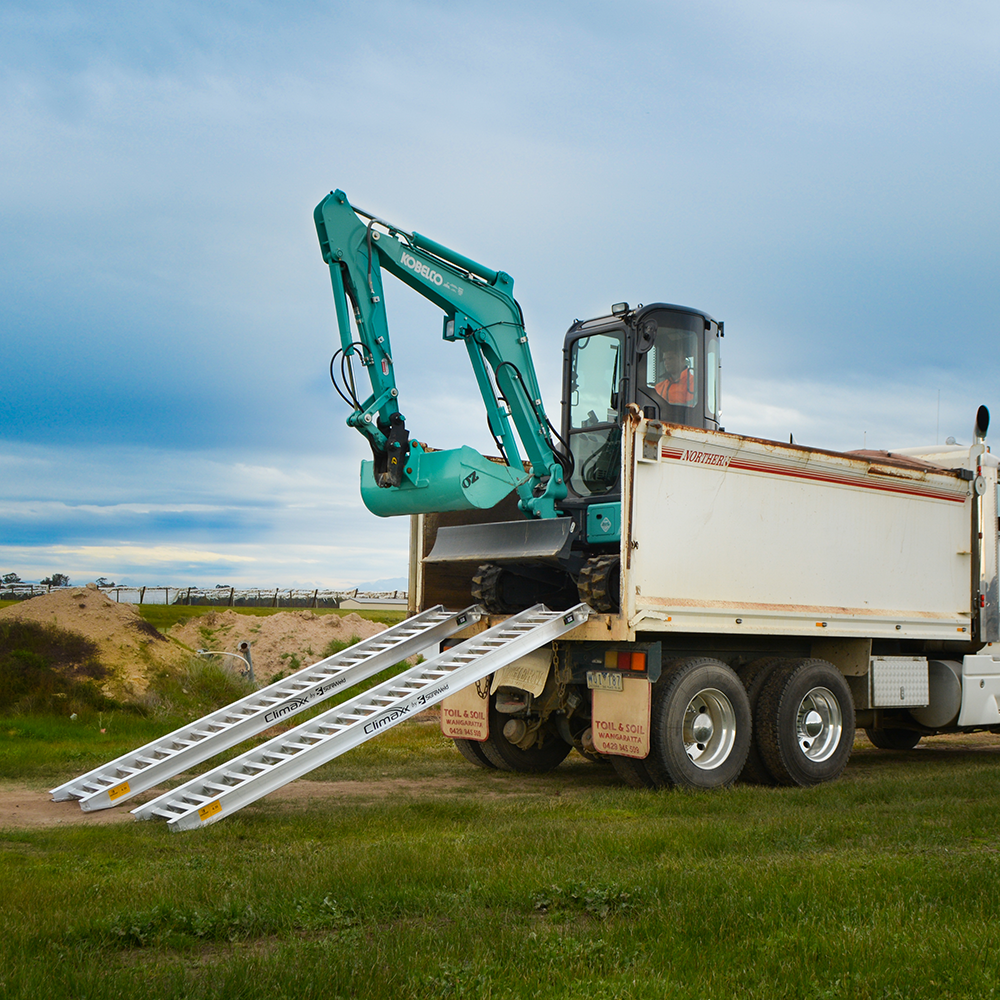

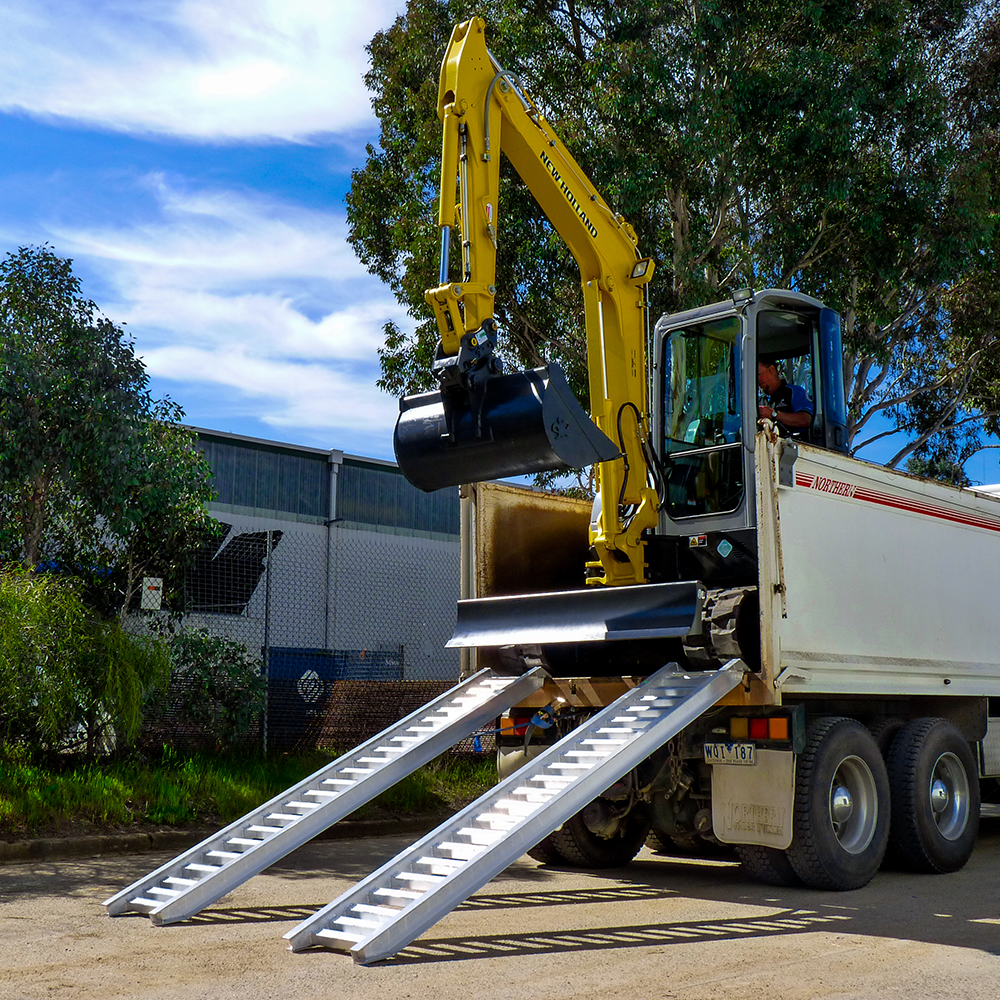

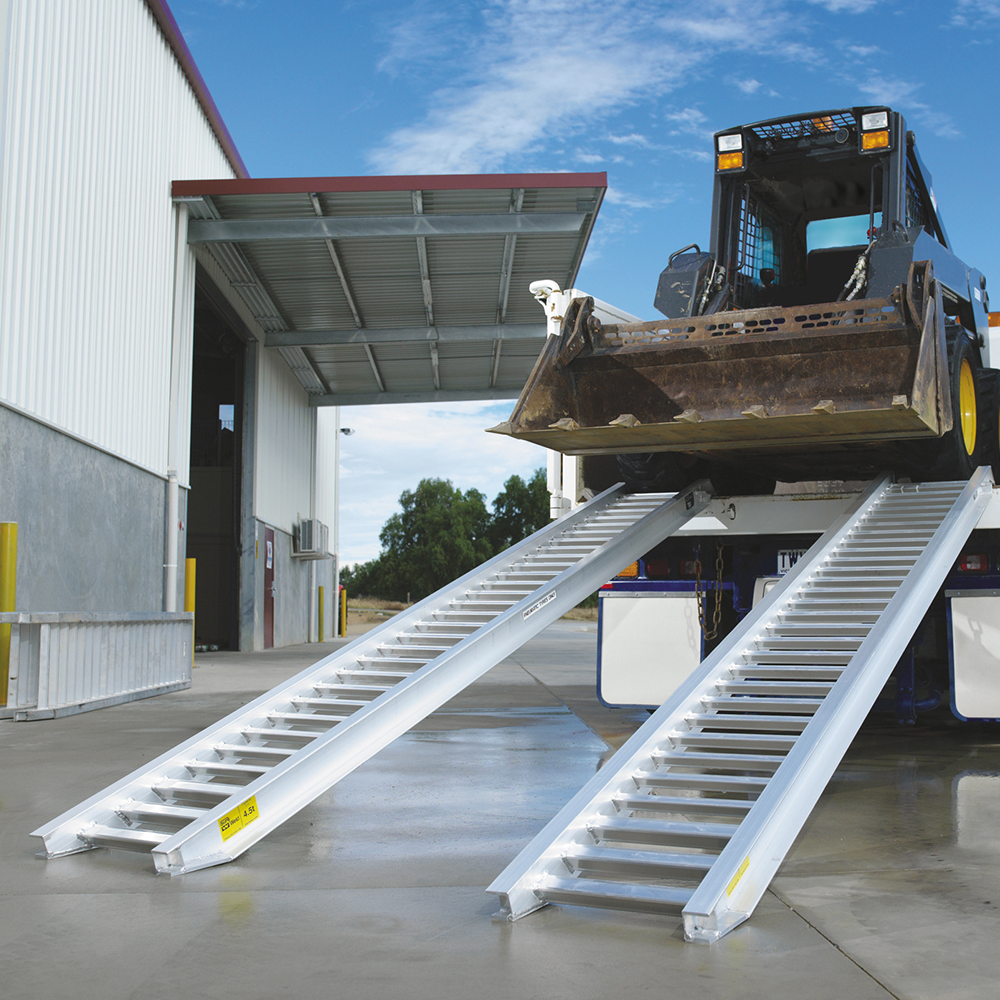

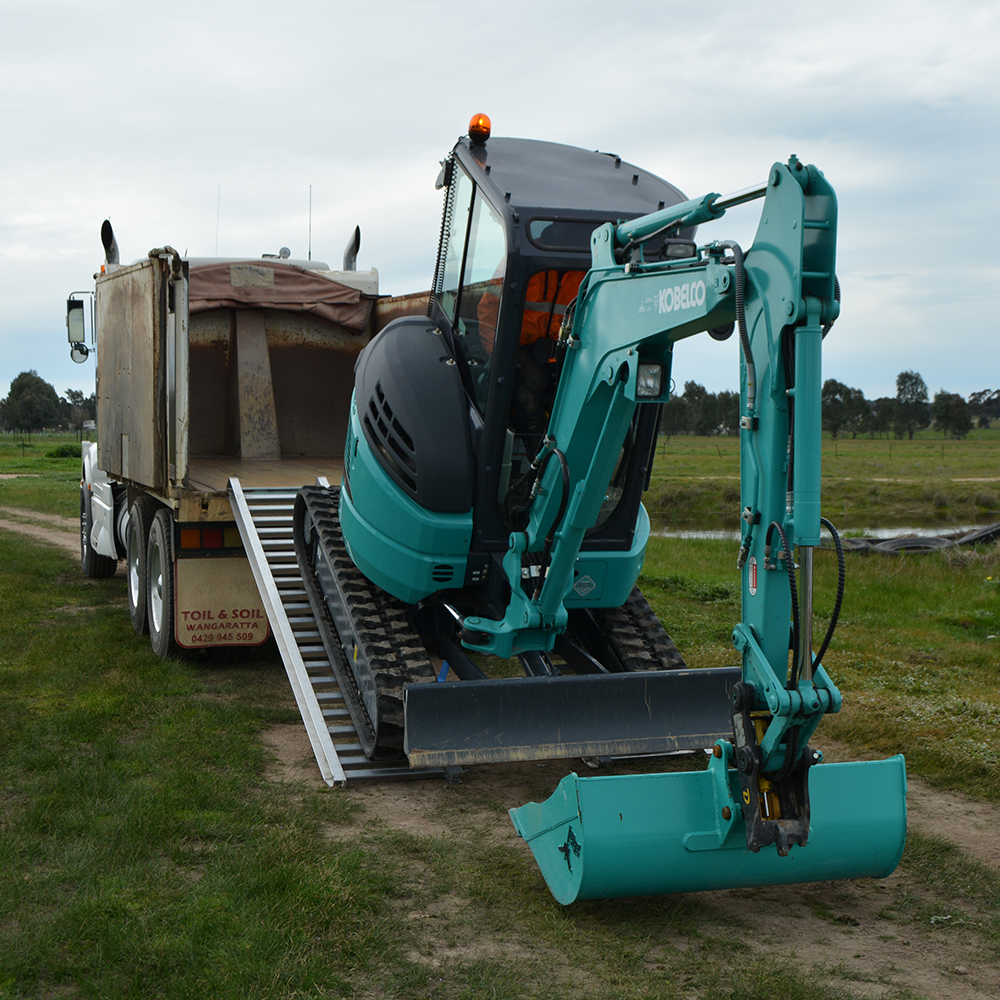

With a capacity of 4 tonnes per pair, these lightweight aluminium ramps are perfect for loading skid steers, ditch witches, loaders, and excavators.

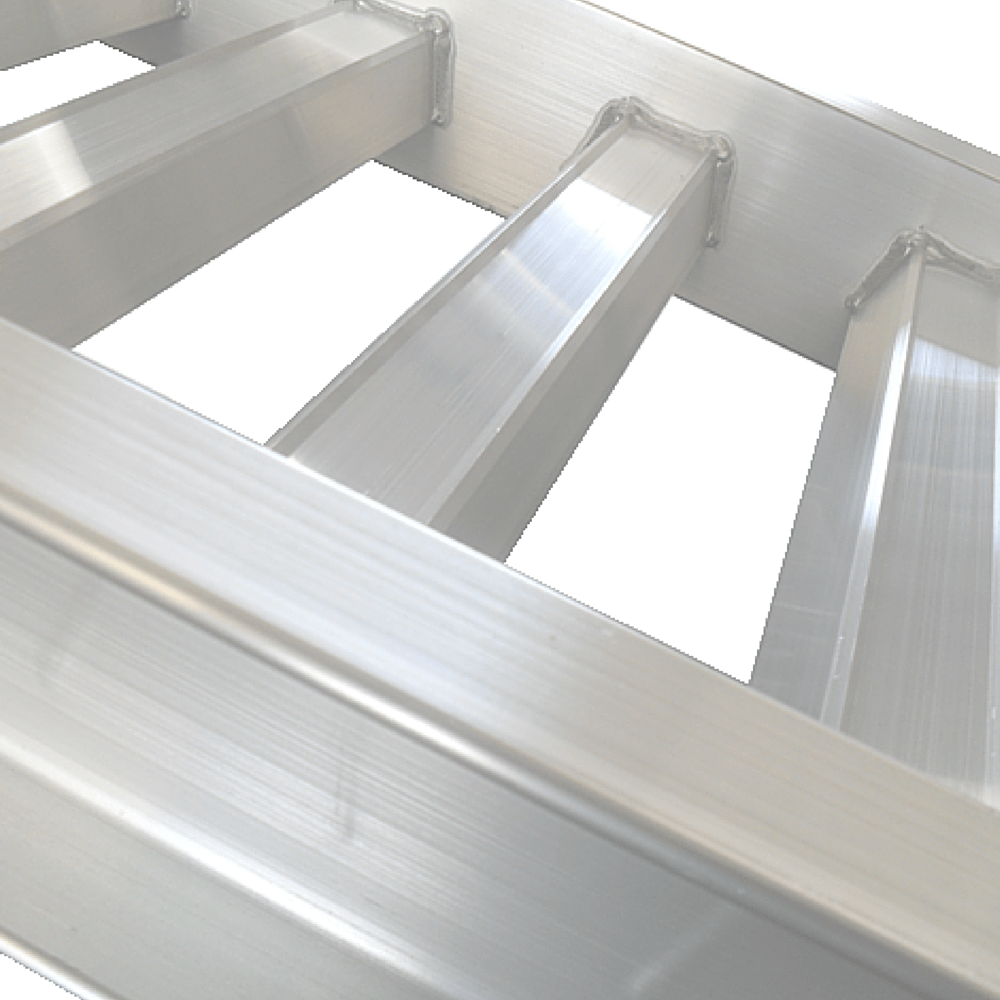

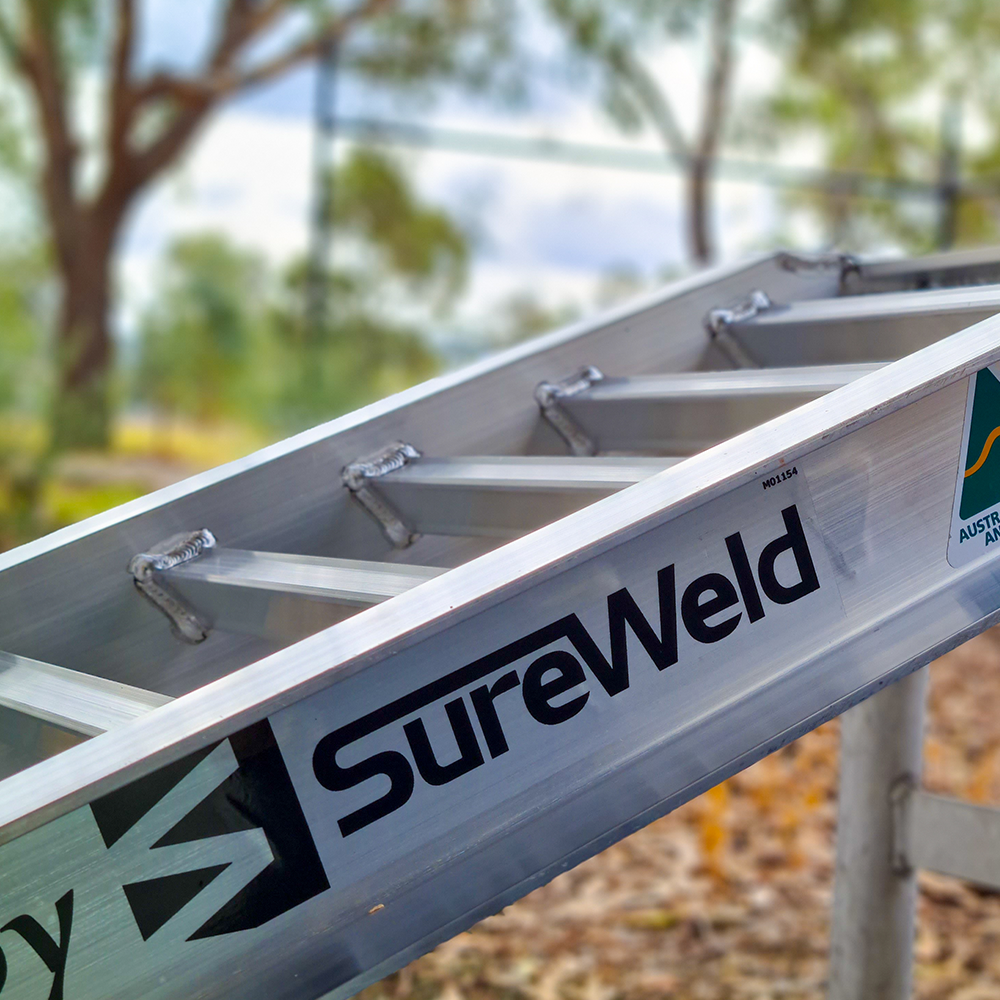

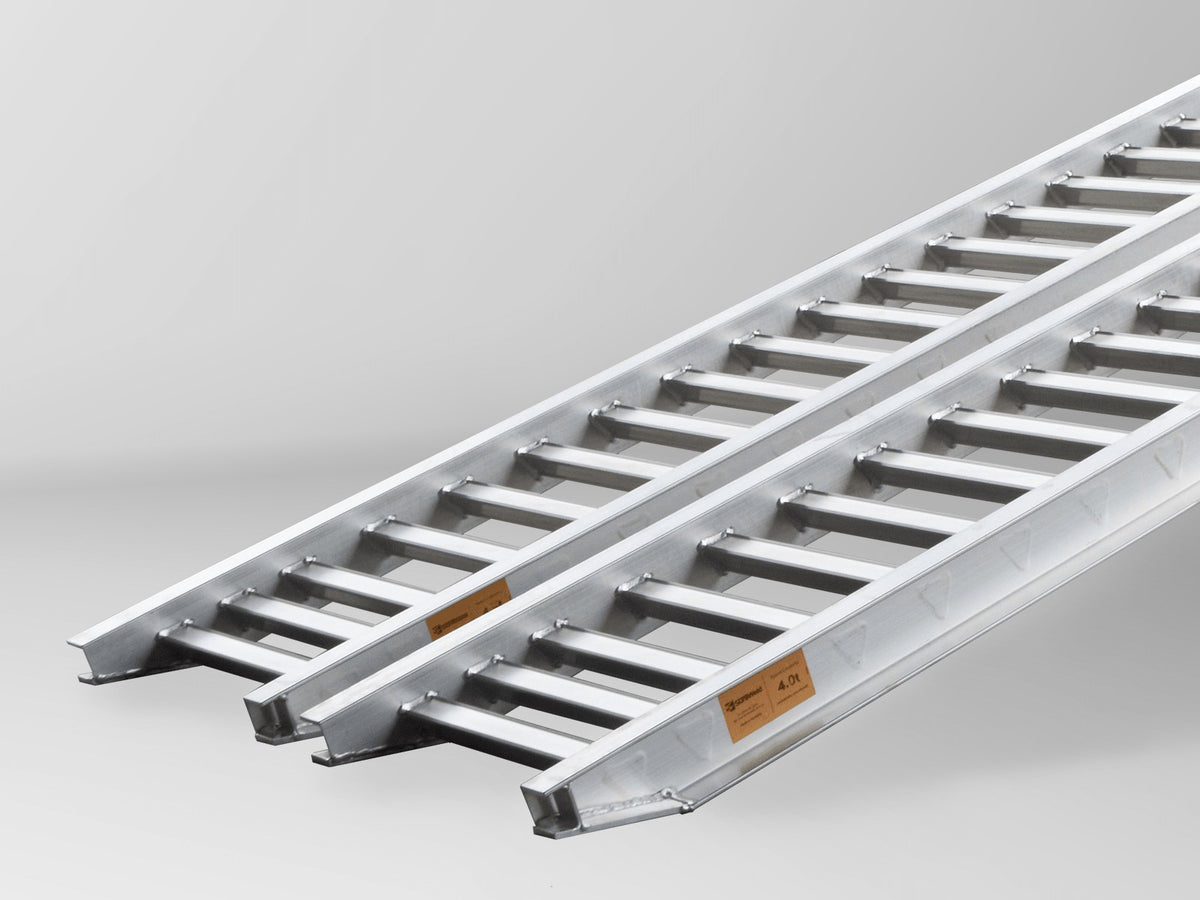

The Rubber Series ramps feature a unique tread surface designed to maximize strength while minimizing weight, ensuring a smooth and safe loading experience.

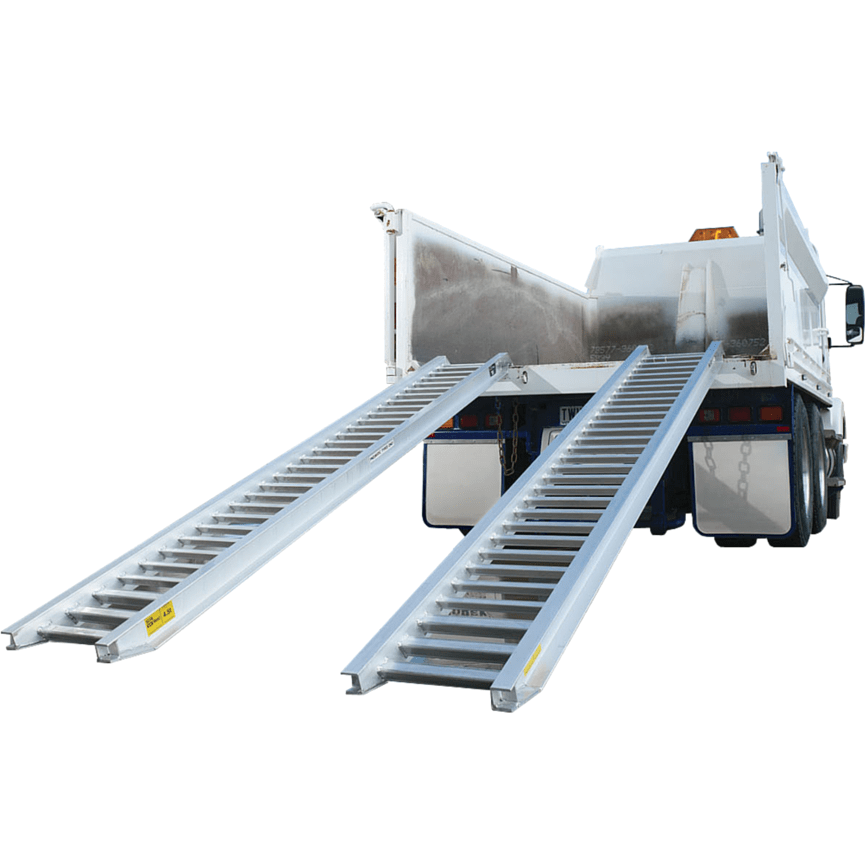

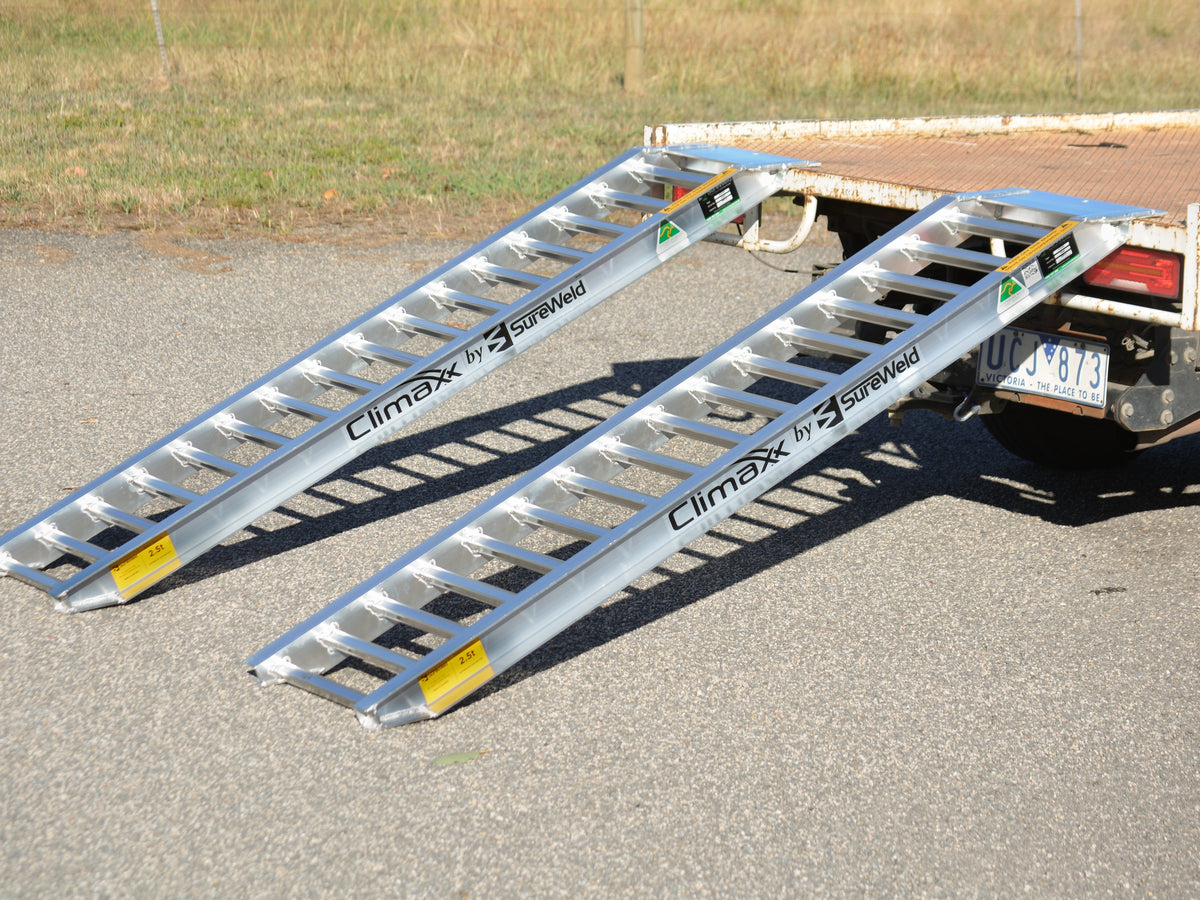

Equipped with connection plates and zinc-coated steel pins, these ramps are ideal for loading onto tipper body trucks, flatbed trucks, or trailers.

Features and Benefits

  • Ideal for pneumatic (air) tyres
  • Australian designed and manufactured
  • Manufactured from structural-grade alloys to ensure the maximum strength available

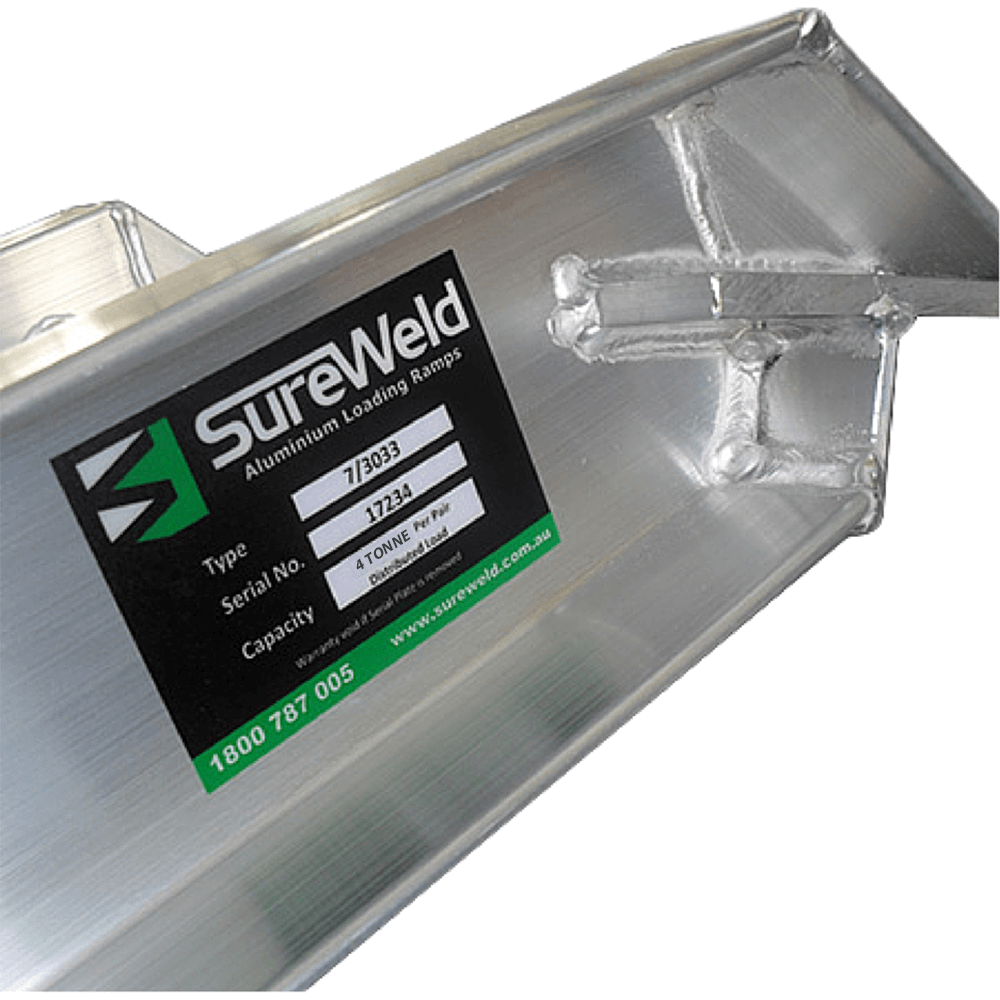

  • Compliance Plates recording the model number, load capacity and serial number ensure traceability and safe work practice
  • Connecting plate and pin ensures maximum stability and safety
  • All ramps are built to take a reasonable variation around typical truck body heights
  • 12-month warranty
  • Made from high-grade structural alloy
  • NATA-certified and tested
  • Sold in pairs

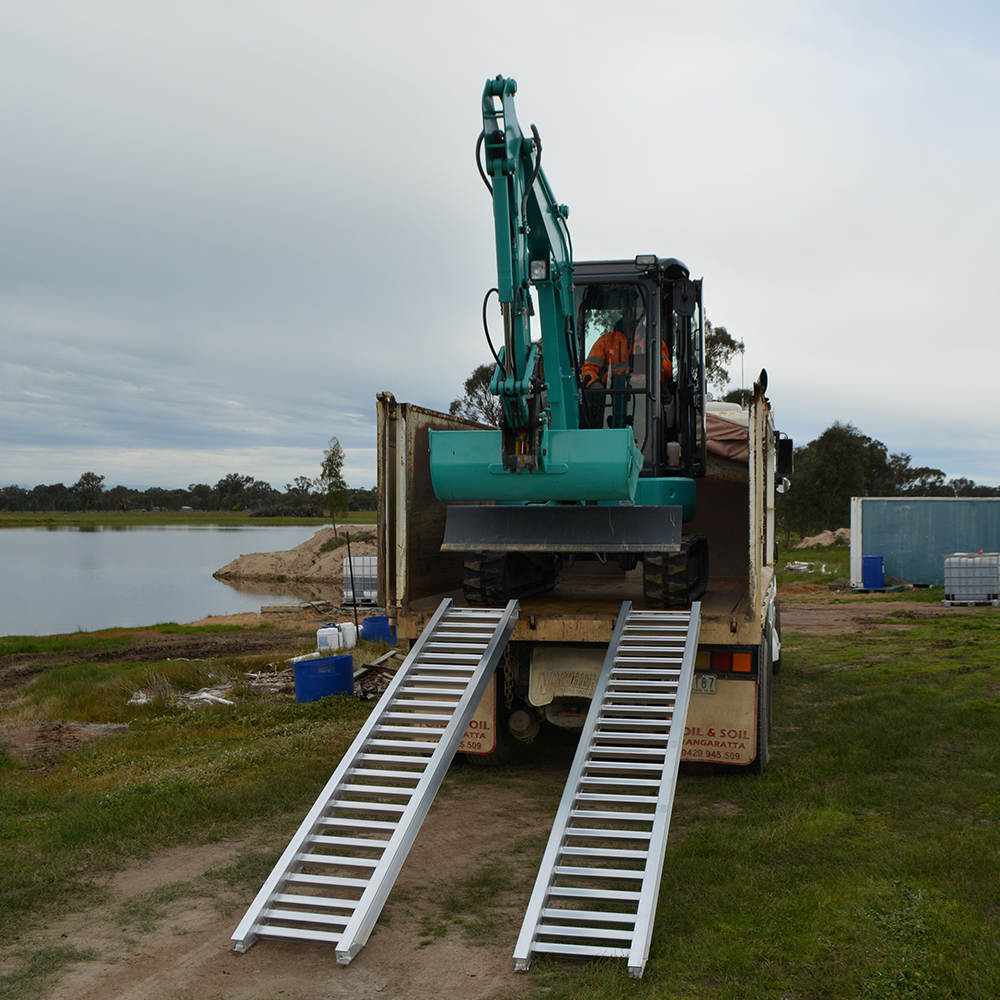

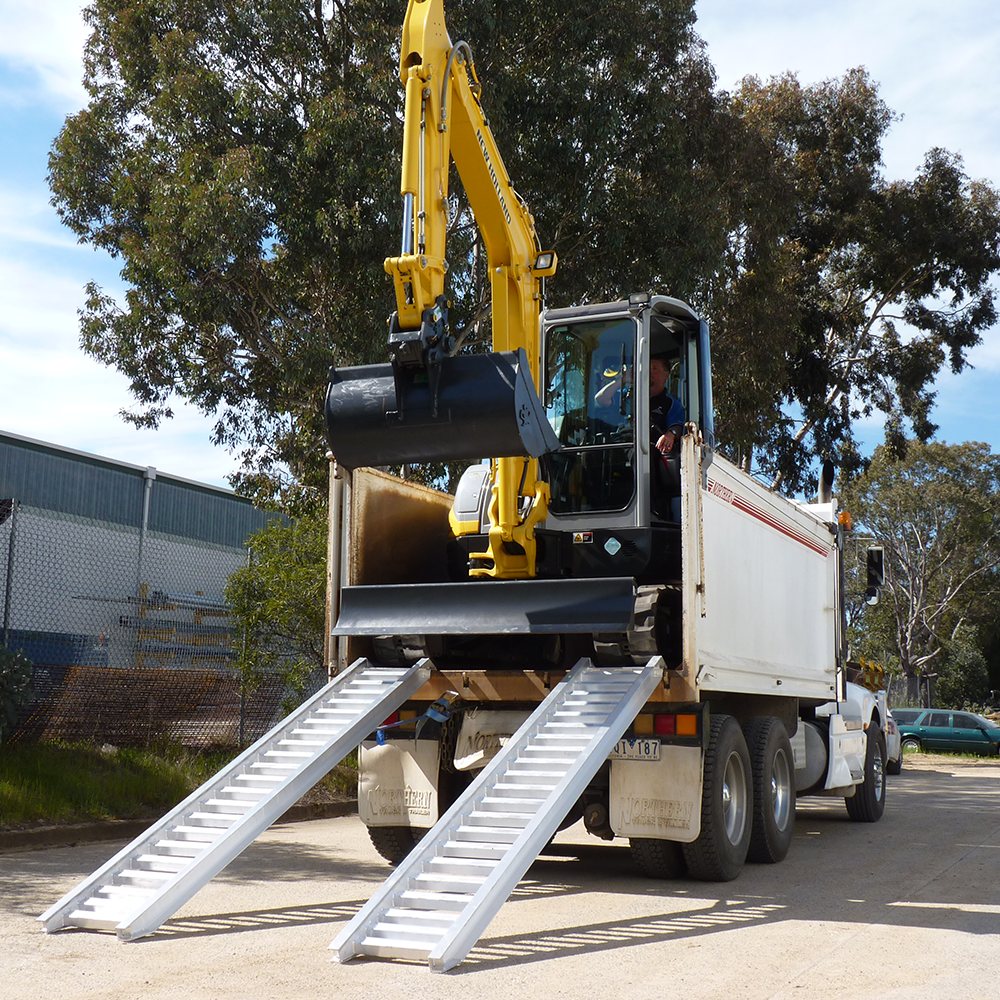

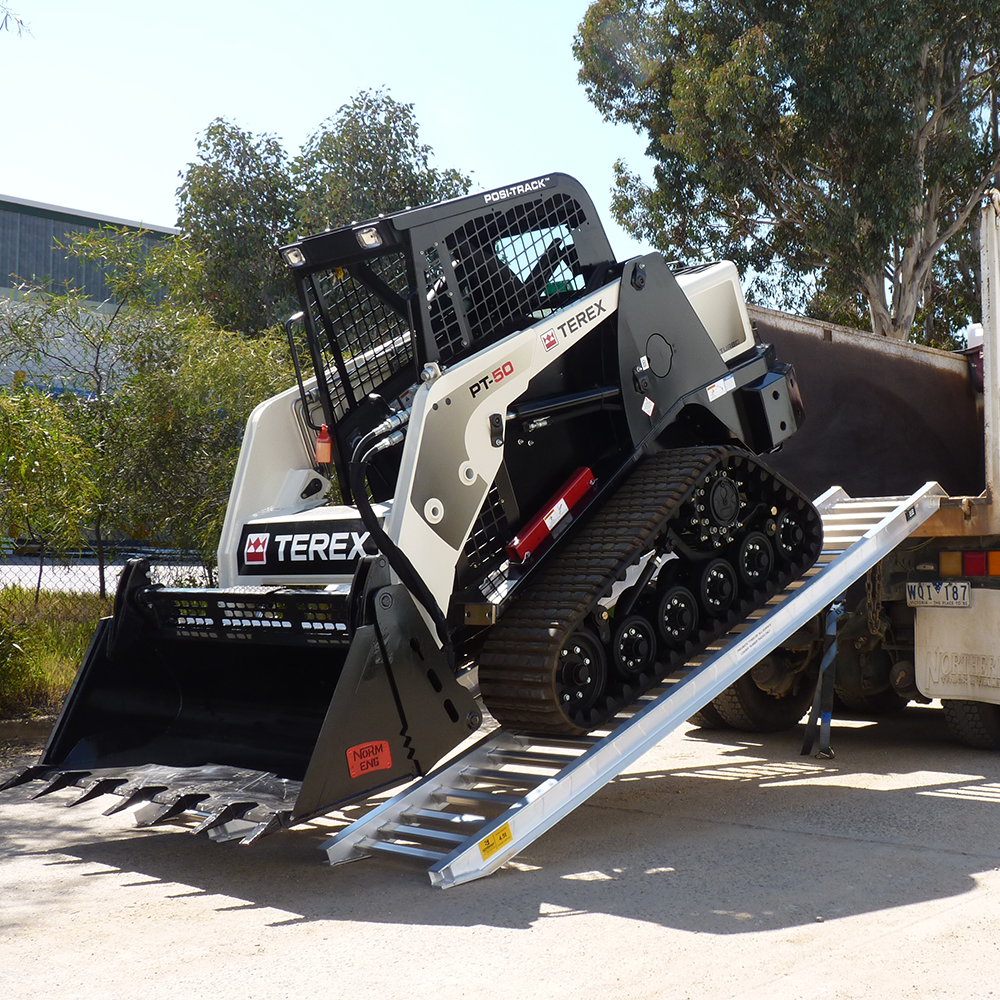

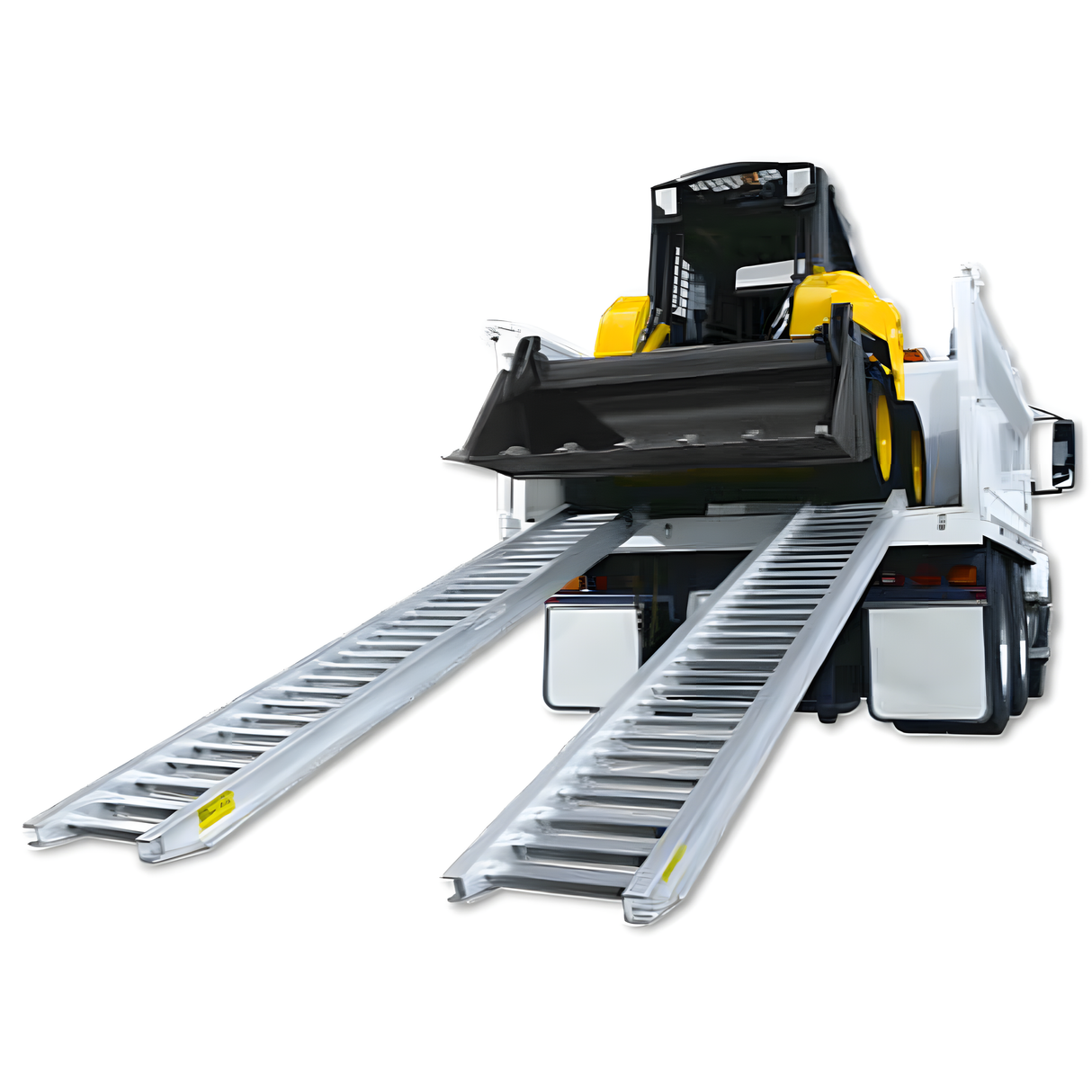

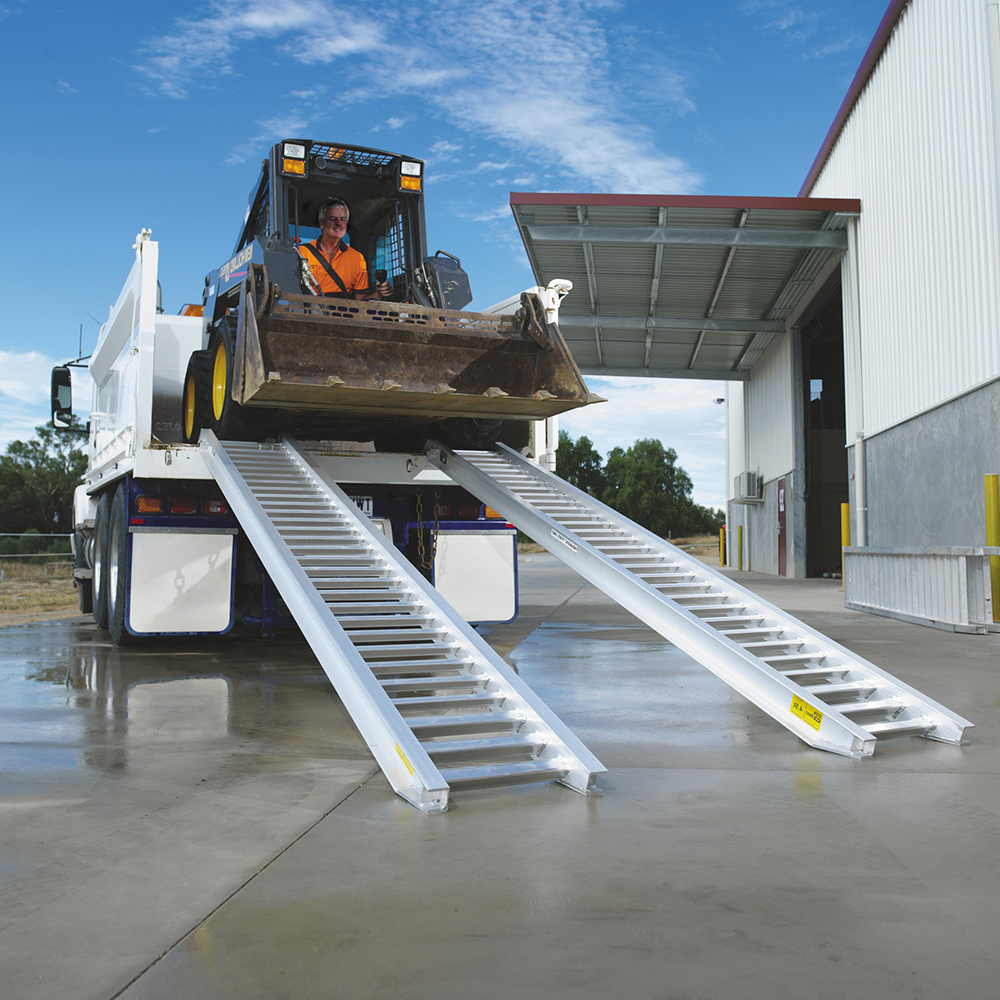

Skid steers, excavators, Ditch Witches, and other machinery with 4-tonne ratings can now be loaded onto trailers and truck beds on these aluminium machinery loading ramps. The ramps have raised sides to allow safe, worry-free loading.

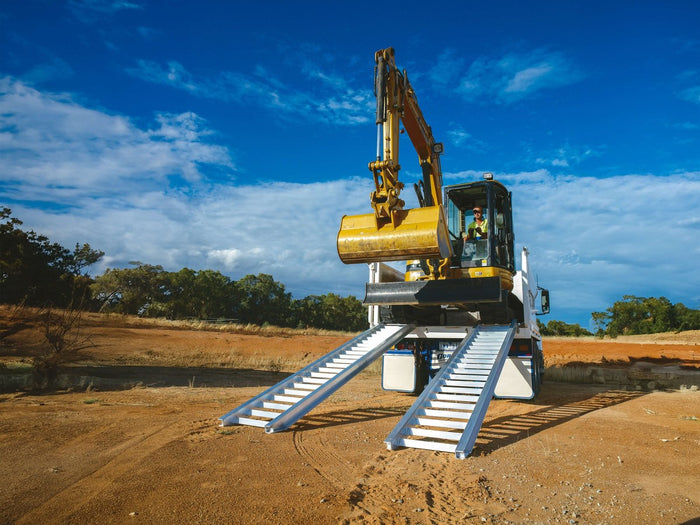

Where steel tracks are to be used on ramps, please refer to the 'Track Series' which has a different tread surface to the Rubber Series.

Please see the table below, for Sureweld’s full range of Rubber Series Ramps.

Rubber Series Ramp Specifications

Product

Code

Rated

Capacity

Ramp

Mass

Ramp

Length

Track

Width

(internal)

Ramp

Width

Ramp

Depth

Rung

Recess

6/1524R 1500kg 16kg 2.4m 300mm 390mm 90mm 25mm
6/1533R 1500kg 22kg 3.3m 350mm 440mm 90mm 25mm
7/1929R 1900kg 18kg 2.9m 300mm 390mm 90mm 25mm
7/3029R 3000kg 24kg 2.9m 300mm 400mm 110mm 40mm
7/3033R 3000kg 27kg 3.3m 300mm 400mm 110mm 40mm
7/3635R 3600kg 33kg 3.5m 350mm 450mm 120mm 40mm
7/4040R 4000kg 35kg 4.0m 400mm 510mm 125mm 45mm
7/4536R 4500kg 36kg 3.6m 400mm 510mm 125mm 45mm
7/4833R 4800kg 33kg 3.3m 400mm 510mm 125mm 45mm
7/6036R 6000kg 49kg 3.6m 500mm 600mm 160mm 60mm



Can't find the ramp you're looking for? Use the chat function in the corner of the window or Contact us for advice if you're unsure what ramps are suitable for you.


    Sureweld Authorised Dealer

    Specifications

    • Capacity
      4000kg (pair)
    • Weight
      35kg (per ramp)
    • Length
      4000mm
    • Width
      510mm
    • Internal Width
      400mm
    • Depth
      125mm
    • Colour
      Silver
    • Rung
      Rung Recess: 45mm
