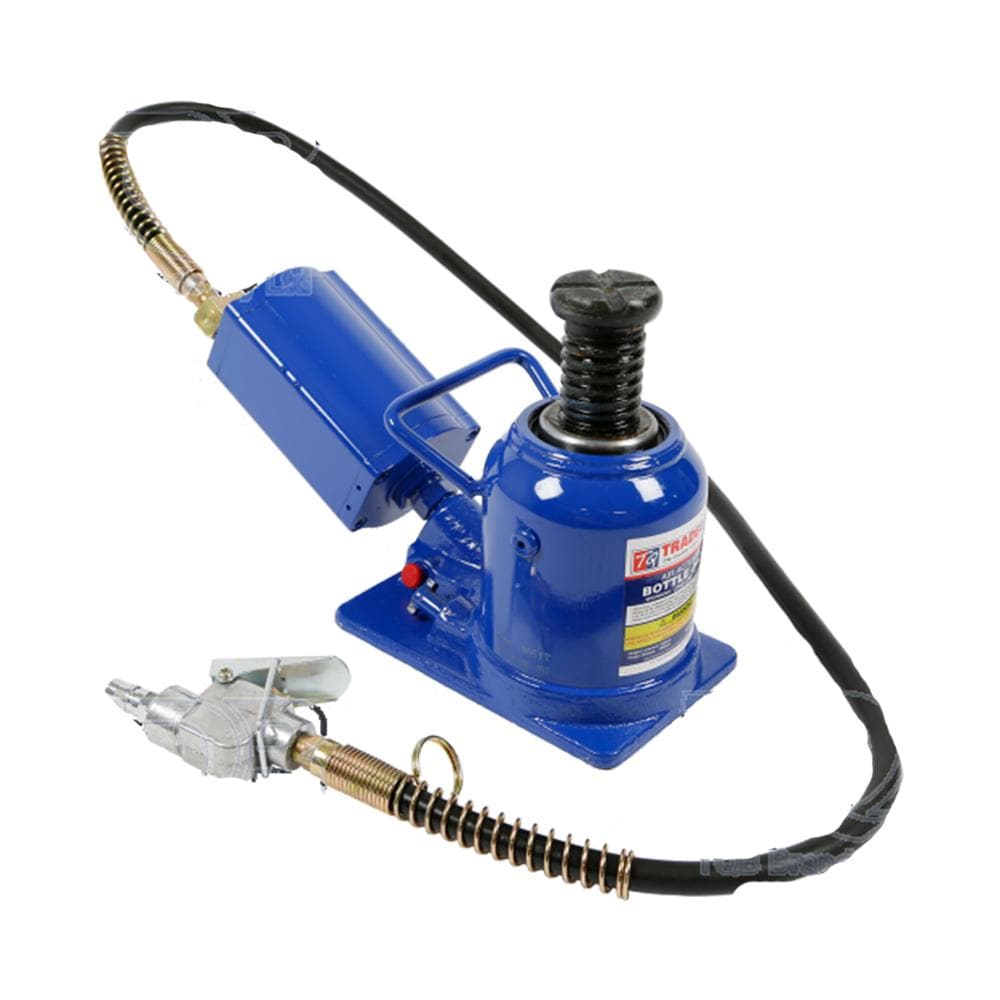

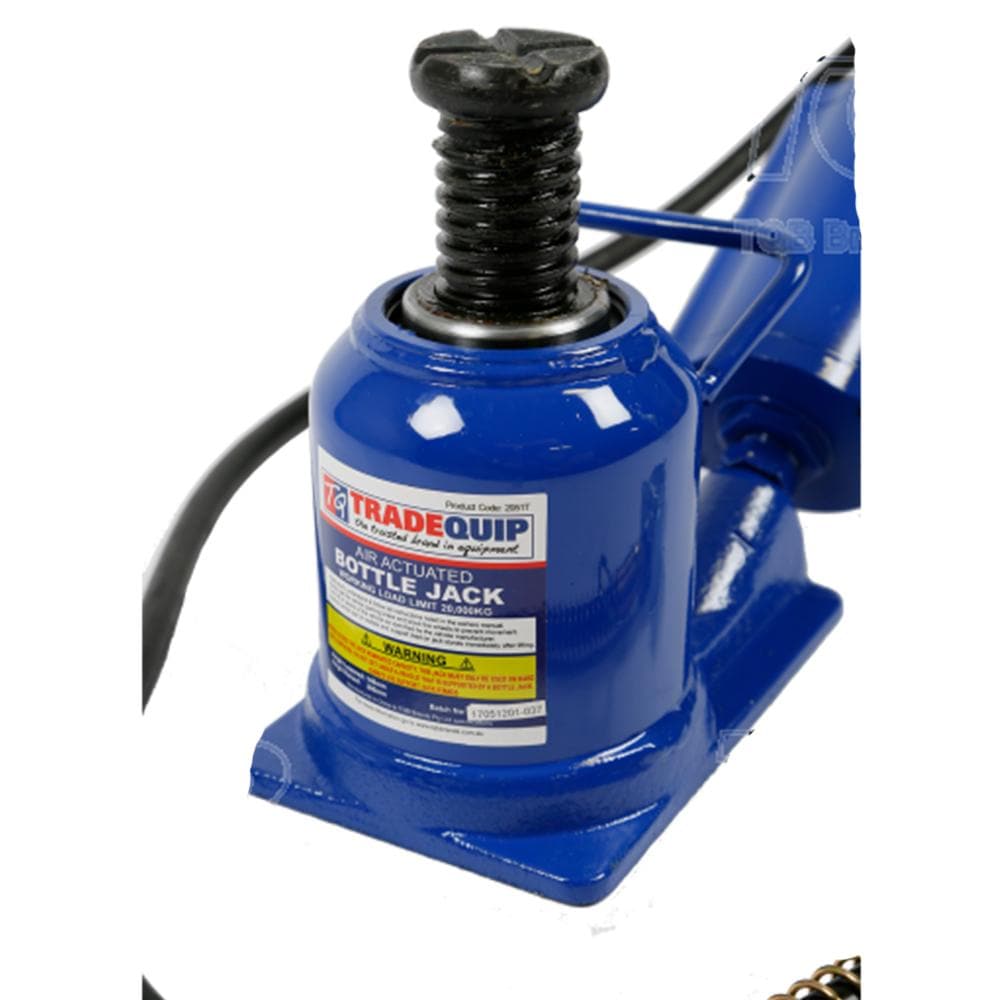

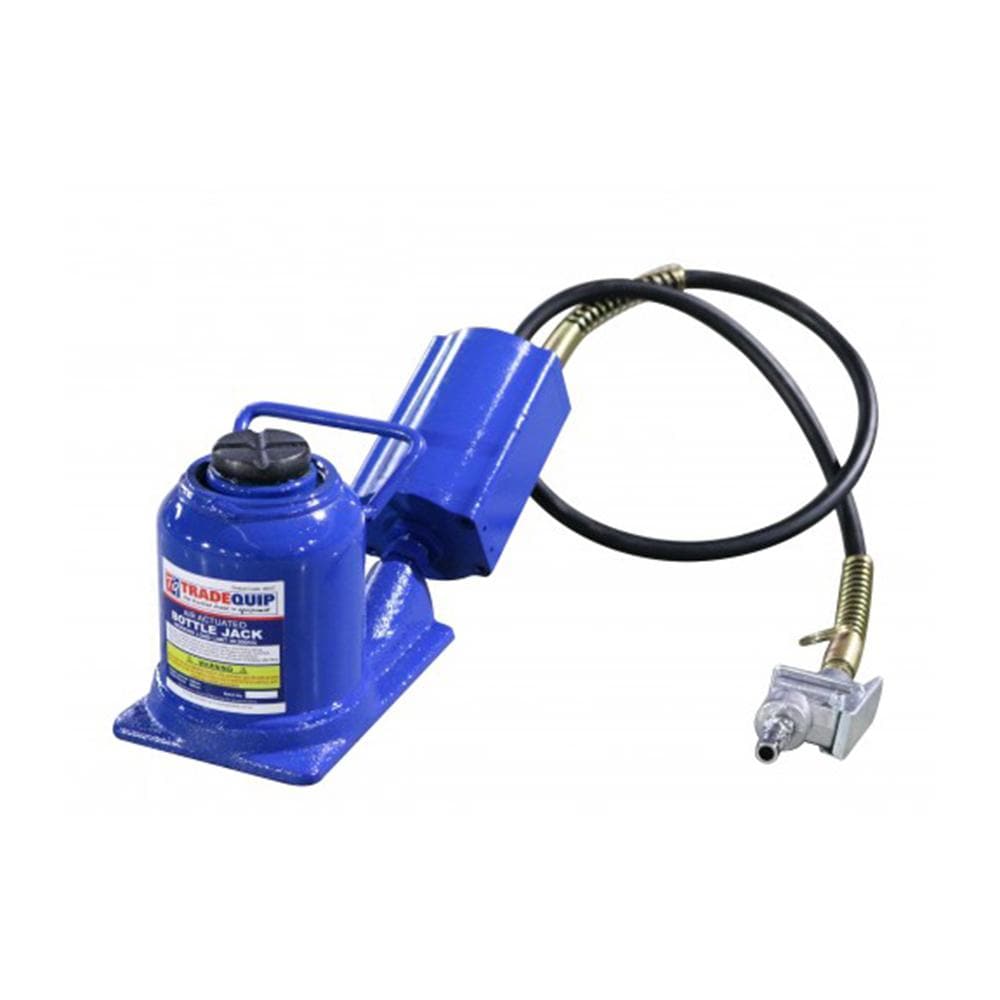

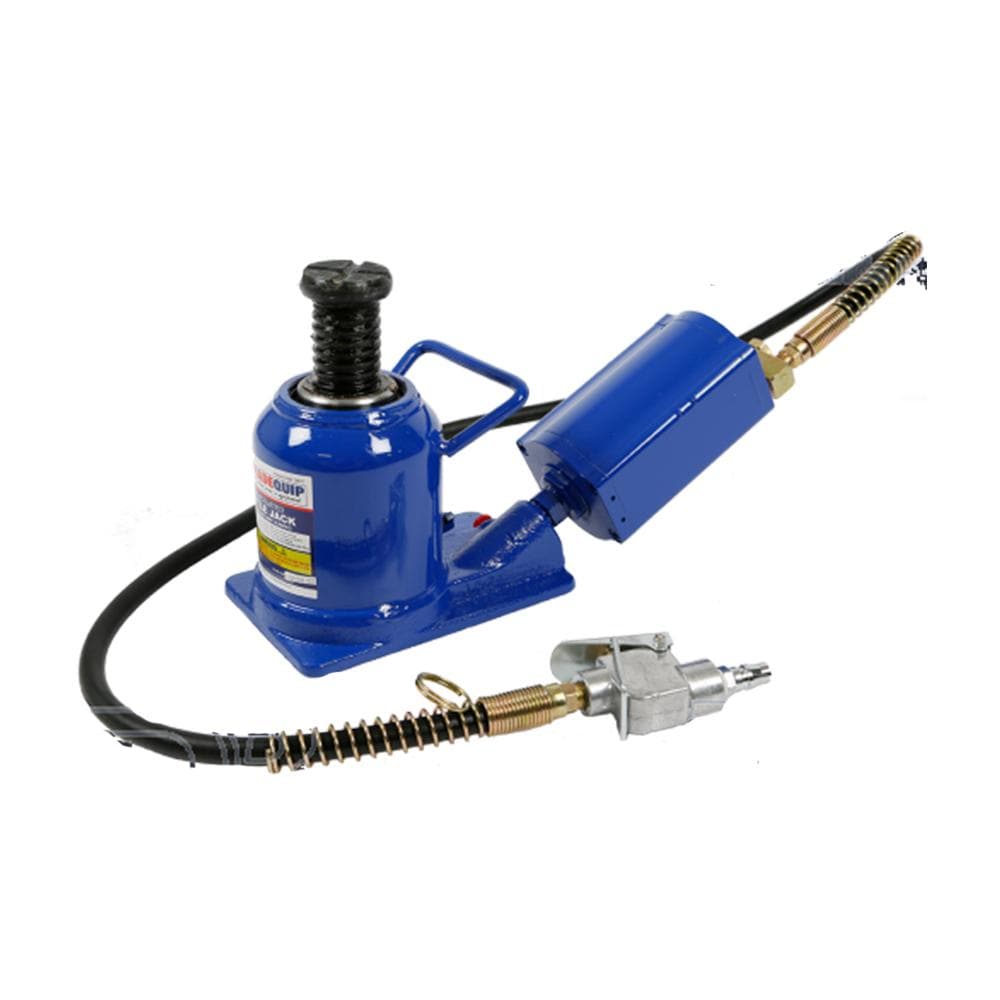

TradeQuip Bottle Jack Squat Air Hydraulic, 20 Tonne

$43600 $47900
TradeQuip  |  SKU: 2051T

Description

TradeQuip Bottle Jack Squat Air Hydraulic, 20 Tonne

    The Tradequip Air/Hydraulic Bottle Jack is designed to operate either manually or pneumatically. The manual function allows for normal operation anywhere, even without an air supply.

    Powerful, Heavy-Duty Operation

    This 20,000kg heavy-duty air/hydraulic bottle jack is the perfect choice for a wide variety of uses. The power of air makes it easy to lift farm vehicles, trucks, lawn mowers, heavy equipment and other large loads!

    Versatility To Get The Job Done

    Use this workhorse with a 90-120 PSI rated air pressure supply to lighten the load and provide the fast, strong lifting power you need, or operate it manually for normal operation just about anywhere. The 175‚Äď260mm lift range raises the load to the desired height and a knurled, heat-treated pad with 50mm screw height adjustment allows you to fine-tune the jack from there.

    Added Safety Overload Protection

    Carelessness can cause injuries, but this jack gives you extra peace of mind. It's fitted with a safety overload valve for extra protection. Even if you load the jack up with too much weight, the safety overload kicks in and gently lowers the unit before the operator is put in a dangerous situation.

    Use It Day In And Day Out

    This jack is designed for durability. A rugged high-grade steel frame is teamed with a lead-free paint finish that covers the entire surface to ensure long-lasting wear and help prevent rust. The paint is oil-, grease- and dirt-resistant for easy cleanup no matter how often you put this jack to work.

    Features

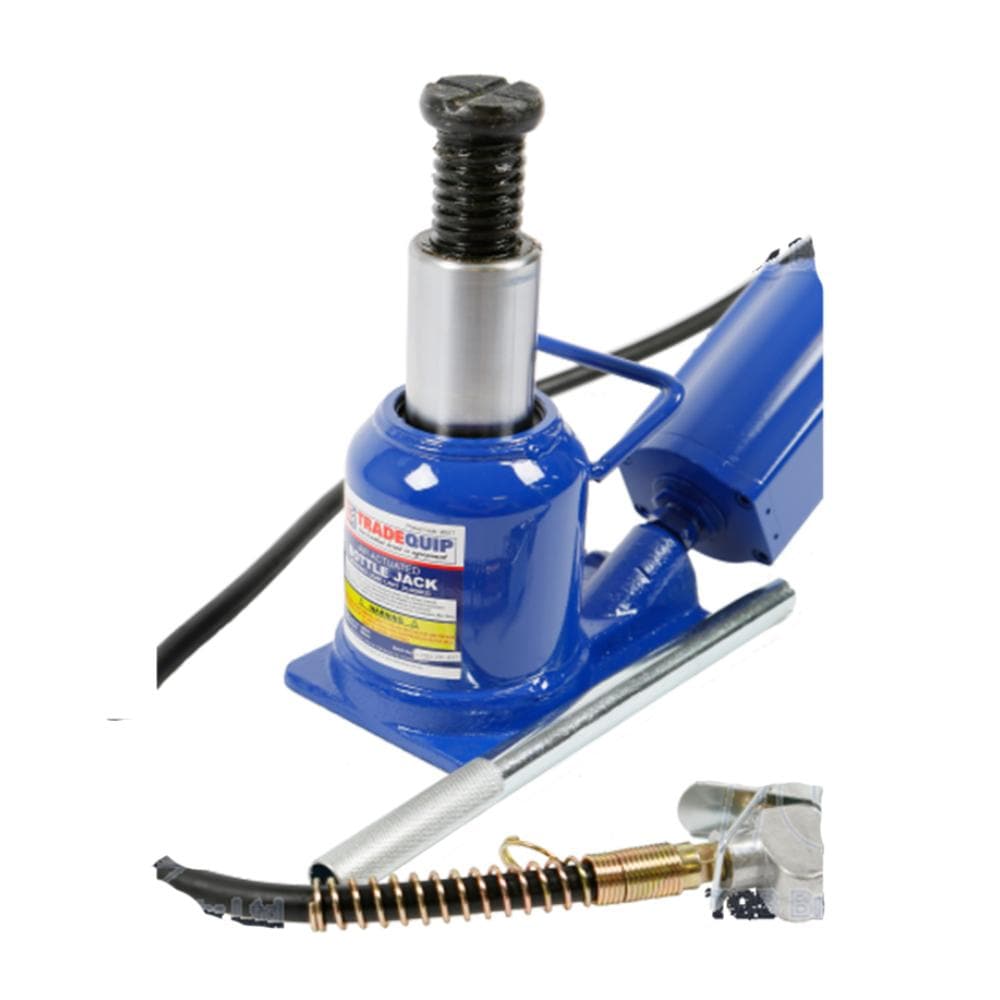

    • All air bottle jacks have chrome plated rams
    • Built-in by-pass device protects hydraulic system from over pumping damage

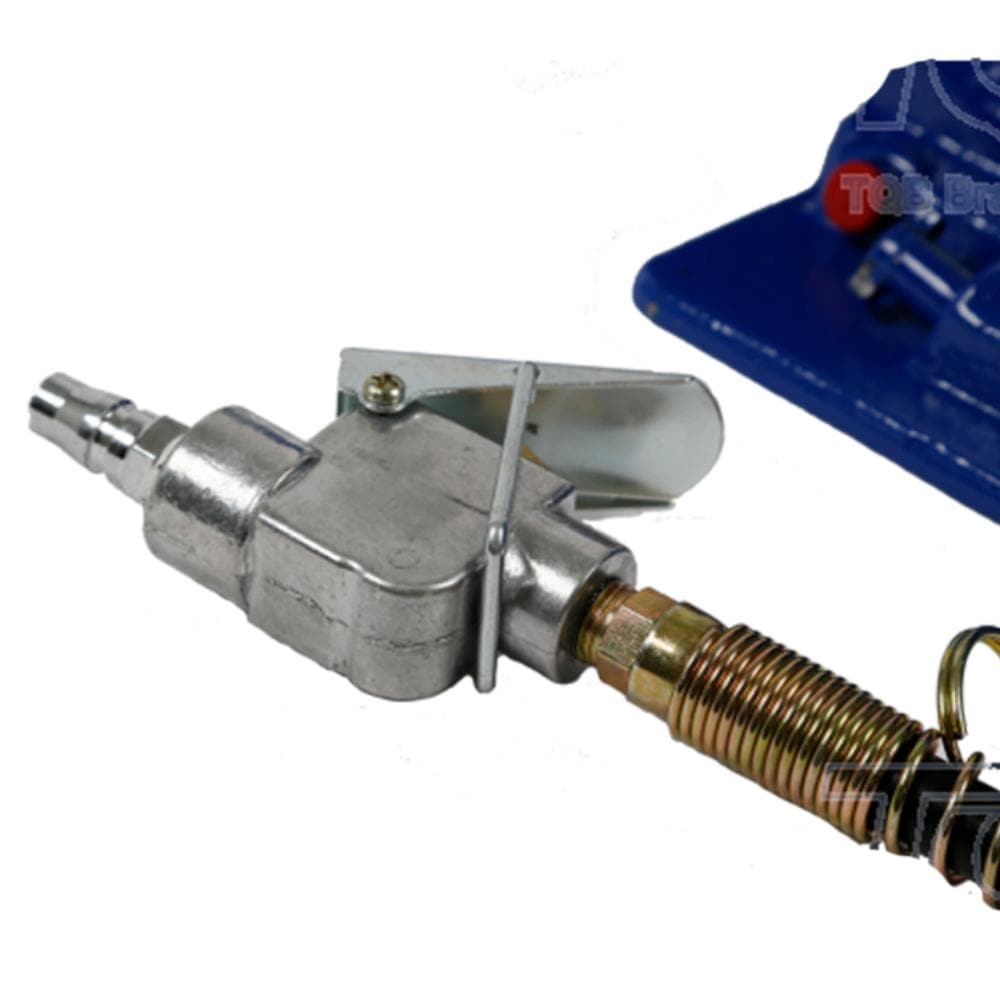

    • Versatile "quick connector" design provides for easy removal of air hose from air motor allowing compact storage or remote operation
    • Compact yet powerful Air Turbo Motor

    Specifications

    • Safe Working Capacity: 20,000kg
    • Minimum Height: 148mm
    • Maximum Height: 259mm
    • Hydraulic Stroke: 66mm
    • Screw Extension Height: 45mm
    • Operating Air Pressure: 100-145psi
    • Base Area: 201x135mm
    • Carton: 355x165x165mm
    • Gross Weight: 10kg
