Heeve 2T Hydraulic Mobile Loading Dock Lifting Platform
Ramp Champ's own brandSKU: H0627$39,344.55 ex GST
- Length2000mm
- Holds2,000kg
- Weight740kg
- Made ofSteel
- Lifts up to 2000kg, handling heavy loads effortlessly
- Electric control box and wireless remote for effortless operation
- Heavy-duty power pack with pressure valve for consistent performance
Made to order, ships within 6-12 weeks
Freighted to your site. Tell us where it's going and we'll quote the ramp and delivery.
Ramp Champ's own brandi
54,000+ soldi
12-month warrantyi
Goes well with
Delivery & Pickup
Delivery details
This product is a "Bulky Item". Delivery to a business address with unloading facilities or depot is recommended.
Shipping charges apply per shipment and can vary by warehouse or supplier. Shipping policy
Estimate delivery to your door
An estimate for this item to that suburb, from the same rates checkout uses. You choose the delivery method at checkout.
This item ships by freight, so we quote delivery to your address.
Pickup details
Heeve 2T Hydraulic Mobile Loading Dock Lifting Platform
Reviews
Specifications
Specifications
Product Specs
| Holds | 2,000kg |
|---|---|
| Made of | Rails: C-Type steel |
| Colour | Blue |
| Brand | Heeve |
| SKU | H0627 |
| Length | Lifting platform length: 2000mm |
| Width | 1600mm |
| Height | Lift Height: Up to 1700mm |
| Weight | 740kg |
| Dimensions | Platform Size: 1600mm x 2000mm Post Dimensions: 120mm x 60mm Platform Plate: 3mm checkered plate Approach Plate: 6mm checkered plate |
Key Benefits
Key Benefits
- Lifts up to 2000kg, handling heavy loads effortlessly
- Electric control box and wireless remote for effortless operation
- Heavy-duty power pack with pressure valve for consistent performance
- Double anti-rust primer and painted finish for extended durability
- Iron core PU wheels for easy mobility and smooth transport
- Enables pallet truck loading and unloading, eliminating the need for forklifts
- Foldable front and rear lips and adjustable support screws for enhanced safety
- Antiskid steel checkered plate to prevent slipping and ensure secure operations
- High-test 16A chains and C-type steel rails for maximum stability and low maintenance

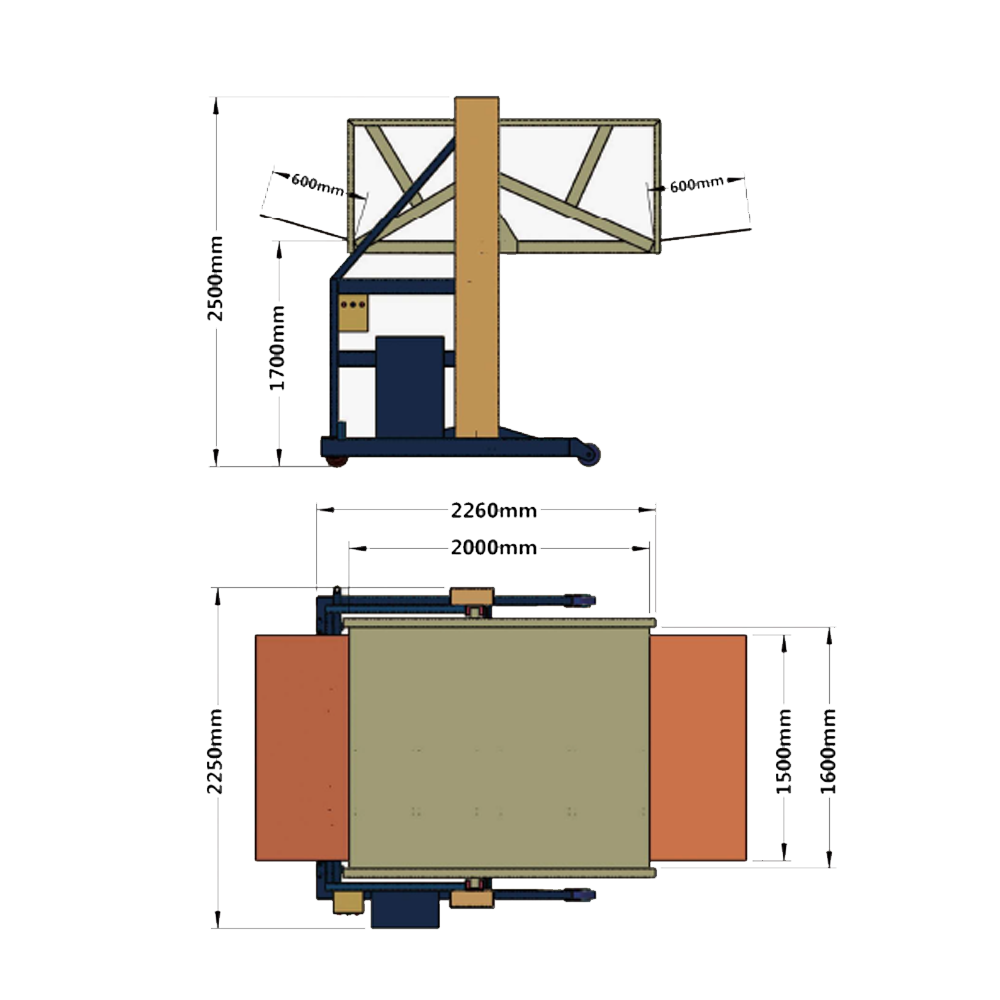

Loading dock dimensions

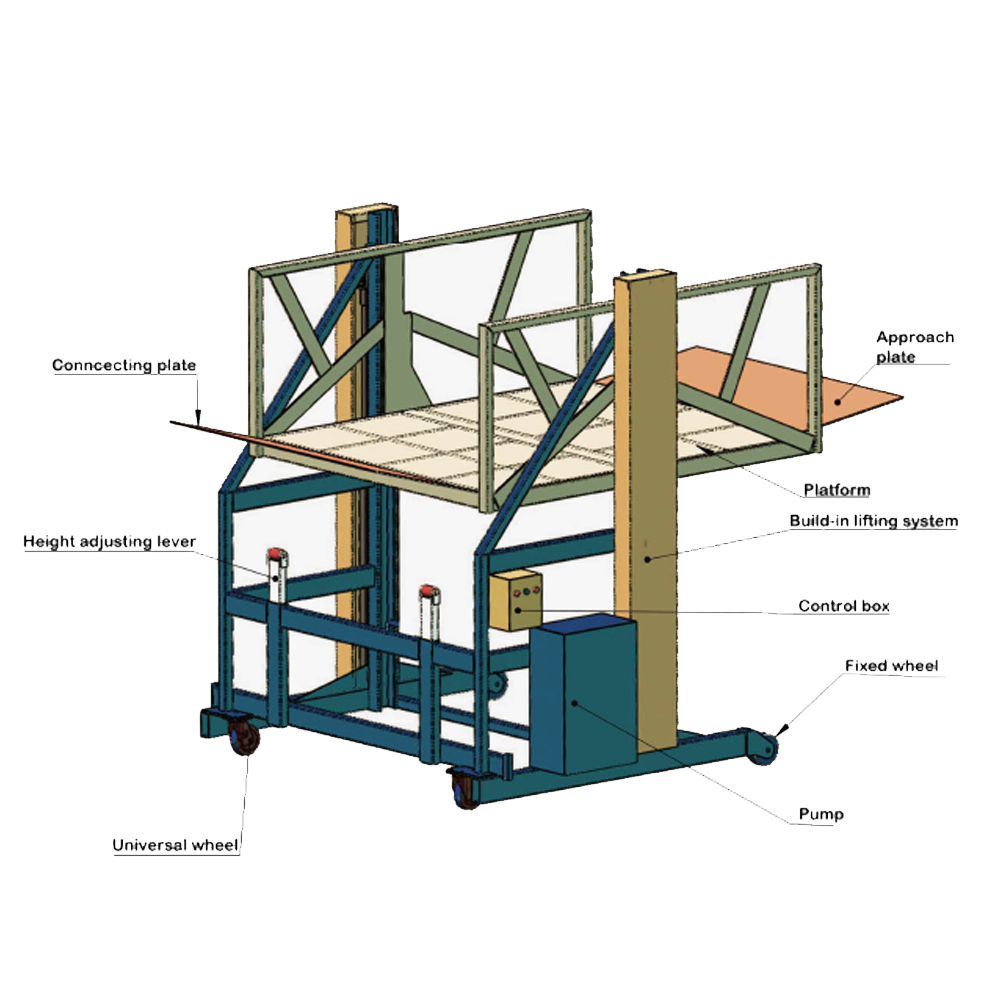

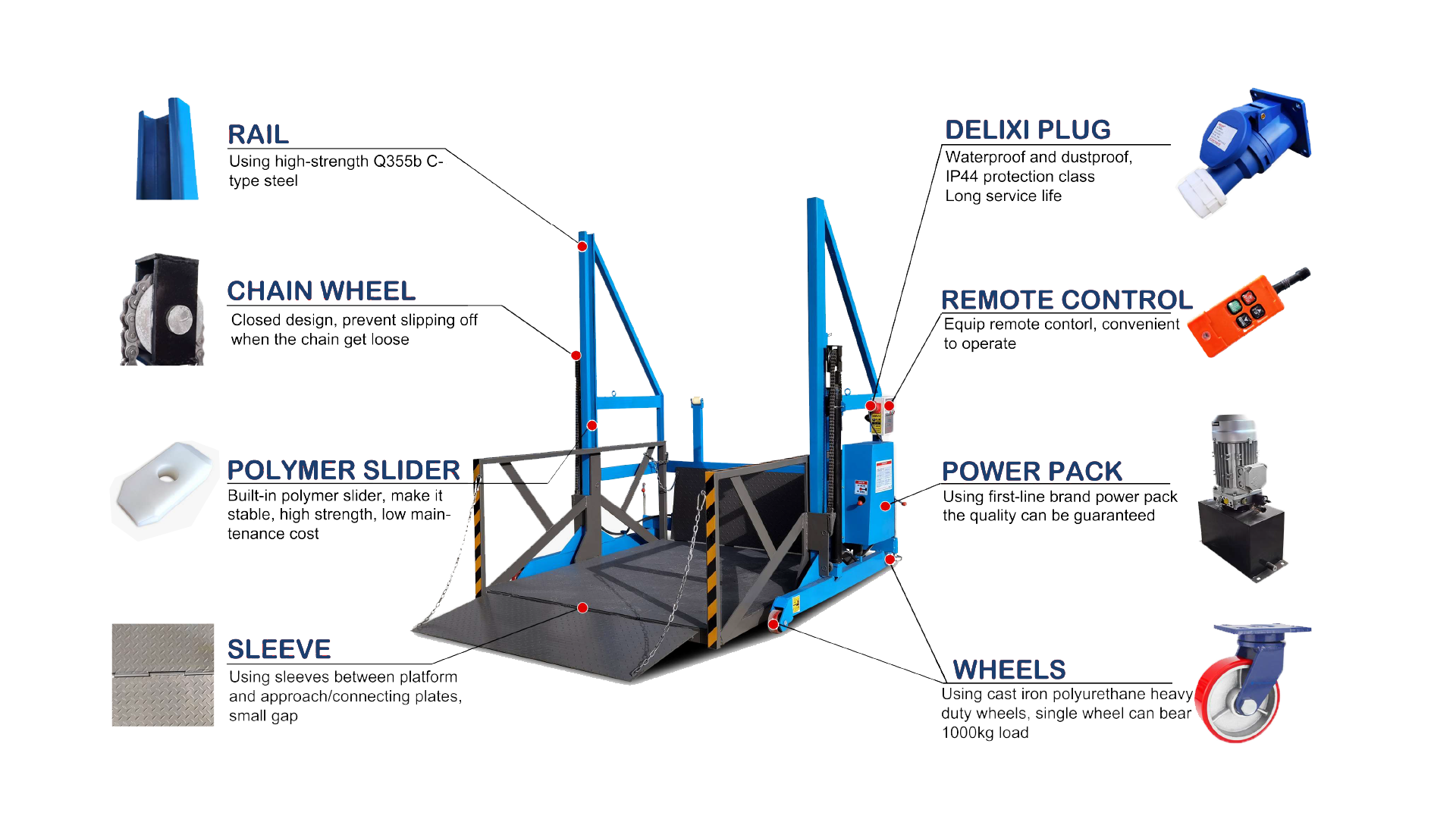

Heeve 2T hydraulic mobile loading dock lifting platform parts
Heeve 2T hydraulic mobile loading dock lifting platform parts
About This Product
About This Product
Portable 2000kg capacity hydraulic steel loading dock platform 1600mm x 2000mm with remote control and iron core PU wheels
About this mobile loading dock

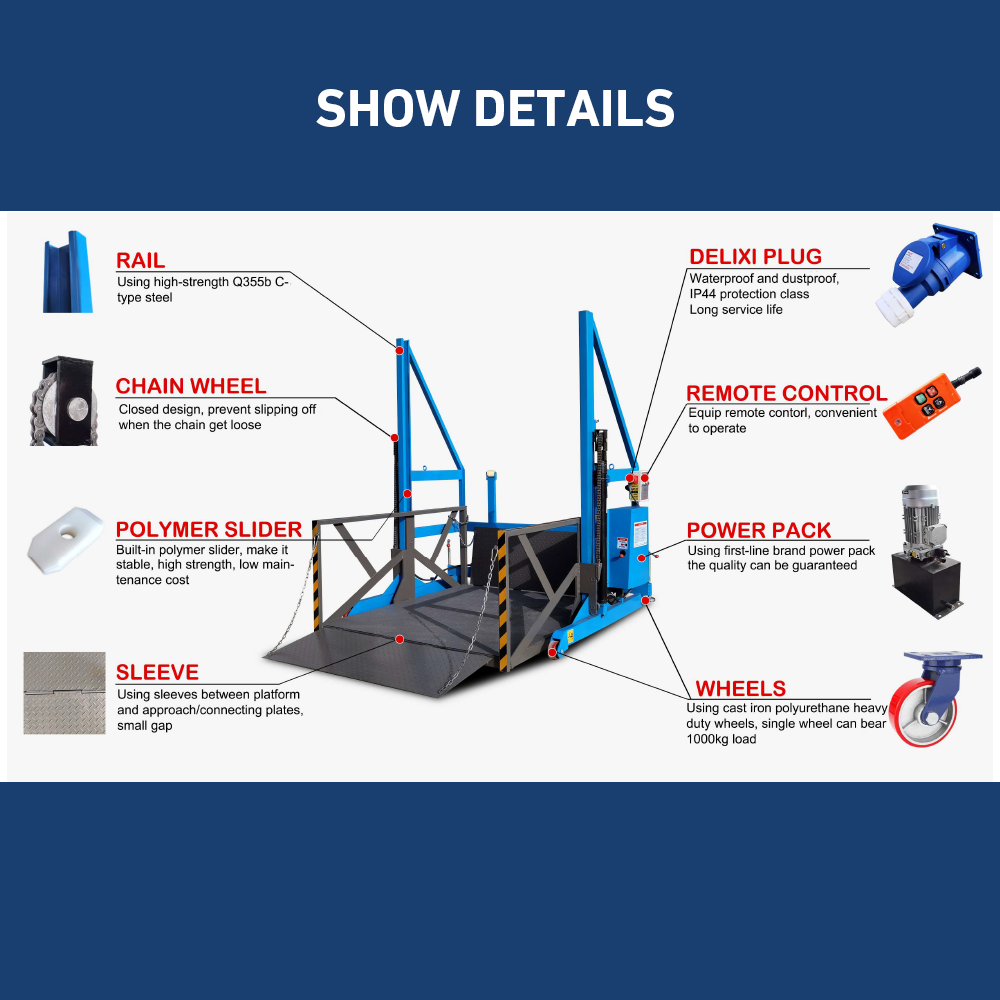

- Additional Components: Rail, chain wheel, polymer slider, sleeve, Delixi plug, remote control, power pack, wheels
- Pump Options: 2.2kW/220V/50Hz or 3.0kW/380V/50Hz
- Chains: 16A high-test chain
-
Control: Remote control
- Supply Voltage: 3 phase, AC 380V, 50Hz
- Motor Power: 3kW
- Cylinder: 63x2 diameter
Lift heavy loads with mobile hydraulic power
