Heeve Mobile Loading Dock Platform - Manual
Ramp Champ's own brandSKU: H0095$26,572.73 ex GST
- Length4500mm
- Holds6,000kg to 10,000kg
- Made ofSteel
- ColourYellow
- Suitable for hard surface areas.
- Services trucks with decks heights from 1050mm to 1500mm.
- Can be easily relocated with the assistance of a forklift
Freighted to your site. Tell us where it's going and we'll quote the ramp and delivery.
Ramp Champ's own brandi
54,000+ soldi
12-month warrantyi
Goes well with
Delivery & Pickup
Delivery details
i
Special orders come in for you on our next shipment, so the arrival date changes. Ask us and we will tell you the current date before you order.
This product is a "Bulky Item". Delivery to a business address with unloading facilities or depot is recommended.
Shipping charges apply per shipment and can vary by warehouse or supplier. Shipping policy
Estimate delivery to your door
An estimate for this item to that suburb, from the same rates checkout uses. You choose the delivery method at checkout.
This item ships by freight, so we quote delivery to your address.
Pickup details
Heeve Mobile Loading Dock Platform - Manual
Reviews
Specifications
Specifications
Sizes and Prices
| Capacity | Size | SKU | Price | Stock |
|---|---|---|---|---|
| 6-Tonne | L4500mm x W2200mm | H0095 | $29,230 | Special order |
| 6-Tonne | L4500mm x W3500mm | H0096 | $32,002 | Special order |
| 8-Tonne | L4500mm x W2200mm | H0097 | $29,666 | Special order |
| 8-Tonne | L4500mm x W3500mm | H0098 | $32,794 | Special order |
| 10-Tonne | L4500mm x W2200mm | H0099 | $30,111 | Special order |
| 10-Tonne | L4500mm x W3500mm | H0100 | $33,586 | Special order |
Product Specs
| Holds | 6,000kg to 10,000kg |
|---|---|
| Made of | Steel |
| Colour | Yellow |
| Brand | Heeve |
| Length | 4500mm |
| Width | 2200mm - 3500mm |
| Height | Adjustable Height Range: 1050mm to 1500mm Safety Rail Height: 1200mm |
| Dimensions | L x W 4500mm x 2200mm 4500mm x 3500mm |
Key Benefits
Key Benefits
- Suitable for hard surface areas.
- Services trucks with decks heights from 1050mm to 1500mm.
- Can be easily relocated with the assistance of a forklift
- Raise and lower the lifting platform to match the truck height via the telescopic legs.
- Use the steel ramp provided to bridge the gap between the platform and loading surface (truck).

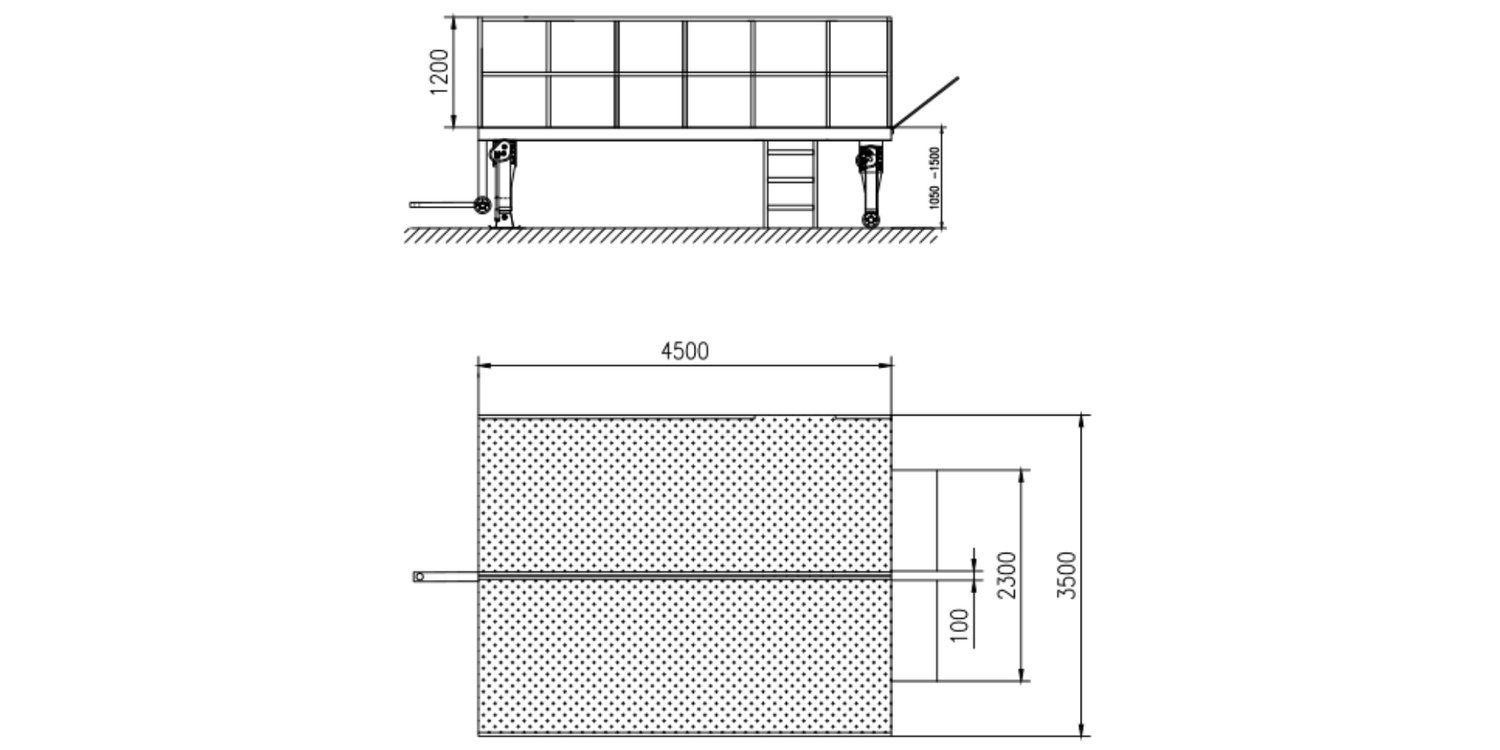

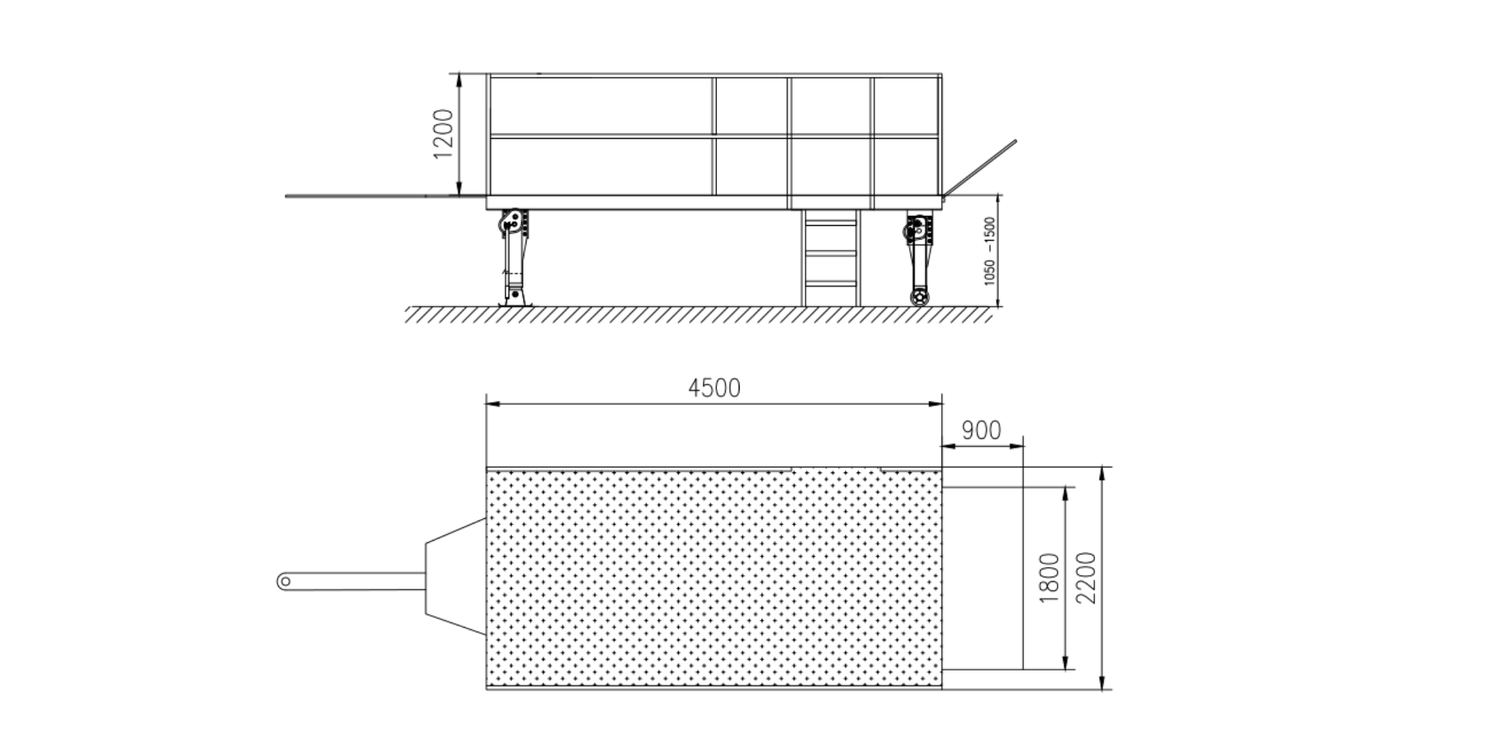

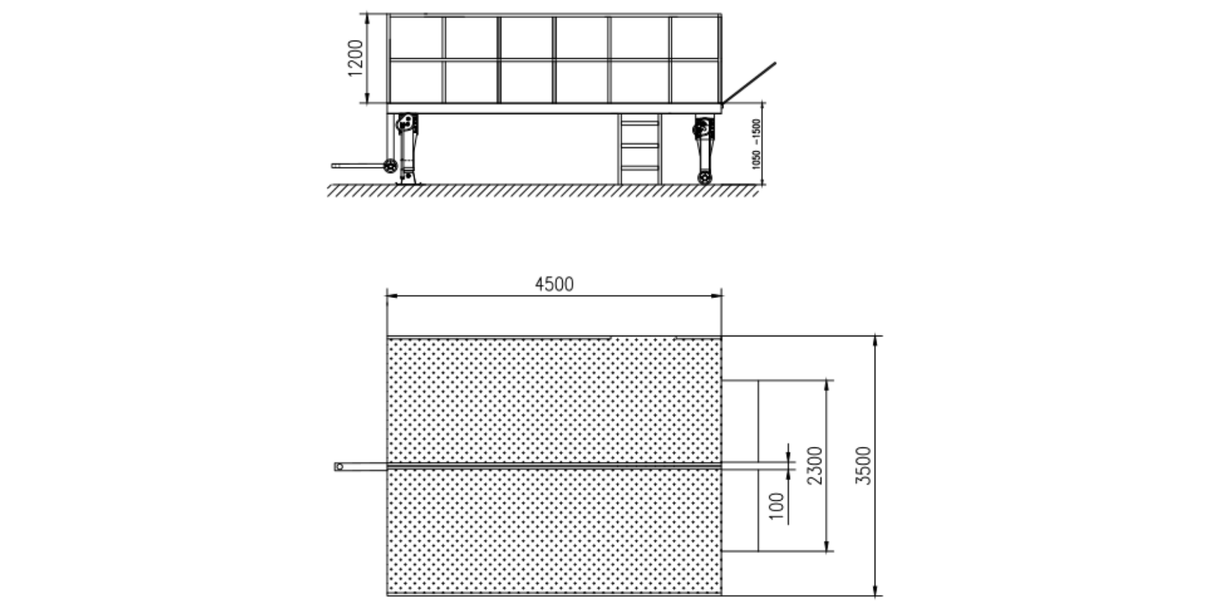

Loading dock dimensions
About This Product
About This Product
Safely and efficiently load & unload & trucks with the Heeve mobile loading dock platform.
Load and unload trucks fast and safe with the heavy-duty Heeve Mobile Loading Dock Platform.
This mechanical powered mobile dock platform is the perfect solution to convenient and efficient loading and unloading of trucks & trailers in the absence of a permanent dock facility.
Why this loading dock works
Heeve Mobile Loading Dock Platforms are best suited for use in hard surface areas such as concrete or asphalt.
Featuring four (4) mechanical telescopic height-adjusting legs that raise and lower the loading dock to varying truck heights (from 1050mm to 1500mm).
Relocate the Loading Dock Platform with ease with the use of a forklift to quickly and easily lift one end of the platform and push it into place via the solid wheels.
Secure ladder for easy access and side safety rails to prevent fall off.
Move your loading dock to where you need it
The Mobile Loading Dock Platform comes in three weight capacities from 6-tonne to 10-Tonne as well as two standard size configurations. We can also customise the features to suit your specific requirements upon request.
- 6-tonne, 8-tonne and 10-tonne capacities.
- Standard sizes of 2200mm or 3500mm wide.
- Custom features and sizes available upon request.
How does this loading dock work?
In absence of a docking facility or a truck without a built-in tailgate loading system, loading and unloading trucks can often be a tedious task, relying on the driver to slowly move pallets by hand to the rear of the container or truck before a ground-based forklift can access and remove the pallet or vice-versa.
Safety and efficiency are drastically increased when the goods can be safely loaded onto the mobile dock platform and handled in a secure area by the persons loading the truck rather than goods being placed directly onto the rear of the truck where space is limited and hazards develop.
Why this loading dock works
- Safe and time efficient – load and unload trucks and containers.
- Economical – reduces expense and workload.
- Mobile – move and use where needed.
