Digga 4.7-Tonne 3.5m x 560mm Ezi-Loada Aluminium Loading Ramps

$2,42000 $2,66200
Digga  |  SKU: LR473550

delivery man with parcel Pickup available. Select at checkout fast box Orders processed and shipped out in 1-3 business days. warranty icon Covered by the full 12-month Digga Warranty returns icon 100-day Free Returns

Description

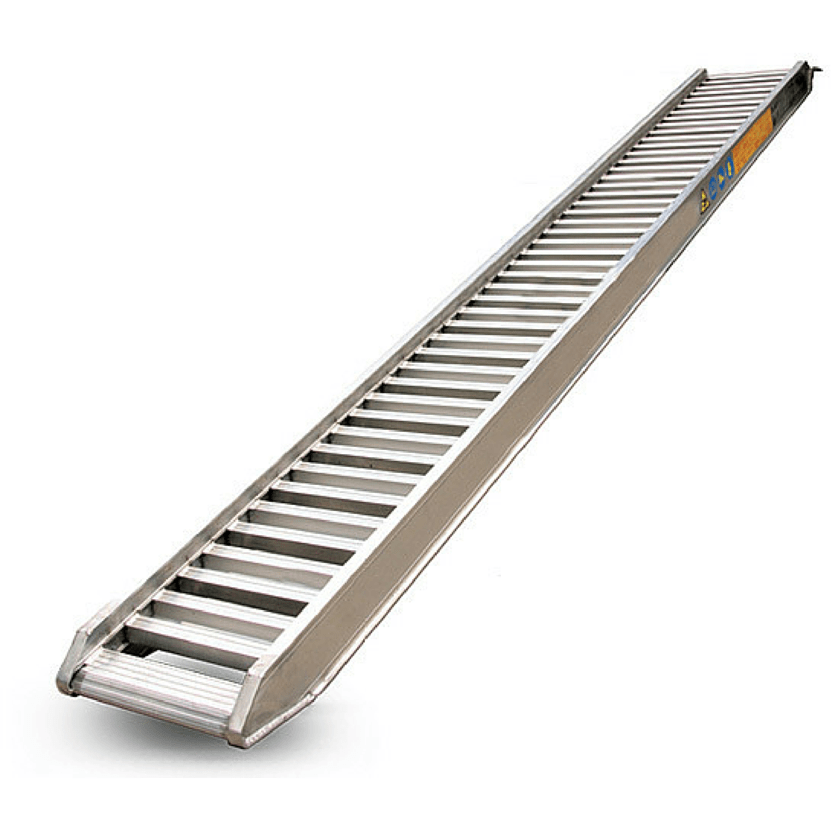

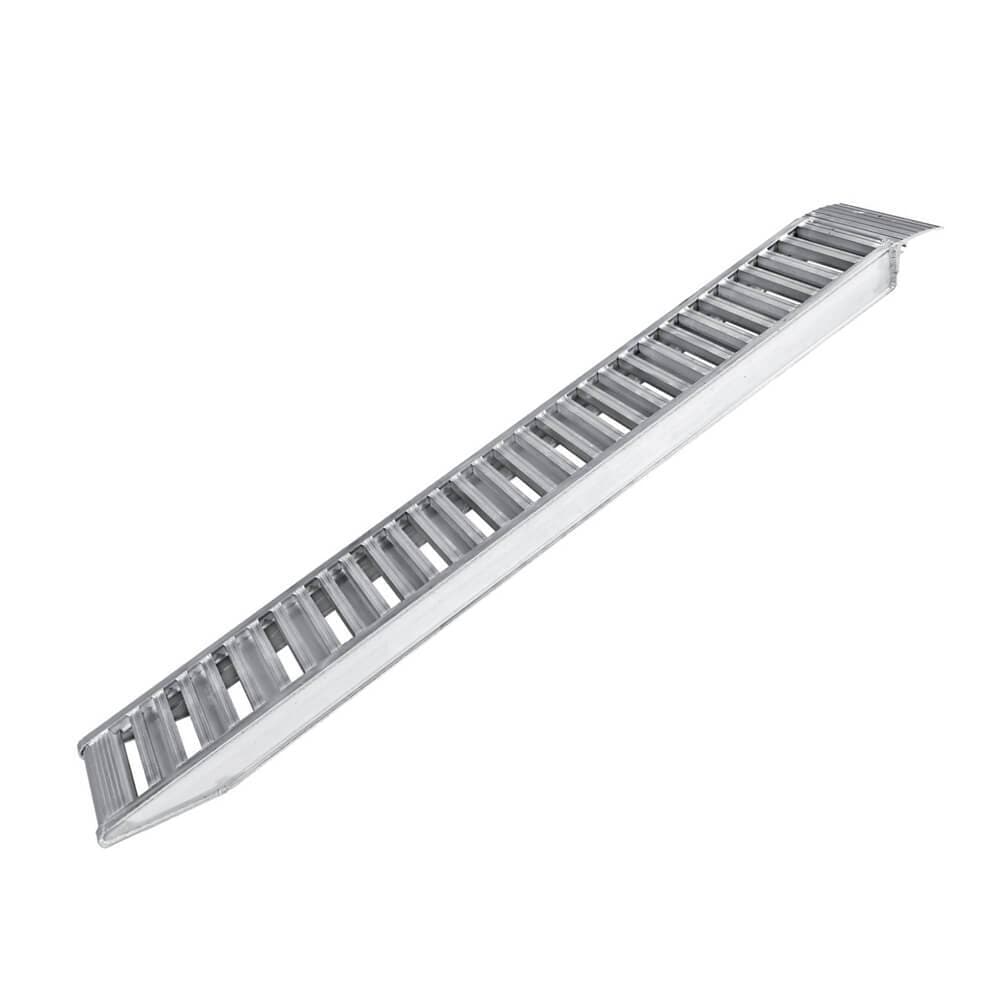

Digga European-Made Heavy Duty and Lightweight 4.7-Tonne 3.5m x 560mm Ezi-Loada Aluminium Loading Ramps, Pair

Designed specifically for machines with rubber tracks and pneumatic (air) tyres, the Digga 4.7 Tonne 3.5m x 560mm Ezi-Loada Aluminium Machinery Loading Ramps are both heavy-duty and lightweight. They offer enhanced safety, top-notch quality, and cost-effective performance.

With cutting-edge European design and engineering, the Digga Ezi-Loada ramps represent the most advanced design available on the Australian market today.

These aluminium loading ramps come complete with a connection plate and tongue, as well as zinc-coated steel pins, making them ideal for loading onto tipper body trucks, flatbed trucks, or trailers.

Digga 4.7 Tonne 3.5m x 560mm Ezi-Loada Aluminium Loading Ramps

Features and Benefits

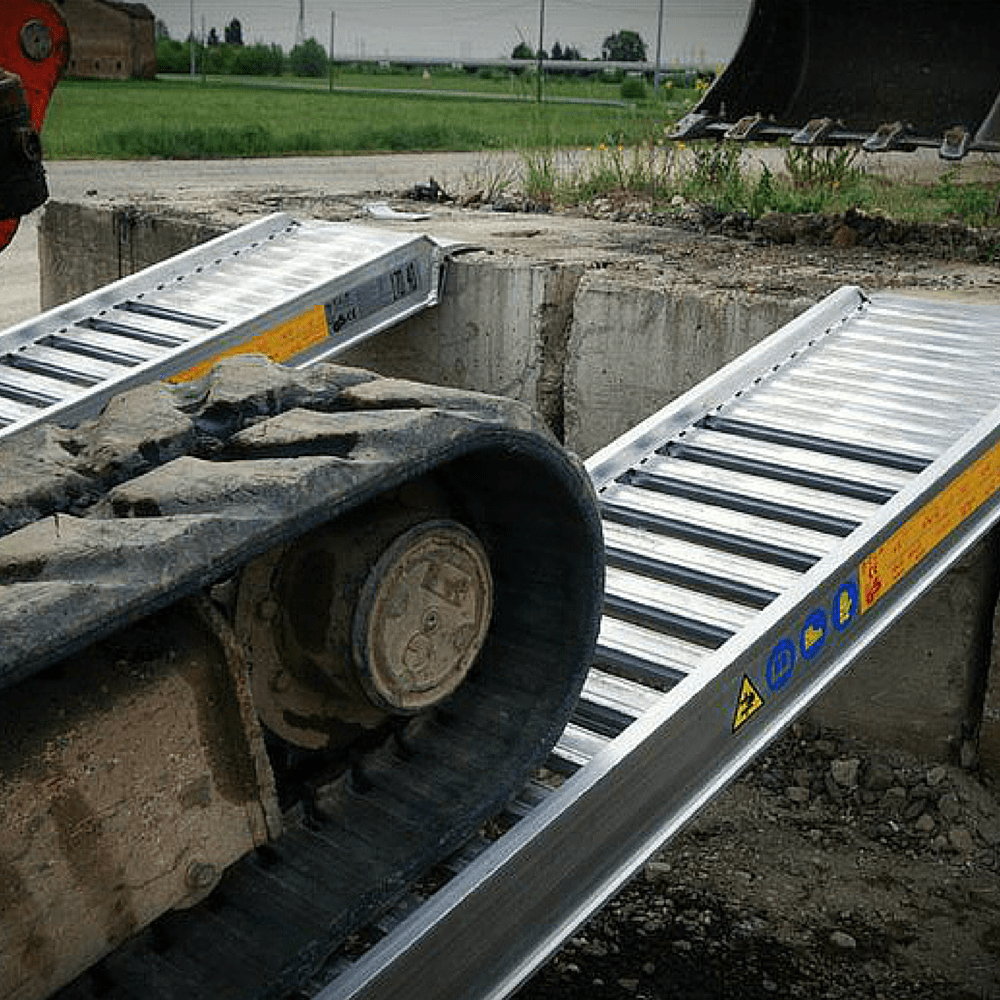

  • Ideal for rubber tracks and pneumatic (air) tyres

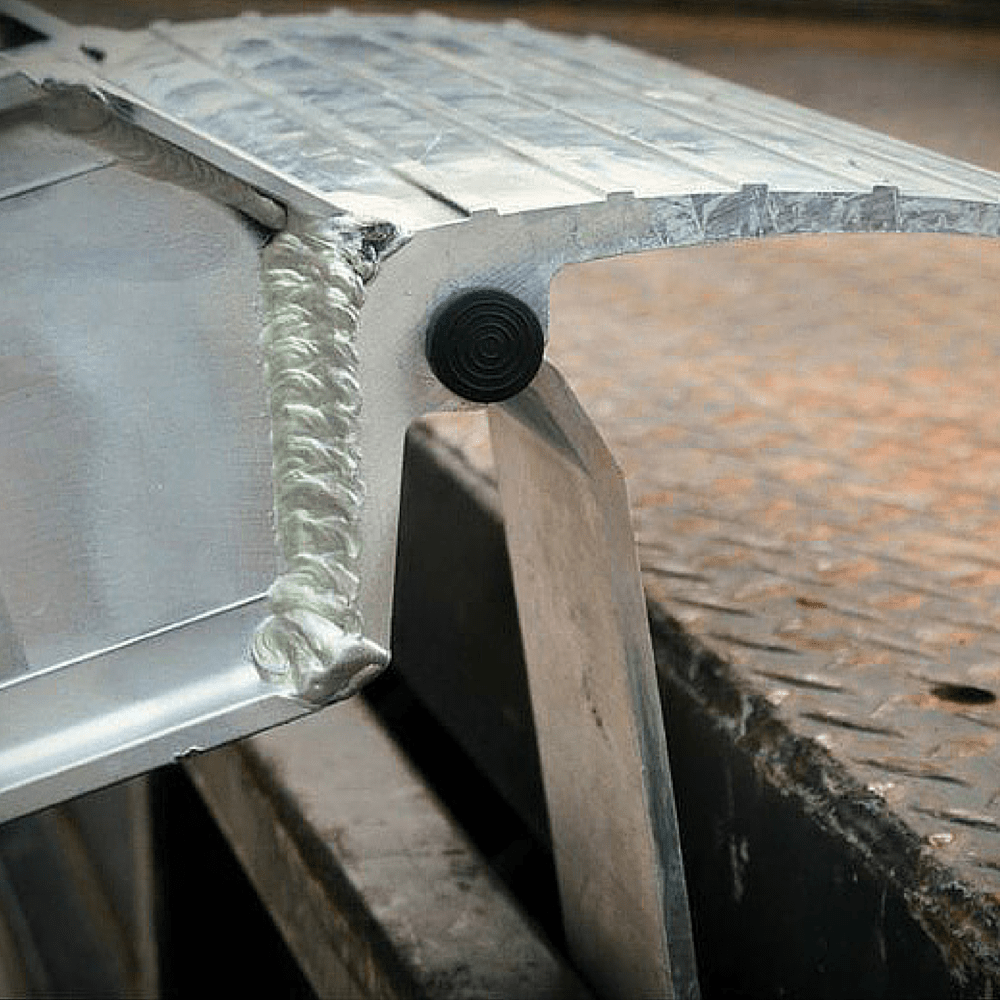

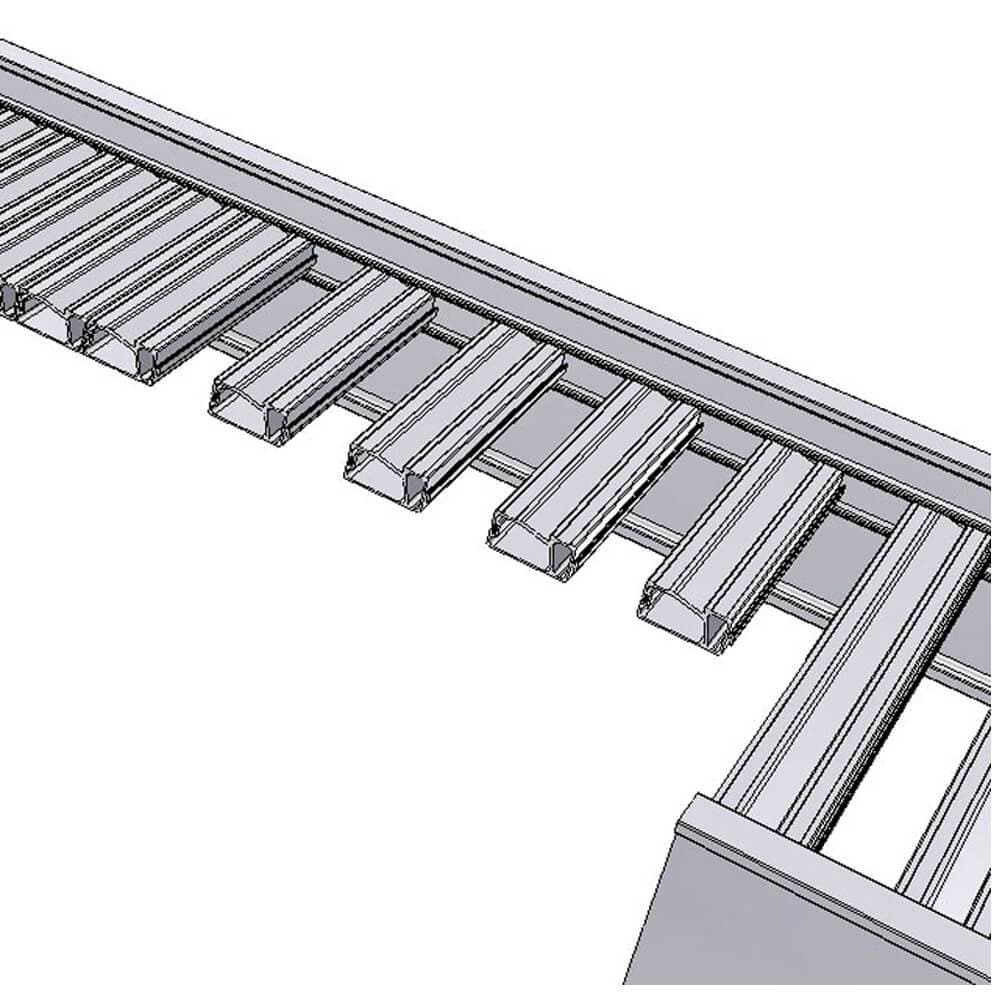

  • Patented, fully extruded, double T-beam design, interlocks the rungs into the body of the rail. No physical load is taken by the weld alone. The welds (top & bottom), hold the rung in its fitted position, adding superior strength & durability.
  • 3 different connection methods;

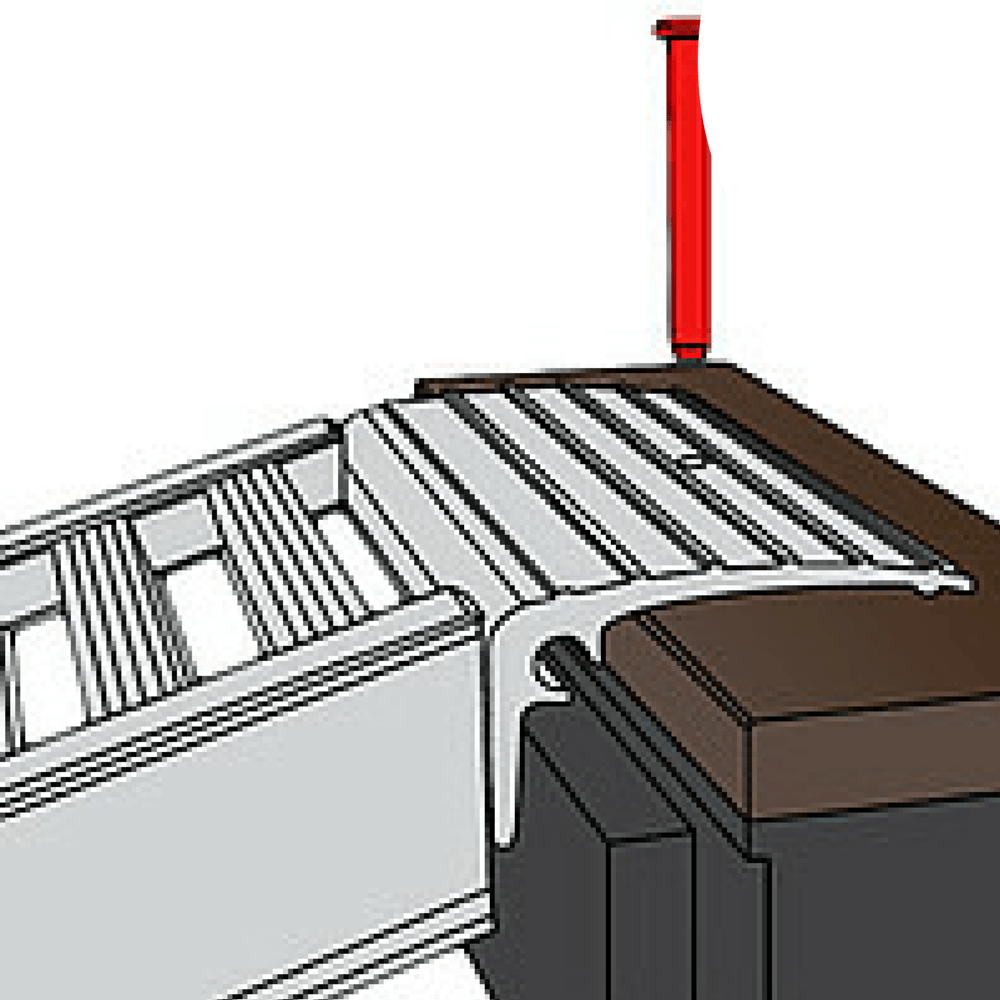

    • Pin (supplied)

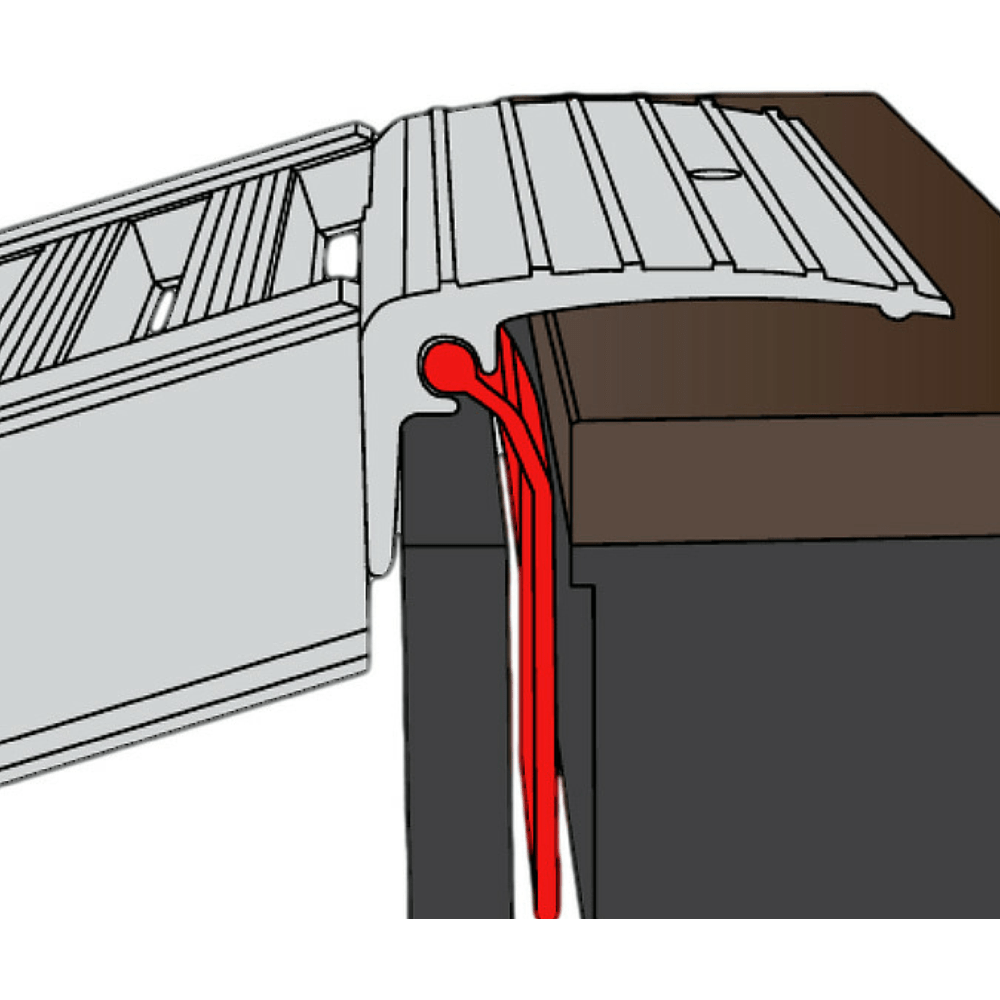

    • Tongue (supplied)

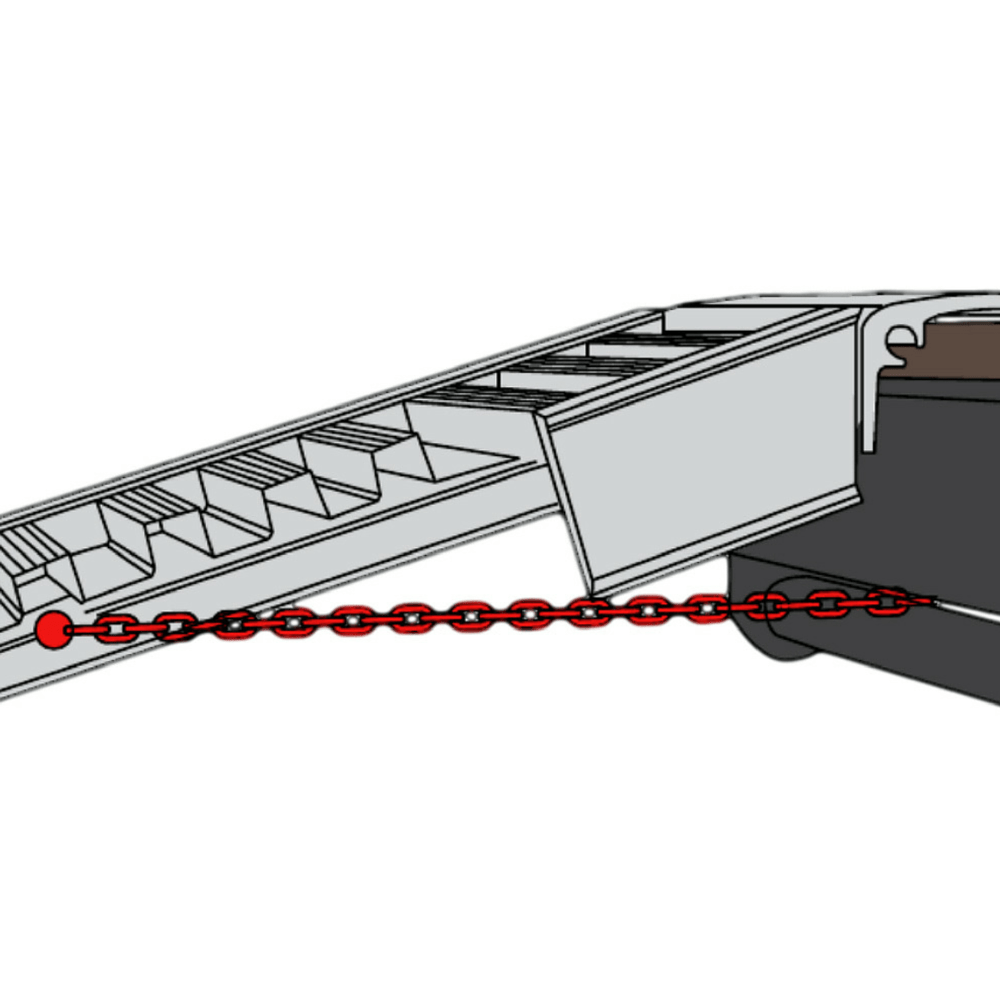

    • Chain (chain not supplied)
  • Enhanced beam strength
  • Huge 18-Month Warranty
  • Certified to the highest international standards including CE, TUV and GS certification guaranteeing the quality and safety of the ramps
  • Reinforced, easy load, lead on/off designs are safer and more durable than conventional ramp designs

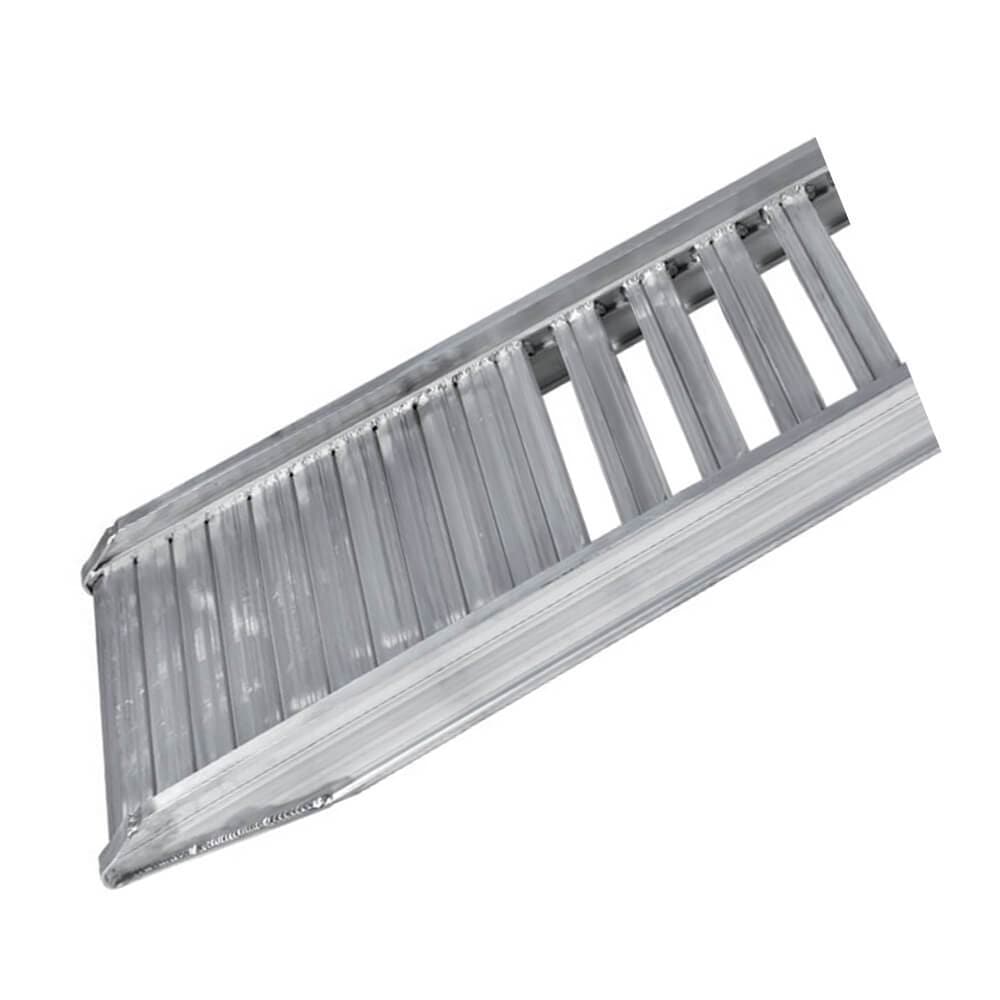

  • The reinforced bottom rung sits low to the ground ensuring machines don’t have to ‘step up’ onto the ramp. As a result, the bottom few rungs won’t bend, as so often is the case with current ramp designs. The ride is also much smoother
  • Sold in pairs

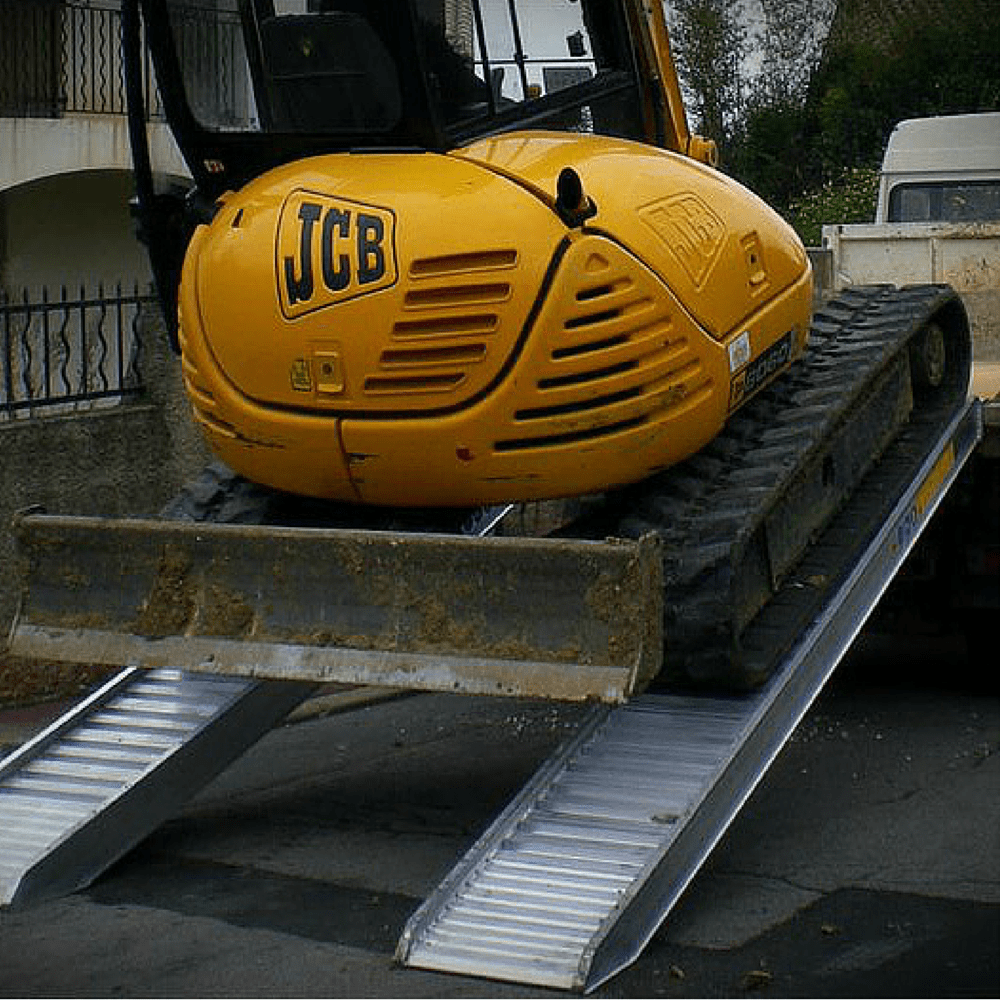

Skid steers(Bobcats), excavators, Dingo's, Ditch Witches, and other small machinery with 4.7-tonne ratings can now be loaded onto trailers and truck beds with these aluminium machinery loading ramps. The ramps have raised sides to allow safe, worry-free loading.

Where steel tracks are to be used on ramps, please refer to the Universal Series which has a different tread surface to the Standard Series Ramps.

See the table below, for Digga's full range of Standard Series Ramps.

Ramp Specifications

Product

Code

Rated

Capacity

Ramp

Mass

Ramp

Length

Track

Width

(internal)

Ramp

Width

Beam

Series

LR152530 1000kg 14kg 2.5m 255mm 300mm 64mm Standard
LR233030 2000kg 23kg 3.0m 300mm 360mm 100mm Standard
LR303030 3000kg 26kg 3.0m 300mm 360mm 115mm Standard
LR303535 3000kg 26kg 3.5m 350mm 410mm 115mm Standard
LR353535 3500kg 36kg 3.5m 350mm 410mm 125mm Standard
LR403545 4000kg 45kg 3.5m 450mm 510mm 140mm Standard
LR473545 4700kg 48kg 3.5m 450mm 510mm 155mm Standard
LR473550 4700kg 51kg 3.5m 500mm 560mm 155mm Standard
LR593545 5900kg 51kg 3.5m 450mm 510mm 165mm Standard
LRU593550 6200kg 65kg 3.5m 500mm 560mm 165mm Universal
LRU663550 7000kg 68kg 3.5m 500mm 560mm 170mm Universal
LRU823550 9000kg 77kg 3.5m 500mm 560mm 180mm Universal



Click here to find out how to CHOOSE THE CORRECT DIGGA RAMP

Can't find the ramp you're looking for? Use the chat function in the corner of the window or Contact us for advice if you're unsure what ramps are suitable for you.

Digga Authorised Dealer

Specifications

  • Capacity
    4700kg
  • Weight
    125kg (pair)
  • Length
    3600mm
  • Width
    600mm
  • Dimensions
    L x W x H
    3600mm x 600mm x 500mm
  • Internal Width
    500mm
  • Colour
    Silver
