Barrier Group Slo-Motion Heavy Duty Steel Speed Hump

$209.00
SKU: SM500HD

✓ Free Shipping on This Product For Orders Over $250
✓ Pickup In-Store Available
✓ Questions? Call Us: 1300 913 047



Estimated Arrival: Between and .



Need A Quotation? Request a free quote

Slo-Motion Heavy Duty Steel Traffic Slowing Speed Hump From Barrier Group

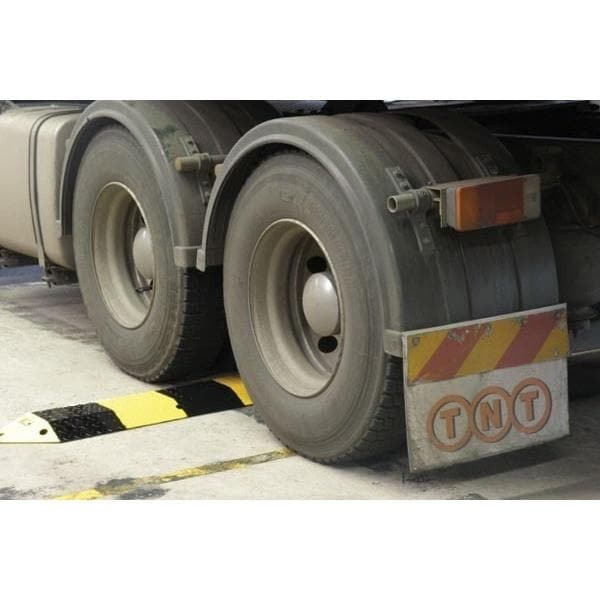

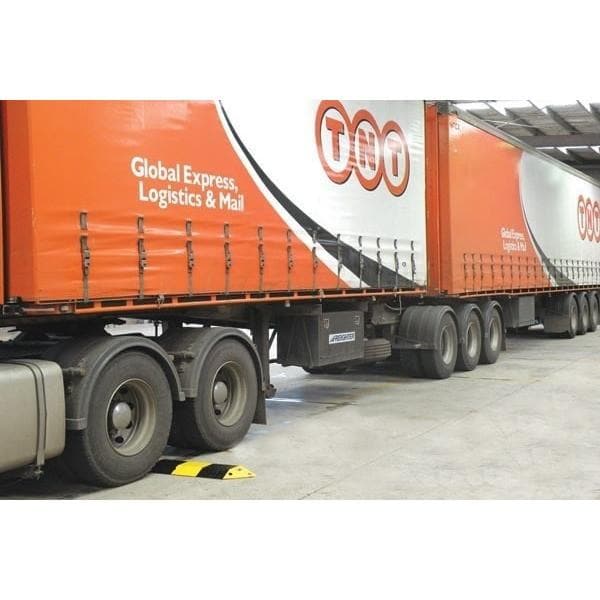

Barrier Group Slo-Motion Heavy Duty Steel Speed Hump is a modular system to control the speed of heavy vehicular traffic from forklifts, trucks or buses in any private, commercial or industrial setting (including ‘B’-Doubles). It is a perfect addition to transport depots, factories, large warehouses, storage facilities, and terminals etc.

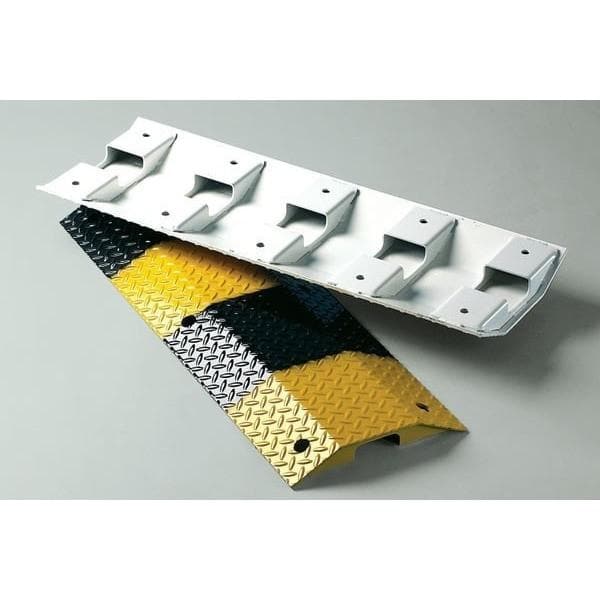

The unmatched chassis construction enhanced with 6mm floor plate and 6 bolt fixing makes Slo-motion Heavy Duty Hump virtually indestructible.

The Heavy Duty speed hump does not require a rubber underlay to prevent rattle.

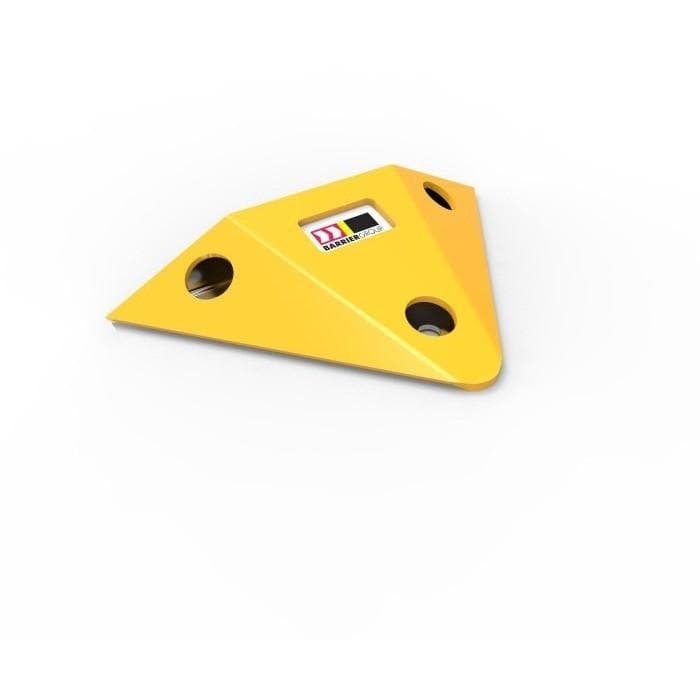

Optional Steel End Caps:

Steel End Caps by Barrier Group to fit Slo-Motion Heavy Duty Steel Speed Hump. It is a perfect addition to the speed hump minimise the trip hazard or to serve unanticipated approach angles. They also add a professional finish to modular ramp system.

Features & Benefits

  • AS/NZS 2890.1:2004 compliant design
  • An unmatched load bearing contact area with the road surface.
  • Use with or without steel end caps.
  • Comes complete with all fixings.
  • Independent modules allow easy assembly and removal
  • Does not need a rubber underlay to prevent rattle.
  • Concealed fixings remain accessible.
  • Built in bridge design to accommodate hoses or cables.

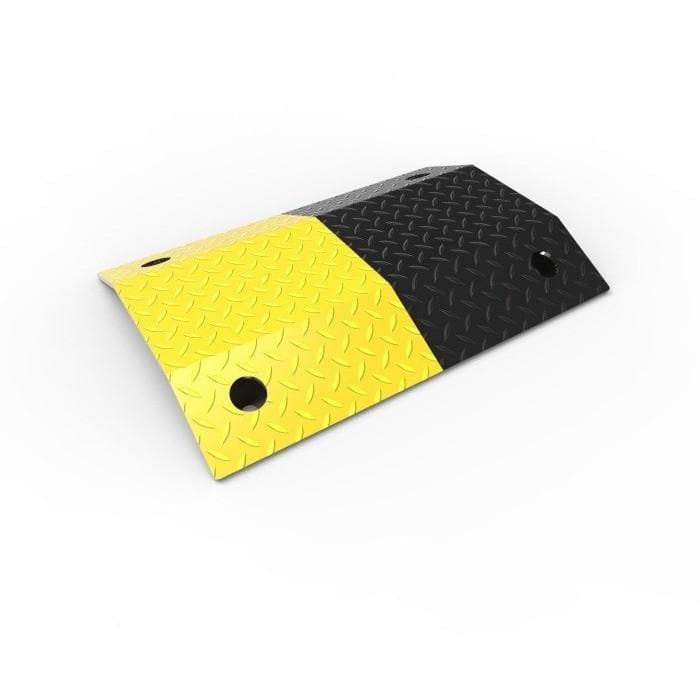

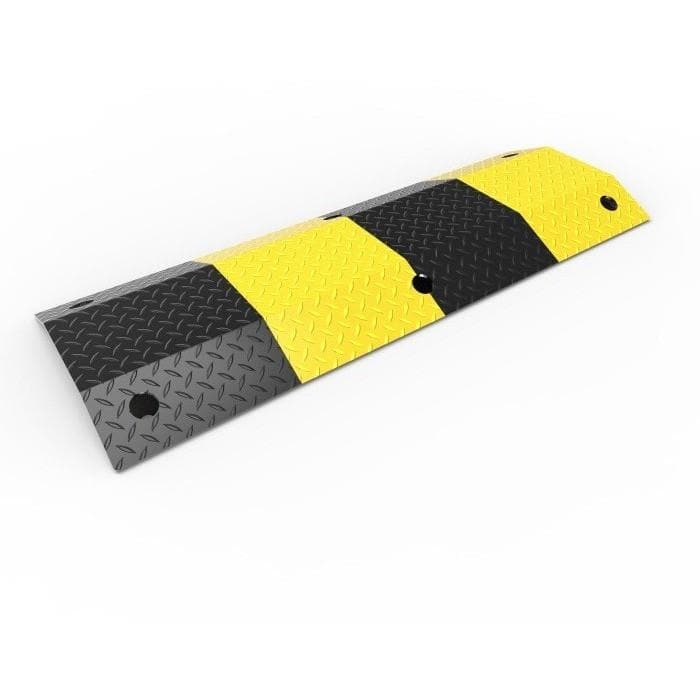

  • Available in 2 variants: 500mm and 1m

Specifications

  • Top skin: 6mm floor plate.
  • Length: 1 metre or 1/2 metre.
  • Width: 350mm.
  • Height: 55mm.
  • Ramp angle: 2:1.
  • Weight: SM1000HD – 24.5kgs.
  • SM500HD – 13kgs.
  • SMSEC – 5kgs/pair (steel).
  • Fixings: Masonry anchors (supplied).
  • SPIKES Optional steel gravel spikes for fixing into loose surfaces – 300 x 12mm each

barrier group slo-motion heavy duty speed hump drawing with dimensions

Speed hump selection chart



Download The Fact Sheet



Download The Installation Procedure



Barrier Group Authorised Dealer Badge

Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.
