Digga 1 Tonne 2.5m x 300mm Ezi-Loada Aluminium Loading Ramps

by Digga
2
$1,030.00
SKU LR152530

✓ Fast Shipping + Order Tracking
✓ Pickup In-Store Available
✓ Questions? Call Us: 1300 913 047



Estimated Arrival: Between and .



Need A Quotation? Request a free quote today


Digga 1 Tonne 2.5m x 300mm Ezi-Loada Aluminium Loading Ramps, Pair

Designed specifically for machines with rubber tracks and pneumatic (air) tyres, the Digga 1 Tonne 2.5m x 300mm Ezi-Loada Aluminium Machinery Loading Ramps are heavy-duty yet light in weight and come with enhanced safety that delivers on quality, performance and are cost-effective.

European designed and engineered, the Digga Ezi-Loada ramps feature the most advanced design available on the Australian market today.

Complete with connection plate and tongue as well as zinc-coated, steel pins these aluminium loading ramps are perfect for loading onto tipper body trucks, flatbed trucks or trailers.

Digga 1 Tonne 2.5m x 300mm Ezi-Loada Aluminium Loading Ramps

Features and Benefits

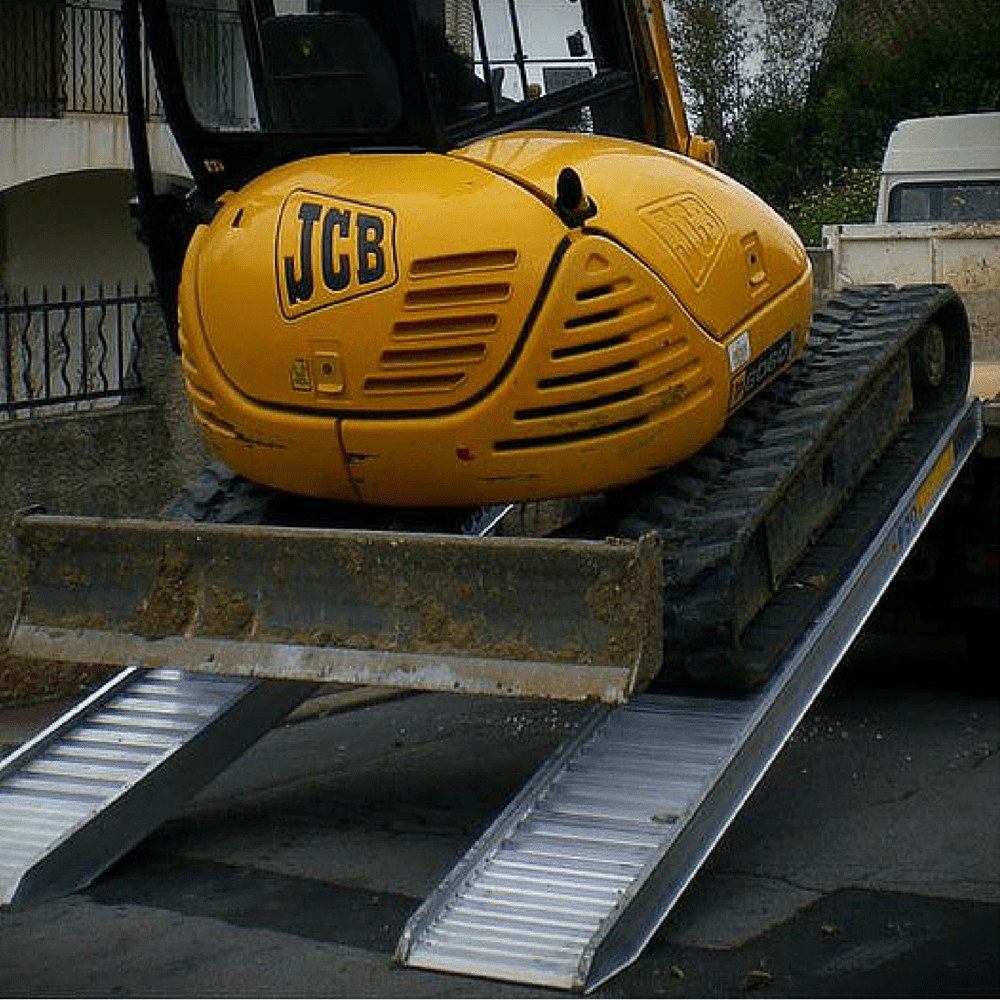

  • Ideal for rubber tracks and pneumatic (air) tyres

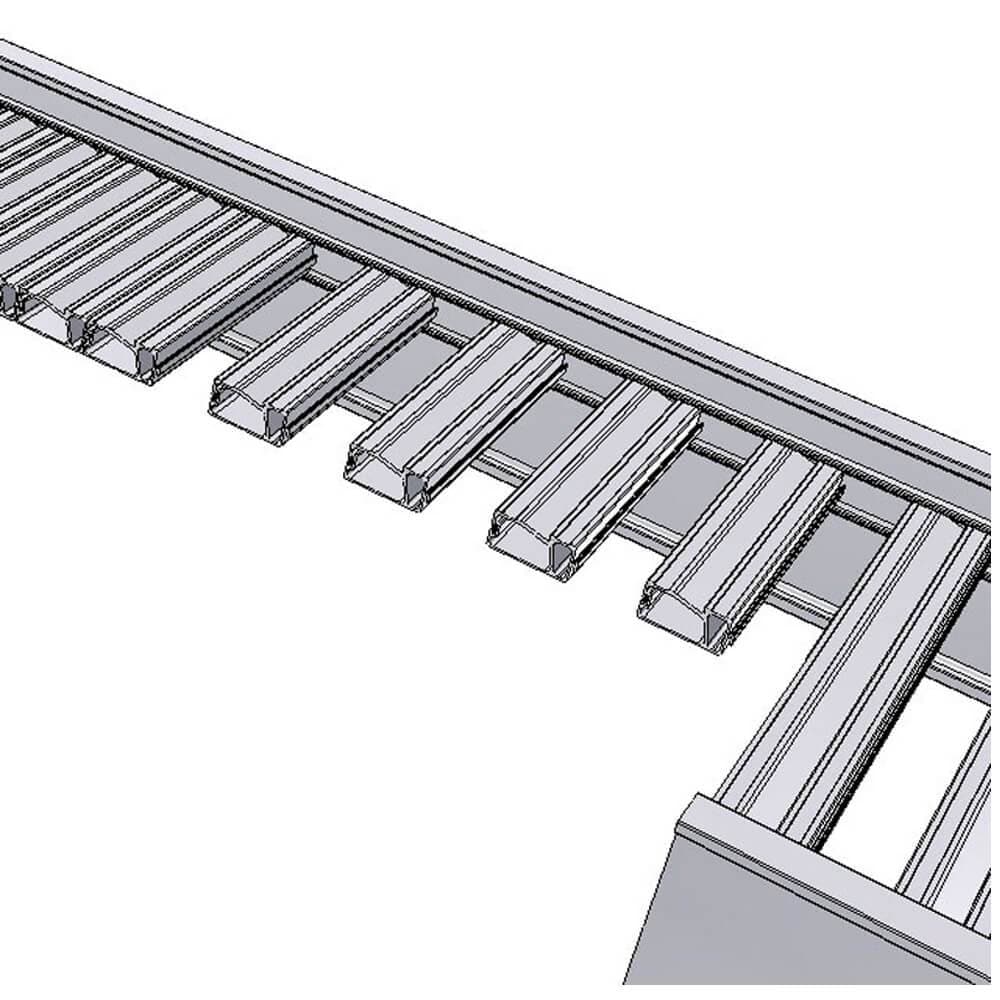

  • Patented, fully extruded, double T-beam design, interlocks the rungs into the body of the rail. No physical load is taken by the weld alone. The welds (top & bottom), hold the rung in its fitted position, adding superior strength & durability.
  • 3 different connection methods;

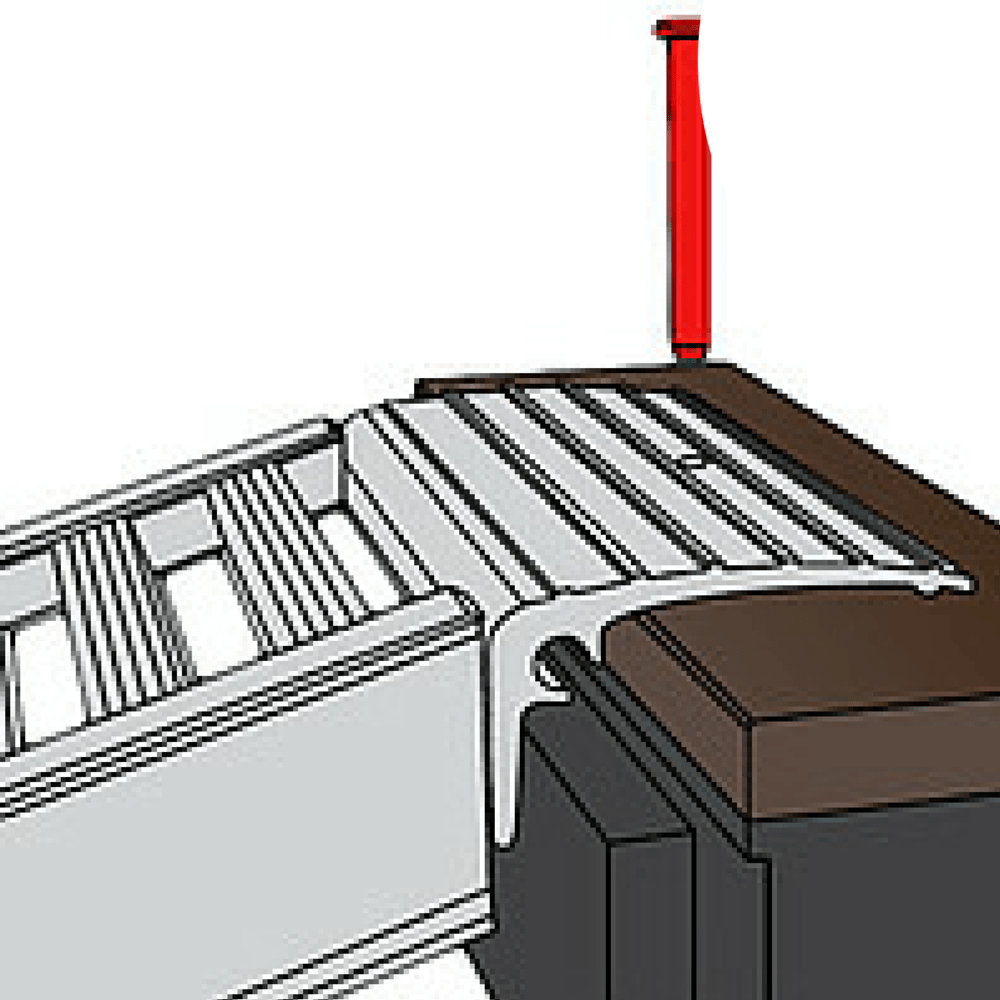

    • Pin (supplied)
    • Tongue (supplied)

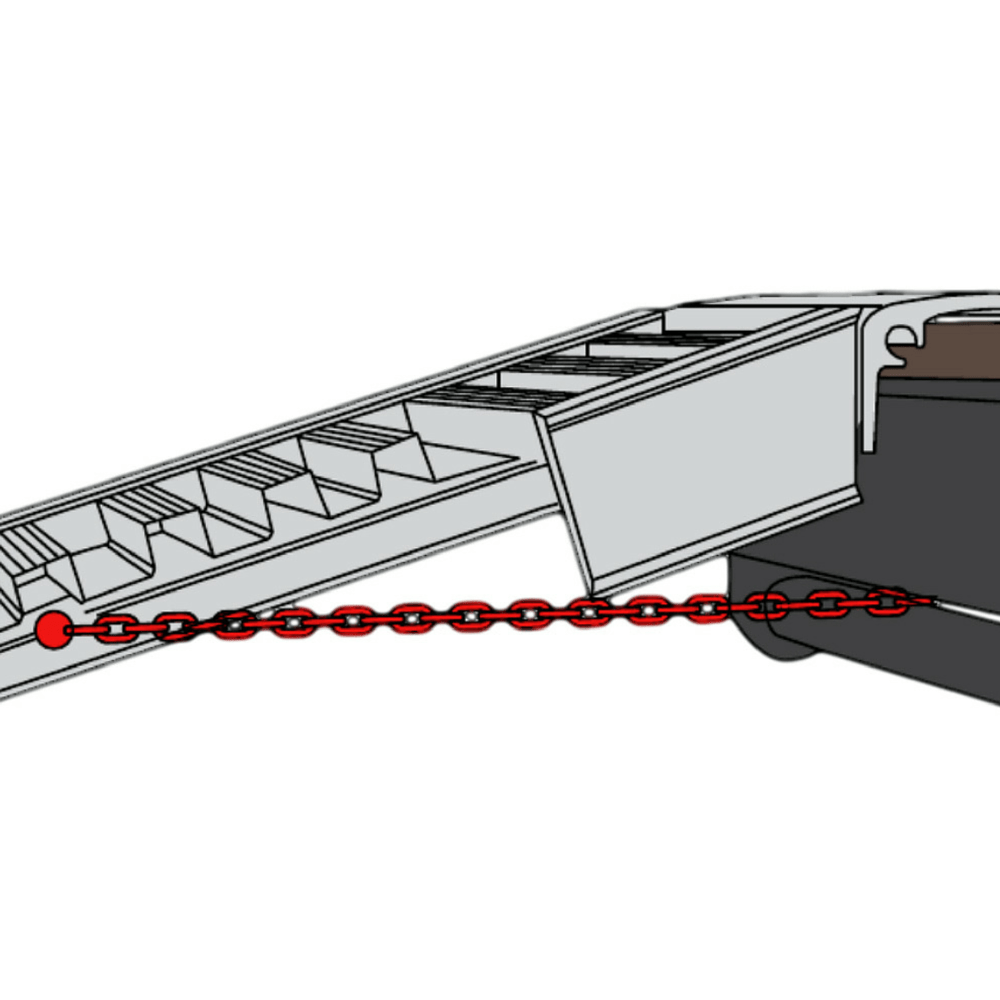

    • Chain (chain not supplied)
  • Enhanced beam strength
  • Huge 18 Month Warranty
  • Certified to the highest international standards including CE, TUV and GS certification guaranteeing the quality and safety of the ramps
  • Reinforced, easy load, lead on/off design are safer and more durable than conventional ramp designs
  • The reinforced bottom rung sits low to the ground ensuring machines don’t have to ‘step up’ onto the ramp. As a result the bottom few rungs won’t bend, as so often is the case with current ramp designs. The ride is also much smoother
  • Sold in pairs

    Specifications

    • Rated Load Capacity Per Pair: 1 tonne
    • Ramp Weight: 14kg
    • Ramp Length: 2.5m
    • Internal Track Width: 255mm
    • Ramp Width: 300mm
    • Beam: 64mm
    • Series: Standard

    Skid steers, excavators, Ditch Witches, and other small machinery with 1 tonne ratings can now be loaded onto trailers and truck beds  with these aluminium machinery loading ramps. The ramps have raised sides to allow safe, worry-free loading.

    Where steel tracks are to be used on ramps, please refer to the Universal Series which have a different tread surface to the Standard Series Ramps. See the table below, for Digga's full range of Standard Series Ramps.

    Ramp Specifications

    Product

    Code

    Rated

    Capacity

    Ramp

    Mass

    Ramp

    Length

    Track

    Width

    (internal)

    Ramp

    Width

    Beam

    Series

    LR152530 1000kg 14kg 2.5m 255mm 300mm 64mm Standard
    LR233030 2000kg 23kg 3.0m 300mm 360mm 100mm Standard
    LR303030 3000kg 26kg 3.0m 300mm 360mm 115mm Standard
    LR303535 3000kg 26kg 3.5m 350mm 410mm 115mm Standard
    LR353535 3500kg 36kg 3.5m 350mm 410mm 125mm Standard
    LR403545 4000kg 45kg 3.5m 450mm 510mm 140mm Standard
    LR473545 4700kg 48kg 3.5m 450mm 510mm 155mm Standard
    LR473550 4700kg 51kg 3.5m 500mm 560mm 155mm Standard
    LR593545 5900kg 51kg 3.5m 450mm 510mm 165mm Standard
    LRU593550 6200kg 65kg 3.5m 500mm 560mm 165mm Universal
    LRU663550 7000kg 68kg 3.5m 500mm 560mm 170mm Universal
    LRU823550 9000kg 77kg 3.5m 500mm 560mm 180mm Universal



    Click here to find out how to CHOOSE THE CORRECT DIGGA RAMP

    Can't find the ramp you're looking for? Use the chat function in the corner of the window or Contact us for advice if you're unsure what ramps are suitable for you.

    Important Shipping and Delivery Information

    These ramps are large and bulky therefore we have specific delivery requirements.

    • Deliveries can only be made to business addresses

    • There must be at least one person present at the delivery address to receive the ramp delivery, preferably multiple persons to assist the delivery driver in unloading the ramps.

    • Additional charge of $99.00 if a forklift if required for unloading

    Digga Authorised Dealer

    Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.


    Questions & Answers

    Ask a Question
    • What height are the LR152530 ramps set for?

      Hi Brett,

      2.5 ramps should work really well on a loading height of 400mm - 600mm.
