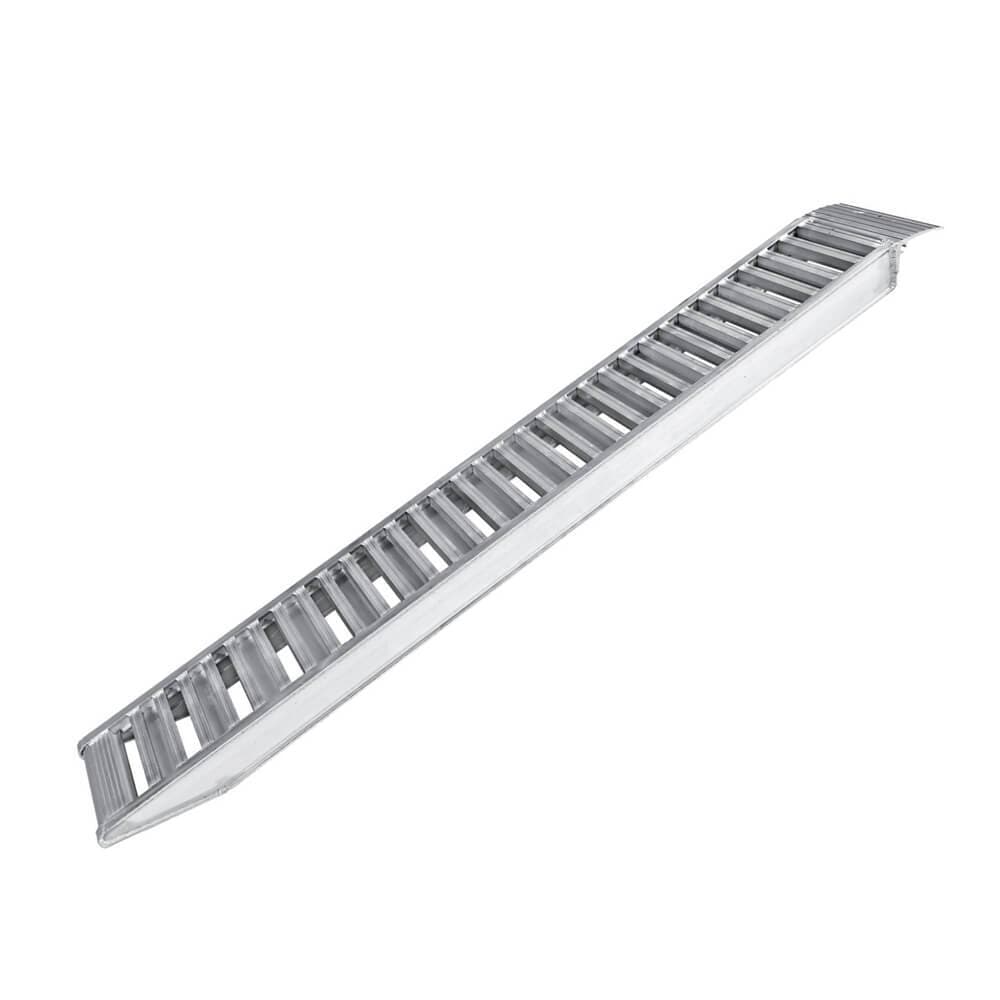

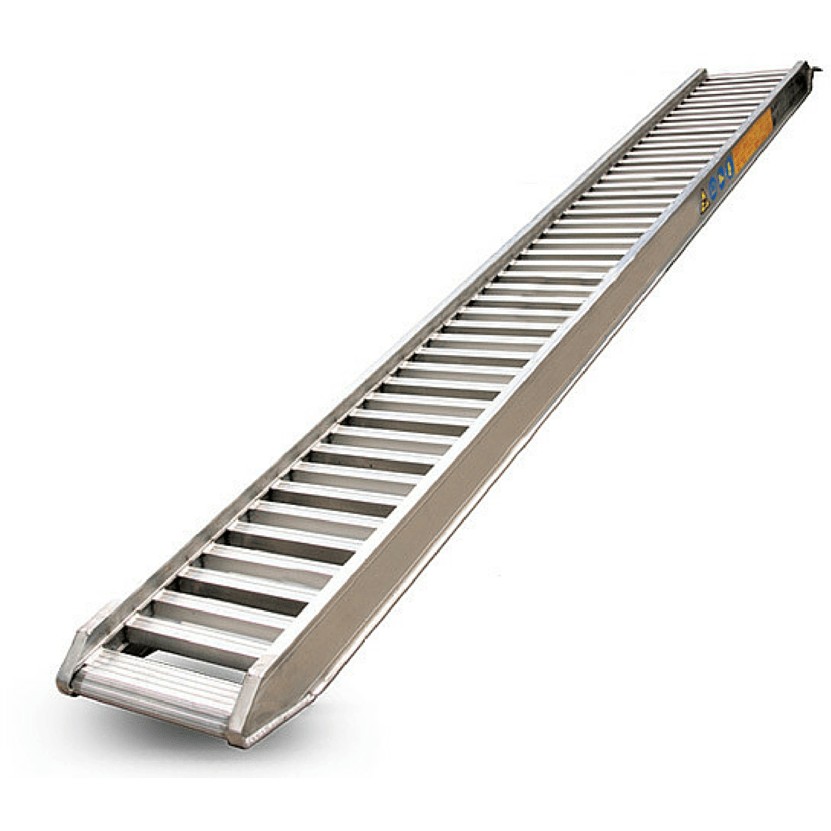

Digga 2 Tonne 3m x 360mm Ezi-Loada Aluminium Loading Ramps, Pair
Designed specifically for machines with rubber tracks and pneumatic (air) tyres, the Digga 2.3 Tonne 3m x 360mm Ezi-Loada Aluminium Machinery Loading Ramps are heavy duty yet light in weight and come with enhanced safety that delivers on quality, performance and are cost effective.
European designed and engineered, the Digga Ezi-Loada ramps feature the most advanced design available on the Australian market today.
Complete with connection plate and tongue as well as zinc coated, steel pins these aluminium loading ramps are perfect for loading onto tipper body trucks, flatbed trucks or trailers.
Features and Benefits

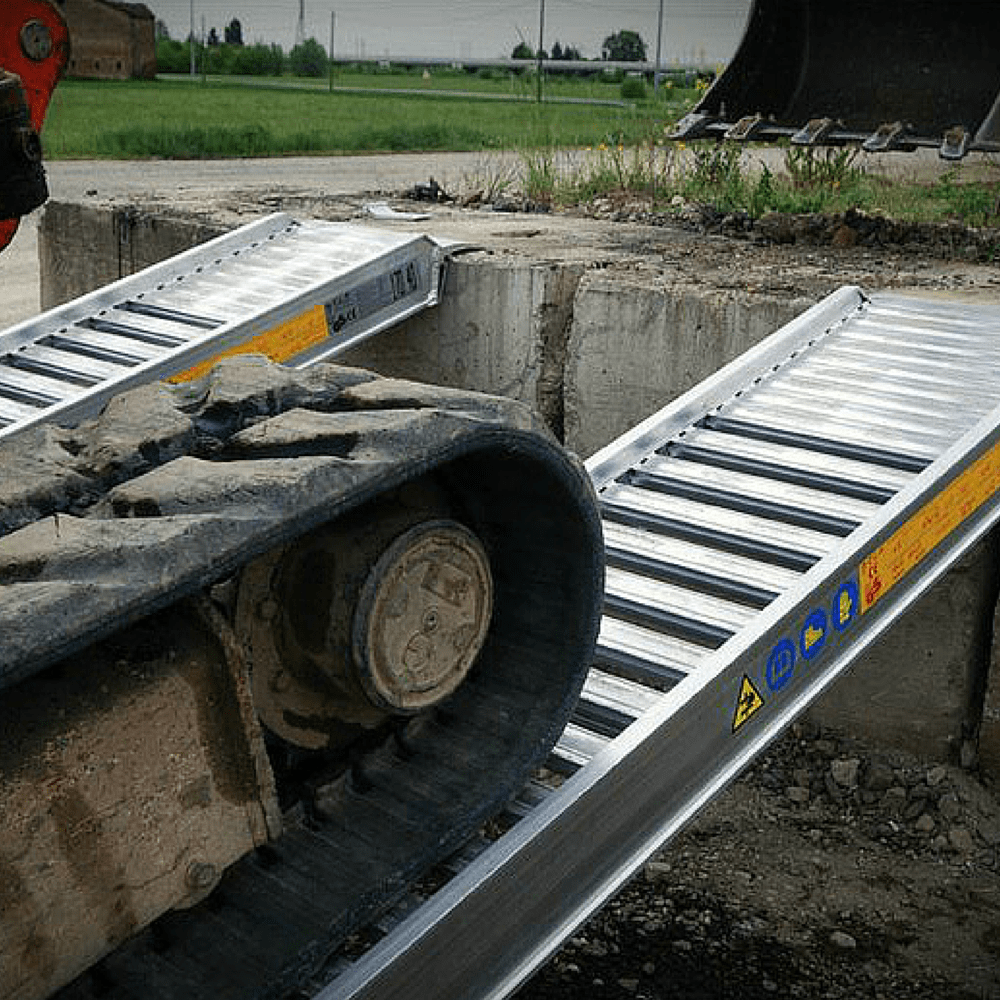

- Ideal for rubber tracks and pneumatic (air) tyres

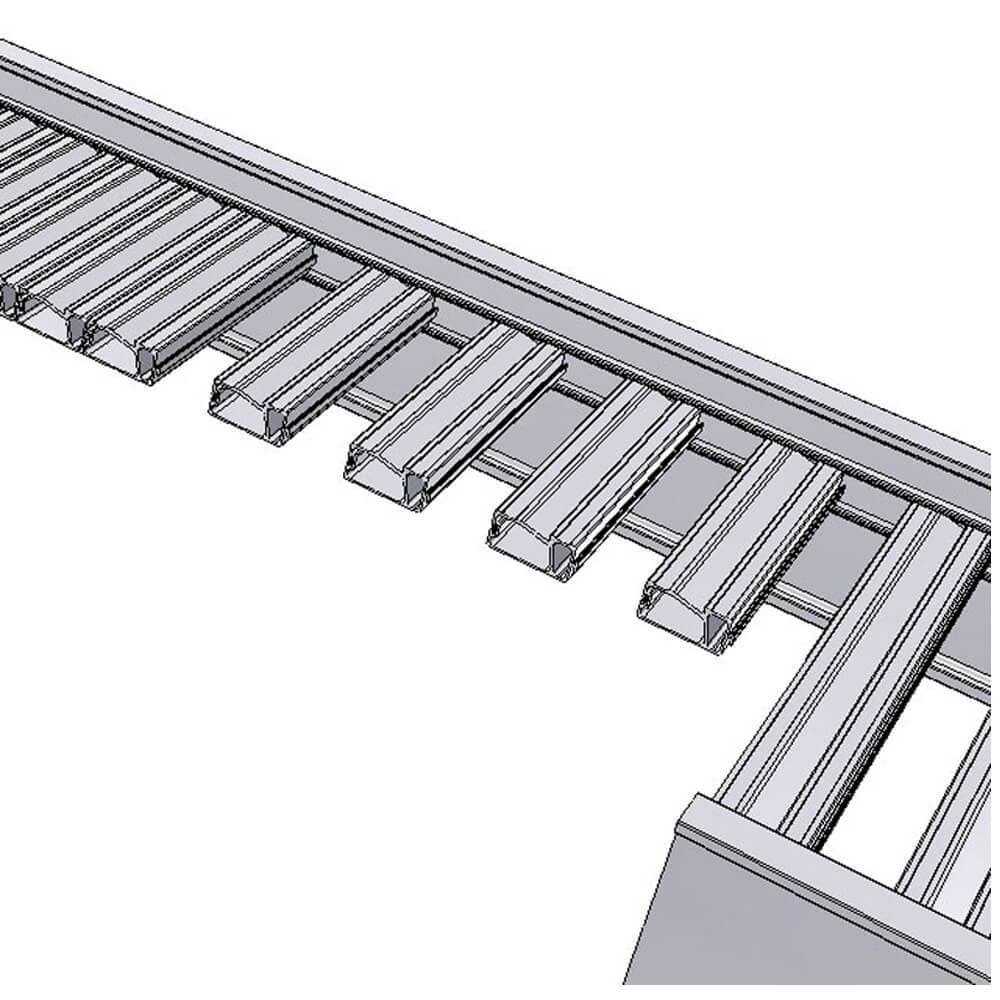

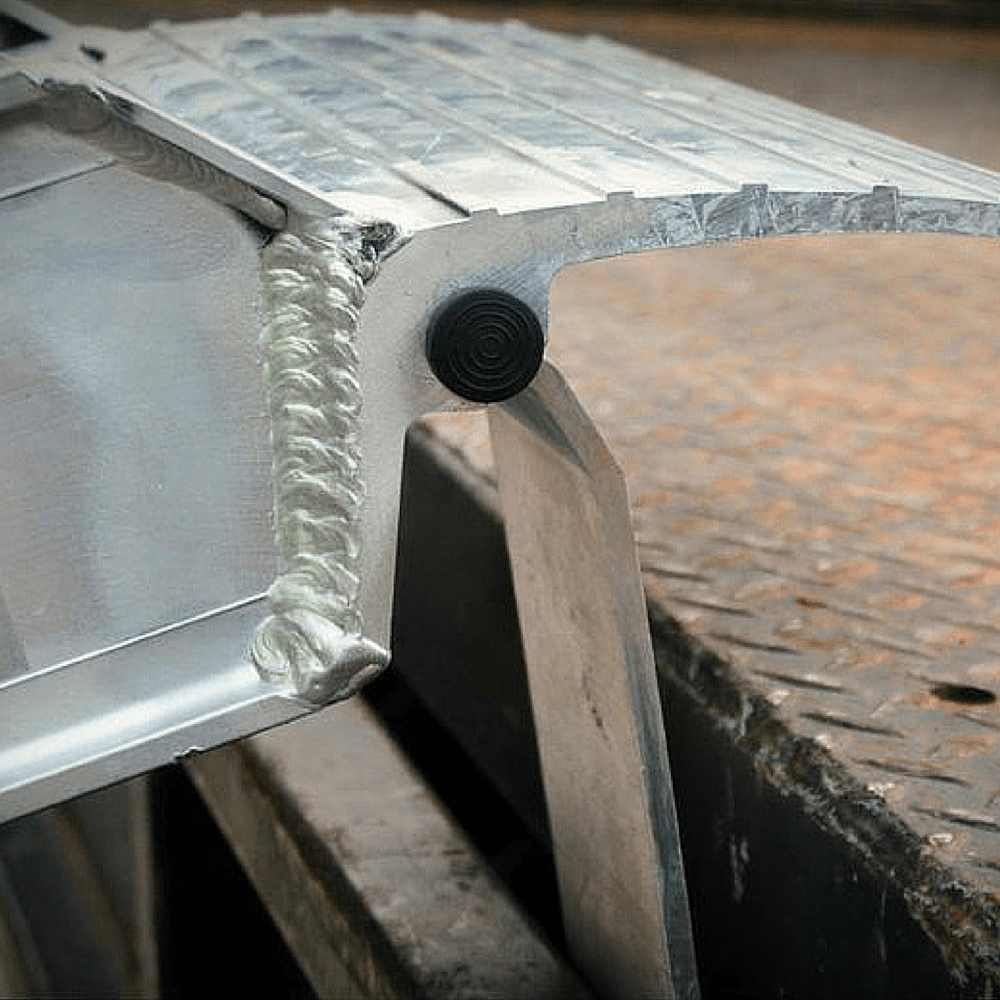

- Patented, fully extruded, double T-beam design, interlocks the rungs into the body of the rail. No physical load is taken by the weld alone. The welds (top & bottom), hold the rung in its fitted position, adding superior strength & durability.
- 3 different connection methods;

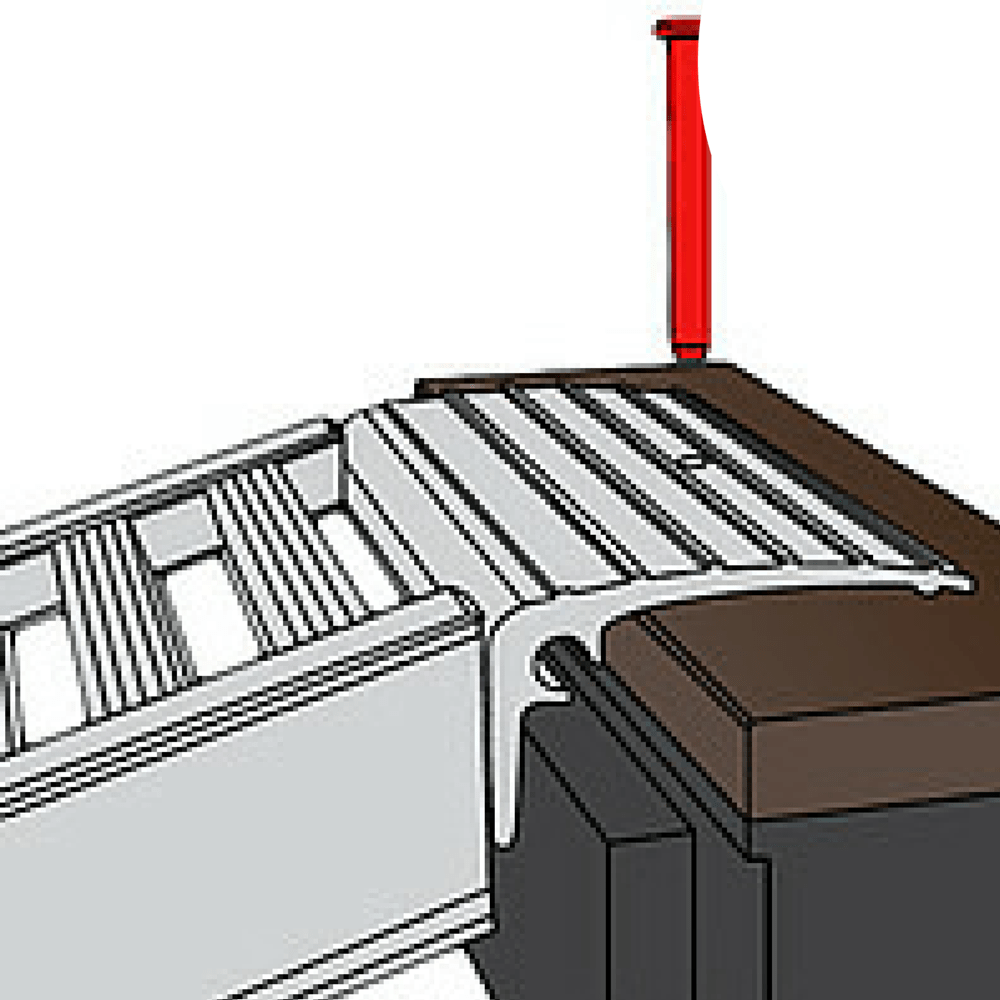

- Pin (supplied)

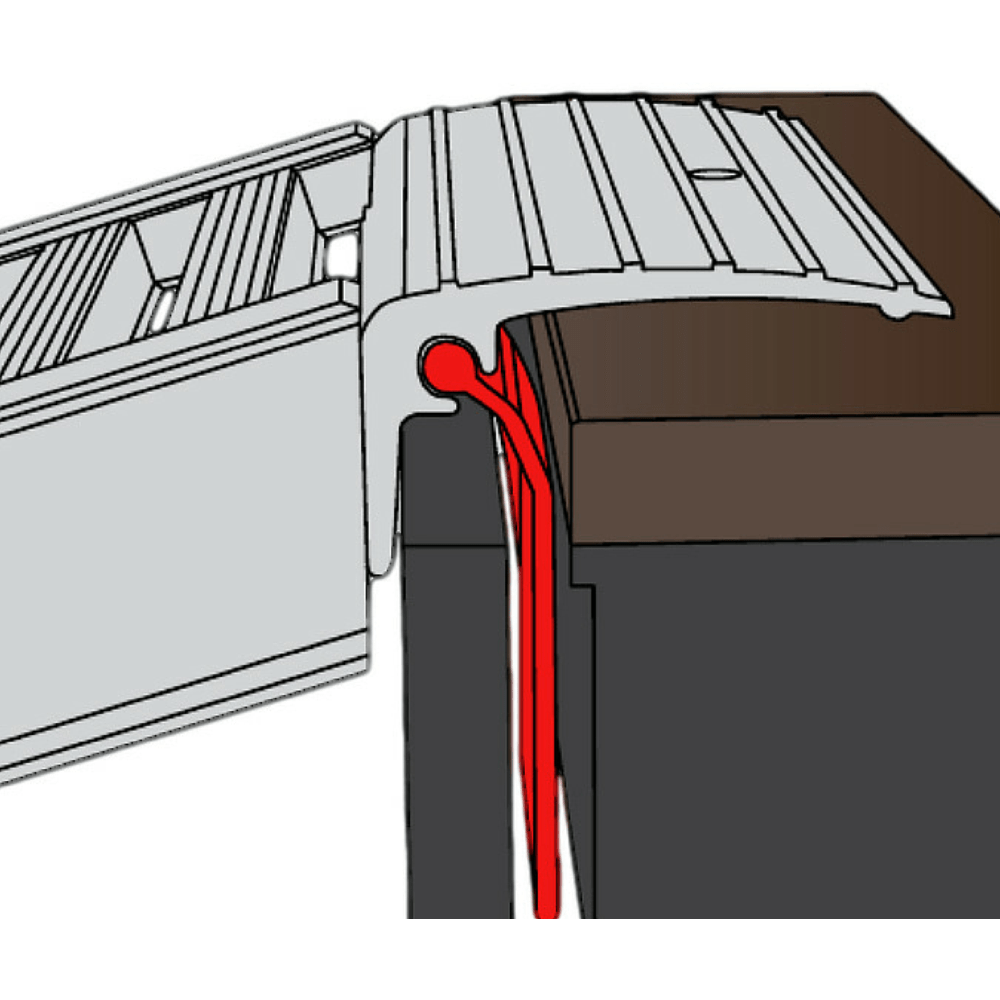

- Tongue (supplied)

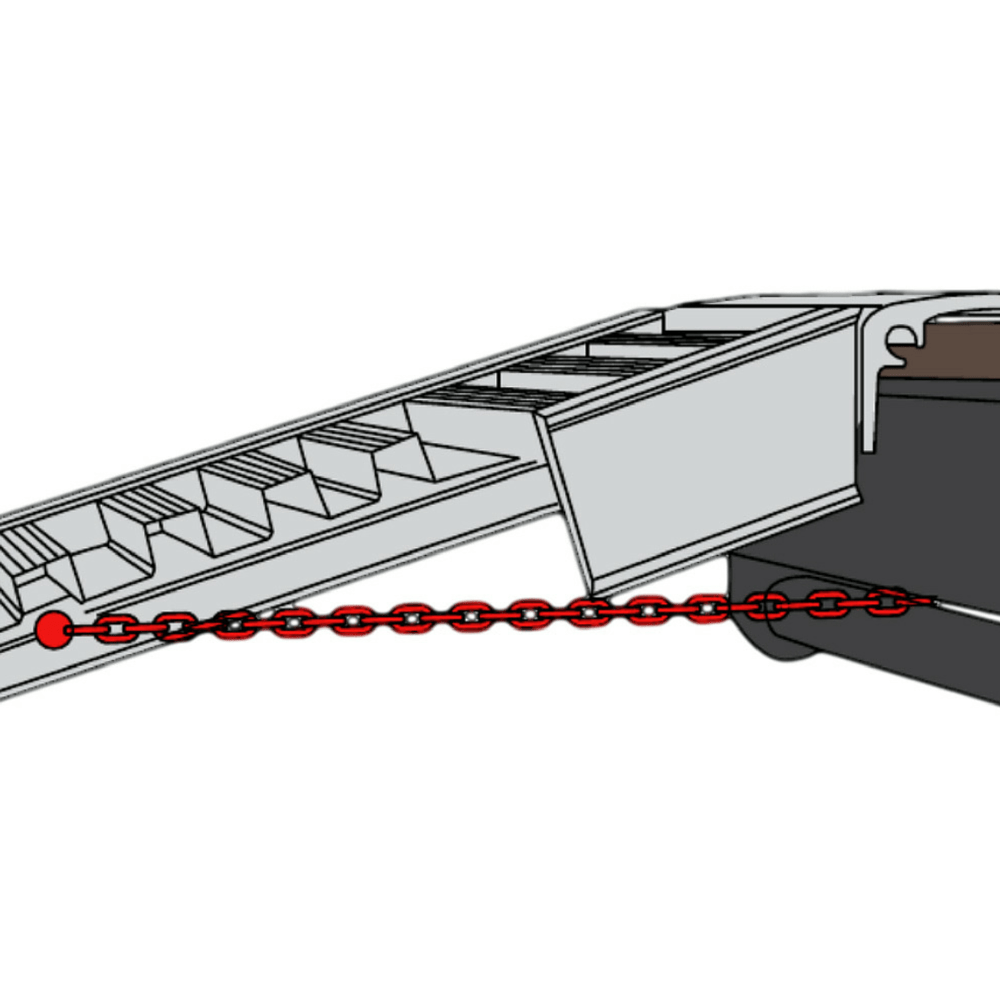

- Chain (chain not supplied)
- Enhanced beam strength
- Huge 18 Month Warranty
- Certified to the highest international standards including CE, TUV and GS certification guaranteeing the quality and safety of the ramps
- Reinforced, easy load, lead on/off design are safer and more durable than conventional ramp designs
- The reinforced bottom rung sits low to the ground ensuring machines don’t have to ‘step up’ onto the ramp. As a result, the bottom few rungs won’t bend, as so often is the case with current ramp designs. The ride is also much smoother
- Sold in pairs
Specifications
- Rated Load Capacity Per Pair: 2 tonne
- Ramp Weight Per Ramp: 23kg
- Ramp Length: 3m
- Internal Track Width: 300mm
- Ramp Width: 360mm
- Height Up To: 1.2m
- Beam: 100mm
- Series: Standard

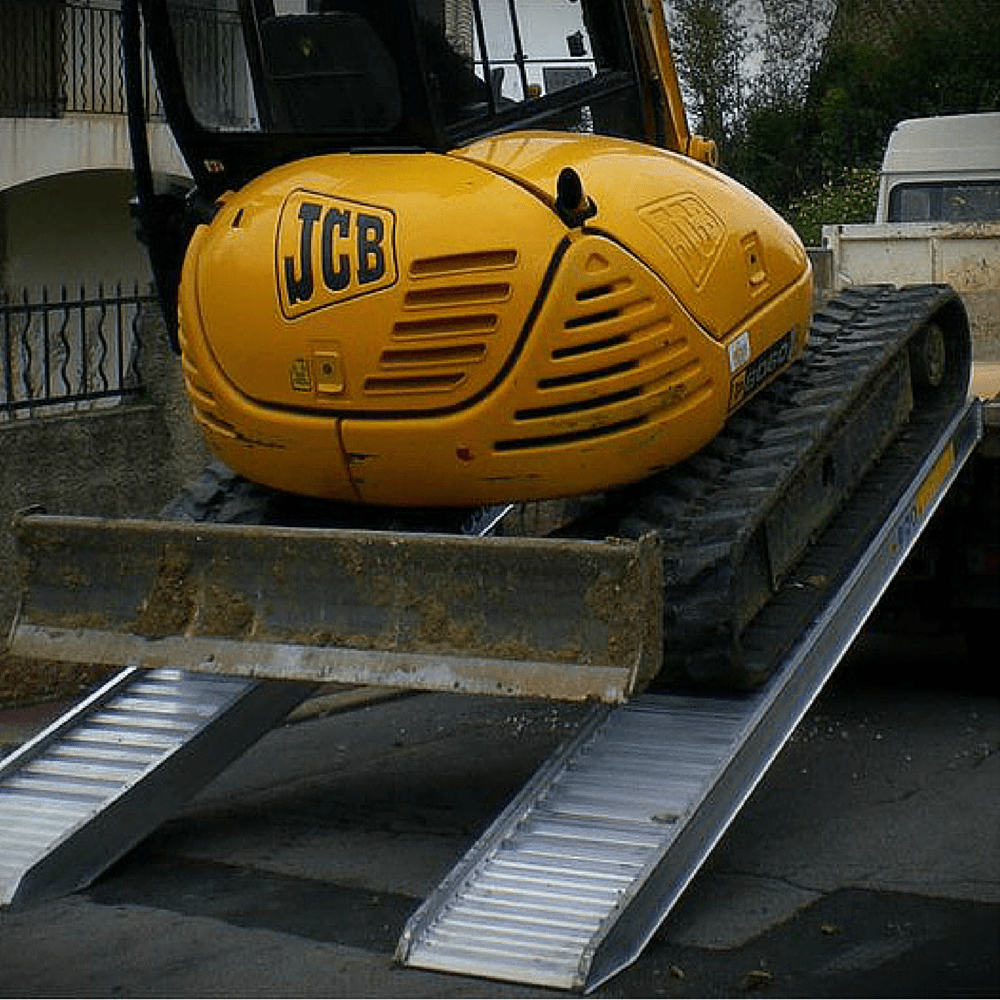

Skid steers(Bobcats), excavators, Dingo's, Ditch Witches, and other small machinery with 2 tonne ratings can now be loaded onto trailers and truck beds with these aluminium machinery loading ramps. The ramps have raised sides to allow safe, worry-free loading.
Where steel tracks are to be used on ramps, please refer to the Universal Series which have a different tread surface to the Standard Series Ramps. See the table below, for Digga's full range of Standard Series Ramps.
Ramp Specifications
Product Code |
Rated Capacity |
Ramp Mass |
Ramp Length |
Track Width (internal) |
Ramp Width |
Beam |
Series |
LR152530 | 1000kg | 14kg | 2.5m | 255mm | 300mm | 64mm | Standard |
LR233030 | 2000kg | 23kg | 3.0m | 300mm | 360mm | 100mm | Standard |
LR303030 | 3000kg | 26kg | 3.0m | 300mm | 360mm | 115mm | Standard |
LR303535 | 3000kg | 26kg | 3.5m | 350mm | 410mm | 115mm | Standard |
LR353535 | 3500kg | 36kg | 3.5m | 350mm | 410mm | 125mm | Standard |
LR403545 | 4000kg | 45kg | 3.5m | 450mm | 510mm | 140mm | Standard |
LR473545 | 4700kg | 48kg | 3.5m | 450mm | 510mm | 155mm | Standard |
LR473550 | 4700kg | 51kg | 3.5m | 500mm | 560mm | 155mm | Standard |
LR593545 | 5900kg | 51kg | 3.5m | 450mm | 510mm | 165mm | Standard |
LRU593550 | 6200kg | 65kg | 3.5m | 500mm | 560mm | 165mm | Universal |
LRU663550 | 7000kg | 68kg | 3.5m | 500mm | 560mm | 170mm | Universal |
LRU823550 | 9000kg | 77kg | 3.5m | 500mm | 560mm | 180mm | Universal |
Click here to find out how to CHOOSE THE CORRECT DIGGA RAMP
Can't find the ramp you're looking for? Use the chat function in the corner of the window or Contact us for advice if you're unsure what ramps are suitable for you.
