Digga 4.7-Tonne 3.5m x 510mm Ezi-Loada Aluminium Loading Ramps

$2,32100 $2,55300
Digga  |  SKU: LR473545

Description

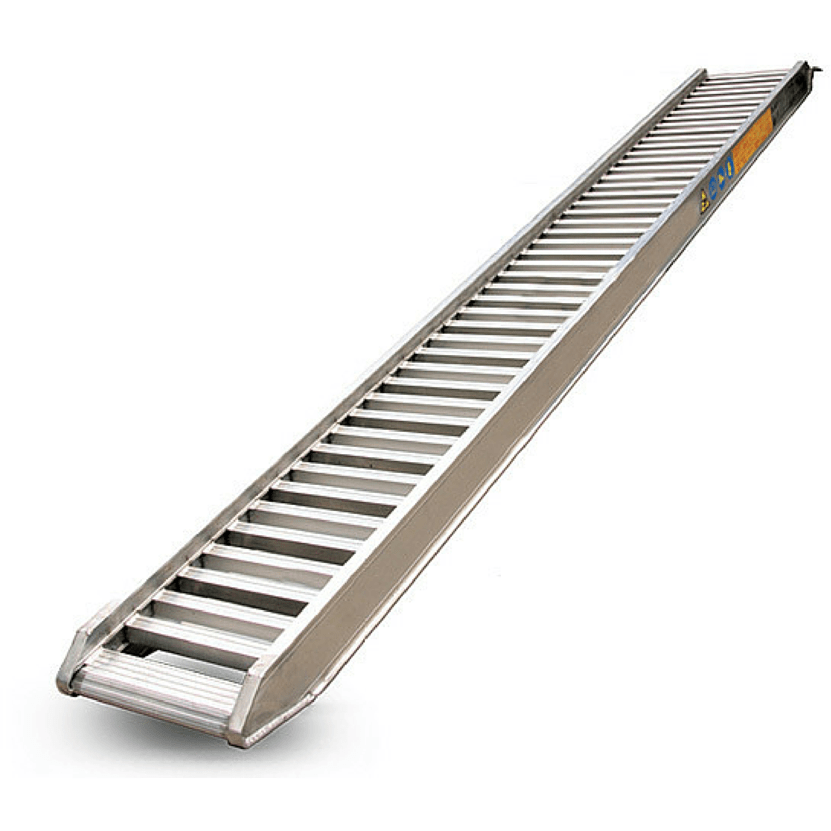

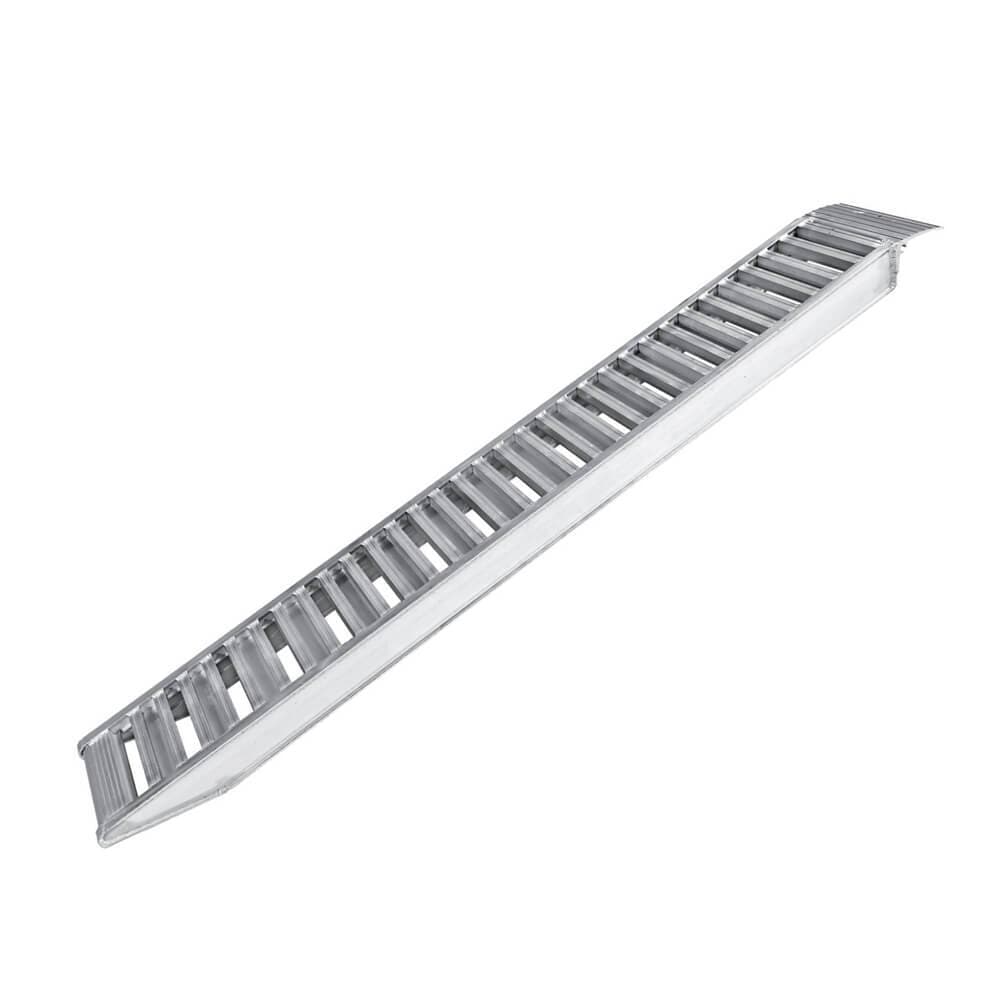

Digga 4.7 Tonne 3.5m x 510mm Ezi-Loada Aluminium Loading Ramps, Pair

Designed specifically for machines with rubber tracks andĀ pneumaticĀ (air) tyres, the Digga 4.7 Tonne 3.5m x 510mm Ezi-Loada Aluminium Machinery Loading Ramps are heavy duty yet light in weight and come with enhanced safety that delivers on quality, performance, and is cost-effective.

European designed and engineered, the Digga Ezi-Loada ramps feature the most advanced design available on the Australian market today.

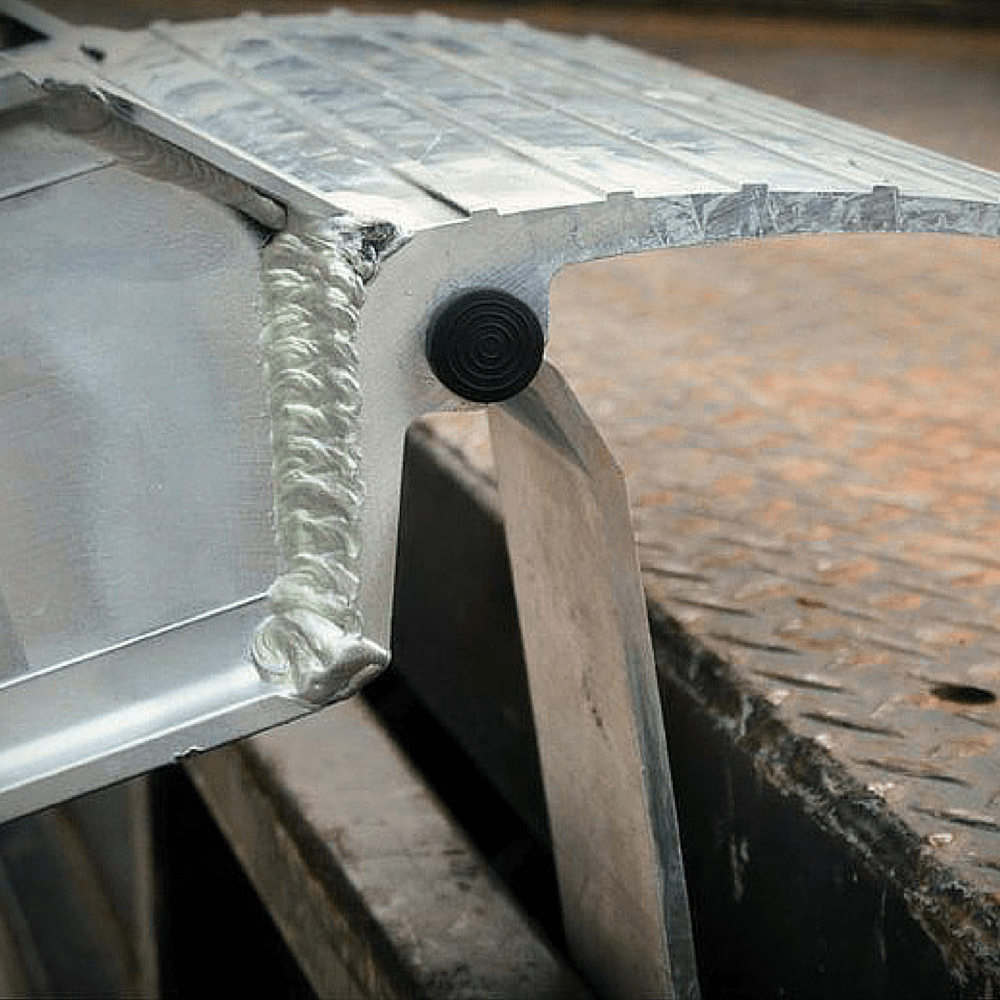

Complete with connection plate and tongue as well as zinc coated, steel pins these aluminium loading ramps are perfect for loading onto tipper body trucks, flatbed trucks or trailers.

Digga 4.7 Tonne 3.5m x 510mm Ezi-Loada Aluminium Loading Ramps

Features and Benefits

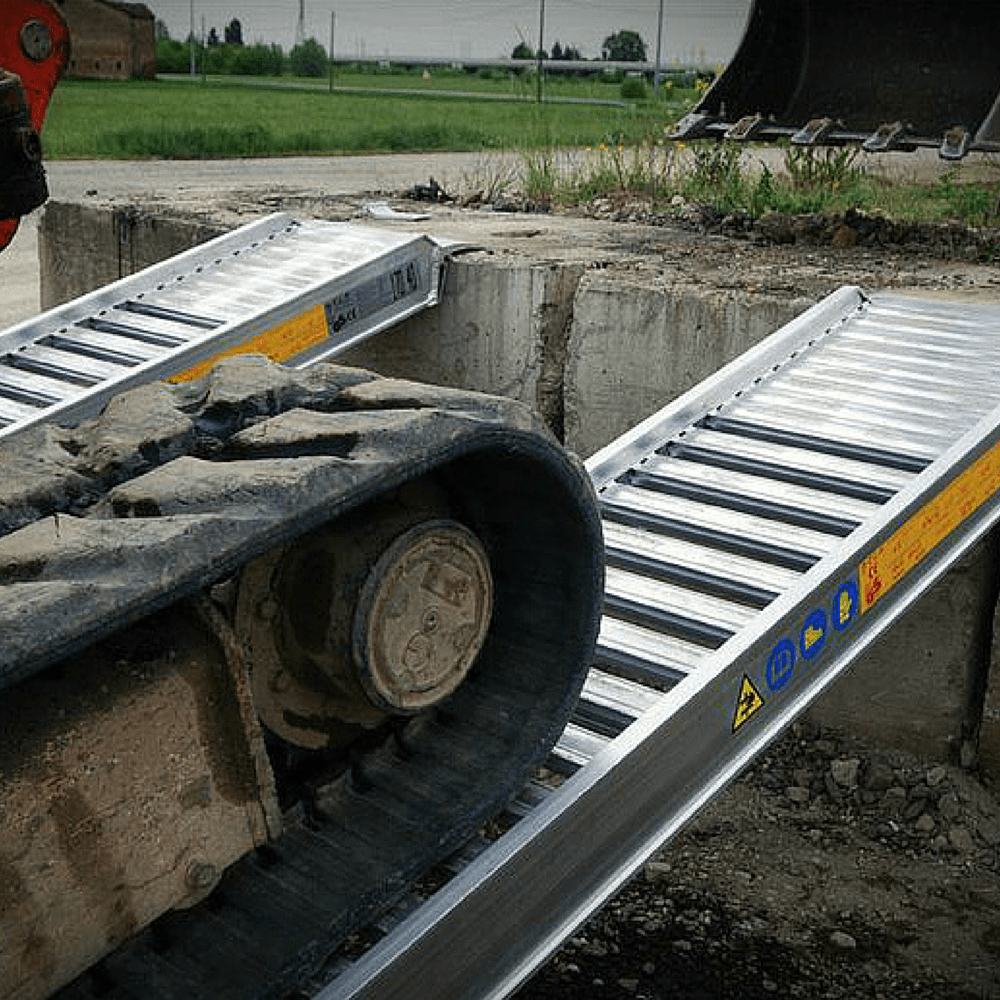

  • Ideal for rubber tracks and pneumatic (air) tyres

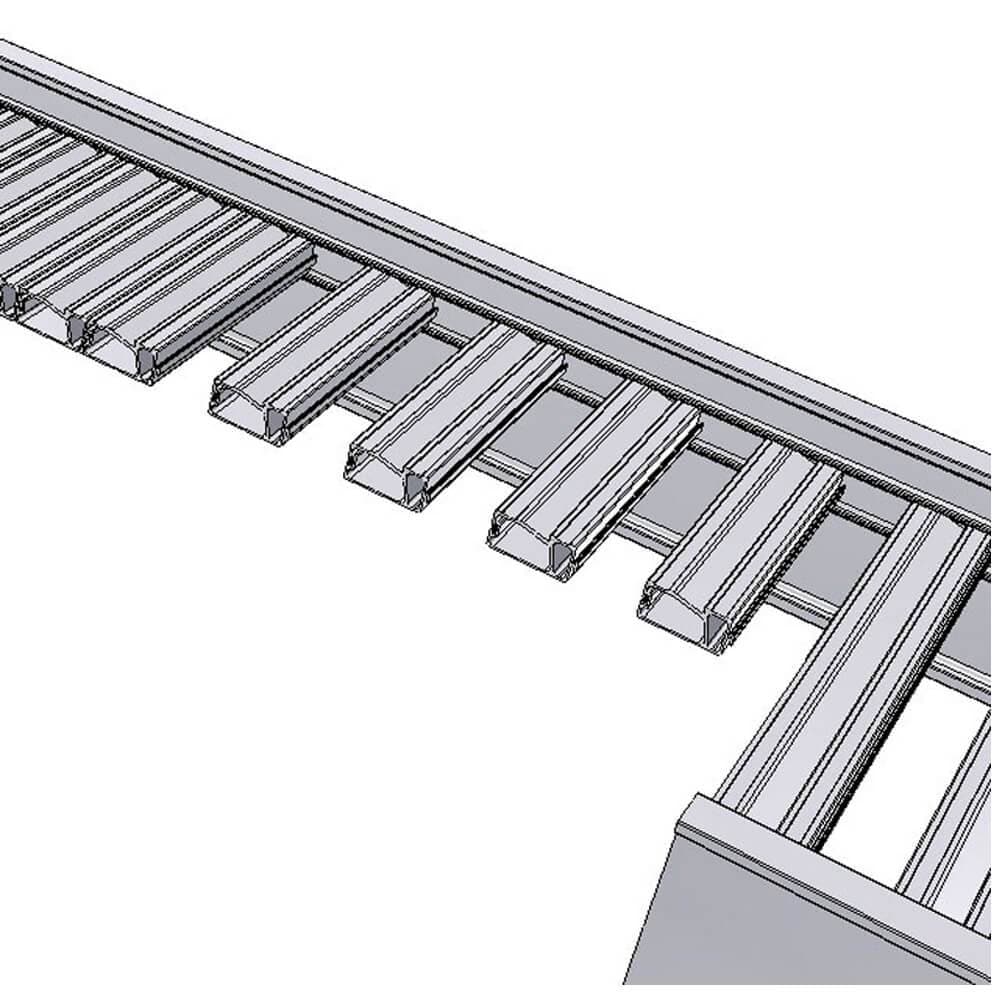

  • Patented, fully extruded, double T-beam design, interlocks theĀ rungs into the body of the rail. No physical load is taken by theĀ weld alone. The welds (top & bottom), hold the rung in its fittedĀ position, adding superior strength & durability.
  • 3 different connection methods;

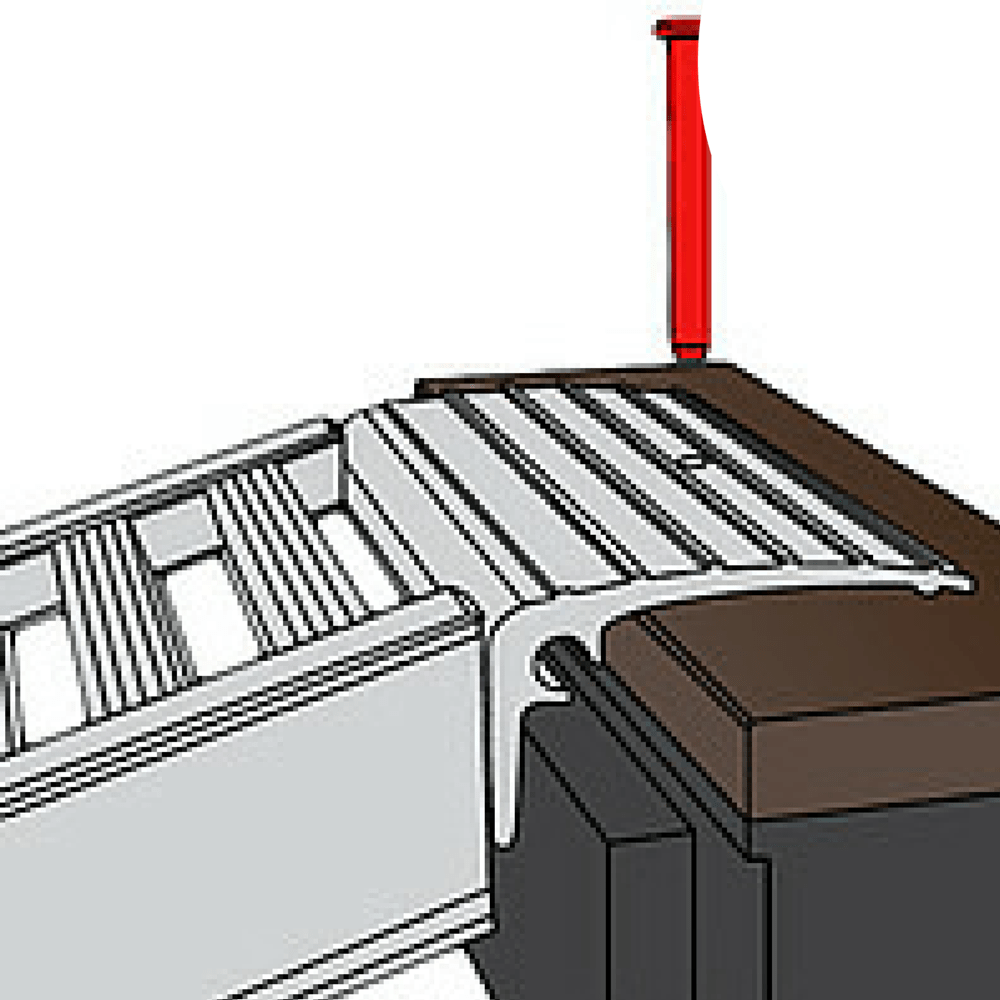

    • Pin (supplied)

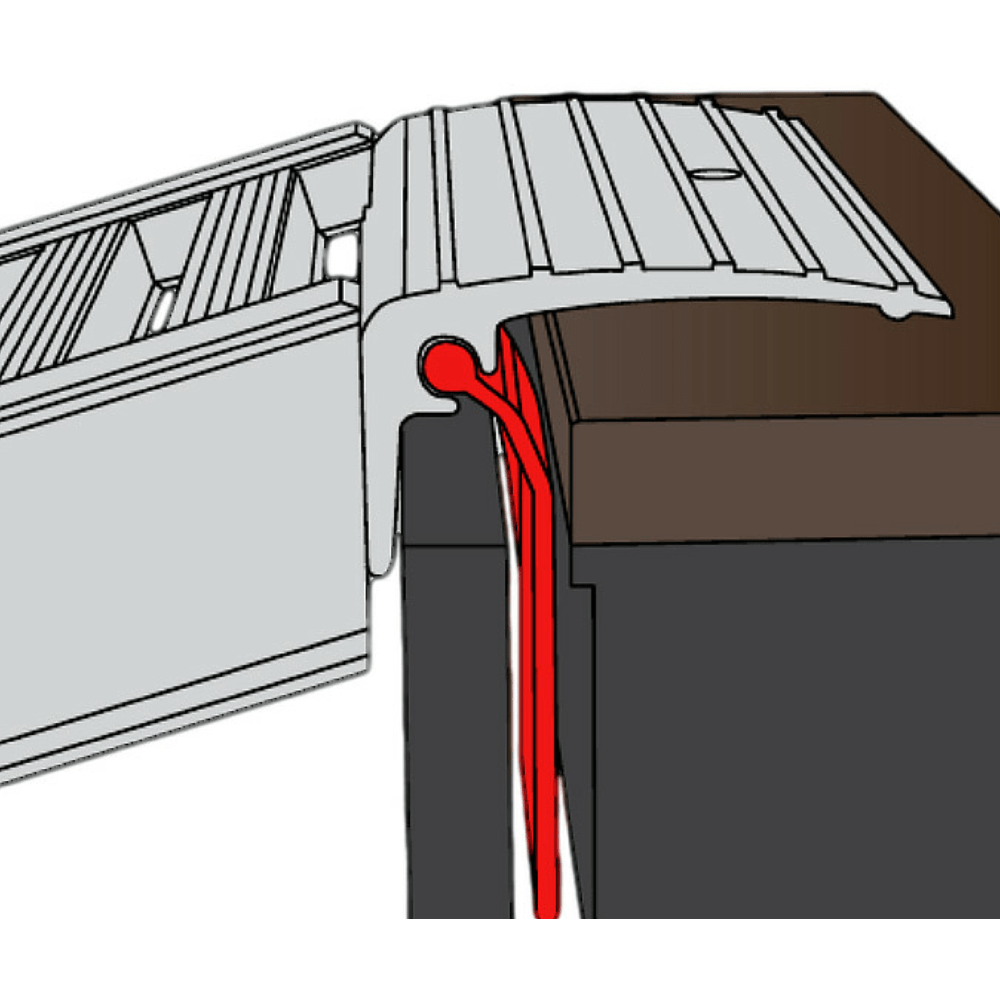

    • Tongue (supplied)

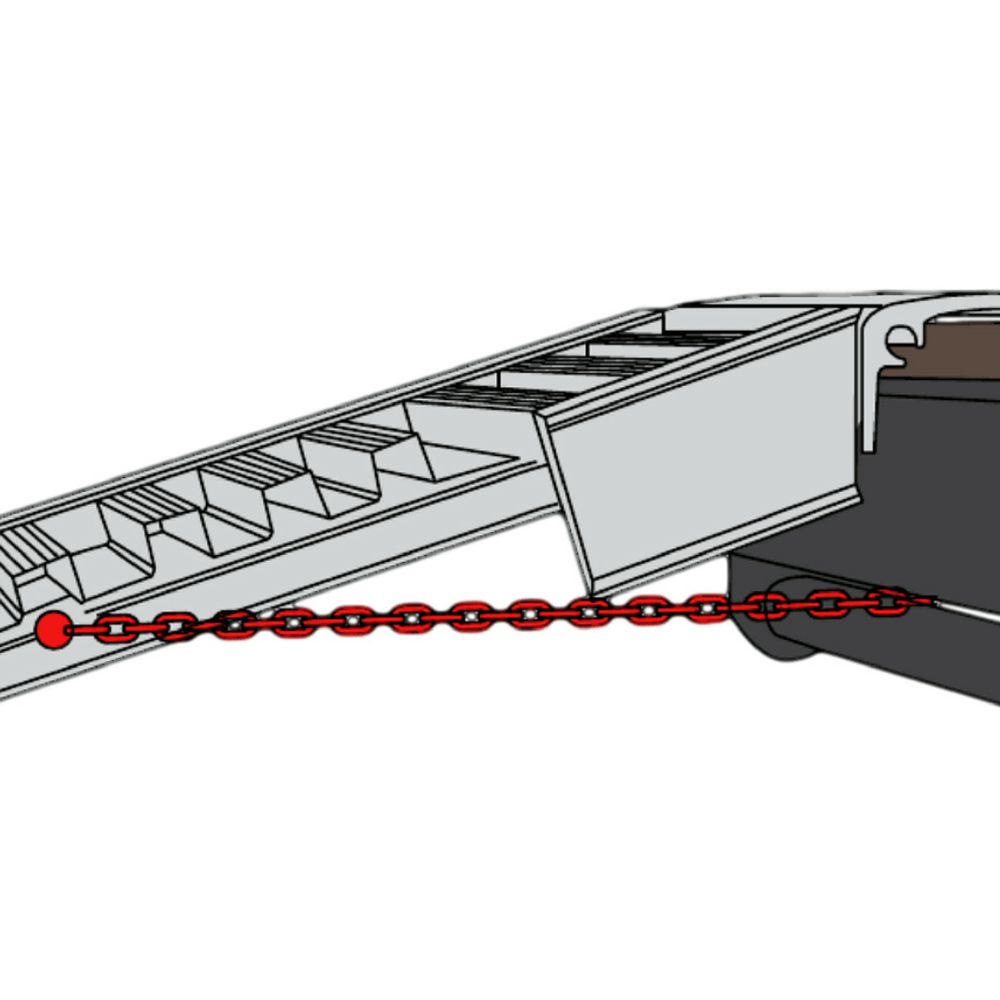

    • Chain (chain not supplied)
  • Enhanced beam strength
  • Huge 18 Month Warranty
  • Certified to the highest international standards includingĀ CE, TUV and GS certificationĀ guaranteeing the quality and safety of the ramps
  • Reinforced, easy load, lead on/off designs are safer and moreĀ durable than conventional ramp designs
  • The reinforced bottom rung sits low to the ground ensuringĀ machines donā€™t have to ā€˜step upā€™ onto the ramp. As a result, theĀ bottom few rungs wonā€™t bend, as so often is the case with currentĀ ramp designs. The ride is also much smoother
  • Sold in pairs

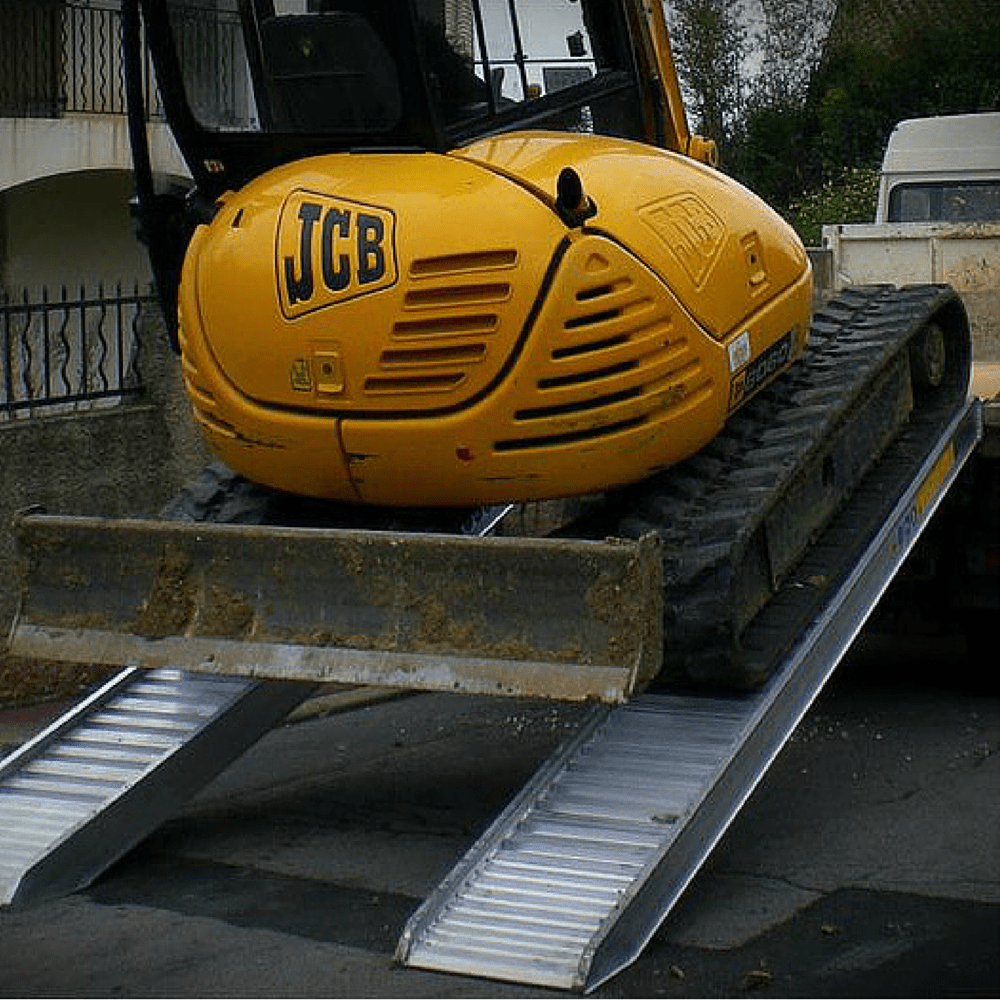

    Skid steers(Bobcats), excavators, Dingo's, Ditch Witches, and other smallĀ machinery with 4.7-tonneĀ ratings can now be loaded onto trailers and truck beds with theseĀ aluminium machinery loading ramps. The ramps haveĀ raised sidesĀ to allow safe, worry-free loading.

    Where steel tracks are to be used on ramps, please refer to theĀ UniversalĀ SeriesĀ which have a different tread surface to theĀ Standard Series Ramps.Ā See the table below, for Digga's full range ofĀ Standard SeriesĀ Ramps.

    Ramp SpecificationsĀ

    Product

    Code

    Rated

    Capacity

    Ramp

    Mass

    Ramp

    Length

    Track

    Width

    (internal)

    Ramp

    Width

    Beam

    Series

    LR152530 1000kg 14kg 2.5m 255mm 300mm 64mm Standard
    LR233030 2000kg 23kg 3.0m 300mm 360mm 100mm Standard
    LR303030 3000kg 26kg 3.0m 300mm 360mm 115mm Standard
    LR303535 3000kg 26kg 3.5m 350mm 410mm 115mm Standard
    LR353535 3500kg 36kg 3.5m 350mm 410mm 125mm Standard
    LR403545 4000kg 45kg 3.5m 450mm 510mm 140mm Standard
    LR473545 4700kg 48kg 3.5m 450mm 510mm 155mm Standard
    LR473550 4700kg 51kg 3.5m 500mm 560mm 155mm Standard
    LR593545 5900kg 51kg 3.5m 450mm 510mm 165mm Standard
    LRU593550 6200kg 65kg 3.5m 500mm 560mm 165mm Universal
    LRU663550 7000kg 68kg 3.5m 500mm 560mm 170mm Universal
    LRU823550 9000kg 77kg 3.5m 500mm 560mm 180mm Universal

    Ā

    Click here to find out how to CHOOSE THE CORRECT DIGGA RAMP

    Can't find the ramp you're looking for? Use the chat function in the corner of the window orĀ Contact us for adviceĀ if you're unsure what ramps are suitable for you.

    Digga Authorised Dealer

    Specifications

    • Capacity
      4700kg (pair)
    • Weight
      48kg (per ramp)
    • Length
      3500mm
    • Width
      510mm
    • Internal Width
      450mm
