Digga 7-Tonne 3.5m x 560mm Ezi-Loada Aluminium Loading Ramps

by Digga
1 review
Save $305.00
Original price $3,352.00
Current price $3,047.00
SKU: LRU663550

āœ“ Fast Shipping + Order Tracking
āœ“ Pickup In-Store Available
āœ“ Questions? Call Us: 1300 913 047

Bulky Delivery Item: This product is bulky and requires a tailgate courier for residential delivery or a forklift to unload for business deliveries. See below for full details.

šŸŽ„ Will this arrive before Christmas? Lead times vary depending on your delivery location. Click here for more info.

Estimated Arrival: Between and .

Request a Quote

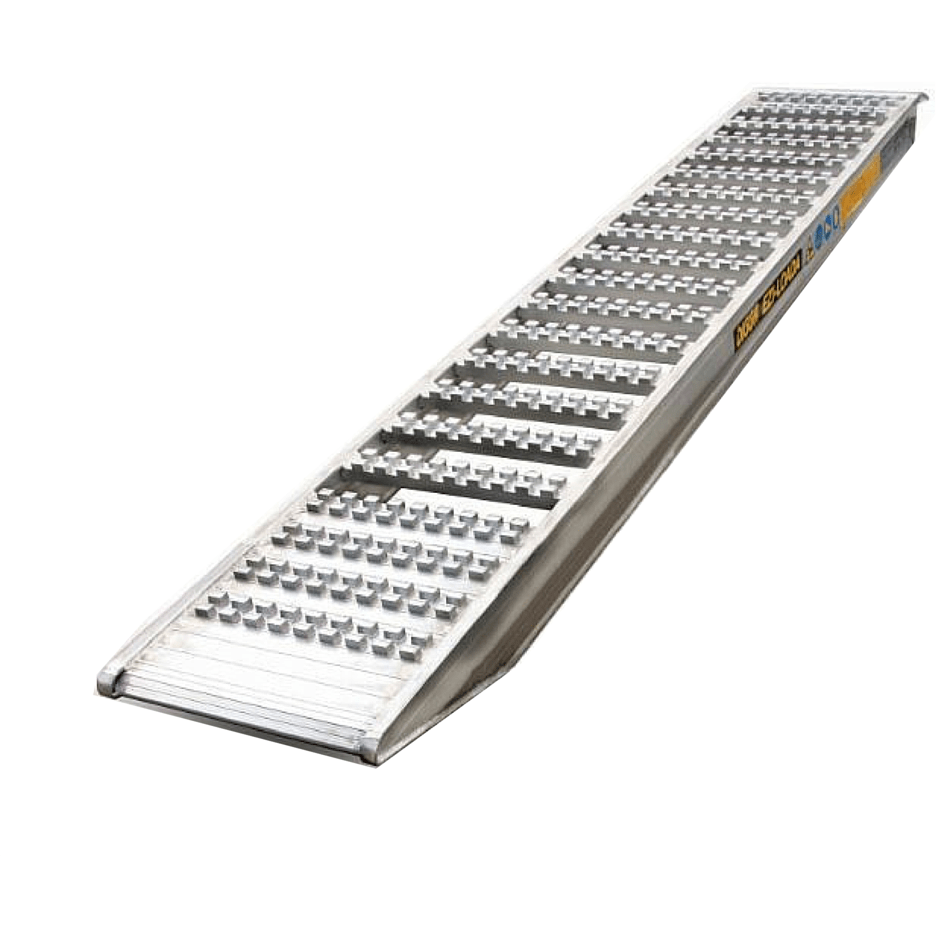

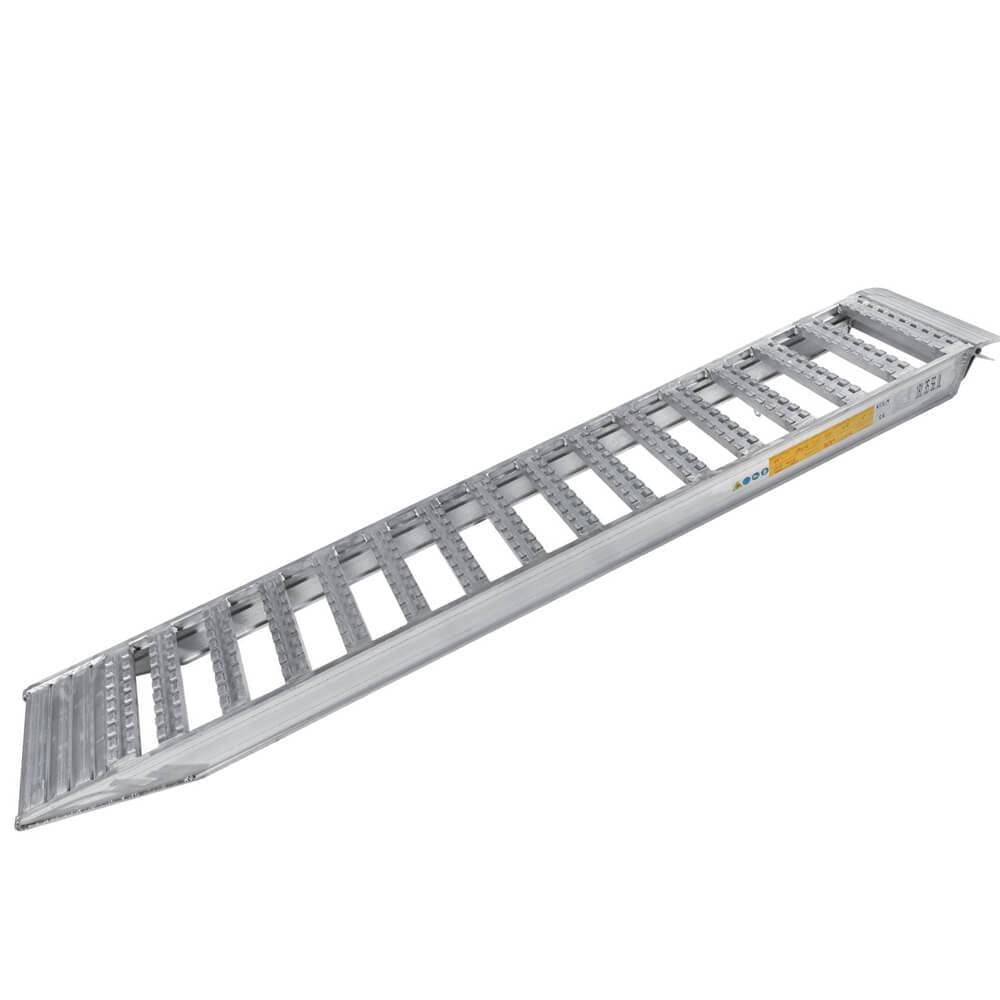

Digga 7 Tonne 3.5m x 560mm Ezi-Loada Aluminium Loading Ramps, Pair

Designed for all types of machines including ļ»æsteel tracks,Ā rubber tracks andĀ pneumaticĀ (air) tyres, the Digga 7Ā Tonne 3.5m x 560mm Ezi-Loada Aluminium Machinery Loading Ramps are heavy-duty yet light in weight and come with enhanced safety that delivers on quality, performance and are cost-effective.

European designed and engineered, the Digga Ezi-Loada ramps feature the most advanced design available on the Australian market today.

Complete with connection plate and tongue as well as zinc-coated, steel pins these aluminium loading ramps are perfect for loading onto tipper body trucks, flatbed trucks or trailers.

Digga 7 Tonne 3.5m x 560mm Ezi-Loada Aluminium Loading Ramps

Features and Benefits

  • AllĀ purpose loading ramps suitable for rubber tracks, steel tracks, and wheeled machines

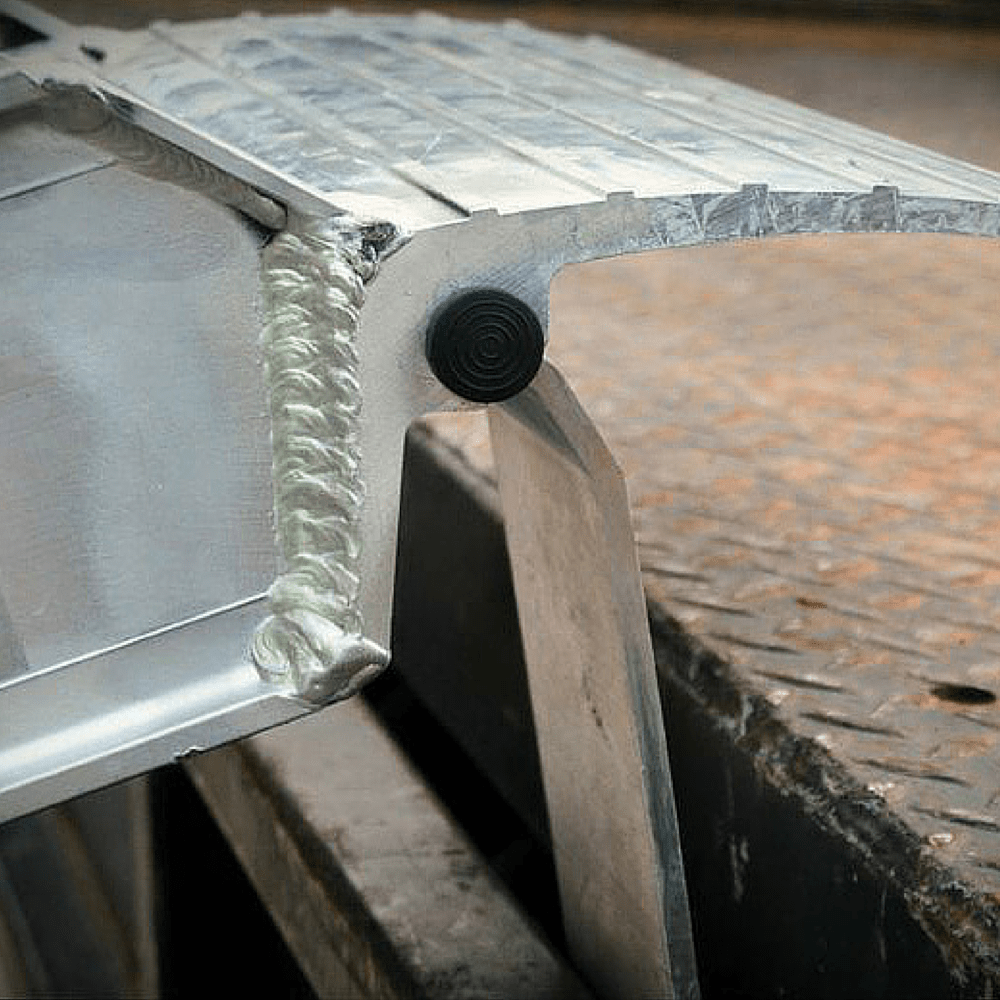

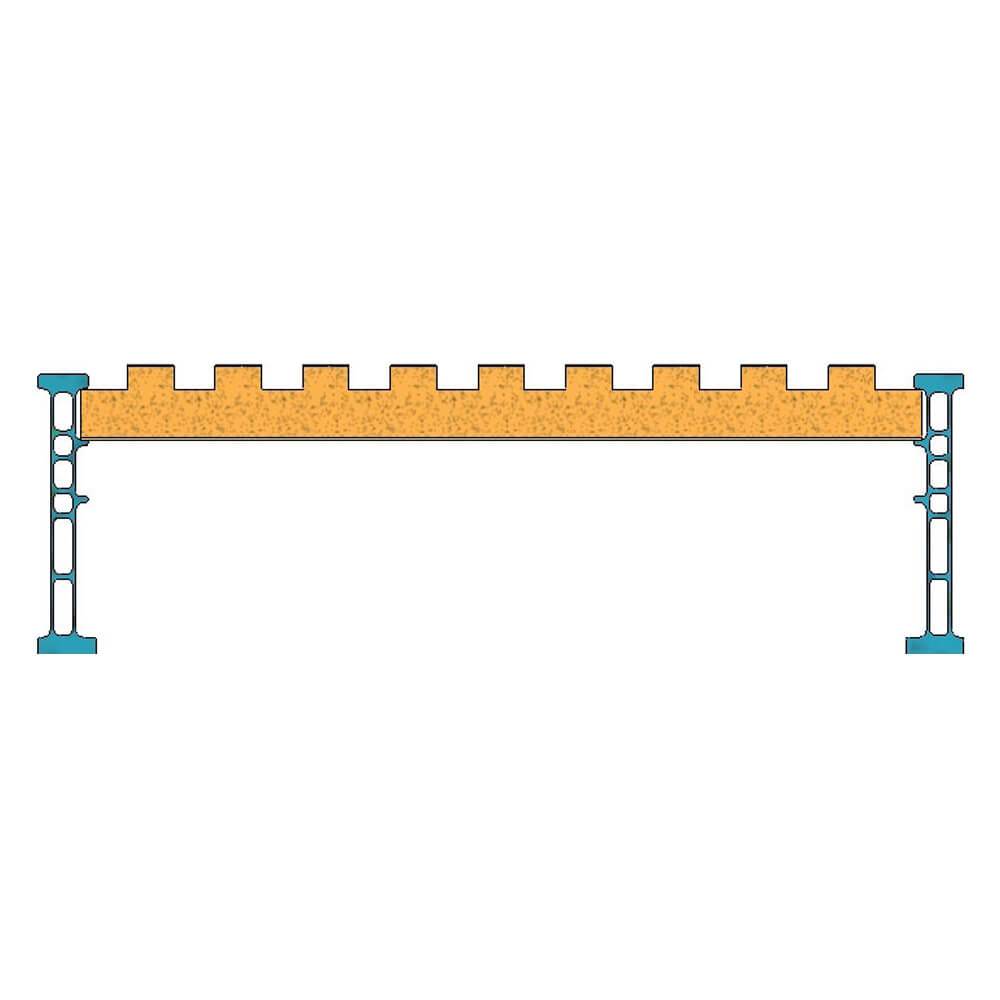

  • Patented, fully extruded, double T-beam design, interlocks theĀ rungs into the body of the rail. No physical load is taken by theĀ weld alone. The welds (top & bottom), hold the rung in its fittedĀ position, adding superior strength & durability.
  • 3 different connection methods;

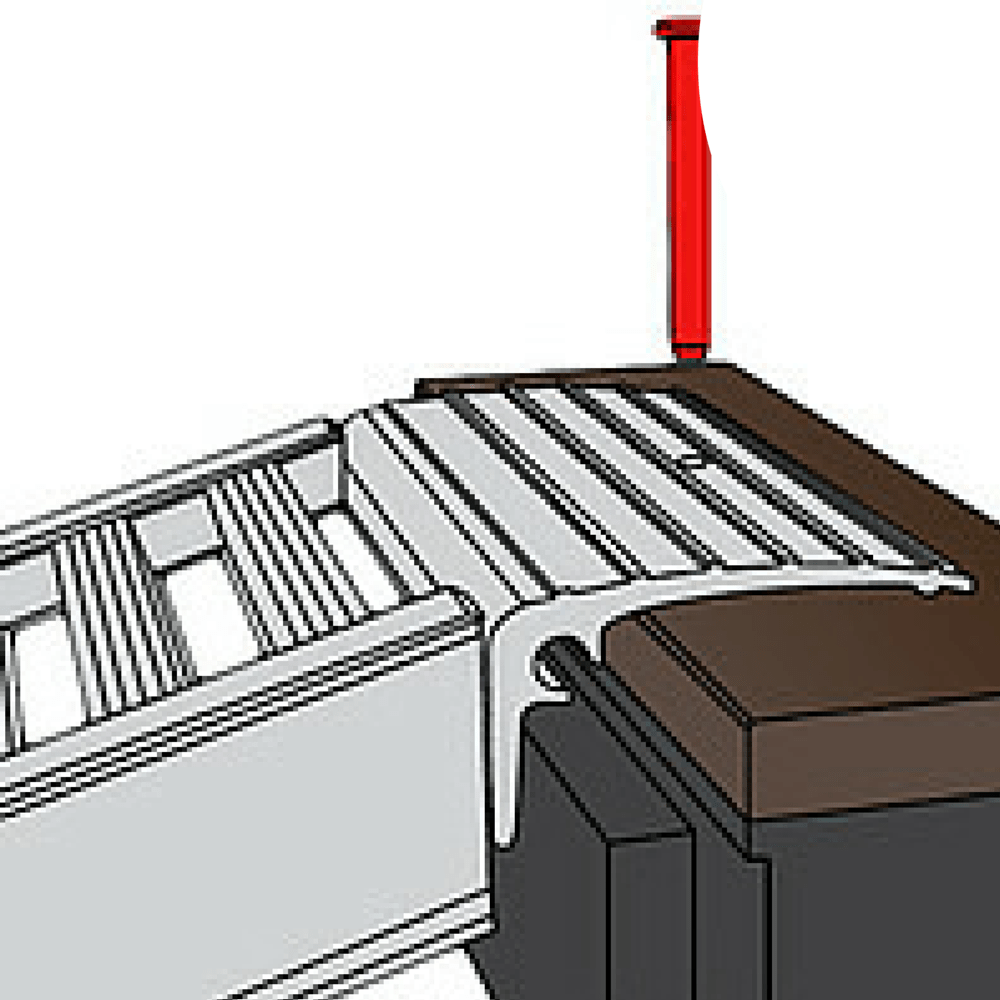

    • Pin (supplied)

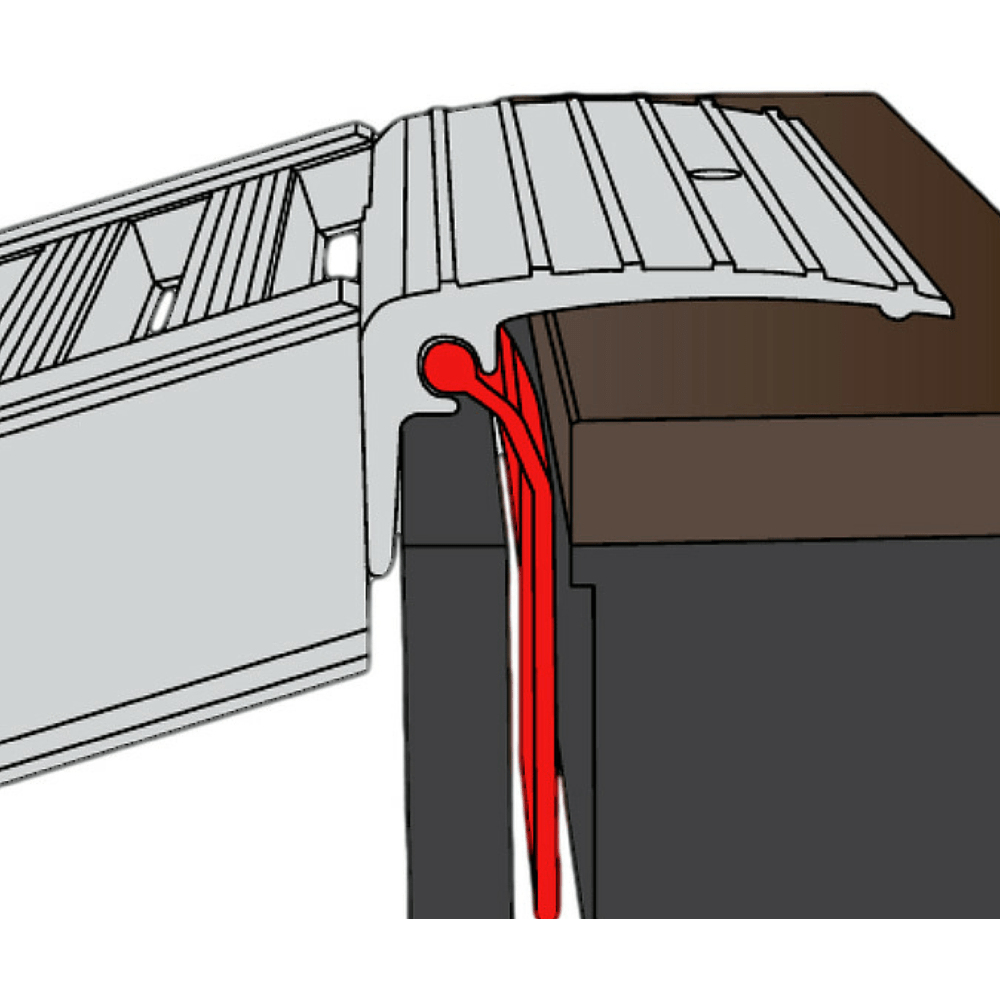

    • Tongue (supplied)

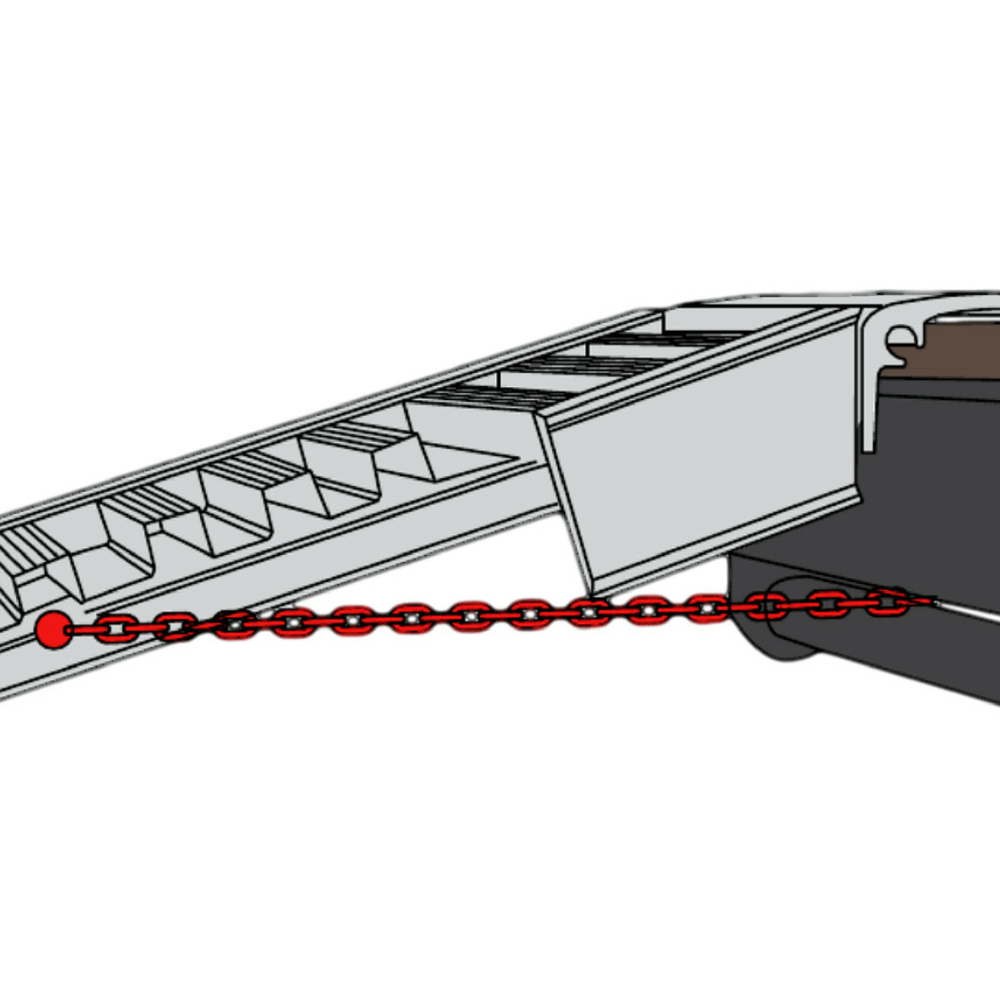

    • Chain (chain not supplied)
  • Enhanced beam strength
  • Huge 18 Month Warranty
  • Certified to the highest international standards includingĀ CE, TUV and GS certificationĀ guaranteeing the quality and safety of the ramps

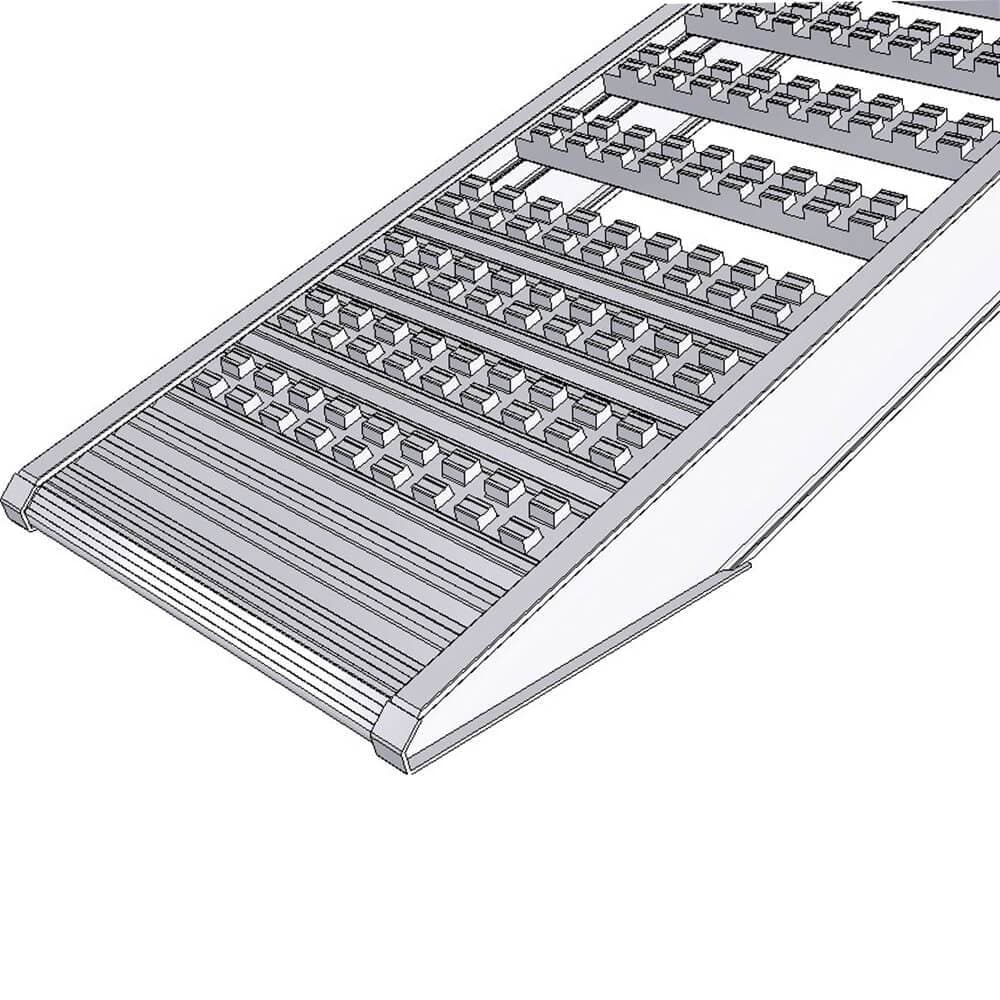

  • Reinforced, easy load, lead on/off design are safer and moreĀ durable than conventional ramp designs
  • Rungs are level with the top of the main supporting rail, minimising wear and providing greater durability

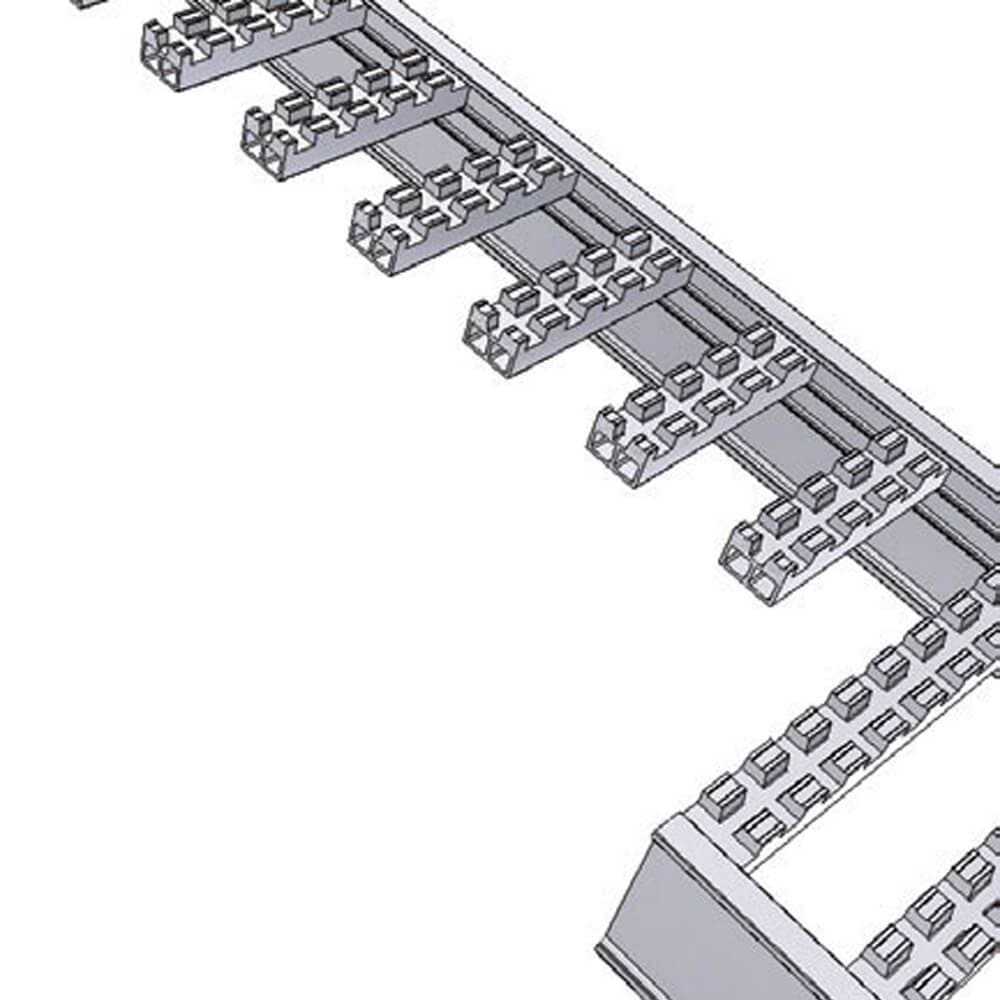

  • Patented, studded rungs are machined from a solid, not hollow extrusion, minimising slip or loss of grip during the loading/unloading activity
  • Sold in pairs

    Specifications

    • Rated Load Capacity Per Pair: 7Ā tonne
    • Ramp Weight Per Ramp: 68kg
    • Ramp Length: 3.5m
    • Internal Track Width: 500mm
    • Ramp Width: 560mm
    • Height Up To: 1.4m
    • Beam: 170mm
    • Series: Standard

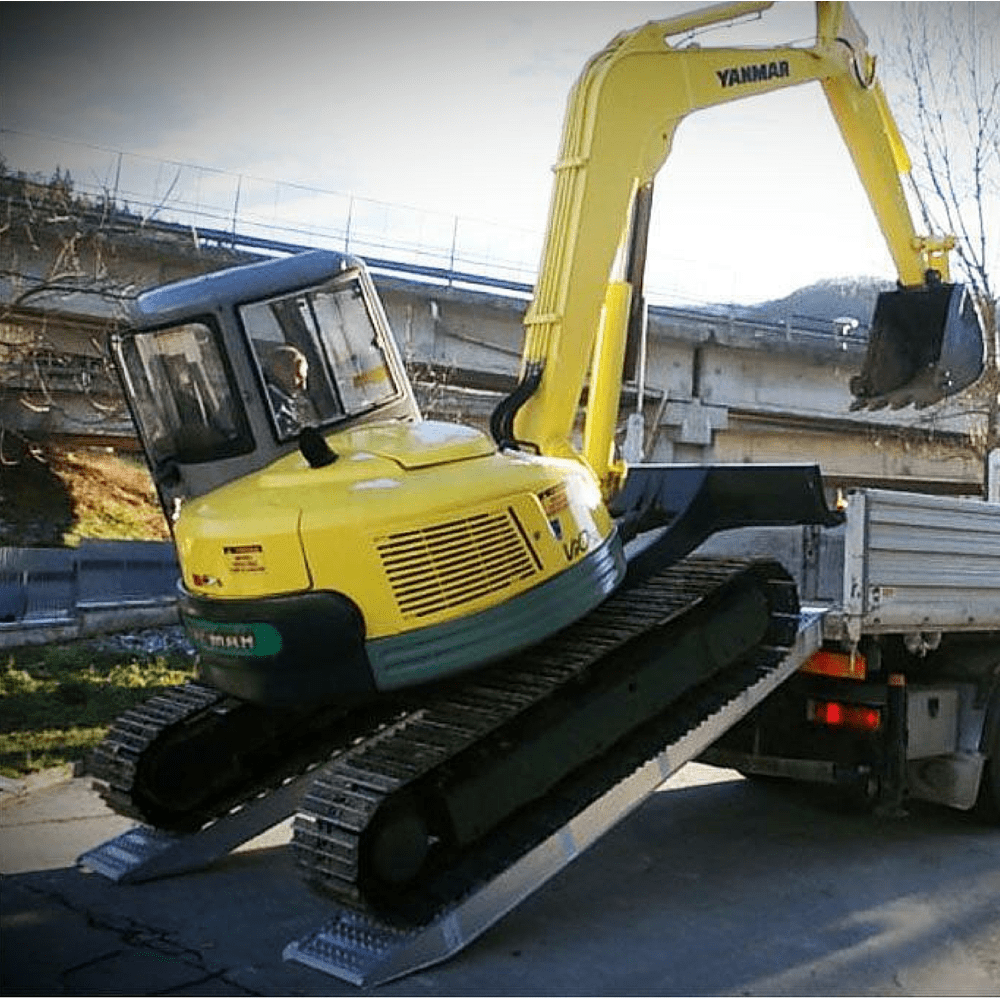

    Skid steers (Bobcats), excavators, Dingo's, Ditch Witches, backhoes and other machinery with 7-tonneĀ ratings can now be loaded onto trailers and truck beds with theseĀ aluminium machinery loading ramps. The ramps haveĀ raised sidesĀ to allow safe, worry-free loading.

    See the table below for Digga's full range of loading ramps.

    Ramp SpecificationsĀ

    Product

    Code

    Rated

    Capacity

    Ramp

    Mass

    Ramp

    Length

    Track

    Width

    (internal)

    Ramp

    Width

    Beam

    Series

    LR152530 1000kg 14kg 2.5m 255mm 300mm 64mm Standard
    LR233030 2000kg 23kg 3.0m 300mm 360mm 100mm Standard
    LR303030 3000kg 26kg 3.0m 300mm 360mm 115mm Standard
    LR303535 3000kg 26kg 3.5m 350mm 410mm 115mm Standard
    LR353535 3500kg 36kg 3.5m 350mm 410mm 125mm Standard
    LR403545 4000kg 45kg 3.5m 450mm 510mm 140mm Standard
    LR473545 4700kg 48kg 3.5m 450mm 510mm 155mm Standard
    LR473550 4700kg 51kg 3.5m 500mm 560mm 155mm Standard
    LR593545 5900kg 51kg 3.5m 450mm 510mm 165mm Standard
    LRU593550 6200kg 65kg 3.5m 500mm 560mm 165mm Universal
    LRU663550 7000kg 68kg 3.5m 500mm 560mm 170mm Universal
    LRU823550 9000kg 77kg 3.5m 500mm 560mm 180mm Universal

    Ā

    Click here to find out how to CHOOSE THE CORRECT DIGGA RAMP

    Can't find the ramp you're looking for? Use the chat function in the corner of the window orĀ Contact us for adviceĀ if you're unsure what ramps are suitable for you.

    Digga Authorised Dealer

    2 x Manufacturers Warranty

    We double the iron clad manufacturers warranty giving you up to 3 full years peace of mind knowing your ramps will perform exactly as they should. Registration required.

    10% Off Accessories

    We don't just have ramps. Shop bollards, fuel tanks, attachments and more with a bonus 10% off construction accessories with each ramps purchase using code LOADINGRAMPS10 at checkout.


    Bulky Delivery Item Details

    This product is bulky and requires delivery via a specialist courier to either a home address or business address. For delivery to a business address the receiver is required to have either adequate business facilities to off-load theĀ item via a forklift or loading dock available at the time of delivery during business hours. If delivery is to a residential home address or you do not have the business facilities to off-load please select residential tailgate delivery at checkout to have your item(s) delivered via a courier truck that has tailgate delivery capabilities.

    Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.
