Digga 9-Tonne 3.5m x 560mm Ezi-Loada Aluminium Loading Ramps

by Digga
Save $447.00
Original price $4,913.00
Current price $4,466.00
SKU: LRU823550

✓ Fast Shipping + Order Tracking
✓ Pickup In-Store Available
✓ Questions? Call Us: 1300 913 047

Bulky Delivery Item: This product is bulky and requires a tailgate courier for residential delivery or a forklift to unload for business deliveries. See below for full details.
Estimated Arrival: Between and .

Request a quote

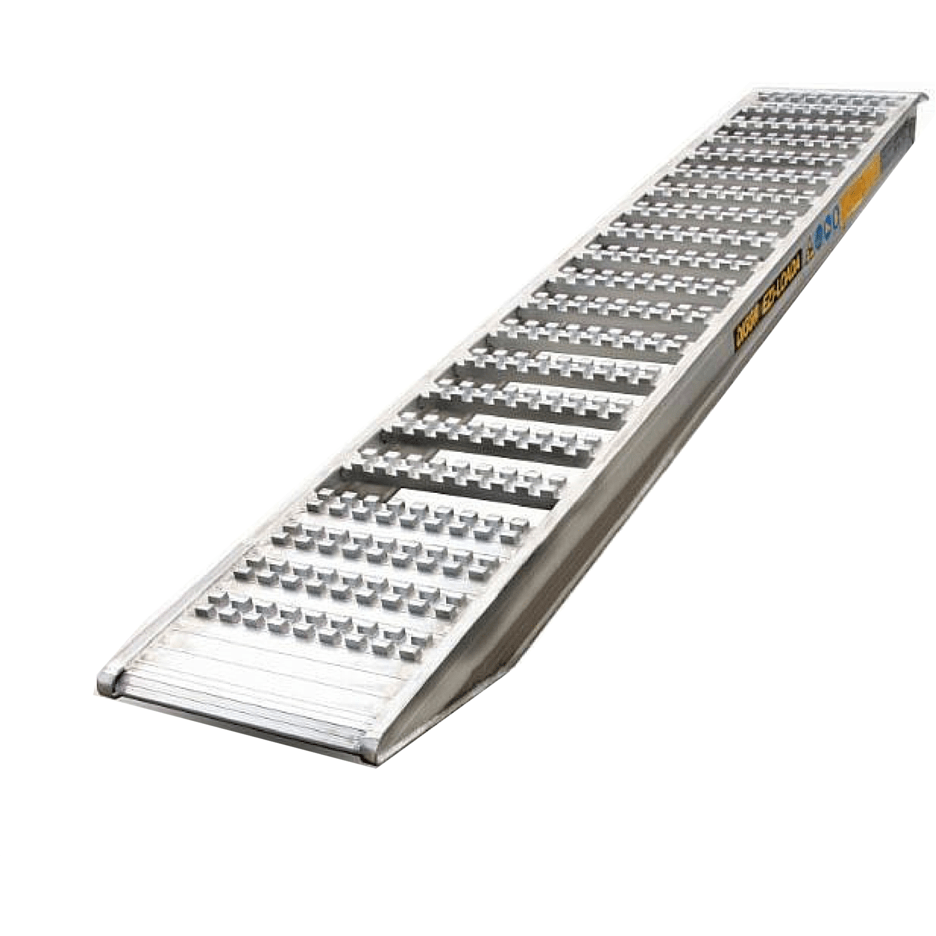

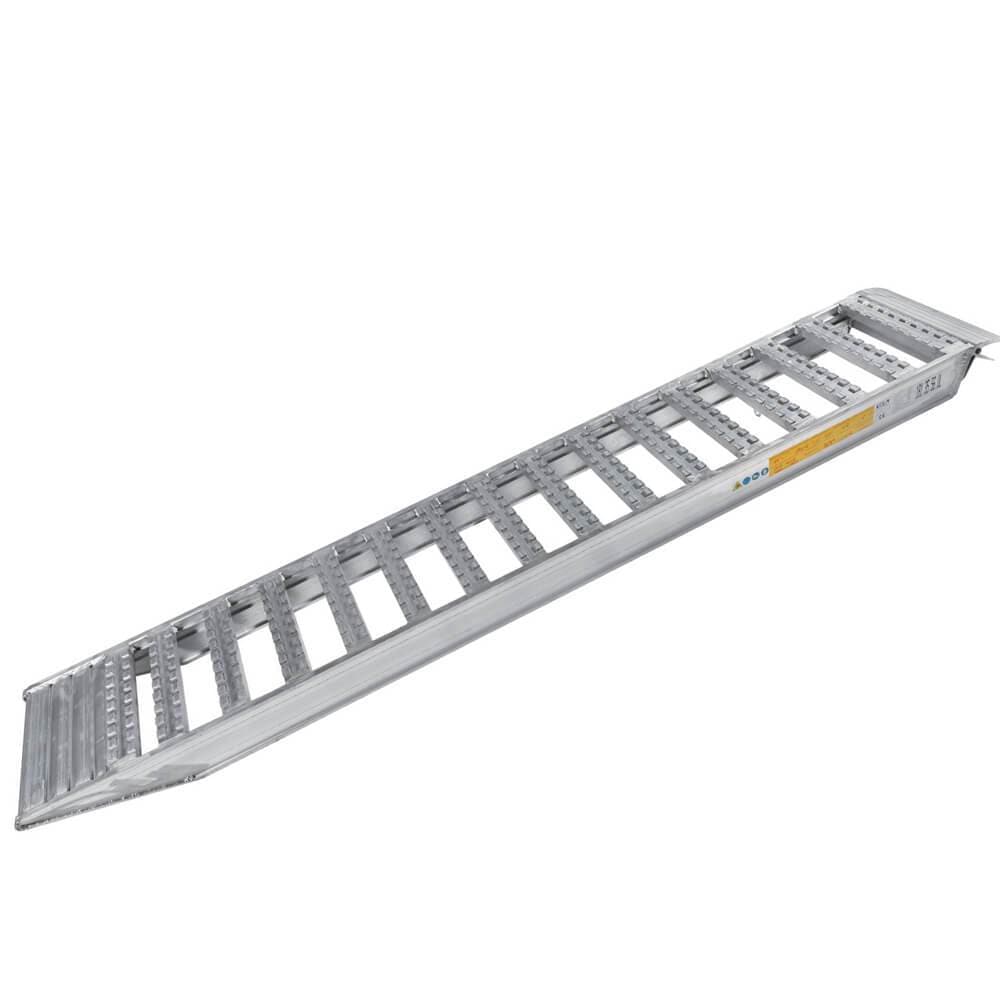

Digga 9 Tonne 3.5m x 560mm Ezi-Loada Aluminium Loading Ramps, Pair

Designed for all types of machines including steel tracks, rubber tracks and pneumatic (air) tyres, the Digga 9 Tonne 3.5m x 560mm Ezi-Loada Aluminium Machinery Loading Ramps are heavy-duty yet light in weight and come with enhanced safety that delivers on quality, performance and are cost-effective.

European designed and engineered, the Digga Ezi-Loada ramps feature the most advanced design available on the Australian market today.

Complete with connection plate and tongue as well as zinc-coated, steel pins these aluminium loading ramps are perfect for loading onto tipper body trucks, flatbed trucks or trailers.

Digga 9 Tonne 3.5m x 560mm Ezi-Loada Aluminium Loading Ramps

Features and Benefits

  • All purpose loading ramps suitable for rubber tracks, steel tracks, and wheeled machines

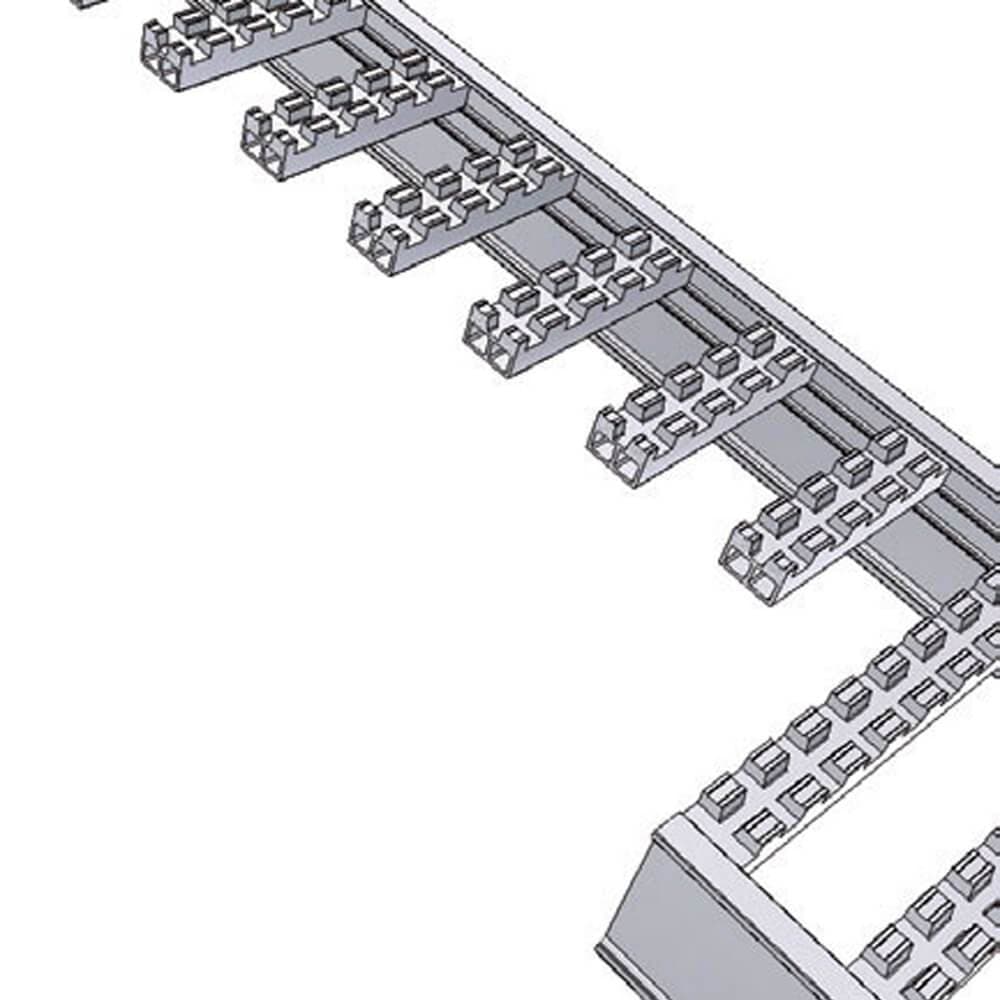

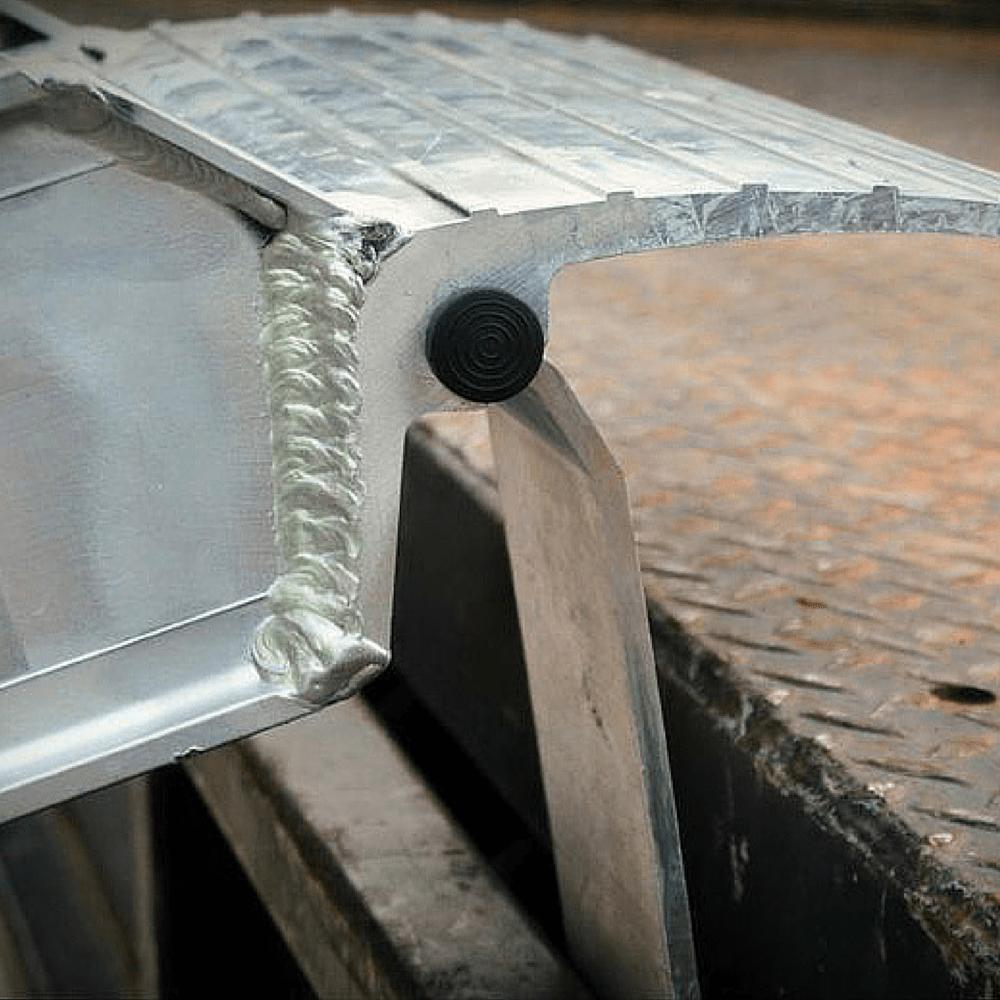

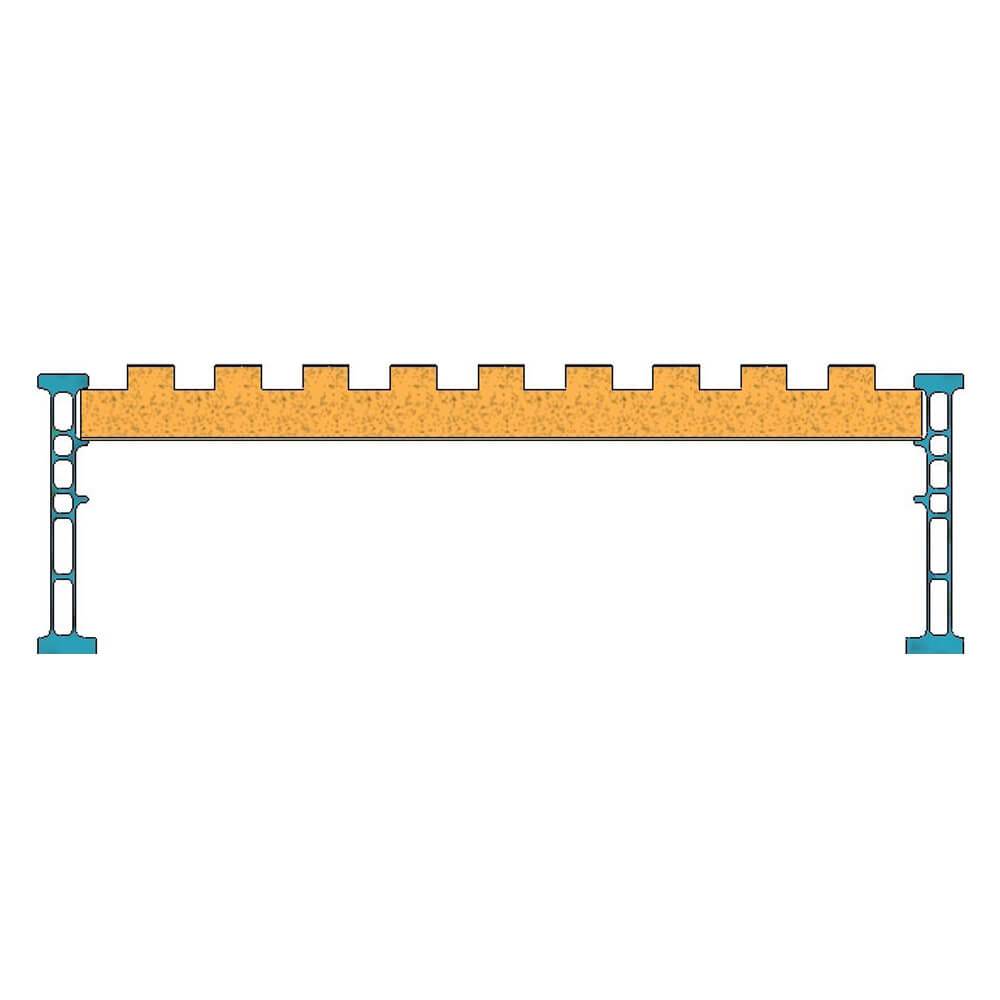

  • Patented, fully extruded, double T-beam design, interlocks the rungs into the body of the rail. No physical load is taken by the weld alone. The welds (top & bottom), hold the rung in its fitted position, adding superior strength & durability.
  • 3 different connection methods;

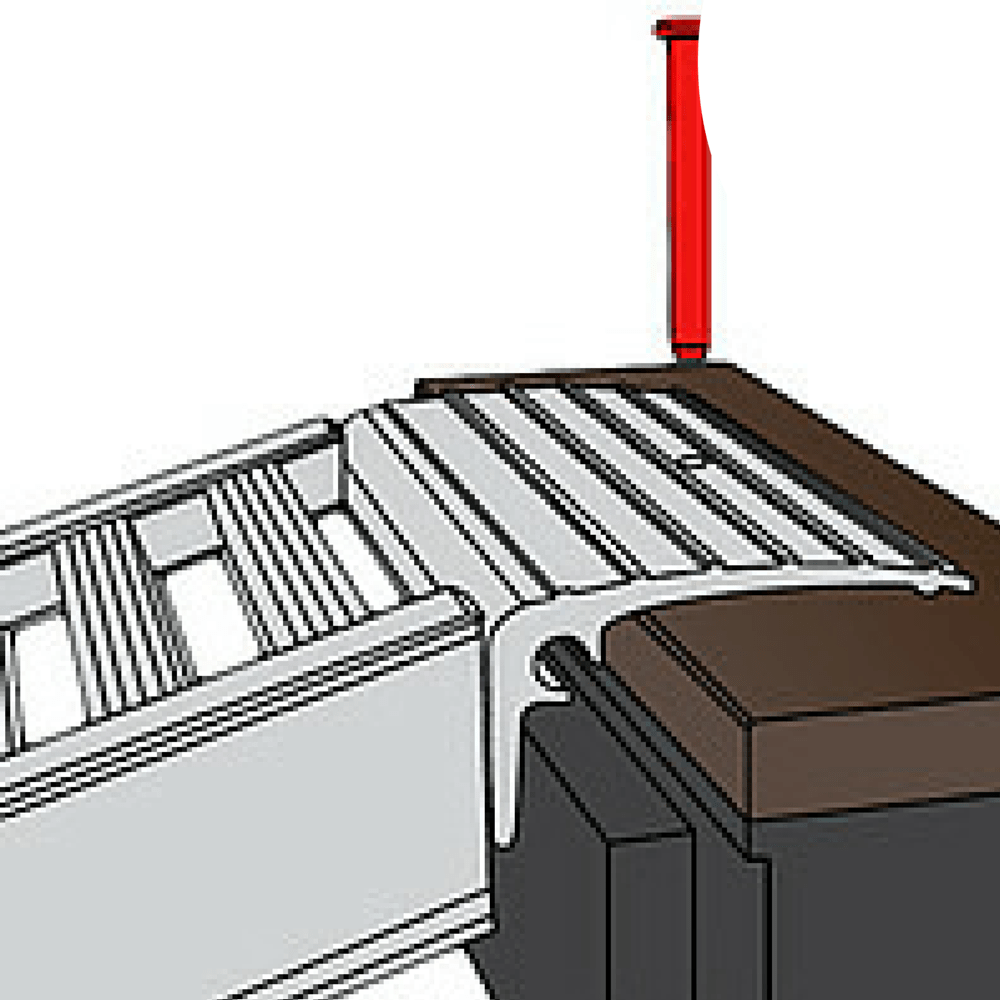

    • Pin (supplied)
    • Tongue (supplied)

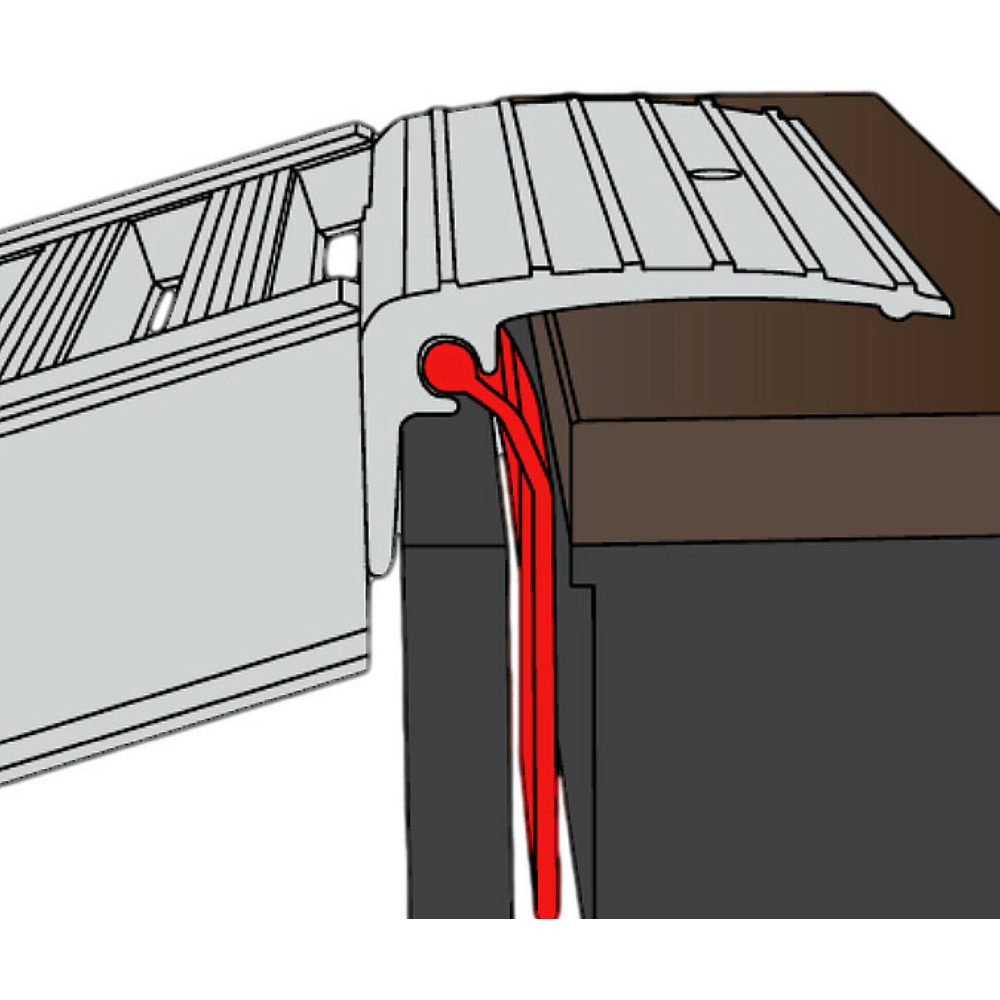

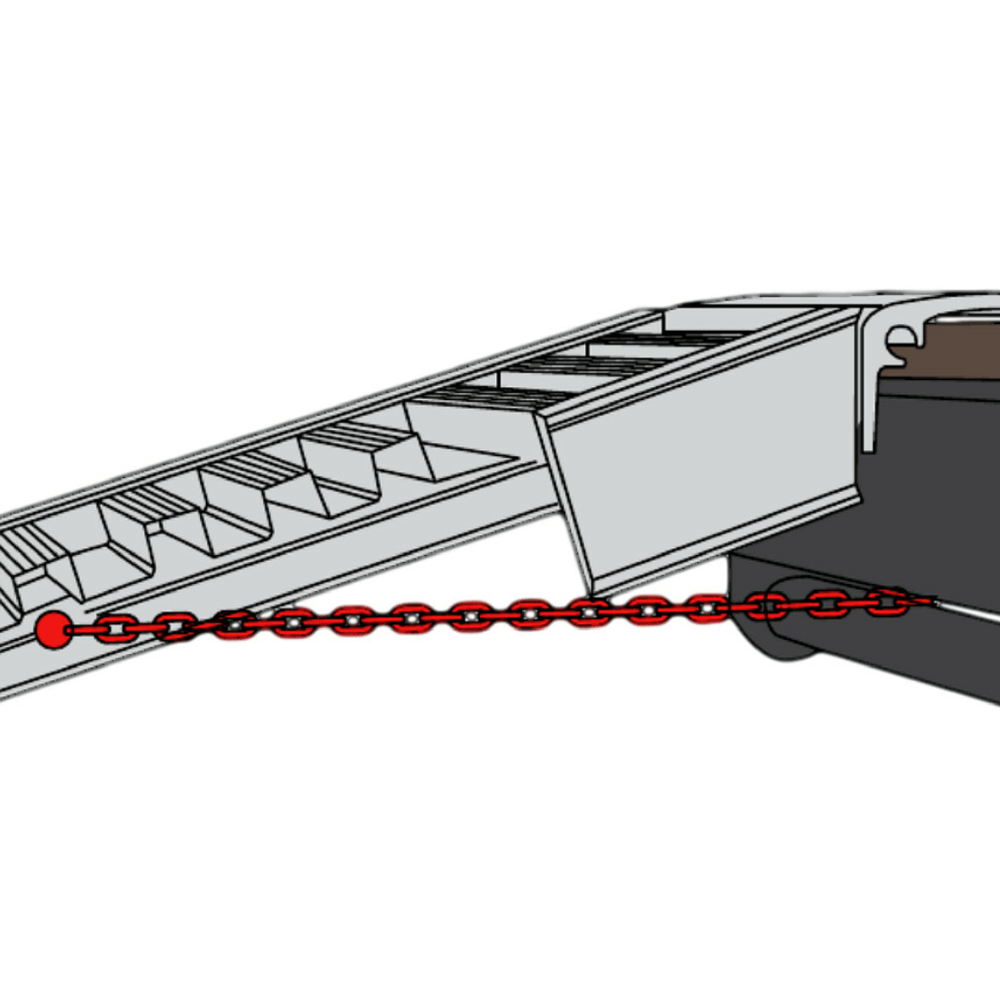

    • Chain (chain not supplied)
  • Enhanced beam strength
  • Huge 18 Month Warranty
  • Certified to the highest international standards including CE, TUV and GS certification guaranteeing the quality and safety of the ramps
  • Reinforced, easy load, lead on/off design are safer and more durable than conventional ramp designs
  • Rungs are level with the top of the main supporting rail, minimising wear and providing greater durability

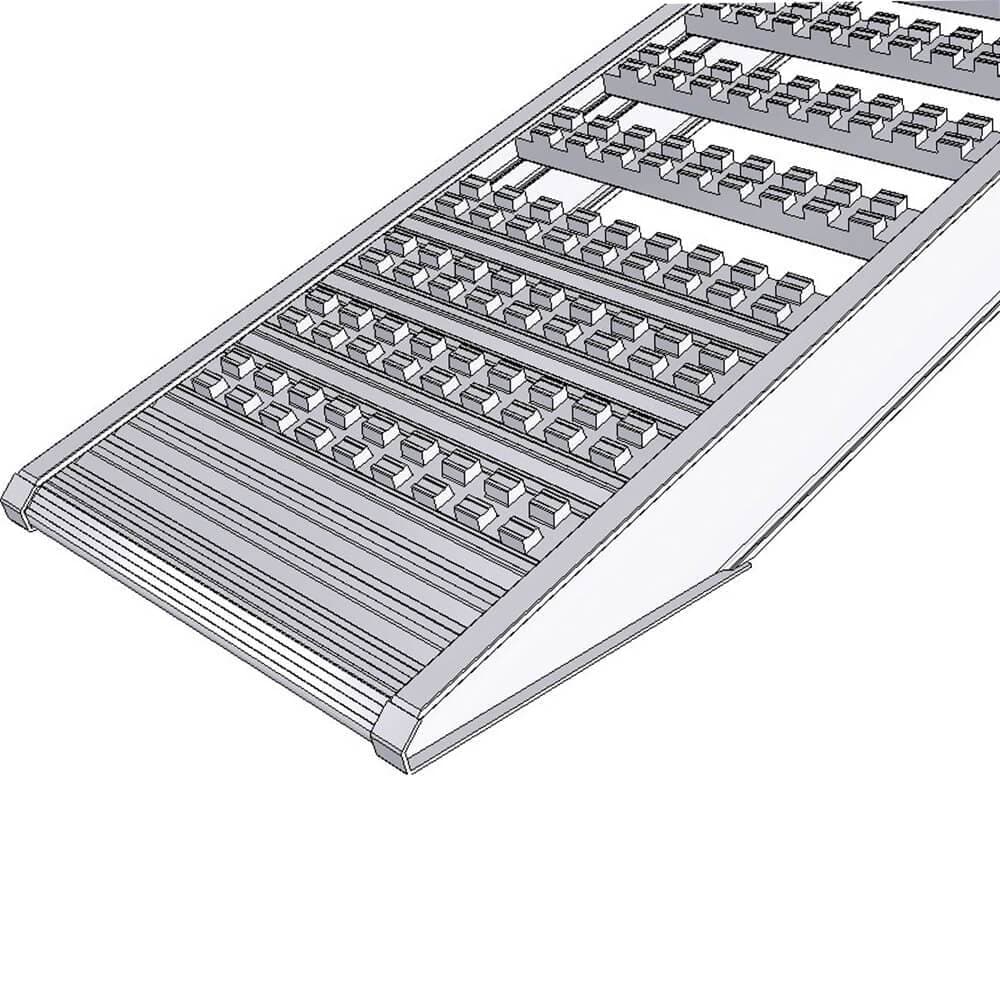

  • Patented, studded rungs are machined from a solid, not hollow extrusion, minimising slip or loss of grip during the loading/unloading activity
  • Sold in pairs


    • Rated Load Capacity Per Pair: 9 tonne
    • Ramp Weight Per Ramp: 77kg
    • Ramp Length: 3.5m
    • Internal Track Width: 500mm
    • Ramp Width: 560mm
    • Height Up To: 1.4m
    • Beam: 180mm
    • Series: Standard

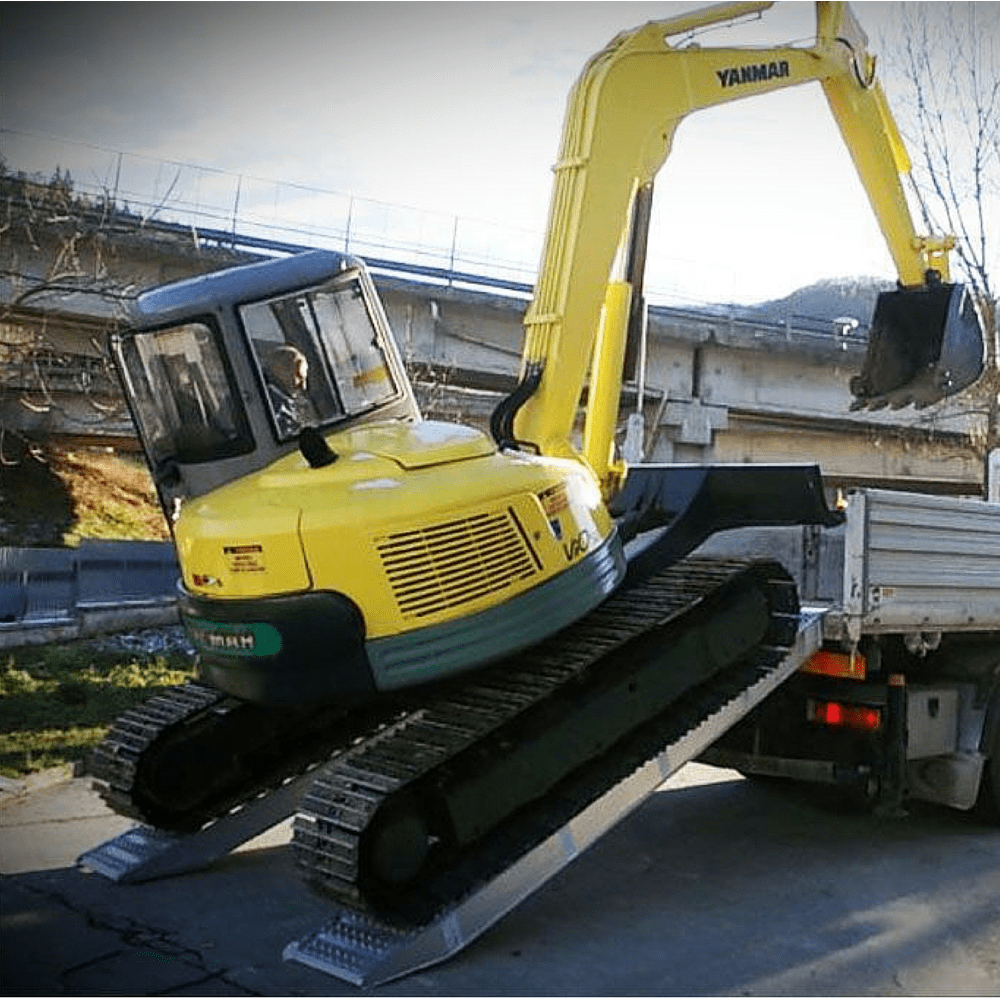

    Skid steers (Bobcats), excavators, Dingo's, Ditch Witches, backhoes and other machinery with 9-tonne ratings can now be loaded onto trailers and truck beds with these aluminium machinery loading ramps. The ramps have raised sides to allow safe, worry-free loading.

    See the table below for Digga's full range of loading ramps.

    Ramp Specifications
















    LR152530 1000kg 14kg 2.5m 255mm 300mm 64mm Standard
    LR233030 2000kg 23kg 3.0m 300mm 360mm 100mm Standard
    LR303030 3000kg 26kg 3.0m 300mm 360mm 115mm Standard
    LR303535 3000kg 26kg 3.5m 350mm 410mm 115mm Standard
    LR353535 3500kg 36kg 3.5m 350mm 410mm 125mm Standard
    LR403545 4000kg 45kg 3.5m 450mm 510mm 140mm Standard
    LR473545 4700kg 48kg 3.5m 450mm 510mm 155mm Standard
    LR473550 4700kg 51kg 3.5m 500mm 560mm 155mm Standard
    LR593545 5900kg 51kg 3.5m 450mm 510mm 165mm Standard
    LRU593550 6200kg 65kg 3.5m 500mm 560mm 165mm Universal
    LRU663550 7000kg 68kg 3.5m 500mm 560mm 170mm Universal
    LRU823550 9000kg 77kg 3.5m 500mm 560mm 180mm Universal


    Click here to find out how to CHOOSE THE CORRECT DIGGA RAMP

    Can't find the ramp you're looking for? Use the chat function in the corner of the window or Contact us for advice if you're unsure what ramps are suitable for you.
